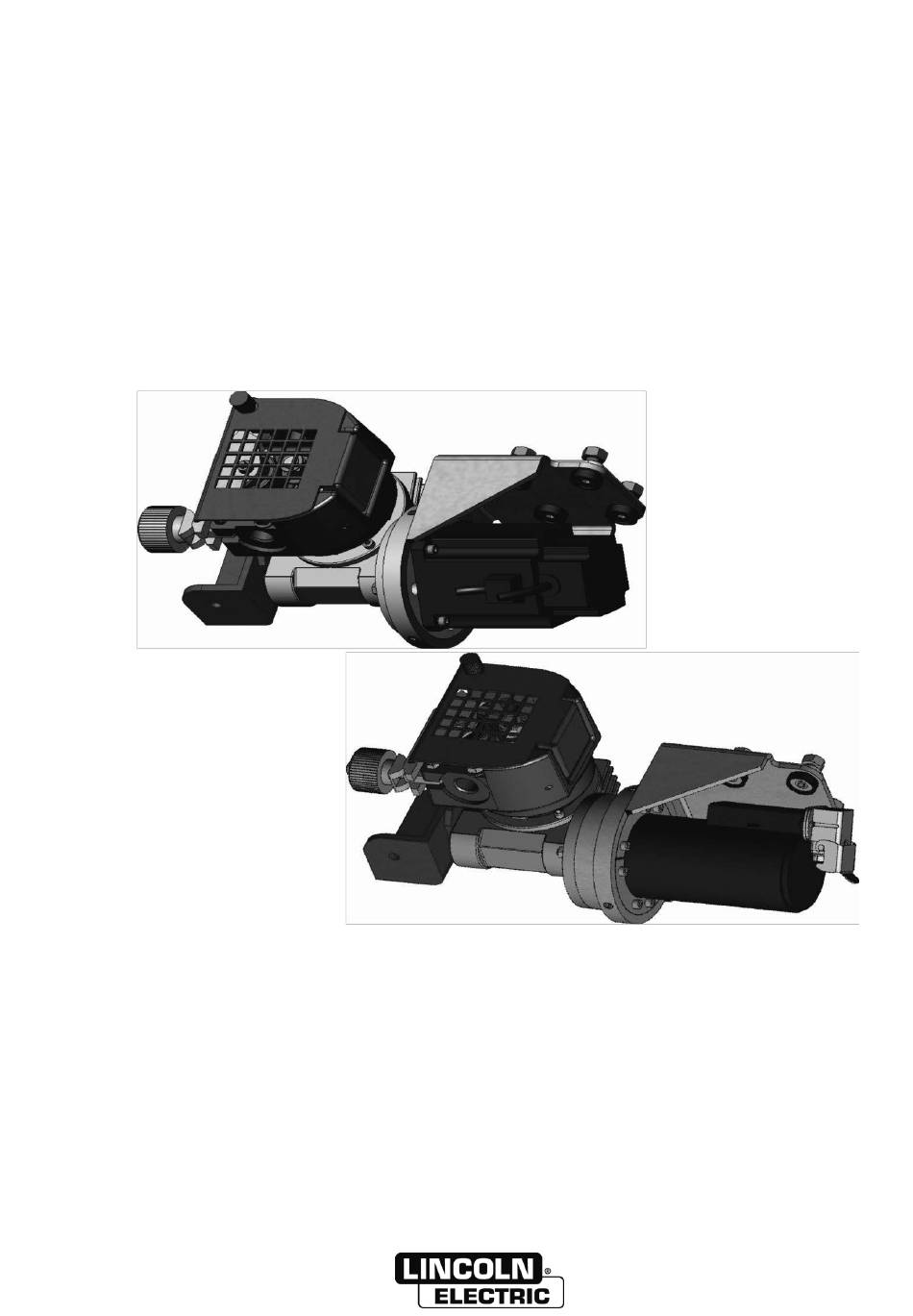

- Page 1 8695 5235 / G WIRE FEED UNIT N° W000315118 - W000315119 9109 6982 - 9109 6983 8695 5235 EDITION: Instructions for use REF. : REVISION: G DATE: 11-2018 Original instructions...
- Page 2 WIRE FEED UNIT DX7 8695 5235 / G Thank you very much for the trust you have shown by choosing this piece of equipment. It will give you trouble-enee service if it is used and maintained as recommended. Its design, component specifications and manufacturing are in accordance with applicable European directives.
-
Page 3: Table Of Contents
WIRE FEED UNIT DX7 8695 5235 / G CONTENTS SAFETY INSTRUCTIONS ....................... 5 AIRBORNE NOISE........................5 DESCRIPTION ......................... 6 HEAD ORIENTATION ......................10 USE ............................11 SPARE PARTS ........................12 PERSONAL NOTES .......................... 16... - Page 4 WIRE FEED UNIT DX7 8695 5235 / G REVISIONS REVISION B 08/05 DESIGNATION PAGE Complete update REVISION C 05/06 DESIGNATION PAGE To change logos REVISION D 06/07 DESIGNATION PAGE Reference change REVISION E 10/08 DESIGNATION PAGE Complete update + spareparts newoffer...
-
Page 5: Safety Instructions
WIRE FEED UNIT DX7 8695 5235 / G SAFETY INSTRUCTIONS For general safety instructions, please refer to the specific manual supplied with the equipment. AIRBORNE NOISE Please refer to the specific manual supplied with the equipment. Because the motor, reducing gear and plate all have the same potential (welding +), the metal parts must not touch the feed assembly. -
Page 6: Description
WIRE FEED UNIT DX7 8695 5235 / G DESCRIPTION VERSION DX7 3A VERSION DX7... - Page 7 WIRE FEED UNIT DX7 8695 5235 / G 1 - FUNCTION OF DX7 The DX7 plate gear motor unit feeds electrode wire for automatic flux welding equipment. 2 - VERSIONS DX7 3A 4,2 m/mn W000315118 9109 6982 SUBMERGED 15 m/mn...
- Page 8 9109 6220 The feed speed range with a MOTOVAR MV 20 unit is from 0.17 to 4.20 m/mm with the W000315118 model and 0.6 to 15 m/mm with the W000315119 model. The wire feed rollers are not part of unit DX7...
- Page 9 The feed speed range with a MOTOVAR MV 20 unit is from 0.17 to 4.20 m/mm with the 9109 6982 model and 0.6 to 15 m/mm with the 9109 6983 model. The wire feed rollers are not part of unit DX7...
-
Page 10: Head Orientation
WIRE FEED UNIT DX7 8695 5235 / G HEAD ORIENTATION The assembly can be turned along Y by unfastening the eight screws (M1) The head can be turned along Z by unfastening the three screws (M2) -
Page 11: Use
WIRE FEED UNIT DX7 8695 5235 / G STARTING UP Fix the gear motor assembly on the machine with four M10 screws with a centre distance of 60mm (do not forget the insulating plate). - Open the guard cover. - Assemble the wire guide on the plate entry side and the torch (MIG- MAG) or wire feed (A.S) on the plate exit side. -
Page 12: Spare Parts
WIRE FEED UNIT DX7 8695 5235 / G SPARE PARTS In order to avoid errors when supplying spare parts, we recommend that you send us a copy of the page with the list of parts duly completed. Please specify in the Order column the number of parts desired and indicate the type and the serial number of your equipment. - Page 13 9109 6156 Tangent buffer DX7 plate 9109 6152 9109 6157 Motor spacer flange GMP DX7 motor with tacho-generator W000269310 9109 6159 Rotation flange 9109 6158 Turning support 9109 4327 Insulation for M10 screw ...
- Page 14 WIRE FEED UNIT DX7 8695 5235 / G VERSION DX7 3A...
- Page 15 WIRE FEED UNIT DX7 8695 5235 / G normally in stock not in stock on request Item Ref. Stock Order Designation 9109 6166 Feed plate shaft .620 0429 20/40/12 6004 2RS bearing 9109 6146 Knob ...
-
Page 16: Personal Notes
WIRE FEED UNIT DX7 8695 5235 / G PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com...
