SKP Series

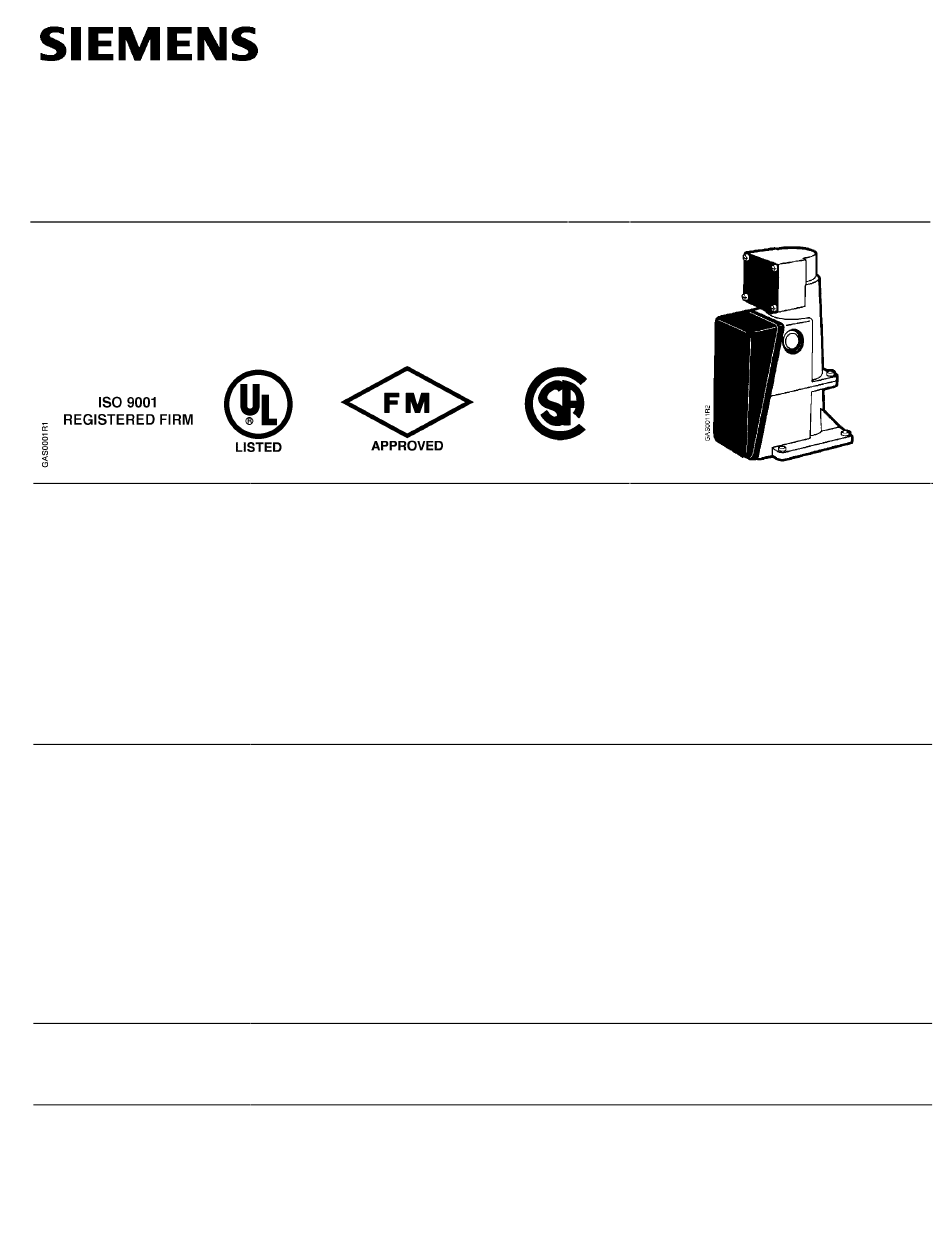

SKP10...U.. Electro-hydraulic
Actuators with Safety Shutoff Function
For Use With Gas Valves VG...
Description
Features
Application
SKP10... Electro-hydraulic actuators are used in combination with VG... series gas
valves to provide safety shutoff control for industrial and commercial burner
applications.
The compact SKP10 actuator opens slowly and closes rapidly upon interruption of
power. The two-stage models provide adjustable low and high fire control. The modular
design allows the SKP10... to be used in combination with all VG... series gas valves
from 1/2-inch to 6-inch size. The actuator is easily mounted on the square flange of any
VG... valve with the four bolts contained in the terminal box of the actuator (under
the green cover). No gaskets or seals are required when mounting the actuator. The
valve position is shown by a visible position indicator displaying the entire stroke range
of the actuator.
•
UL listed, FM approved, CSA certified for the United States and Canada, IRI
approvable, ISO 9001 certified; European, Australian and Japanese approved
versions available.
•
Proof of Closure-Over Travel (POC-OT) versions available.
•
Visual stroke indication.
•
Optional auxiliary switches available.
•
Modular construction allows 360
installation.
•
Low, 23 VA power consumption.
SKP10... series actuators may be combined with 1/2-inch to 6-inch VG... series gas
valve bodies. VG... series gas valves are ordered separately (See VG...U.. Technical
Instructions No. 155-512P25).
Technical Instructions
Document No. 155-513P25
o
rotation of actuator for easy field wiring and
Siemens Building Technologies, Inc.
SKP10...U..
Rev. 3, July, 2002
