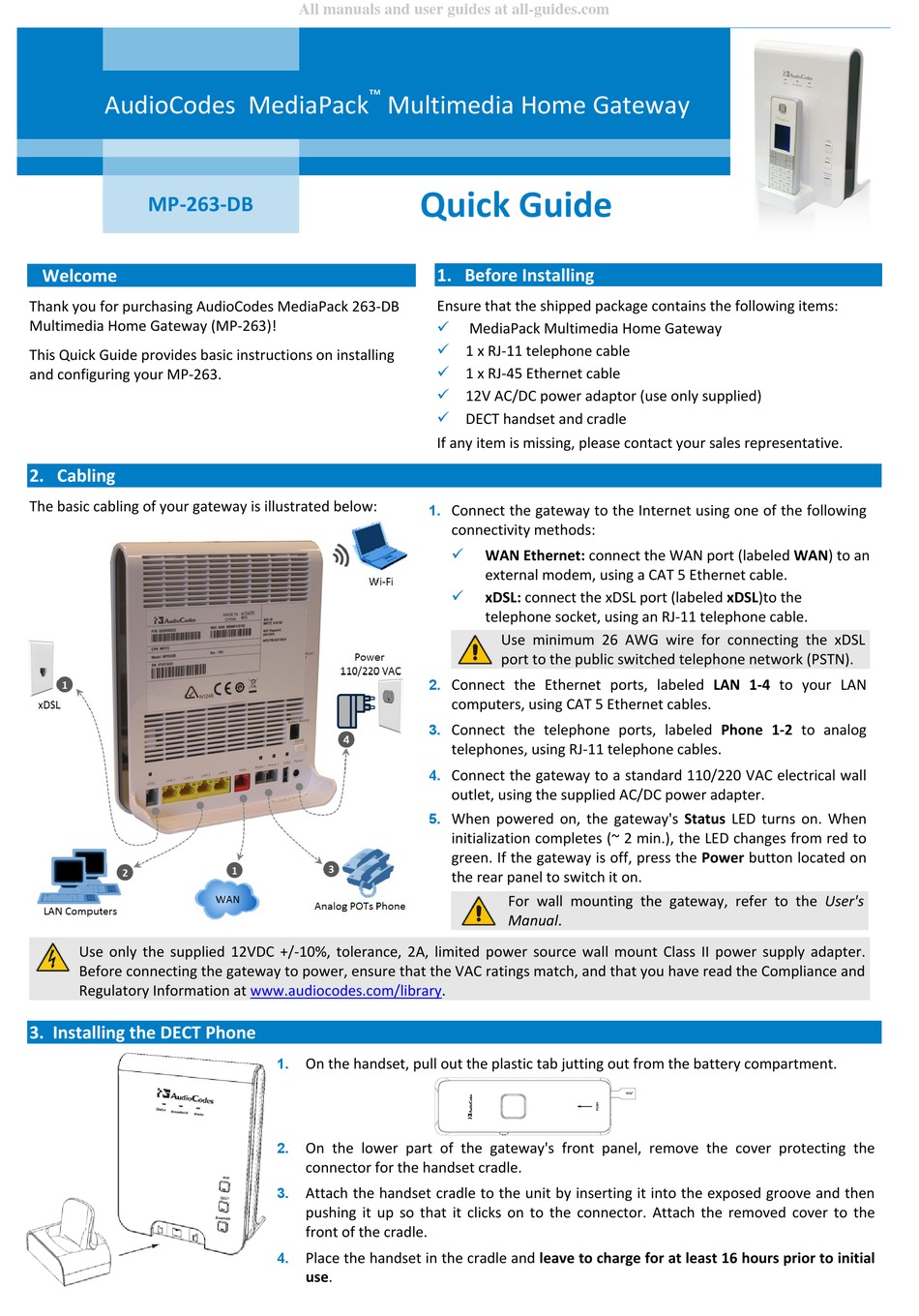

AudioCodes MediaPack 263-DB Quick Start Manual

AudioCodes MediaPack
MP-263-DB
Welcome
Thank you for purchasing AudioCodes MediaPack 263-DB
Multimedia Home Gateway (MP-263)!
This Quick Guide provides basic instructions on installing
and configuring your MP-263.
2. Cabling
The basic cabling of your gateway is illustrated below:
Use only the supplied 12VDC +/-10%, tolerance, 2A, limited power source wall mount Class II power supply adapter.
Before connecting the gateway to power, ensure that the VAC ratings match, and that you have read the Compliance and
Regulatory Information at www.audiocodes.com/library.
3. Installing the DECT Phone
All manuals and user guides at all-guides.com
™
Multimedia Home Gateway
Quick Guide
1. Before Installing
Ensure that the shipped package contains the following items:





If any item is missing, please contact your sales representative.
1.
2.
3.
4.
5.
On the handset, pull out the plastic tab jutting out from the battery compartment.
1.
2. On the lower part of the gateway's front panel, remove the cover protecting the
connector for the handset cradle.
Attach the handset cradle to the unit by inserting it into the exposed groove and then
3.
pushing it up so that it clicks on to the connector. Attach the removed cover to the
front of the cradle.
Place the handset in the cradle and leave to charge for at least 16 hours prior to initial
4.
use.
MediaPack Multimedia Home Gateway
1 x RJ-11 telephone cable
1 x RJ-45 Ethernet cable
12V AC/DC power adaptor (use only supplied)

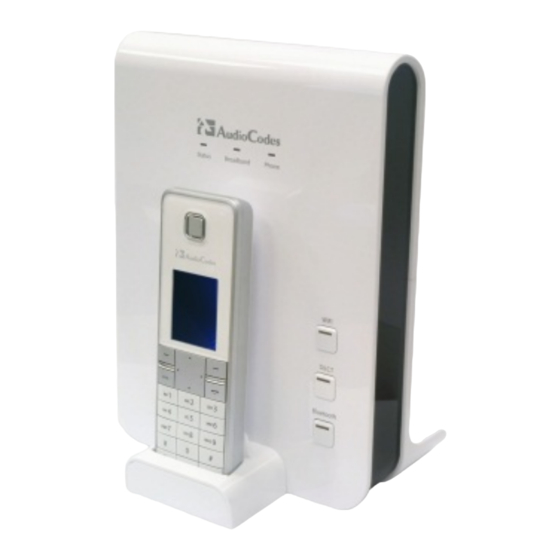

DECT handset and cradle
Connect the gateway to the Internet using one of the following
connectivity methods:
WAN Ethernet: connect the WAN port (labeled WAN) to an

external modem, using a CAT 5 Ethernet cable.
xDSL: connect the xDSL port (labeled xDSL)to the

telephone socket, using an RJ-11 telephone cable.
Use minimum 26 AWG wire for connecting the xDSL
port to the public switched telephone network (PSTN).
Connect the Ethernet ports, labeled LAN 1-4 to your LAN
computers, using CAT 5 Ethernet cables.
Connect the telephone ports, labeled Phone 1-2 to analog
telephones, using RJ-11 telephone cables.
Connect the gateway to a standard 110/220 VAC electrical wall
outlet, using the supplied AC/DC power adapter.
When powered on, the gateway's Status LED turns on. When
initialization completes (~ 2 min.), the LED changes from red to
green. If the gateway is off, press the Power button located on
the rear panel to switch it on.
For wall mounting the gateway, refer to the User's
Manual.
