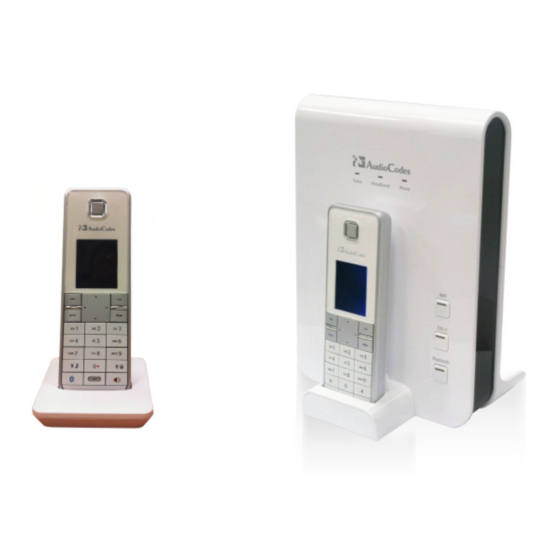

- Page 1 MP-252-WDNB MP-263-DB Multimedia Home Gateways MP-264-DB MP-272-DB Quick Guide AudioCodes® MediaPack™ Series DECT Handset...
- Page 2 Notice This Quick Guide describes the operation of AudioCodes’ MediaPack™ series MP-252-WDNB, MP-264-DB, MP-263-DB, MP-272-DB Cordless Digital Enhanced Cordless Telecommunications (DECT) Voice-over-IP (VoIP) phones. Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to...
-
Page 3: Table Of Contents
Table of Contents Safety Instructions ............6 Initial Installation of DECT Handset ....... 8 Registering the DECT Handset to the Base Unit ..10 Charging the Handset ..........11 Checking the Battery Level ........11 Replacing the Batteries ........... 12 Setting the Display Language ........ - Page 4 Redialing a Number ..........22 Answering a Call ............22 Answering or Rejecting a Second Call ..... 23 Ending a Call ............23 Adjusting the Volume during a Call ......24 Muting a Call ............24 Turning Off the Ringer ..........25 Activating the Speakerphone ........
- Page 5 Making a Three-Way Conference Call with your Handset and two External Calls ......31 Adding a Contact to the Phonebook ....... 31...
-
Page 6: Safety Instructions
Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. Unplug this product from the wall outlet and refer servicing to AudioCodes under the following conditions: • When the power supply cord or plug is damaged or frayed. - Page 7 • If the product exhibits a distinct change in performance. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak.
-
Page 8: Initial Installation Of Dect Handset
Initial Installation of DECT Handset The handset is shipped with rechargeable batteries already installed in the battery compartment. However, a plastic sheath separates the batteries from the handset’s electrical circuit. Before you can charge the handset, you need to remove this plastic sheath. On the handset, pull out the plastic tab jutting out from the battery compartment. - Page 9 Attach the handset cradle to the unit by inserting it into the exposed groove and then pushing it up so that it clicks on to the connector. Attach the removed cover to the front of the cradle. Note: Charge the batteries for at least 16 hours before initial use.
-
Page 10: Registering The Dect Handset To The Base Unit
Registering the DECT Handset to the Base Unit Before you can make or receive calls, you need to register the DECT handset to the MediaPack base unit. Note: Applicable for purchased stand-alone handset. Press the Menu softkey, and then select the Registration icon. -
Page 11: Charging The Handset
Charging the Handset Ensure that the MediaPack is connected to power. Place the handset in the charging cradle of the base unit so that the bottom of the phone sits in the base cradle. When correctly inserted in the cradle, the phone begins charging, indicated by the display of the charging levels of the battery icon on the phone's... -
Page 12: Replacing The Batteries
Replacing the Batteries The handset is shipped with rechargeable batteries. However, if you need to replace them, do the following: Remove the battery compartment cover, by sliding the cover out from the base of the phone toward the top end (in the direction of the arrow label printed on the cover). - Page 13 Warnings: • Risk of explosion if battery is replaced by an incorrect battery type; use only the nickel-metal hydride cell (NiMH) rechargeable batteries as provided with your phone. The manufacturer will not be held liable for damage arising from such non-compliance.
-
Page 14: Setting The Display Language
Setting the Display Language You can change the display language of your handset. In idle state, press the Menu softkey. Press the navigation keys to scroll to the HS Settings icon, and then press the Select softkey. Press the navigation keys to choose the Language option, and then press the Select softkey. -
Page 15: Overview
Overview Item Name Description Right Soft Key Key action is according to the text on the handset screen. Left Soft Key Key action is according to the text on the handset screen. - Page 16 Item Name Description Navigation Key For up, down, left, and right navigation in LCD screen. End Call Key During a call: press to end a call and go back to idle screen. Off Key Press and hold to power off the ...
-
Page 17: General Screen Description
General Screen Description Icon Description Steady when the handset is in range of the base. Additional bars (red, orange, and blue) are displayed as the signal strength increases. Flashes when the handset is not registered to the base or out of range of the base. When the handset is out of range, the LCD displays "Out of Range"... -
Page 18: Main Menu Description
Icon Description Ringer is switched off Keypad is locked Main Menu Description Unselected Icon Selected Icon Description Phonebook Alarm clock Base setting Phonebook Handset setting Registration... -
Page 19: Using The Phone
Using the Phone Making an External Call Pre-Dialing Preparatory dialing is when you first enter the phone number and only then dial it. This therefore, allows you to make changes to the number before making the call. Enter the phone number; the number is displayed on the screen. -
Page 20: Calling From Your Phonebook
Calling from your Phonebook If you have added any contacts to your phonebook, you can dial from the phonebook. Press the PB softkey to access the phonebook. Press the navigation keys to choose the desired phonebook entry, and then press the Select softkey. -
Page 21: Establishing A Second Call
Establishing a Second Call While you are in an active call, you can establish a second call. When you establish a second call, the first call is put on hold. You can toggle between the calls by placing one call on hold while speaking to the other call To establish a second call, do one of the following: Making a second call directly: Press... -
Page 22: Redialing A Number
Redialing a Number You can dial numbers that were previously dialed, which are stored in the Redial List. Press the navigation key to access the Redial List. Press the navigation keys to select the desired number, and then press the Select softkey. Press to dial the selected entry. -
Page 23: Answering Or Rejecting A Second Call
Answering or Rejecting a Second Call While you are talking on the phone, you can receive a second call. When there is a second incoming call, the phone beeps and "Call Waiting" is displayed on the screen with the calling party's name and number. To answer a second call: Press ;... -
Page 24: Adjusting The Volume During A Call
Adjusting the Volume during a Call During a call, you can adjust the volume of the handset earpiece, and hands-free to one of five levels. During a call, press the navigation keys to increase or decrease the volume level, respectively; the screen displays the current volume setting. -
Page 25: Turning Off The Ringer
Turning Off the Ringer You can turn off the ringer of the handset that audibly notifies of incoming calls. To turn off the ringer: In idle mode, press and hold (shares the * key) key to turn off the ringer. The icon is displayed on the screen. -
Page 26: Paging Your Handset
Paging your Handset You can locate the handset by paging the handset from the base. To page the handset: On the base unit, press on (less than two seconds) the DECT button; the LED changes to orange and all handsets registered to the base ring for up to 60 seconds and "Incoming Call HS LOCATOR"... -
Page 27: Saving A Redial Number To The Phonebook
Saving a Redial Number to the Phonebook You can save a number listed in the Redial List to the phonebook. Press the navigation key to access the Redial List. Press the navigation keys to select the desired number, and then press the Select softkey. Press the Menu softkey. -
Page 28: Deleting The Entire Redial List
navigation keys to choose the Delete Press the option, and then press the Select softkey; the "Delete Confirm" message is displayed. Press the OK softkey to confirm deletion. Deleting the Entire Redial List You can delete all the entries in the Redial List. Press the navigation key to access the Redial List. -
Page 29: Calling (Intercom) Another Handset
Calling (Intercom) another Handset An intercom call is a call from one handset to another handset, registered to the MediaPack base unit. Note that these internal calls are in High Definition (HD) quality. Press the navigation key; the screen displays a list of the registered handsets. -
Page 30: Three-Way Conference Calls
Three-Way Conference Calls You make three-way conference calls composed of the following call party types: Two handsets and an external party Your handset and two external calls Making a Three-Way Conference Call with another Handset and an External Party The conference call feature allows one external call to be shared with two handsets (in intercom). - Page 31 Making a Three-Way Conference Call with your Handset and two External Calls You can make a three-way conference call between your handset and two external calls. This can be done when you have two external calls, where you are talking with one and the other call is waiting (on hold). Press the Menu softkey, and then choose the Conference option.
- Page 32 InTouch, IPmedia, Mediant, MediaPack, NetCoder, Netrake, Nuera, Open Solutions Network, OSN, Stretto, TrunkPack, VMAS, VoicePacketizer, VoIPerfect, VoIPerfectHD, What’s Inside Matters, Your Gateway To VoIP and 3GX are trademarks or registered trademarks of AudioCodes Limited. All other products or trademarks are property of their respective owners. Product specifications are subject to change without notice.
