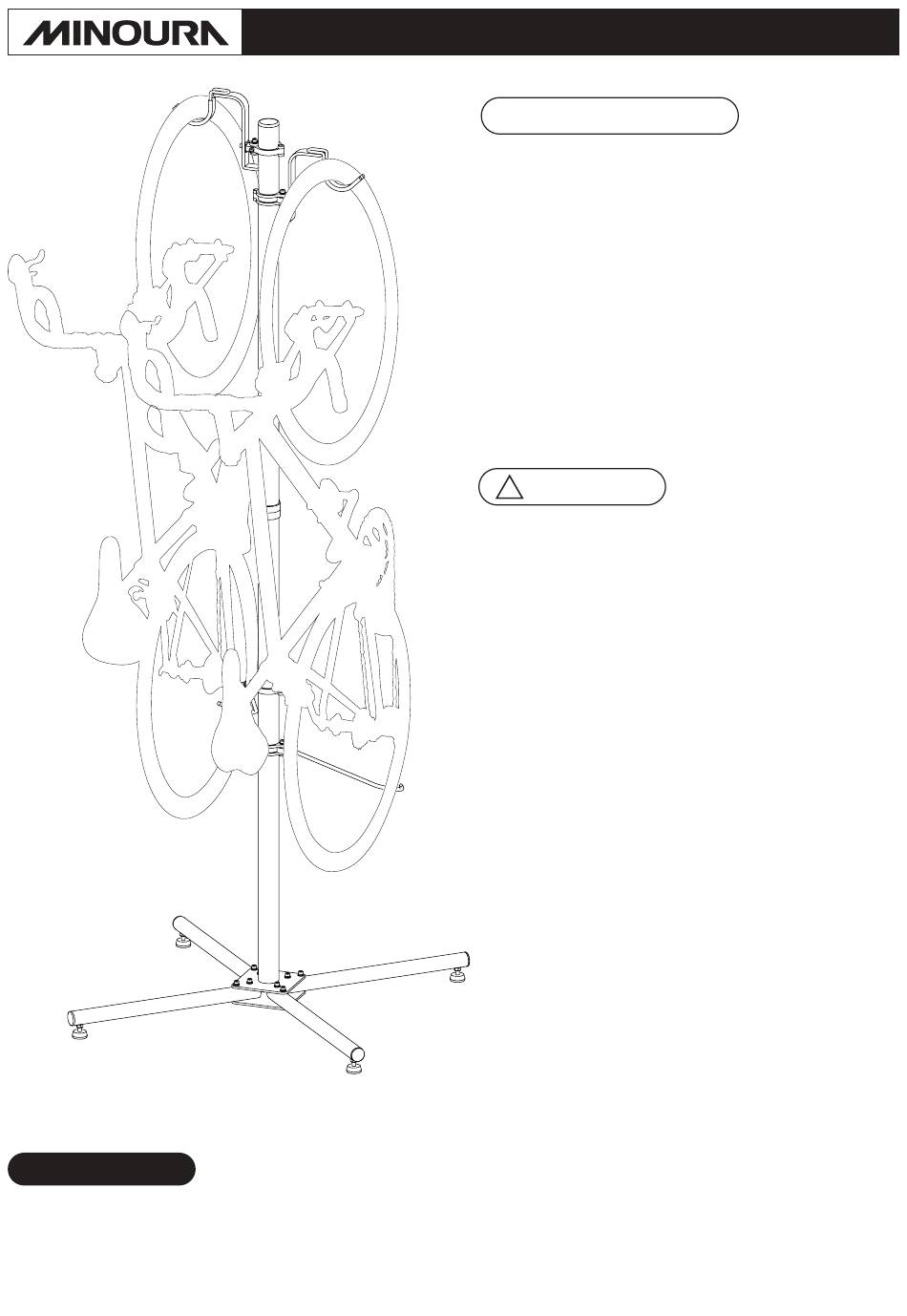

(Hanging 2 road bikes image
in K-style leg)
Contact
MINOURA Japan
(for ALL customers, including Canada)
134-1 Shimomiya, Godo, Anpachi, Gifu 503-2312 Japan
Mail minoura@minoura.jp
Web www.minoura.jp
P-600AL-6S "Closet-Cyclist"
If you have question or problem on this product, please contact the shop where you originally purchase this product
or the distributor in your country first. The distributor information can be found on our web site. Only when you
cannot obtain enough service from them, you can contact Minoura directly.
Features & Benefits
• Save vast amounts of space by hanging the bicycles
vertically from the front wheel.
• Alloy pillar is durable, light weight and rust proof.
• You can choose from two different styles on the base
leg layout; K-style for more effective space savings by
placing just next to a wall, or X-style for better stability.
• Newly designed alloy clamp holds the attachment
securely and easily to adjust height.
• Top hook is padded with soft plastic to prevent damage
to the rim. The unique dual hook design avoids
twisting the bike while being stored.
• Holds a total of 40 kg (max 20 kg per side).
Cautions
!
• For standard 2-wheel bicycle only. Tandem, recumbent,
long tail bike and DH bike with super long suspension
fork may not be used on this stand befcause the rear
wheel reach the floor even if you set the top hook at the
highest position.
• Set the stand on an even and horizontal floor.
Adjust each foot precisely to insure each of the foot's
four points touch the floor evenly.
• Be sure to keep the weight on the stand balanced.
A heavy bike on one side without a similar weight bike on
the other side may cause the stand to tip.
• The clamp is made of strong but lightweight material.
Do not overtighten or the bolt may come out of the
housing, ruining the clamping mechanism.
• Follow the correct order for tightening the screws. Failure
to do so may lead to improperly tightened screws.
• Screw the bolt using your finger at least in the first 3 –
4 rotations in order to prevent wrong threading. After
confirming the bolt is threaded properly without any
problem, you can now use a tool for tightening.
• To prevent the stand from tipping over backwards, the
stand should be placed next to a wall when you choose
K-style leg combination.
• The rear wheel hook is a guide, not a lock. It is there to
help maintain balance.
MINOURA North American Tech Center
(for U.S. residents ONLY)
Mon - Fri, 9 am - 5 pm (PCT)
Phone 1-510-538-8599 Fax 1-510-538-5899
Mail support@minourausa.com
– instructions manual
(ver.6.4 2021/6)
Made in Japan
