- Page 1 NetOn MS-6633 (V1.X) AIO PC G52-66331X8...
-
Page 2: Copyright Notice
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for FAQ, technical guide, BIOS updates, driver up- dates and other information: http://global.msi.com.tw/index.php? func=service Contact our technical staff at: http://ocss.msi.com.tw... -
Page 3: Safety Instructions
Safety Instructions Always read the safety instructions carefully. Keep this user’s manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. -
Page 4: Fcc-B Radio Frequency Interference Statement
FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residen- tial installation. -
Page 5: Weee (Waste Electrical And Electronic Equipment) Statement
WEEE (Waste Electrical and Electronic Equipment) Statement... -
Page 8: Table Of Contents
CONTENTS Copyright Notice...ii Trademarks...ii U.S. Patent Numbers...ii Revision History...ii Technical Support...ii Safety Instructions...iii FCC-B Radio Frequency Interference Statement...iv WEEE (Waste Electrical and Electronic Equipment) Statement...v Getting Started...1 Mainboard Specifications...2 System Specifications...3 System Configurations...4 Packing Contents...12 viii... -
Page 9: Getting Started

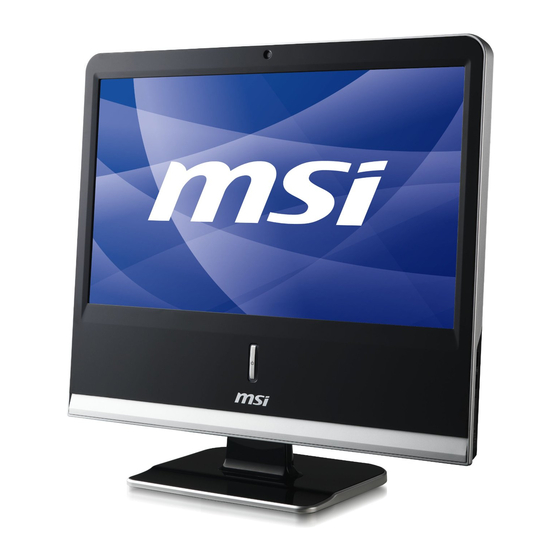

Getting Started Getting Started Congratulations for purchasing the MSI NetOn AIO PC. This is your best choice for all in one PC. It can easily be set anywhere. The feature packed platform also gives you an exciting PC experience. -
Page 10: Mainboard Specifications
NetOn AIO PC Mainboard Specifications Processor - Intel Atom processor N270/ N280 (Optional) ® - Front Side Bus (FSB) 533 MHz (N270)/ 667 MHz (N280) - Thermal Design Power (TDP) 2.5 W - Highest Frequency Mode (HFM) 1.6 GHz - Lowest Frequency Mode (LFM) 800 MHz (N270)/ 1 GHz (N280) Chipset - North Bridge: Intel 945GSE chipset... -
Page 11: System Specifications
Getting Started System Specifications LCD Display - 18.5” TFT LCD display with an optimal resolution of 1366 X 768 Input/ Output (I/O) - 1 LAN jack - 1 power jack - 2 PS/2 ports - 2 audio jacks - 4 USB ports Power Supply - 65 watt power adapter with active PFC - Delta/ ADP - 65HB BB... -
Page 12: System Configurations
NetOn AIO PC System Configurations Front View Webcam (Optional) The built-in webcam with the microphone can be used for picture taking, video recoding, online conferencing and any other interactive applications. Microphone (Optional) The built-in microphone can be used for video chatting online. -
Page 13: Lcd Display
Power Button/ LED Press the power button to turn the system on and off. The blue power LED is on when you turn on the system; the blue power LED is off when you turn off the system. LCD Display The 18.5-inch TFT LCD display is with an optimal resolution of 1366 X 768. -
Page 14: Back View
NetOn AIO PC Back View * We suggest that you should connect the power adapter to your AIO PC first and then connect the power cord to the socket-outlet for safety reason. -
Page 15: Stereo Speakers
Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. Power Jack The power adapter converts AC power to DC power for this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. -
Page 16: Usb Ports
NetOn AIO PC USB Ports The USB (Universal Serial Bus) port is provided for attaching USB devices such as mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices. LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). -
Page 17: Side View
Getting Started Side View Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. Eject Button/ ODD LED Press the eject button to open the optical disk drive. The ODD LED is on when CD/ DVD is read from or written to the optical disk drive. -
Page 18: Optical Disk Drive
NetOn AIO PC Optical Disk Drive USB Ports The USB (Universal Serial Bus) port is provided for attaching USB devices such as mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices. Card Reader Drive The built-in card reader may support various types of memory card, such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media Card) cards that usually used in devices like digital cameras, MP3 players, mobile phones and PDAs. - Page 19 Step 2. Line up the screw holes accordingly to lock the stand with one thumb screw. Note: There are two different ways to lock this thumb screw. Way 1 Lock the stand with fingers (twist the thumb screw clockwise). Step 3. Place your system vertically and the installation is finished. Way 2 Lock the stand with a flathead screwdriver.
-
Page 20: Packing Contents
NetOn AIO PC Packing Contents NetOn AIO PC Stand LCD Display Wiper * The blank CD is for system recovery backup. * Please contact us immediately if any of the item is damaged or missing. * The picture is for your reference only and your packing contents may slightly vary depending on the model you purchased.
