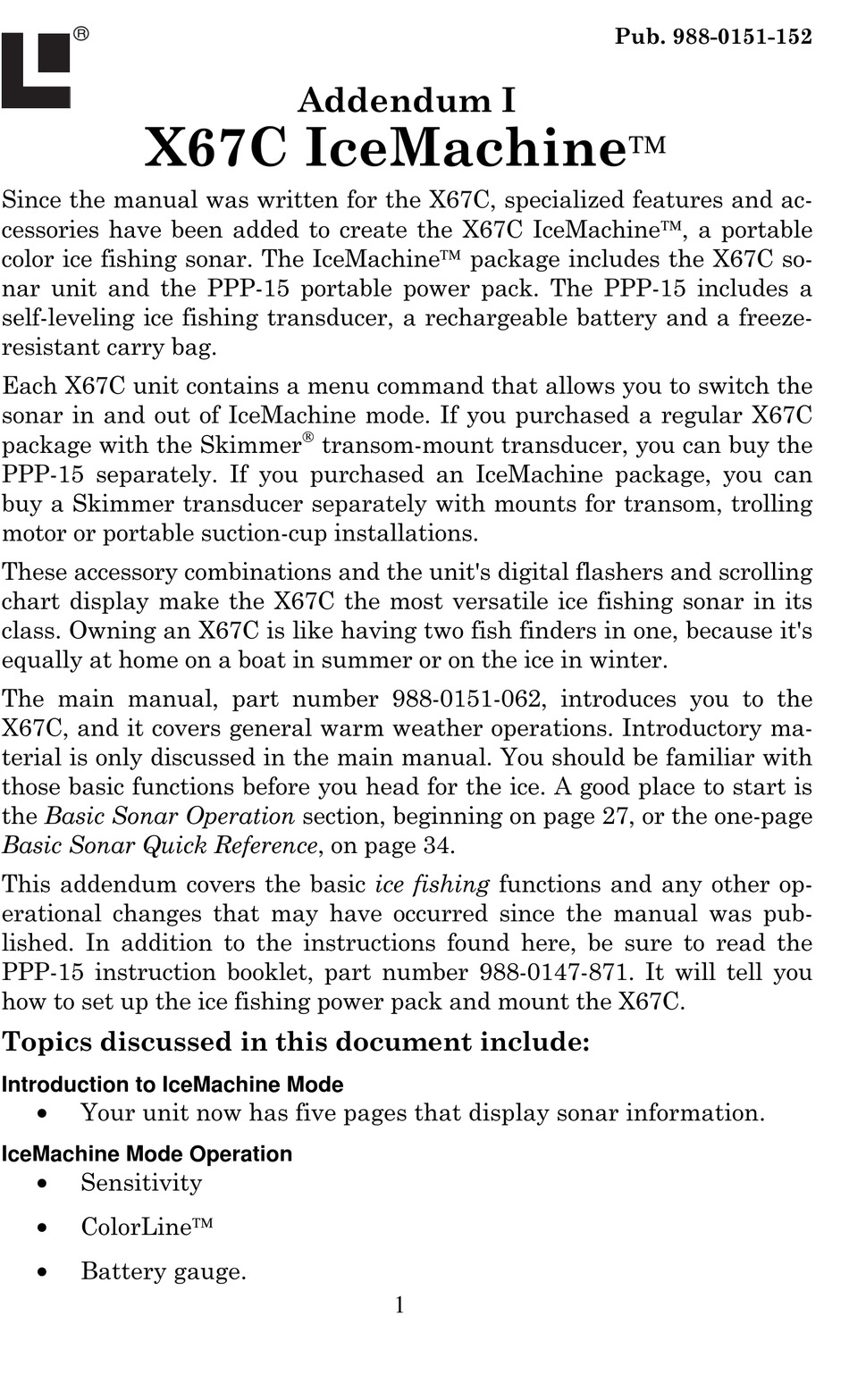

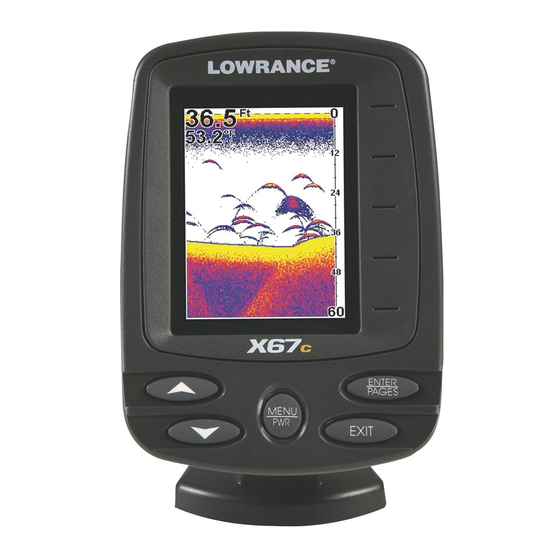

X67C IceMachine
Since the manual was written for the X67C, specialized features and ac-
cessories have been added to create the X67C IceMachine, a portable
color ice fishing sonar. The IceMachine package includes the X67C so-
nar unit and the PPP-15 portable power pack. The PPP-15 includes a
self-leveling ice fishing transducer, a rechargeable battery and a freeze-
resistant carry bag.
Each X67C unit contains a menu command that allows you to switch the
sonar in and out of IceMachine mode. If you purchased a regular X67C
package with the Skimmer
PPP-15 separately. If you purchased an IceMachine package, you can
buy a Skimmer transducer separately with mounts for transom, trolling
motor or portable suction-cup installations.
These accessory combinations and the unit's digital flashers and scrolling
chart display make the X67C the most versatile ice fishing sonar in its
class. Owning an X67C is like having two fish finders in one, because it's
equally at home on a boat in summer or on the ice in winter.
The main manual, part number 988-0151-062, introduces you to the
X67C, and it covers general warm weather operations. Introductory ma-
terial is only discussed in the main manual. You should be familiar with
those basic functions before you head for the ice. A good place to start is
the Basic Sonar Operation section, beginning on page 27, or the one-page
Basic Sonar Quick Reference, on page 34.
This addendum covers the basic ice fishing functions and any other op-
erational changes that may have occurred since the manual was pub-
lished. In addition to the instructions found here, be sure to read the
PPP-15 instruction booklet, part number 988-0147-871. It will tell you
how to set up the ice fishing power pack and mount the X67C.
Topics discussed in this document include:
•
Your unit now has five pages that display sonar information.
•
Sensitivity
•
•
Addendum I
transom-mount transducer, you can buy the
1
Pub. 988-0151-152
