Electronic Temperature Sensor
This instruction sheet tells how to install your EP-35 temp sensor and
connect it to a NMEA 2000
components. You must refer to your digital gauge, sonar or GPS unit's
manual for sensor operation instructions.
Caution:
Installing LowranceNET NMEA 2000 devices is significantly
different from installing earlier Lowrance components without
NMEA 2000 features. You should read all of the installation
instructions before proceeding. You should decide where to
install all components before drilling any holes in your vessel.
Some sonar or GPS units may require a software upgrade to display
NMEA 2000 data correctly and a manual addendum describing how to
operate the sensor. You can download these free and get additional
information on the NMEA 2000
our web site, www.lowrance.com.
All Lowrance NMEA 2000 capable devices are either NMEA 2000
certified or certification is pending. See our web site for the latest
product status information.
Temp module
The EP-35 consists of the temp sensor module, a blue female locking
cable connector and the smart module, which converts analog
EP-35 Temp
Installation Instructions
Smart module
The EP-35 temperature sensor.
network using LowranceNET network
compatible LowranceNET system at
Blue female NMEA
2000 connector
1
Pub. 988-0154-471
Advertisement
Related Manuals for Lowrance EP-35
Summary of Contents for Lowrance EP-35
-

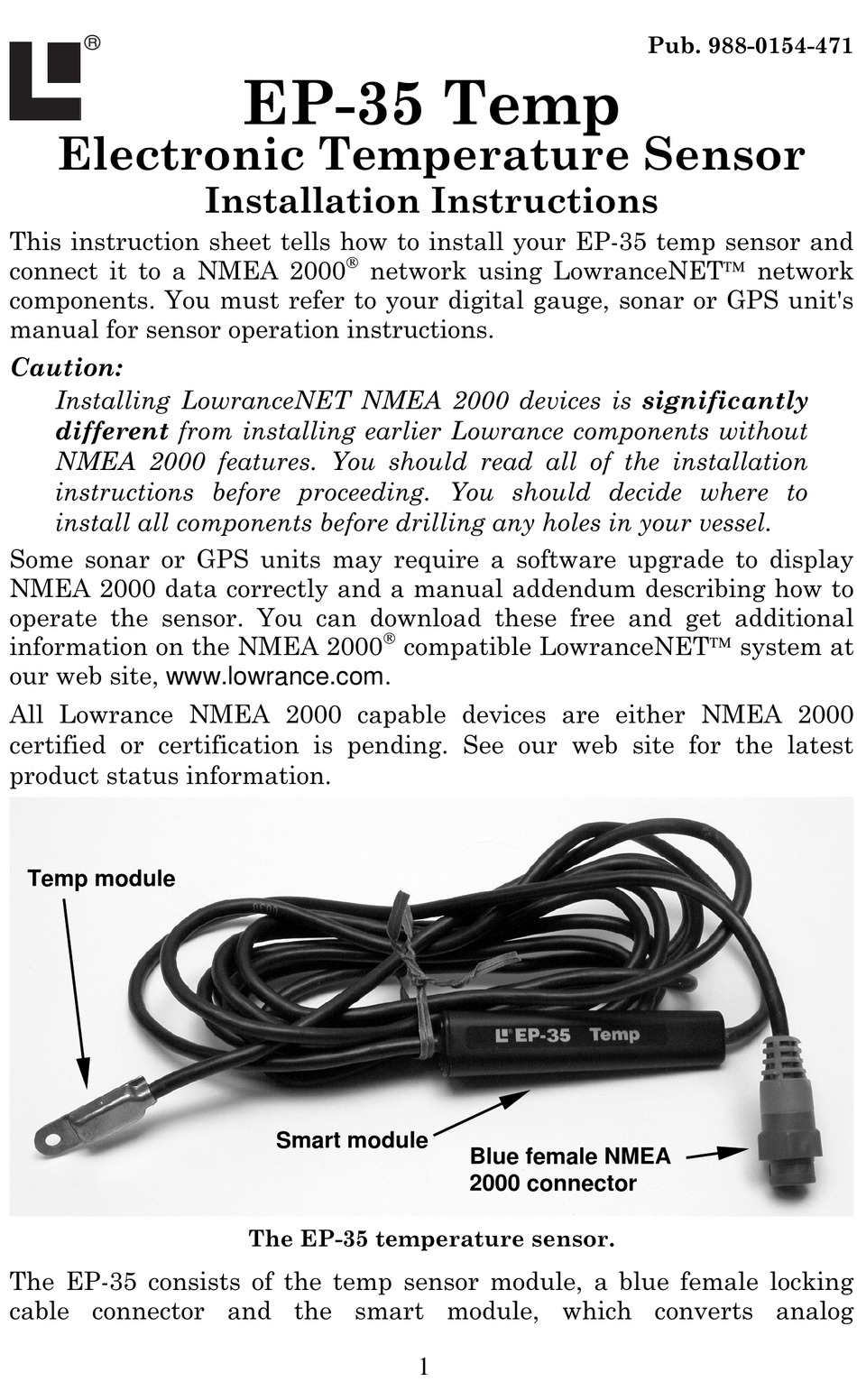

Page 1: Installation Instructions
Electronic Temperature Sensor Installation Instructions This instruction sheet tells how to install your EP-35 temp sensor and connect it to a NMEA 2000 components. You must refer to your digital gauge, sonar or GPS unit's manual for sensor operation instructions. - Page 2 18 inches and from the smart module to the temp module is 10 feet. The EP-35 Temp sensor is designed to operate in a temperature range of 4° to 176° F (-20° to 80° C).
- Page 3 Installation The EP-35 temperature sensor can be mounted in any location where you want to monitor temperature. The most common applications are on a transom to measure surface water temperature, or in a livewell. Wherever you install it, make sure the temp module will be in contact with the water at all times.
- Page 4 The backbone is like the phone wiring running through a house. Phones in a house must be connected to each other to communicate, and in the same way only sensors and display units plugged into the NMEA network can share information.
- Page 5 T connector. Existing network node Add a new device to a NMEA 2000 bus by attaching a T connector between two T connectors, between a T connector and the end terminator, or between two backbone extension cables.
- Page 6 Notes...
- Page 7 LOWRANCE ELECTRONICS FULL ONE-YEAR WARRANTY "We," "our," or "us" refers to LOWRANCE ELECTRONICS, INC., the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use.
-
Page 8: Accessory Ordering Information
For Eagle: 8 a.m. to 5 p.m. Central Standard Time, M-F Lowrance Electronics and Eagle Electronics may find it necessary to change or end their shipping policies, regulations and special offers at any time. They reserve the right to do so without notice.
