LOREX CLIENT 5.0
Integrated Remote
Agent Software
Instruction Manual
English Version 1.0
MODEL:
L19LD1600 Series
www.lorexcctv.com
©
Copyright
2008 LOREX Technology Inc.

Advertisement

Table of Contents
loading

Related Manuals for Lorex L19LD1600 Series

Summary of Contents for Lorex L19LD1600 Series

  • Page 1 LOREX CLIENT 5.0 Integrated Remote Agent Software Instruction Manual English Version 1.0 MODEL: L19LD1600 Series www.lorexcctv.com © Copyright 2008 LOREX Technology Inc.

  • Page 2: Table Of Contents

    Data Backup with Internet Explorer ... 36~38 About the Lorex Client 5.0 The Lorex Client 5.0 software package allows you to access your Observation System from a remote location to view live and previously recorded video. • View and Record from your PC - Connect your Observation System to your Network •...

  • Page 3: System Requirements

    Please check with your Internet Provider for your current upload and download speeds. Please refer to the Lorex Client 5.0 Software User Guide included with your Observation System for further details. Visit the Lorex support website at http://www.lorexcctv.com for information on...

  • Page 4: Lorex Integrated Remote Agent Software Installation

    • Double Click the CD-ROM DRIVE (Drive Letter will vary depending on the number of drives in your computer) • Double Click the LOREXCLIENT.EXE file (may appear as LOREX CLIENT with no file extension, depending on your system settings. The Installation Process will begin.
  • Page 5 3. The installation process will continue. Once the install is complete, press the Finish button. NOTE: Make sure to close all open programs and save any open files before rebooting the system. Program Shortcuts • Start Menu - Programs - Lorex Client Lorex Internet Remote Software • Desktop Shortcut for: Lorex Internet Remote Software...

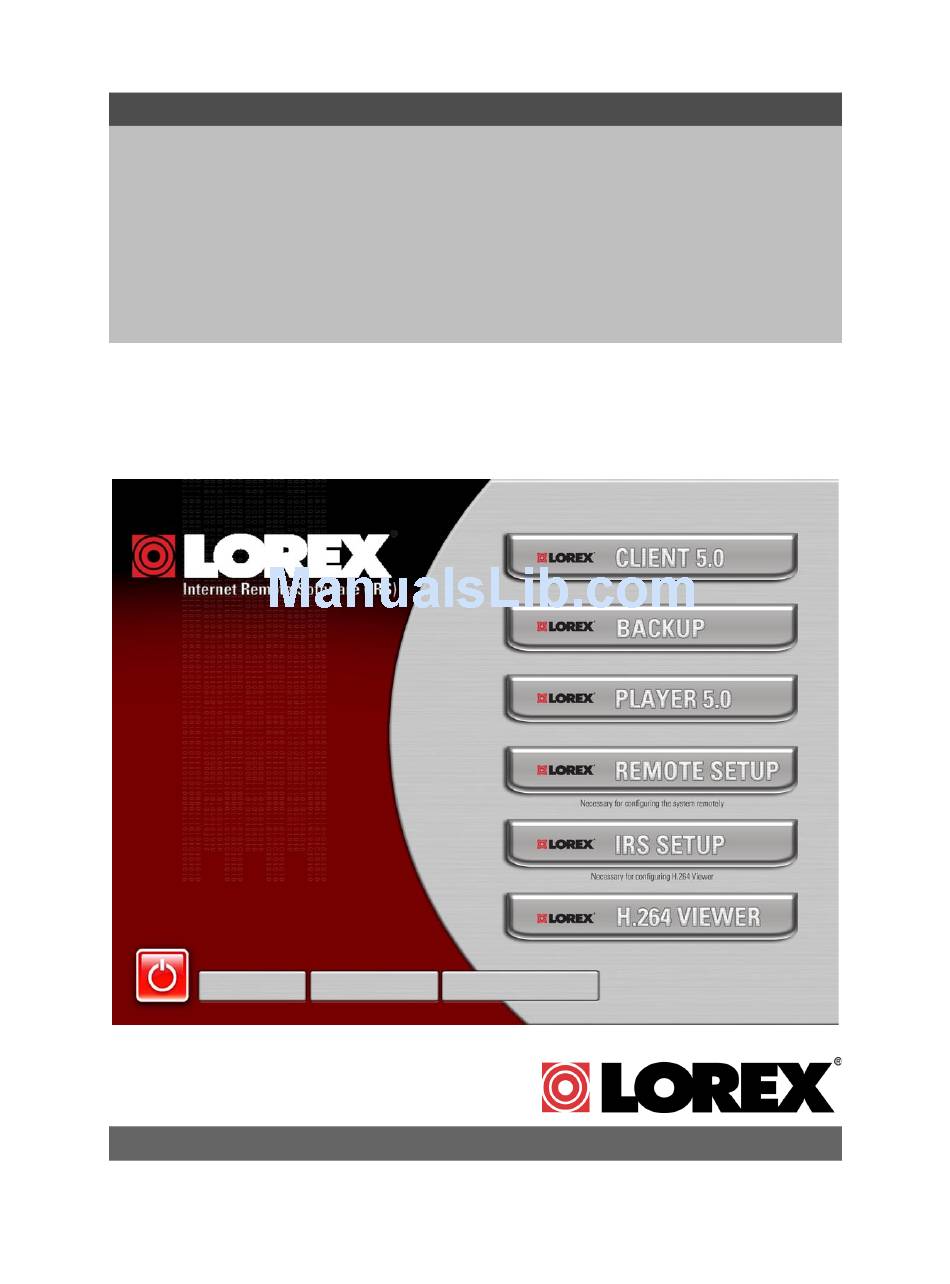

  • Page 6: Integrated Remote Agent Software - Main Screen

    4. Remote Access Setup 7. Exit 1. Lorex Client 5.0 - Used to remotely connect and view video from the remote system in JPEG2000 compression. 2. Lorex Backup - Used to connect to the System, and retrieve data backup to the local PC.

  • Page 7: Lorex Client 5.0 Software - Main Screen

    Lorex Client 5.0 Software - Main Screen The Lorex Client allows you to remotely connect to your system, and view live images. NOTE: Remote viewing or playback is dependant on your connection speed, internet traffic and other network factors - the speed is normally 1~2 FPS (frames per second).

  • Page 8: Lorex Client 5.0 Software

    Menu). 8. DISCONNECT - Disconnects from the Observation System. 9. PLAYBACK - Accesses previously recorded data for playback on the Lorex Client 5.0 Software. This option is only available when you are remotely connected to the system. 10. SETUP - Enters the Setup Menu for remote connection to the Observation System.
  • Page 9 5. MANUAL / DDNS - Changes the connection type between using a Manual Setup or using a DDNS setup for connection. See Remote Access with the DDNS Service section for DDNS configuration and use. 6. PORT - Enter the port number for the Observation System (50000 by default). Lorex Client 5.0 Software...
  • Page 10 Lorex Client 5.0 Software 7. PASSWORD - Enter the Admin password for the Observation System (blank by default). 8. SAVE / DELETE - Save the current settings. To delete an existing setting, choose it from the list (see #4), and press DELETE.

  • Page 11: Save Tab

    4. SELECT LOCATION (...) - Allows the user to navigate and set a different save directory on the local PC. 5. RUN IN FULL SCREEN MODE - Sets the interface to load to the size of the entire screen. Lorex Client 5.0 Software...
  • Page 12 Lorex Client 5.0 Software Network Speed Tab 1. SINGLE CHANNEL - NETWORK SPEED VALUE - Set the network transmission speed for single channel view (1 = low ~ 10 = high). 2. QUAD CHANNEL - NETWORK SPEED VALUE - Set the network transmission speed for quad channel split screen view (1 = low ~ 10 = high).

  • Page 13: Remote Playback Interface

    FPS. Playback Screen 1. Main Screen - Camera View 4. PTZ Controls 7. Connect 2. Connection Status 5. Sequence View 8. Disconnect Lorex Client 5.0 Software 3. Screen View 6. Camera Selection Buttons 9. Playback...
  • Page 14 • PRINT - Prints the current onscreen image (when playback is paused). • EVENT - Displays the Event List from the DVR. Event items can be selected for playback. 9. EXIT- Closes the Lorex Client 5.0 software. 2. Connection Status 5. Sequence View 8.

  • Page 15: Lorex Backup

    Lorex Backup The Lorex Backup retrieves data from the remote System. 1. Backup Information 4. Backup Status 1. Backup Information - Enter the System Connection information, including: • IP Address: Enter the IP address of the System. • Network Port: Enter the port for the System (50000 by default).

  • Page 16: Backup Procedure

    Lorex Backup 1. Backup Information 4. Backup Status 3. DVR Server Information - he information of DVR Server] • Recorded Start Time: Indicate the recorded start time. • Recorded End Time: Indicate the recorded end time. • Update: Update the recorded time.
  • Page 17 • FRAME RATE - Select how many frames to save every second • SIZE - Set the resolution as 360*240 or 720*480 3. Select START to save and END to stop the process. Click AVI SAVE again to close the AVI SAVE dialog window. Lorex Backup...
  • Page 18 Lorex Backup Lorex Player 5.0 Software The Lorex Player allows you to playback data on your PC which was previously retrieved from your System. 1. Main Screen Camera View 4. Current Time Display 7. Audio Playback 1. Main Screen Camera View - Displays the cameras during video playback.
  • Page 19 • START: Start AVI SAVE • STOP: Stop AVI SAVE 5. The AVI file path will be saved under C:\WEB_BACKUP 2. Playback Speed Bar 5. Playback Status 8. Playback Functions Lorex Backup 3. Playback Speed Settings 6. Screen Display 9. Playback Controls...
  • Page 20 Lorex Backup Using the Edit Tool 1. CONTRAST • Increase contrast. • Decrease contrast. 2. BRIGHTNESS • Increase brightness. • Decrease brightness. 3. SHARPNESS • Increase sharpness. 4. BLUR • Increase softness. 5. SAVE • Saves video in JPEG file format to the folder where the player is installed (C:\WEB_BACKUP).

  • Page 21: Remote Setup

    Remote Setup The Remote Setup allows you to change Menu settings on your remote System. The controls that can be adjusted include SYSTEM CONFIGURATION, RECORD SETTINGS & EXTERNAL DEVICES. 1. Status Window 4. ID 7. Close 1. Status Window - Displays the status of the Remote System, and allows the user to change settings.

  • Page 22: Irs Setup

    IRS Setup IRS Setup The IRS Setup contains the configuration for the DDNS (must be configured prior to using the H.264 Viewer). 1. IP List 4. Delete 7. Cancel 1. IP LIST - Lists the saved System IP addresses. 2. REGISTERING SITE - Used to add new System Information to the list. 3.
  • Page 23 Registering a Site 1. MANUAL/DDNS - Select the type of connection for the System: • MANUAL: Enter the System IP address. • DDNS: Enter member ID which you registered in DDNS server. 2. USER NAME & DVR NAME - Enter the System name which you registered on the DDNS server.

  • Page 24: H.264 Viewer

    H.264 Viewer H.264 Viewer The H.264 viewer is used to remotely monitor the system using H.264 compression. 1. Main Screen View 4. Connect / Disconnect / Setup 5. Status Windows 1. Main Screen Camera View - Displays the cameras during video playback. 2.

  • Page 25: H.264 Viewer

    NVS Setup The parameters below will allow you to optimize the image quality for your specific network bandwidth. 1.Bitrate - Set the data transfer size from the remote system. With a larger bitrate, the images will be of better quality. However, with a larger bit rate, the image display may not be as smooth.

  • Page 26: Remote Access With The Ddns Service

    The L15LD400 Series Observation System can be remotely controlled using your existing network and the Lorex Client 5.0 software. Recording times may vary - please use the Recording Calcula- tor provided with the CD to find an approximate recording time calculation.

  • Page 27: Ip & Mac Address

    IP & MAC Address 1. Access the Main Menu Setup screens, and navigate to the SYSTEM MENU - EXTERNAL DEVICE - TCP/IP SETUP - IP SETUP option. 2. Record the MAC Address of your system. This information is NECESSARY for the DDNS Setup process.

  • Page 28: Router Port Forwarding

    Remote Access with the DDNS Service Router Port Forwarding You will need to enable port forwarding on your Router to allow for external communications with your Observation System for port: • PORT 50000 Computers, Observation Systems, and other devices inside your network can only communicate directly with each other within the internal network.

  • Page 29: Setting Up Your Ddns Account

    Setting Up Your DDNS Account Lorex offers a free DDNS service for use with your System. A DDNS account allows you to set up a web site address that points back to your Local Network. The following outlines how to set up your free DNS account.
  • Page 30 Remote Access with the DDNS Service 4. Once the account has been created, you will need to login using your credentials (as set in step 3). Once the Username and Password have been entered, press the LOG IN button to access the Configuration Menu.

  • Page 31: Ddns Setup

    DDNS SETUP Once the DDNS settings have been configured online, the information must be entered on the Observation System to allow for remote connection via the Lorex Client 5.0 Software (or through Internet Explorer): 1. Access the Main Menu Setup screens, and...

  • Page 32: My Connection Information

    Remote Access with the DDNS Service 2. Set the DDNS ENABLE to ON. 3. The following will automatically complete after clicking the Register option: • DNS SERVER - Confirm that the IP address is set to 202.133.244.128. • INTERVAL - Set an interval for the DVR to auto-update its IP address to DDNS server (D- days / H- hours / M- minutes).

  • Page 33: Lorex Client 5.0 Remote Access Setup

    Lorex Client 5.0 Remote Access Setup The remote connection information needs to be added to the Lorex Client software to allow for a remote connection (using DDNS). 1. Load the Lorex Client 5.0 Software. Click on SETUP to add the configuration.

  • Page 34: Remote Viewing With Internet Explorer

    Remote Viewing with Internet Explorer Remote Viewing with Internet Explorer Video from the Observation System van be viewed using the Internet Explorer interface (for remote viewing and backup). All Remote functionality through the Internet Explorer interface is provided at http://www.lorexddns.com. Log in using the User Name and Password configured during the DDNS setup.Select the Web link option to load the Internet Explorer interface.

  • Page 35: Remote Viewing With Internet Explorer

    Web Player Interface Screen 1. MAIN SCREEN - Displays live Camera images (delays in images are due to Network speed and connectivity strength). 2. SYSTEM INFO - Displays the IP Address, Port Number, User Name and Password for remote connection to the System. 3.

  • Page 36: Data Backup With Internet Explorer

    Data Backup with Internet Explorer Data Backup with Internet Explorer Video from the Observation System can be backed up to the local PC using the Internet Explorer interface. All Remote functionality through the Internet Explorer interface is provided at http:// www.lorexddns.com.

  • Page 37: Web Backup Interface Screen

    Web Backup Interface Screen 1. BACKUP INFORMATION - Sets the backup criteria for: • IP ADDRESS & PORT - Provide the network information for connection to the System. • USER ID & PASSWORD - Provide the User ID (admin) and Password (blank) for the System. •...

  • Page 38: Data Backup With Internet Explorer

    Data Backup with Internet Explorer 3. DVR SERVER INFORMATION - Displays the date of the first and last records on the System. Press the Update button to retrieve the most current information. 4. BACKUP STATUS - Displays information about the backup process: •...

  • Page 39: Play Backup Files With Internet Explorer

    Play Backup Files with Internet Explorer Log in using the User Name and Password configured during the DDNS setup. Select the Backup Player link to load the Internet Explorer interface. The System Backup Player loads to the following screen: 1. MAIN SCREEN - Displays the backup Video (Camera images). 2.
  • Page 40 It’s all on the web Product Information User Manuals Quick Start Guides VISIT www.lorexcctv.com LOREX Technology Inc. Specification Sheets Software Upgrades Firmware Upgrades www.lorexcctv.com...
