Trane BAYLOAMM003A Installer's Manual

WARNING
!
Warnings and Cautions appear at appropriate sections
throughout this manual. Read these carefully.
WARNING
!
- Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
!
- Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices.
CAUTION
– Indicates a situation that may result in
equipment or property-damage-only accidents.

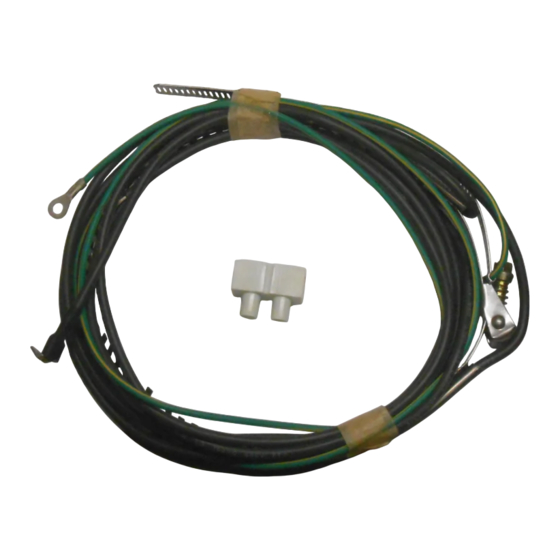

CRANKCASE HEATER KIT CONTENT:
- 01 Crankcase heater 40W/240VAC (for BAYLOAMM003A)
- 01 Crankcase heater 70W/240VAC (for BAYLOAMM004A);
- 07 wireties;
- 01 terminal board;
- 01 Installer´s Guide
INSPECTION:
Check carefully for any shipping damage. This must be reported
to and claims made against the transportation company
immediately. Any missing parts should be reported to your
supplier at once and replaced with authorized parts only.
INSTALLATION:
A crankcase heater (CCH) is needed to drive out excessive
amounts of refrigerant that have migrated into the housing during
idle periods .
Installer´s Guide
Crankcase Heater Kit
BAYLOAMM003A and BAYLOAMM004A
:
HAZARDOUS VOLTAGE - DISCONNECT POWER BEFORE SERVICING
NOTICE:
Each TTK outdoor unit has a specific CCH Kit number, as see
below:
Model Number Kit Number
TTK509 E5UA0 BAYLOAMM003A
TTK512 E5UA0 BAYLOAMM003A
TTK518 E5UA0 BAYLOAMM003A
TTK524 E5UA0 BAYLOAMM003A
TTK530 E5UA0 BAYLOAMM004A
TTK536 E5UA0 BAYLOAMM004A
For correct mounting location of such Crankcase heater please
see Fig.1
Fig. 01 - Crankcase heater location
Be sure that the CCH is firmly attached.
SS-SVN05B-EN
X39150106-01
