INSTALLATION REPORT AND CHECKLIST
For analyzer

Distributor
Coordinates
Maintenance engineer
Institution
Coordinates
Lab manager

Installation report
Serial number
Delivery date
Installation date
Content packing list verified
Installation checklist completed
(see page 2)
User training given
Warranty activated
(see page 2)
The installation report of the laboratory equipment is approved and signed by:

First and last name:
Date:
Signature:

This  form  is  a  compulsory  requirement  for  ISO  certification,  laboratory  accreditation,  good
laboratory practices and the legal requirements in many countries. Fill it out and be future ready.
P.S. Keep a copy


Rev. (0.0), 2021­10


Warranty end date:
Laboratory manager



CY006 ­ CYANHemato
(Company name)
(Country, city)
(Telephone and E­mail)
(Name)
(Telephone and E­mail)
(Laboratory name)

(Country, city)
(Telephone and E­mail)
(Name)
(Telephone and E­mail)



 Yes
 No

 Yes
 No
 Yes
 No
 Yes
 No
Maintenance engineer





Page 1

Advertisement

Table of Contents
loading

Summary of Contents for Cypress Diagnostics CYANHemato

  • Page 1   INSTALLATION REPORT AND CHECKLIST For analyzer  CY006 ­ CYANHemato    (Company name)  Distributor  (Country, city)  Coordinates   (Telephone and E­mail)  (Name)  Maintenance engineer  (Telephone and E­mail)    (Laboratory name) Institution    (Country, city)  Coordinates  (Telephone and E­mail)  (Name)  Lab manager  (Telephone and E­mail)    Installation report  Serial number    Delivery date    Installation date    □ □ Content packing list verified   Yes           No  Installation checklist completed  □ □  ...
  • Page 3       Checklist for installation (detailed instructions in chapter 3 of the user manual)  Ensure optimal operation   □ Verify the location specifications  □ Check the electronical current requirements. If necessary, use:  □ Electronic stabilizer  □ UPS  Installation of accessories on the CYANHemato analyzer  □ Connect the 3 reagents: diluent, lyse and cleaner and the waste tube to the waste bottle  □ Connect any peripherals: external printer, keyboard, mouse  □ Install printing paper  □ Install the correct tube adaptor  □ Connect the power cord to a suited power supply  Verification of the CYANHemato analyzer □ Perform a priming cycle for all reagents  □ Run a self­test to check the instrument’s performance  □ Run blank measurements to exclude background noise (three blank measurements)  □ Perform a calibration with normal control (at least three measurements)  □ Perform a quality control with low, normal and/or high control blood  Adaptation of the system to the customer □ Configure language, heading, measurement units, normal ranges, date and time  □ Create user profiles ...
  • Page 5: Maintenance Instructions

      Sample rotor belt   Pump tube kit   Small (4x) and big (1x) T­connector   Steel reagent inlet connector (4x)   Problems  P    Perform reparation    Rev. (0.0), 2021­10      Page 1  Cypress Diagnostics: Nijverheidsstraat 8 • 2235 Hulshout • Belgium • www.diagnostics.be • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
  • Page 7: Maintenance Logbook

                          Need more prints?    Link: https://www.diagnostics.be/Log  Rev. (0.0), 2021­10      Page _  Cypress Diagnostics: Nijverheidsstraat 8 • 2235 Hulshout • Belgium • www.diagnostics.be • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
  • Page 9 CY006 CYANHemato User Manual For a clear and precise diagnose ISO 13485-2016 www.diagnostics.be • Belgium • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be Layout 20181024...
  • Page 11   ..........................  1 7 NSTALLATION 3.3.1 Location specifications  ............................. 18 3.3.2 Install the reagents and the waste bottle  .................... 18 3.3.3 Install any peripherals  ............................ 20 3.3.4 Install or change the print paper for the build­in printer .............. 21 3.3.5 Install the required sample holder ....................... 21 3.3.6 Connect the power supply  .......................... 22 3.3.7 Turn ON the instrument  ........................... 23 3.3.8 Verify the instrument ............................ 24 3.3.9 Adapt the system to the user  ......................... 24 3.3.10 Give extensive explanation to the user! .................... 24 3.3.11 Shutdown ................................. 25 CYANHemato user manual  Rev. (7.0), 2021­11  Page 1 ...
  • Page 12 DAILY ROUTINE  ........................ 73 5.1 P  ........................  7 3 REPARATIVE  5.1.1 Preparation of the analyzer  .......................... 73 5.1.2 Preparation of control blood for calibration and/or quality control  .......... 73 5.1.3 Preparation of blood samples for analysis .................... 73 5.2 S   ..........................  7 4 TART ANALYSIS 5.2.1 Blank measurement  ............................ 74 5.2.2 Quality control measurement  ........................ 75 5.2.3 Sample measurement  ............................ 76 CYANHemato user manual  Rev. (7.0), 2021­11  Page 2 ...
  • Page 13 6.2.3 Cleaning of the outside of the instrument  .................... 80 6.3 P   ..........................  8 0 ERIODICALLY 6.3.1 Disinfection / Emergency cleaning ...................... 80 6.3.2 Hard cleaning of the needle ........................... 82 TROUBLESHOOTING ...................... 83 7.1 O   ..........................  8 3 PERATIONAL 7.2 T  ............................  8 8 ECHNICAL HYDRAULIC DIAGRAM ...................... 90   REAGENT INSERTS     CONSUMABLES    CYANHemato user manual  Rev. (7.0), 2021­11  Page 3 ...
  • Page 14: Intended Use

    !  WARNING!  Please  read  the  user  manual  before  operating  the  CYANHemato  and  make  sure  the  installation and maintenance are performed correctly.  Note:  If  the  installation,  usage  and  maintenance  directions  are  not  followed  correctly  and/or  safety  indications  are  not  respected,  Cypress  Diagnostics  cannot  guarantee  correct  functioning  of  the ...
  • Page 15: Product Number

      EAGENTS The CYANHemato is a closed system, only reagents supplied by Cypress Diagnostics can be used on the  CYANHemato and vice versa. If other reagents are used on the CYANHemato or if the reagents are used  on a different analyzer than the CYANHemato then the accuracy cannot be guaranteed.  Diluent (Code: CY006­R01): Isotonic saline solution, used to dilute whole blood samples and to rinse  the fluidic system between measuring procedures.  Lyse (Code: CY006­R02): Creates hemolysate for 3­part WBC differential and for HGB measurement.  Cleaner (Code: CY006­R03): For cleaning process of the fluidics.  Cypress  Diagnostics  also  offers  emergency  cleaners.  These  emergency  cleaners  are  not  designed  for  regular cleaning, but should be used in case of problematic blank measurements.  Hypoclean (Code: CY006­R04): Hard cleaner (bleach­based).  Clenz (Code: CY006­R05): Enzymatic cleaner.  Hypoclean CC (Code: CY006­R06): Hard cleaner, used to clean the sample needle.  Note: the inserts of the different reagents can be found in the appendix of this user manual.    UALITY  ONTROL  LOOD The  analyzer  allows  the  continuous  monitoring  of  measurement  performance  with  control  blood ...
  • Page 16 1.6.2 Sample storage  The  anti­coagulant  requires  some  time  (15­30  minutes)  to  stabilize  its effect  and  completely stop  the  coagulation process from starting. Blood samples should be run on CYANHemato only after this reaction  time has elapsed.  Blood  samples  can  either  be  collected  and  analyzed  at  the  same  spot  (making  sure  that  the  anti­ coagulant’s reaction time is guaranteed) or can be analyzed at an offsite location.  The  collected  samples  can  be  kept  at  room  temperature  (15  –  30°C)  for  up  to  8  hours.  If  the  samples ...

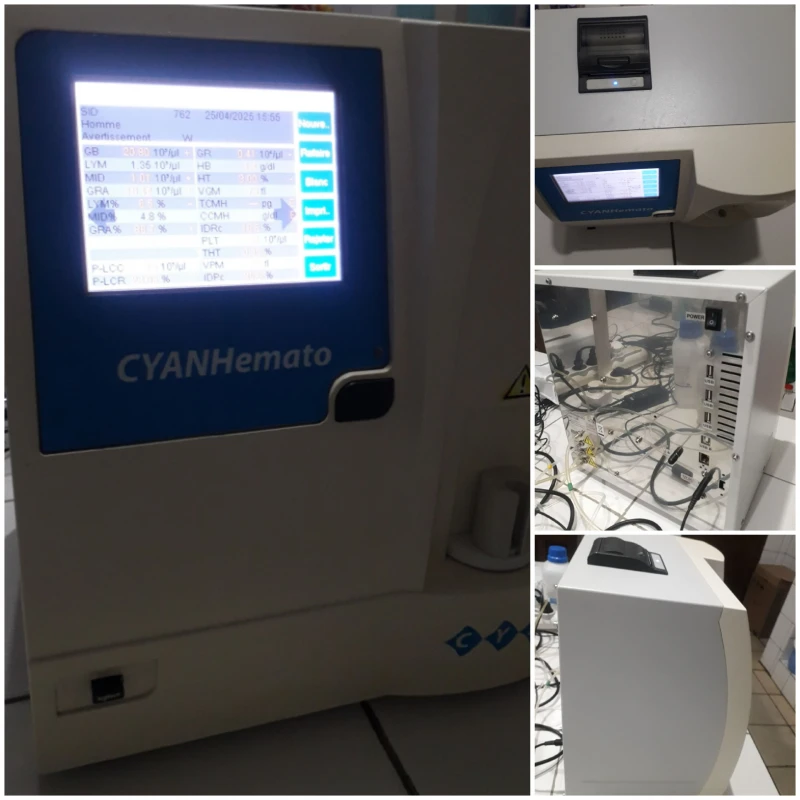

  • Page 17: System Description

    If  the  same  sample  needs  to  be  measured  multiple  times,  please  mix  the  sample  gently  before  every  sampling (invert the tube at least 8 times). Make sure to wipe the cap clean before placing it again on  the vial.  1.6.4 Sample handling  Blood samples must always be considered as biohazard and infectious biological material.  It is recommended to wear protective gloves and goggles.     Spilled blood must be cleaned up as soon as possible, and the surface in contact with it  must also be cleaned with a suitable sanitizer.      YSTEM  ESCRIPTION The CYANHemato is a microcomputer­based independent unit, composed of three main units:  1. Fluidic System  Performs sampling, diluting, mixing and lysing operations. Generates the regulated vacuum used for  moving cells through the aperture during counting.   2. Data Processing   System counts, measures and calculates blood cell parameters, generates and stores numerical results  and histograms.  3. Control Panel  Features an LCD touch screen START button, status LED, and USB port interfaces.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 7 ...
  • Page 18: Led Color

    Blood  sample  can  be  removed  when  the  LED  blinks  red  3  times  and  the   RED BLINKING  instrument beeps 3 times.  The analyzer is currently performing an analysis. No new measurement can be   RED  started.   The analyzer is performing a maintenance process.   ORANGE  The instrument is in stand­by and the display light is off. Hit the screen to wake   ORANGE BLINKING  up from stand­by.  1.7.3 LCD Touch screen  The display is a 320 x 240 dots, high contrast backlit high­color graphic LCD module, with integrated touch  screen. A finger or smaller blunt object (stylus pen) should be used to operate the touch screen. If the  operator gently touches the LCD, the analyzer will recognize the position where the screen was pressed;  the software will activate the corresponding function/menu/button.  ! ATTENTION POINT! The screen can only react to one touch point at the same time. If something else is  touching or pressing the screen (on an empty position), it will not respond to your touch!  1.7.3.1   EYBOARD When data needs to be entered, a keyboard will appear. The keyboard will be adapted to the data that  can be entered in that specific area; alphanumeric or numeric only.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 8 ...
  • Page 19 1. Gently tap and continuously hold any empty location on the touch screen for at least 30 seconds.  2. After ca 30 seconds, a calibrating screen appears. Tap the middle of the cross of the reference points  one after another.   If you made an error, you will hear an error beep, and the process restarts.  If the calibration was successful, the software will return to the original screen.    ! ATTENTION POINT!  Make sure not to press it hard, otherwise you can damage the screen  1.7.4 Build­in thermal printer  The  CYANHemato  is  equipped with  a  built­in  thermal  printer. The  text or graph is printed on coated thermo­chromic paper. This paper  is selectively heated when passing over the thermal printing head,  and thereby the coating on these places turns black, producing an  image. One of the big advantages of a thermal printer over a normal  printer  is  that  it  does  not  require  expensive  consumables  like  a  toner.  Press the feed button to move the paper forward without printing.       ...
  • Page 20     1.7.5 Power supply  The analyzer is equipped with an external power supply. The power supply module has a so­called auto  range input, allowing operation on 230V or 115V power systems. The power supply unit complies with CE  safety certifications.   The input socket is a standard power cable connection and the output is a DC jack.  Note: Only use the provided power supply with the instrument.  1.7.6 Back label  Every instrument has its own serial number, which is printed on the back label and can also be found in  the Device Information submenu. Please mention this serial number in every communication.      CYANHemato user manual  Rev. (7.0), 2021­11  Page 10 ...
  • Page 21   6 controls programmable            Separate QC result menu with (printable) graphs  Calibration methods   1 or more automatic measurements or manual calibration of WBC,  HGB, RBC, PLT, MCV (or HCT), RDW, and MPV   Data storage      10.000 results, with RBC, PLT, and WBC 3­part histogram  Data back­up method     USB mass storage device  Languages       English,  French,  Spanish,  Portuguese,  Russian,  Indonesian,  German  Software upgrade method  via USB A port using USB mass storage device  User interface  LCD Touch­screen  Separate START button   Red/green status indicator LED  Possibility of external USB keyboard via USB A port  Possibility of external USB mouse via USB A port    CYANHemato user manual  Rev. (7.0), 2021­11  Page 11 ...
  • Page 22: Imitations Of Use

      Support for HP printers (DeskJet, LaserJet, PCL3, PS, LIDIL)  Power supply  External power supply unit    auto­ranging power unit for 100­120 or 200­240 VAC, 50 60Hz  Power requirement    12VDC, 5A, 60W max.   Grounding required  Weight and dimensions  Instrument: 12 kg, 320 x 260 x 365 (LxWxH)   Packed in box: 18 kg, 405 x 480 x 565 mm (LxWxH)   Environmental requirements  Ambient temperature: 18°C – 30°C, optimal temperature 25°C  Reagent storage temperature: 18­30°C  Relative humidity: 45 % ­ 85%  Altitude below 3000m (9000 ft)    IMITATIONS OF USE After turning on the instrument, pay attention not to spill liquids on the surface around the instrument.  Keep the instrument away from children.   1.10   ANDLING IN CASE OF EMERGENCY In case of emergency situation ­ like instrument on fire due to short­circuit ­ immediately cut off the power  by disconnecting the main power or DC input line, and use a fire­extinguisher if necessary.  1.11 R   EGULATORY COMPLIANCES The CYANHemato complies with European Directive 97/79/CE for  In Vitro  diagnostic    CYANHemato user manual  Rev. (7.0), 2021­11  Page 12 ...
  • Page 23: Measurement Times

      DILUTION RATES USED  MEASUREMENT TIMES  MIX dilution  1:160  WBC count  12 seconds  WBC  dilution  (depends  ~1:196  HGB measurement  3 seconds  on amount of lyse)  RBC/PLT dilution  1:32 000  RBC/PLT count  12 seconds    RINCIPLE OF THE HEMOGLOBIN MEASUREMENT The lysed sample dilution can be measured by a photometric method. The reagent lyses the red blood  cells, which releases hemoglobin. The chemical process forms a stable form of methemoglobin. This is  measured photometrically at 540 nm through the chamber.    All  Cypress  Diagnostics  branded  reagents  are  cyanide­free.  However,  some  reagents  from  other  manufacturers may contain cyanide. In that case, cyanide and any other chemical composition formed  CYANHemato user manual  Rev. (7.0), 2021­11  Page 13 ...
  • Page 24 .  The  cells  to  be  counted  are  diluted  till  a  single  cell  suspension  in  a  fluid  which  conducts  electrical current. By creating vacuum, they are sucked one by one through a special narrow opening,  called an aperture. Flanking the aperture are two  electrodes  that conduct electricity. When no cell is in the  gap, electricity flows unabated, but when a cell is sucked through the aperture, the current is resisted. The  Coulter counter counts the number of such events and also measures the  pulse in the current  (and hence  the resistance), which directly correlates to the volume of the cell trapped.  By monitoring such pulses in electric current, the number of particles for a given volume of fluid can be  counted. The size of the electric current change is related to the size of the particle, enabling a particle  size distribution to be measured. The volume distribution of the cells is displayed on diagrams: WBC, RBC,  and PLT histograms.      ARAMETERS The CYANHemato measures and calculates 20 parameters.  Name  Abbr.  Units  Description and/or calculation  White Blood Cells   WBC  cells/l, cells/µL  Number of leukocytes    WBC = WBC  x  counted WBC   WBC 3­part   ...
  • Page 25: Test Range

          xDW­SD = RDW  x (P2 ­ P1) (fl),    xDW­CV = RDW  x 0.56 x (P2 ­ P1) / (P2 + P1) x 100  by the factor of 0.56 CV is corrected to the 60% cut.    HARACTERISTICS OF THE PARAMETERS PARAMETER  ACCURACY  REPRODUCIBILITY  CARRY­OVER   TEST RANGE  WBC  3%  3%  <1%  4.0 – 20.0 10 /µL  RBC  3%  2%  <1%  4.0 – 15.0 10 /µL  HCT  3%  3%  <1%  25.0 – 50.0 %  MCV  2%  1%  N/A  60 – 100 fl  CYANHemato user manual  Rev. (7.0), 2021­11  Page 15 ...
  • Page 26 0…100  ­  HCT  %  30…150  ­  MCV  fl  3…30  ­  MPV  fl  To measure a sample whose parameters exceed the maximum value indicated in the table below, pre­ dilution is recommended (see 4.3.2) of this manual.   Linearity ranges for 1:6 pre­dilution mode (1 volume sample + 5 volumes diluent):  PARAMETER  LINEARITY RANGES  MAXIMUM  UNIT  2…200  300  WBC  9  cells/liter  1…30  40  RBC  12  cells/liter  100…2000  3000  PLT  9  cells/liter      CYANHemato user manual  Rev. (7.0), 2021­11  Page 16 ...
  • Page 27: Installation

    If the instrument is damaged or items are missing, contact your local distributor/importer immediately for  assistance. Make sure to document with photos.  ! WARNING! DO NOT discard the carton box or protection material! If you need to ship the instrument  (for  example  for  service),  be  sure  to  use  the  original  packing  materials.  Other  forms  of  commercially  available packing are not recommended and can void the warranty.    NSTALLATION CYANHemato  is  an  easy  to  operate  instrument  with  integrated  user­friendly  software.  No  additional  computers or instruments are needed. In order to fully guarantee the performance of CYANHemato, it is  extremely important that it is correctly installed.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 17 ...
  • Page 28: Location Requirements

    7. Turn on the instrument  8. Verify the instrument  9. Adapt the system to the customer  3.3.1 Location specifications  3.3.1.1   EMPERATURE AND PRESSURE REQUIREMENTS Please take into account the following temperature and pressure ranges:  Operate  the  CYANHemato  within  the  ambient  temperature  range  of  18­30°C  and  relative   humidity of 45%­85%. The optimum operating temperature is 25°C.   Avoid using the instrument in areas of extreme high or low temperatures or where it is exposed   to direct sunlight. If stored at a temperature less than 10°C, the instrument should be incubated  at the correct room temperature for at least an hour before use.  Reagents should be stored at a temperature range of 18­30°C.   Place  the  instrument  in  a  well­ventilated  location.  Do  not  place  it  near  potentially  interfering ...
  • Page 29: Attention Points

      ! ATTENTION POINTS!  1. The  CYANHemato  is  a  closed  system.  Only  the  CYANHemato  reagents  can  be  used  for  the  CYANHemato  and  vice  versa.  Other  reagents  are  not  validated  and  may  cause  damage  to  the  instrument.   2. Install the reagents in a suitable, accessible location. The best place is 0.5m ­ 1m below the supporting  desk of the instrument. The pneumatic system is capable of aspirating reagents from containers being  1m (3ft) below the reagent inputs.   Note: Do NOT place the reagents above the instrument, as there can be a risk of falling and spilling  3. Make sure the reagent tubes are not bent, broken, twisted or blocked. This could result in instrument ...
  • Page 30 OUSE  Attach the mouse cable to one of the USB A ports on the back of the instrument.   o External mouse must be approved by an authorized technician.  o External mouse must have a USB port or suitable adapter.  3.3.4.3   XTERNAL PRINTER Attach  one  end  of  the  printer  cable  to  the  appropriate  port  on  the  printer  and  the  other  end  to  the  CYANHemato. Attach the AC adapter to the printer (if required) and plug it into an AC outlet.  o Printer must be recommended by an authorized technician.  o Printer must be approved and listed.  o Printer must have a CE mark.  It is not possible to provide a complete list because the printer models are changing in the market, and  many printers have different software or different names in different countries.   Normally if a printer has a Printer Command Language (PCL)3 or PCL5 language, it should work, but we  cannot guarantee it for 100%.  ...
  • Page 31 Printers compatible with CYANHemato analyzer ­ Software version 2.2 and older  HP DeskJet 920c  HP DeskJet 3520  HP OfficeJet 6000  HP LaserJet 1022  HP DeskJet 1000  HP DeskJet 5440  HP OfficeJet Pro 8000  HP LaserJet P2030  HP DeskJet 1560  HP DeskJet 5650  HP OfficeJet Pro K5300  HP DeskJet 2460  HP DeskJet 6940    HP Printers compatible with CYANHemato analyzer ­ Software version 2.6 and higher   HP DeskJet 920c  HP DeskJet 3520  HP OfficeJet 6000 E609a  HP LaserJet 1022  HP DeskJet 1000  HP Deskjet 5440  HP OfficeJet 6100  HP LaserJet 1320n  HP DeskJet 1560  HP DeskJet 5650  HP OfficeJet 6500 e710n­z  HP LaserJet P1606dn  HP DeskJet 2460  HP DeskJet 6940  HP OfficeJet Pro K5300  HP LaserJet P2030  HP DeskJet 3515    HP OfficeJet Pro 8000    HP Printers compatible with CYANHemato analyzer ­ Software version 3.2 and higher   HP DeskJet 920c  HP DeskJet 3515  HP OfficeJet 6000 E609a ...
  • Page 32 Always  be  careful  when  making  height  adjustments  in  order  NOT  to  crash  the  needle.  Furthermore, there must be at least 8 mm sample level for safe sampling.              ! ATTENTION POINTS!  For microtubes with attached cap: always position the cap towards the back, against the wall of the   sample holder, otherwise the cap can get stuck when the sample holder turns.  Always take off the cap of the tubes! The needle cannot pierce caps. Otherwise, the needle will crash!   √           3.3.7 Connect the power supply  The CYANHemato is delivered with an approved power supply and power cord. Proper use of the power  cord assures adequate grounding of the system. The power outlet connection MUST be grounded.  Instrument is safe for transient voltages to INSTALLATION CATEGORY II and POLLUTION DEGREE   2.  Environmental and electrical characteristics provide accuracy and precision of the instrument and   maintain a high level of operational safety for lab personnel.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 22 ...
  • Page 33 4. Finally,  the  main  menu  appears  (right  photo).  Tap  the  touch  screen  to  activate  the  corresponding  menu  element.  Please  note  that  the  software  version  number  appears  in  the  heading  (2.6  in  the  example above).  Note:  Wait  five minutes  before  initiating  any  measuring  process  to  allow  the  instrument  to  reach  the  optimal working temperature.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 23 ...
  • Page 34 Every 6 months (or after 10.000 measurement cycles, the following steps must be executed BY THE  SERVICE ENGINEER to ensure the good performance of the analyzer:  Run a self­test   Check  macro­dilutor  piston/syringe  and  lubricate  (with  motor  grease  and  silicone  grease)  if   necessary  Check the washing head and replace if necessary   Check the fluidic system and replace if necessary   Disinfection of the CYANHemato (See 6.3.1)   Calibration   Perform quality control measurements with low, normal and high control blood (See 4.5.3) to   ensure the accuracy of the instrument    3.3.10 Adapt the system to the user  1. Adjust the language if necessary (see 4.6.2)  2. Adjust the date format, and the date and time  3. Select the print setup to the customer’s needs  4. Insert the name of the hospital or laboratory where the instrument is installed (see 4.6.1) ...
  • Page 35 3. The  analyzer  will  perform  the  necessary  steps  to  prevent  failure  to  the  pneumatic  system.  The  instrument  will  wash  the  diluent  out  of  special  units  of  the  instrument  in  order  to  prevent  salt  accumulation there, and will fill the chamber with diluent prior to shut down in order to prevent dust  condensation in the aperture.  4. The instrument will make a tone/sound indicating that it is safe to shut it off.  5. Turn off the power using the rear power switch. The « OFF » position is marked by « O » symbol.    ! ATTENTION POINTS!  NEVER turn off the analyzer by simply flipping the power switch on the rear panel. This could result in  erroneous operations during later use.     CYANHemato user manual  Rev. (7.0), 2021­11  Page 25 ...
  • Page 36: Software Description

          Date Format            Exit  Logout        Shut down        Preparing for shipment        User Management  Add new user        Remove User        Auto login set        Edit / View user    CYANHemato user manual  Rev. (7.0), 2021­11  Page 26 ...
  • Page 37   AIN  If  the  instrument  functions  correctly,  the  main  menu  of  the  CYANHemato  user  software  appears  automatically.    Measure  This menu is used to perform blank measurements as well as sample measurements.  The database  contains  blank  measurement  records, calibration  records and  patient  Database  records. The storage capacity of the CYANHemato is dependent of the installed board:  DIMMPC: 1 000 records   DIMMBoard: 10 000 records (from software version 2.6 on)   In  this  menu,  it  is  possible  to  (re)view,  print,  delete  and  make  backups  of  the ...
  • Page 38 1. Use a roller mixer and gently mix by inverting the closed sample tube at least 8 times prior to sampling  to achieve a homogenous sample. Do not shake the sample, because micro­bubbles can form which  may cause erroneous sampling/analysis!  Note: Remove the cap! It is very important because the needle cannot pierce the cap!  2. Position  the  sample  tube  in  the  suitable  sample  holder  on  the  sample  rotor.  3  different  interchangeable  adapters  for  different  tube  types  (see  image  below)  are  provided  with  the  CYANHemato. The illustrated tubes are only examples, other types of tubes/containers can be used  as long as they can be completely inserted (until the bottom) in one of the adapters.   Tube adaptor 1 for primary tubes 3­ 5 mL   Tube adaptor 2 for microtubes  ...
  • Page 39 If  the  same  sample  needs  to  be  measured  multiple  times,  please  mix  the  sample  gently  (Step  1)   before every sampling.  4.3.2 NEW: Entering patient information  The software allows the user to enter information for every sample. There are two options to enter sample  information:  Immediately before sample measurement    In the database menu after sample analysis (see 4.4.1)   To enter sample information prior to sample analysis, select the “New” button in the measure menu. The  information to enter is spread over 3 tabs: Sample ID, Patient ID and options. Select the respective tab to  open it and enter the information for the upcoming sample:    START  When all parameters are set, press the START button to use this information and start  the measurement  To return to the measurement screen without using/saving the information  Cancel      CYANHemato user manual  Rev. (7.0), 2021­11  Page 29 ...
  • Page 40 Do  not  shake  the  sample,  because  micro­bubbles  can  form which may cause erroneous sampling/analysis!  2. Put the pre­diluted sample into the sample adapter  3. Press the  START  button.  The  analyzer  will  automatically  calculate  the  results  taking  into account the 1/6 pre­dilution factor.  ! ATTENTION POINT!  To  calculate  prediluted  samples  accurately,  the  instruments  needs  to  be  calibrated  in  prediluted mode as well (see 4.5.2)  CYANHemato user manual  Rev. (7.0), 2021­11  Page 30 ...
  • Page 41 Select  a  decrease  (­0.1,  ­0.2mL)  in  volume  of  the  lyse  reagent  if  the  WBC  histogram  is  shifted  to  the  left,  i.e.  the  different  WBC  populations  are  overlapping.  This  can  inhibit  proper separation of WBC populations.                   CYANHemato user manual  Rev. (7.0), 2021­11  Page 31 ...
  • Page 42 By  clicking  the  arrows  to  the  right  or  left,  WBC,  RBC,  and  PLT  histograms  and  technical  information are shown. Results, histograms and other data will be stored automatically in the memory.    4.3.2.1.1 Histograms  To look at the different histograms, tap the arrow on the right. First the histogram of WBC differentiation  is shown, followed by the RBC histogram and finally a close­up of the PLT histogram.                CYANHemato user manual  Rev. (7.0), 2021­11  Page 32 ...
  • Page 43 E  (Error)  flag  (see  image  below).  To  measure  a  sample  whose  parameters exceed the linearity, pre­dilution is recommended (See 4.3.2).     Warning  cbpCH   4.3.2.1.5 Warning flags  The software will display warning flags for each individual measurement to notify the user about potential  problems. The following tables summarize the warning flags and gives an explanation of their possible  cause as well as a few hints to overcome the problem. When enabled, these warnings flags will be printed  on the printout of the results.  Warning flags that refer to WBC or HGB problems are indicated with a capital letter. Warning flags that  refer to RBC or PLT problems are indicated with a small letter:  FLAG  MEANING  RECOMMENDED USER ACTION  B  WBC blank is high, or  Repeat the blank measurement, or run prime lyse and try blank again.  no WBC blank  Possible lyse contamination, or noise problem.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 33 ...
  • Page 44 PLT blank is high, or  Reagent or system cleanliness problem. Run cleaning and repeat the blank  no PLT blank  measurement. If blank remains high, perform an emergency cleaning of the  system (see 6.3.1). If the blank remains high upon reattaching the reagent,  replace the diluent.  Note: Never pour the remainder of old reagents in the new ones. This will  contaminate the newly opened reagent.  The  exclamation  mark  flag  (!)  near  a  parameter  highlights  some  doubt  during  the  evaluation  of  that  parameter. It is recommended to rerun the measurement.  4.3.3 RERUN: Run the same sample again  To test the sample that was previously run again. Clicking the “Re­run” button will open the same screens  as described under 4.3.2 NEW: Entering patient information. All information that was filled in when the  sample was previously run will be shown. The data or options can be modified. When all parameters are  set, press the START button to use this information and start the measurement.  Note:  CYANHemato user manual  Rev. (7.0), 2021­11  Page 34 ...
  • Page 45 > 20  HGB (g/l)  0­10   10 ­ 25   25 ­ 250  > 250  PLT (10 9  cells/l)  0 ­ 25  25 ­ 50  50 – 1000  > 1000    If all values are within the acceptable range, all results are shown in black and no flags are displayed.  √    If  one  or  more  values  are outside  the  acceptable  range,  that  value  will  be shown  red  and  the  flag  corresponding to this value will be displayed next to the value. Furthermore, warning letter(s) can be  displayed in the heading. These give an indication of the cause (and possible solution) for the problem  (see 4.3.2.1.5).   CYANHemato user manual  Rev. (7.0), 2021­11  Page 35 ...
  • Page 46 This  can  cause  a  big  fluctuation in the PLT values between the 3 measurements. Please contact your service engineer.  d) If the probe voltages are out of range (see 0), please contact your service engineer.     Note:  Acceptable blank values are essential to obtain accurate and precise results. Do NOT continue measuring  if  one  or  more  blank  values  are  out  of  range  (flags  displayed).  ONLY  if  the  results  of  the  blank  measurements are within range, proceed with the following measurements (calibration, quality control  and sample measurement)!    CYANHemato user manual  Rev. (7.0), 2021­11  Page 36 ...
  • Page 47 Press  “OK”  to  delete  the  test  or  “Cancel”  to  return  to  the  previous  screen.  After  deletion, the options print and discard are no longer available.    4.3.7 EXIT  To exit the Measure menu and return to the Main menu. After clicking the “Exit” button, some reagents  will be aspirated to clean the instrument.       ATABASE To access the records stored in the memory of the analyzer. You can search and review all results, print  them out or delete them and it is also possible to back­up the data on a USB key. All results are stored in  the memory in chronological order, and can be retrieved at any time. The on­board data storage capacity  is  10  000  measurements,  including  the  complete  parameter  list,  histograms,  flags,  sample  data,  and  date/time of measurement. This only applies to instruments with a DIMMBoard (instruments with serial  number starting from S/N 670086) and with software version 2.8 or higher. Instruments with a DIMMPC  (with heat sink) have a storage capacity of 1000 records.  In case the memory is full, the newest (actual) record will overwrite the oldest record. In order to avoid  this situation, it is recommended to make a backup of the data (see 4.4.5) and then delete (all/some) stored  data before the maximum storage capacity of the CYANHemato analyzer is reached.  Upon entering the database menu, the first screen appearing shows the most recent saved results. Some  function keys are gray (inactive). Only after selection of one or more record all function keys become blue  (active). The selection can be done manually by selecting the checkbox or based on (multiple) filter/select  settings (see 4.4.3).  CYANHemato user manual  Rev. (7.0), 2021­11  Page 37 ...
  • Page 48   results   Each line starts with a checkbox and displays the Sample ID. A filled checkbox indicates that a specific  record is selected for further operations.   All results are shown in a table format. Use the left and right arrows to have access to the remaining, non­ visible parameter results and the up and down arrows are used to scroll among records.  The bottom row of the screen shows the status line. This line provides information about the number of  records stored in the database and the number of records selected (also those not currently in view).  4.4.1 DETAIL  To visualize the detailed information as shown directly after measurement (values, histograms, technical  information…). If no record is selected, pushing the detail button will show the details of the first record  on the page. If multiple data are selected, the first shown data will be the one on top of the list.     Left  and  right  Use the left and right arrows to have access on the remaining screens, displaying the  arrows  technical and additional information and the WBC, RBC and PLT histograms.   Up  and  down  Use the up and down arrows to visualize the details of the other selected data or scroll  arrows  through all data if no record was selected in the table view.   Print  To print the details of the currently shown record.  The result will be printed on the device and with  the format set in the printer settings (see 4.6.1).  Press “Abort” to cancel the printing.  Edit  To open the screen where the sample ID and patient ID information can be edited or  completed.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 38 ...
  • Page 49 Sex: Select the sex by repeatedly clicking this box: female, male or ­  Back  Press “Back” to return to the table view of the database.  4.4.2 PRINT  Only after selection of one or more record(s) this button becomes blue (active). It is used to print out all  the  selected  records. The result(s)  will  be printed on  the  device  and  with  the  format  set in  the  printer  settings (see 4.6.1). When more than 1 record is selected, you can choose between individual printing  (result by result) or a table format (only when using a USB/external printer). Press “Abort” to cancel the  printing request.  4.4.3 FILTER  The filter menu can be used to give in search criteria to restrict the number of records or find a specific  test result.   Note: There is an “AND” relation between the different fields. If more than 1 field is filled in, the search can  be narrowed down.    Date  Search by entering a start and an end date to search the records measured on a specific  day or within a certain time period.  Sample ID  Search by entering the sample ID. Enter the complete sample ID or just a part to narrow  down the search. For example, if 5 is entered, all of the data containing 5 in the sample  CYANHemato user manual  Rev. (7.0), 2021­11  Page 39 ...
  • Page 50 Note:  This  function  can  only  be  used  when  “All” is selected in the field “Records”.   Filter  To filter for all the records that correspond to  your  search  criteria  and  return  to  the  table  view.  The  table  view  will  only  display  the  records that correspond to the search criteria,  but it will not change the select/check status  of the  record.  At  the  bottom of the  screen, it  will be indicated that the filter is on.  Cancel  Press “Cancel” to cancel your search. All of the inserted information or the different  criteria will be lost.   After each search, a new search can be performed by choosing “Filter” again. The different criteria can be  adjusted or completed to further narrow down the filtering or selection of the records.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 40 ...
  • Page 51 The  measurements  will  be  compared  in  a  chronological  order.  This  can  be  useful,  for  example, to follow­up the reaction of the different parameters of a specific patient to a treatment.   Procedure:  Select/check  the  records  for  which  you  want  to  check  the  variation  of  the  parameter  values.  The  selection can be done manually by selecting the checkbox or based on (multiple) filter/select settings  (see 4.4.3).  Press “Trends”.      Upper box  Visual representation of the variation of the blood parameters of the selected records  in chronological order. On the CYANHemato, it is possible to visualize 2 parameters at  a time. The color of the lines on the graph corresponds to the parameters selected in  the left and right lower boxes. Below the X­axis, the total number of measurements  used for the statistics are shown.  Lower boxes  To select the parameter to visualize in the upper box, use the up and down arrows.  The name of the selected parameter will have a certain color which corresponds to the  line in the graph above. Under the name, additional information about this parameter  is displayed:  i. Min/Max: The minimum and maximum values of all the selected measurements ...
  • Page 52   i. Save:  To  make  a  back­up  of  the  selected  record(s)  onto  an  external  USB  memory  device.  The  records  (including  histograms)  are  saved  in  a  “.dat”  format.  This  format  in  only  readable  on  a  CYANHemato  analyzer. A progress bar shows the status of the process. By default the file name  will include the serial number of the analyzer and the date of saving. The name can  be changed (on a computer), but the extension “.dat” needs to be maintained for  the file to remain functional. ...
  • Page 53 View: To review/reopen back­upped record(s)  (saved as “.dat” file on a USB memory device)  on  a  CYANHemato  analyzer.  Use  a  left  and  right  arrows  to  select  the  data  you  want  to  visualize.  The  selection of data can  be  made  based on the date and time the back­up was made, not by name of the file. Press  “OK” to confirm your choice and open the saved record(s) or press “Cancel” to abort  the operation.  4.4.6 EXIT  To exit the Database menu and return to the Main menu.      AINTENANCE The “Maintenance” menu contains operations concerning the maintenance and well­functioning of the  instrument; cleaning procedures, calibration and/or specific performance analyses.     Home ...
  • Page 54 All  calibrator products come with a list of the target values for the parameters. Performing a calibration is  essential for the determination of the factors for the different parameters and thus in the calculation of all  sample tests results. A calibration should be performed:  At installation of the analyzer.   At regular time intervals (determined by the lab itself).   When using a new lot of diluent.   When the quality control measurements shows a systematic errors (bias) or they are outside the   predefined limits.  After replacing any internal component.   If  you  want  to  measure  samples  in  pre­diluted  mode,  you  need  to  perform  a  pre­diluted   calibration.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 44 ...
  • Page 55 “Yes”  to  perform  a  calibration with a diluted control blood.  The user has to prepare manually the pre­dilution of the normal control blood  using diluent reagent.  Use a clean sample vial.   Dilute 1/6 (1 part normal control blood + 5 parts diluent).  For example: 150 µL normal control blood + 750 µL diluent.   The total volume should be at least close to 1 mL   Mix well by inverting the closed sample tube at least 8 times to achieve a  homogenous  sample.  Do  not  shake  it,  because  micro­bubbles  can  form  which may cause erroneous sampling/analysis!  Notes:  The  analyzer  will  automatically  take  the  pre­dilution  factor  into  account  while  calculating the result.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 45 ...
  • Page 56 5  15  HCT  0.1  0.6  PCT  0  2  ii. If a barcode reader is available “Load Datamatrix” can be used to insert the target  values automatically (option for the future).  iii. Press “Accept” to proceed to proceed with the calibration measurement or press  “Cancel” to return to the calibration menu.  3. Perform  the  calibration  measurement(s)  by  pressing  START.  It  is  strongly  recommended  to  perform  at  least  3  measurements  before  proceeding  to  result.  Follow the procedure for calibration measurement (See 4.5.2.2)  CYANHemato user manual  Rev. (7.0), 2021­11  Page 46 ...
  • Page 57: Calibration Measurement

      ALIBRATION MEASUREMENT Calibration can only be performed by measuring normal control blood.   The  instrument  will  measure  the  normal  control  blood  and  because  the  target  values  are  known  and  programmed, the analyzer can calculate the factors for different parameters. These factors will then be  used for the calculations during the sample measurements.   The user can change the number of measurements for calibration but it is recommended to perform at  least 3 calibration measurements before accepting the results and calculating the factors.   Procedure:  1. Let the normal control blood come to room temperature (18 – 30°C) for 30 minutes. Make also sure  that all reagents (diluent, lyse, cleaner) are at room temperature.  2. Go to “Maintenance”  “Calibration”  “Measure”  3. Set the calibration measure options (prediluted and sampling depth)  4. Press “Accept” to proceed to the next step.  5. Insert the calibration target values of the normal control blood (see insert, lot dependent!).   6. Press “Accept” to proceed to the next step.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 47 ...
  • Page 58 The  CV%  is  an  important  criterion  for  the  evaluation  of  the  calibration  measurements.  It  is  strongly  recommended  to  only  accept  the  calibration  if  the  CV%  value  is  below  the  maximum  limit  for  all  parameters.  Finally,  the screen will also display the newly calculated user calibration factor calculated. To  be able to accept the calibration, these new user factors need to within the limits (0.7  – 1.3).    Accept  CYANHemato user manual  Rev. (7.0), 2021­11  Page 48 ...
  • Page 59 3. If  the  same  vial  needs  to  be  measured  multiple  times,  please  mix  the  vial  gently  before  every  sampling. Make sure to wipe clean the inside of the cap before placing it back on the vial (and perform  mixing),  otherwise  dried  up  blood  (clots)  can  be  mixed  with  the  blood  and  influence  the  measurements.    4. Vials that are stored for an extended period of time may require extra mixing  a. Hold the vial horizontally between the palms of your hands and roll the vial back and forth for  30 seconds  b. Mix by rapid version to ensure the cells are suspended (Do not shake!)  CYANHemato user manual  Rev. (7.0), 2021­11  Page 49 ...
  • Page 60 Up to 6 different quality controls samples can be programmed on the instrument.   Press “Home” to return to the main menu.  Home  Press “Back” to return to the previous level.  Back  If  a  barcode  reader  is  available,  the  target  values  can  be  uploaded  automatically  Load  (option for the future).  Datamatrix    Select one of the (programmed) quality control profiles (QC1­6). In the example above on the right, there  are  already  three  controls  profiles  present/programmed  in  the  memory:  32800422,  32800423  and  32800424. Present data can be overwritten or a new profile can be inserted. After selection of one of the  profiles, the screen below will be displayed:  CYANHemato user manual  Rev. (7.0), 2021­11  Page 50 ...
  • Page 61   Notes:   Make sure to insert the value related to the correct control blood (low, normal  or high) and with the correct unit!   Some target values can only be set within the certain ranges:  Parameter  Low limit  High limit  WBC  1.0  30.0  RBC  1.00  8.00  HGB g/l  30  300  MCV  50  120  RDW CV  10  50  PLT  30  800   In case you want to omit the analysis of a certain parameter, enter 0 (zero) as  a target and range for that specific parameter.  Load: From software version 2.6, the target and range values can be uploaded  from an “*.ini file” saved on a USB flash drive to the instrument. You only need to  insert the lot number and then press the “Load” button (see 4.5.3.2).  CYANHemato user manual  Rev. (7.0), 2021­11  Page 51 ...
  • Page 62 The  color  of  the  lines  on  the  graph  corresponds  to  the  parameters  selected in the left and right lower boxes. Below the X­axis, the total number of  measurements performed for the selected profile are displayed.  ii. Lower boxes: To select the parameter to visualize in the upper box, use the up and  down arrows. The name of the selected parameter will have a certain color which  corresponds  to  the  line  in  the  graph  above.  Under  the  name,  additional  information about this parameter is displayed:  Ref: The programmed target and range values for this parameter.   Mean: The mean value of all measurements performed for this parameter.    CV: The coefficient of variation of all measurements for this parameter.   SD: The standard deviation of all measurements for this parameter.   iii. Print: Press “Print” to print out the trends for all the parameters separately. The  graph will be printed out together with the additional information.  iv. Exit: Press “Exit” to leave this menu and return to the previous menu.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 52 ...
  • Page 63 EMATO  FROM   V From software version 2.6 on, the target and range values can be uploaded to the instrument as “.ini” files.  Please contact your distributor to receive the «*.ini files» to perform the upload. For each lot number (xxxx)  of control blood, there are 3 files:  1. Low level     QC_xxxx0422.ini   2. Normal level    QC_xxxx0423.ini   3. High level    QC_xxxx0424.ini   Procedure  Save the «*.ini files» on a USB flash drive (USB < 4 GB!)  Notes:  Make sure all files are accessible. Save them directly on the USB disc, because the CYANHemato   cannot read files that are stored inside a folder.  Do NOT change the name of the file or the extension!    Turn on the CYANHemato.   Insert the USB flash drive in any of the 4 USB A ports.  Go to « Maintenance »  « Quality Control »  Choose the preferred QCx to enter the control values  by clicking on the button.   Click on « References » to insert/upload the reference values.  In the screen that appears, all control values can be inserted manually or uploaded from USB.  Click on the « LOT » area (red circle)  Insert the lot number correctly. This lot number is 8 digits long and is indicated in name of the file:   “QC_lotnumber.ini”  Then press « Load ».    10. The message “QC_xxxxxxxx.ini loaded” should appear.  11. The expiration date and target and ranges will be programmed in the software and displayed on the ...
  • Page 64 6. If  the  QC  measurements  remains out of  range,  please  perform  a new  calibration  (see  4.5.2).  After  recalibration, perform another QC and verify if the values are now within range.    Trends  The  Trends  menu  is  a  statistical  tool  that  can  be  used  to  monitor  variation  of  the  different  parameters  over  multiple  measurements.  The  measurements  will  be  compared in a chronological order (Please see the explanation for Diagram 4.5.3.1).  CYANHemato user manual  Rev. (7.0), 2021­11  Page 54 ...
  • Page 65   Notes:  1. If the same vial needs to be measured multiple times, please mix the vial gently (Step 1) before every  sampling. Make sure to wipe clean the inside of the cap before placing it back on the vial (and perform  mixing),  otherwise  dried  up  blood  (clots)  can  be  mixed  with  the  blood  and  influence  the  measurements.    2. Vials that are stored for an extended period of time may require extra mixing  a. Hold the vial horizontally between the palms of your hands and roll the vial back and forth for  30 seconds  b. Mix by rapid version to ensure the cells are suspended (Do not shake!)  c. Gently invert the vial 8 to 10 times immediately before sampling  3. Proceed only with the sample measurement if the obtained control values are within range! If the  quality controls are outside range, it is recommended to perform a calibration (see 4.5.2)  4. This procedure can only be performed by an advanced user.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 55 ...
  • Page 66: Device Information

      Home  Press “Home” to return to the main menu.  Back  Press “Back” to return to the previous level.  4.5.4.1   EVICE  NFORMATION  To  display  the  hardware  and  software  setup  of  the  instrument:  model,  serial  number,  software  (SW)  version, PIC version and date when compiled. Press “Back” to return to the previous menu.    Note: After replacement of the main board, this screen will indicated Serial number 999999. Please  check the label on the back of the analyzer to find the serial number of the CYANHemato analyzer.  4.5.4.2   ELFTEST This menu is used to verify the correct operation of essential components of the instrument individually.  Upon entering the selftest menu, some function keys are gray (inactive). Only after performing a selftest  (by pressing “Start”), all function keys become blue (active).  The self­test should be performed:  At installation.   After replacing any component.   After extended time out of use. ...
  • Page 67 This  option  can  only  be  used  when  an  external  USB  flash  drive  (USB  <  4  GB!)  is  connected to the analyzer. Press “Save” to save the results of the performed selftest as  a “.log” file on the external USB memory device. This file can visualized on a PC or send  by email in case further support is necessary.   Print  Press “Print” to print out the results of the performed selftest.  Back  Press “Back” to return to the previous level.  4.5.5 Reagent status  To show the current volume of reagents and the waste, as calculated by the instrument. This menu should  also be used upon replacement of (one of) the reagents; to reset the calculations and to prime the tubings.    The bar graphs show the reagent status. On each bar, the current volume, as calculated by the software,  will be displayed in mL. With each measurement/action, the volumes are changed accordingly. When one  of  the  reagents  is  running  low,  or  the  waste  is  full,  the  instrument  will  notify  the  user,  and  ask  for  a  replacement.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 57 ...
  • Page 68 Cancel:  Press  “Cancel”  to  return  to  the  “Reagent  status”  menu  without  saving  changes.  Notes:  The programmable ranges are:      Default [mL]  Minimum [mL]  Maximum [mL]  Diluent  20 000  1 000  25 000  Lyse  1 000  1 000  6 000  Cleaner  1 000  1 000  6 000  Waste  20 000  1 000  25 000  When the volume of the reagents or the waste is set to 0 (zero), the software will   not keep track of the volumes (and not give notifications).    Press “Exit” to close the “Reagent status” menu and to return to the previous menu  Exit  CYANHemato user manual  Rev. (7.0), 2021­11  Page 58 ...
  • Page 69 3. Incubate for 1 hours.  4. Dispose of the waste container according to your laboratory’s guidelines.  If  there  is  a  difference  between  the  different  regulations  (MSDS,  hospital,  state,  federal  level  regulations), then always follow the ‘stricter’ regulation.  WARNING Risk of personal injury if waste is not neutralized before the waste container is closed. Non­ neutralized  waste  contents  may  produce  gas,  which  can  build  up  pressure  in  a  capped  container.  Neutralize waste contents after removing the waste container and before capping it for disposal.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 59 ...
  • Page 70 USB:  When  this  option  is  selected,  all  printing  will  be  performed  by  an  external  printer,  connected  to  the  analyzer  by  a  USB  A  port.  For  the  list  of  compatible  printers  see  3.3.3.  If  the  printer  is  recognized,  the  screen  will  show  the  printer’s  name.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 60 ...
  • Page 71 Press  “Accept”  to  confirm  and  use  the  programmed settings.  Press “Cancel”  to  return  to  the  “Printer  settings”  menu without saving changes.  Update  If you have software version 3.2 or higher and you have a printer with PCL3 or PCL5  printer list  language  and  open  source  drivers,  but  the  printer  is  not  working  due  to  a  driver  problem, please contact your distributor.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 61 ...
  • Page 72 4.6.1.2   RINTOUTS The following items can be sent to an external printer or the built­in printer:  Database (specified patient results with histograms)   Database result(s) (table format)   QC result (Levey­Jennings chart)   QC result(s) (table format)   Calibration results   Blank results   Device information and statistics   Self­test result   Please find some examples of printouts below  Patient report on external printer (left) or built­in thermal printer (right)     Database table printout on external printer       QC graphical printout on built­in thermal printer (left) or external printer (right)   CYANHemato user manual  Rev. (7.0), 2021­11  Page 62 ...
  • Page 73     CYANHemato user manual  Rev. (7.0), 2021­11  Page 63 ...
  • Page 74   Sound   The  sound  of  the  analyzer  can  be  enabled  and  disabled  by  clicking  this  function  repeatedly.   Language  To  change  the  language  of  the  CYANHemato  to  the  user’s  preference.  Select  this  box  and  then  select  the  desired language in the window that opens.  Export format  To change the export format and thereby the amount of information that is included  in  the  “.txt­file”  (see  0).  This  file  type  can  be  imported  into  Microsoft  Excel  for  data ...
  • Page 75: Normal Ranges

    Select  from  the  appearing  menu  the  profile  for  which  you  want  to  check  or  change  the  normal  range;  human, male, female, baby, toddler, or child.  Parameter   The  selected  parameter,  for  which  the  normal  limits  are  shown  below  and  can  be  changed, is displayed. Parameter order: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT,  PCT, MPV, PDWs, PDWc, RDWs, RDWc, LYM, MID, GRA, LYM%, MID%, GRA%, P­LCC, P­ LCR.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 65 ...
  • Page 76 0.90.  Upon  selection  of  this  box,  a  numerical  keyboard  will  appear.  Insert  manually the value for that respective parameters. Press Enter to confirm the value.   When a sample type is more resistant to lyse, the lyse volume needs to be increased. If  a sample type is more sensitive to lyse, the lyse volume need to be decreased. The need  to  adjust  the  lyse  volume  is  best  visible  by  checking  the  WBC  histogram.  Insert  a  decreased (­0.1, ­0.2mL) volume of the lyse reagent if the WBC histogram is shifted to  the  left,  i.e.  the  different  WBC  populations  are  overlapping.  This  can  inhibit  proper  separation of WBC populations.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 66 ...
  • Page 77 Accept  Press “Accept” to confirm and use the programmed settings.  Cancel  Press “Cancel” to return to the previous menu without saving changes.  4.6.3.4   ETTINGS This menu consists of 2 tabs where settings for the processing of the measurements and the calibration  can be adjusted.     Result  Auto  print:  When  enabled,  the  report  will  automatically  be  printed  when  the  analysis is finished.   Auto send: When enabled, the results will automatically be transmitted to the LIS  system (when connected).  iii. Barcode: If a barcode reader is used and this option is enabled, the scanned data  is inserted as sample or Patient ID.   Calibration   There are 2 calibration modes available: MCV/MPV or HCT/PCT.   For normal control blood provided by Cypress Diagnostics, it is recommended to use  the MCV/MPV mode.   Accept  Press “Accept” to confirm and use the programmed settings.  Cancel  Press “Cancel” to return to the previous menu without saving changes.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 67 ...
  • Page 78 Time  format:  Click  repeatedly  to  change  to  the desired time format. There are 2 options  possible: 24h mode or 12h mode.   Accept  Press “Accept” to confirm and use the programmed settings.  Cancel  Press “Cancel” to return to the previous menu without saving changes.  Note:  The  analyzer  has  a  built­in  battery  responsible  for  running  the  built­in  clock  when  the  unit  is  not  operational. If the analyzer asks for the date and time setting after switching on the analyzer, there might  be a problem with this battery. To solve the problem, contact your distributor.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 68 ...
  • Page 79 Press  “Accept”  after  filling  in  the  “Login  name”  and “Password” to enter the main menu.   Note: If the password does not correspond to the  login name, an error will be shown.  Cancel  Press “Cancel” to return to the previous menu without log in.   4.7.2 Shutdown  The instrument uses diluent, an isotonic saline solution containing salt. It is very important that the diluent  is  washed  out  of  some  units  of  the  instrument  in  order  to  prevent  salt  accumulation.  In  addition,  the  counting chamber has to be filled with diluent prior to shut down in order to prevent dust condensation.  Therefore it is necessary to always follow the instructions below when switching off the instrument.   1. In the Main menu, select “Exit” and then press “Shutdown”.   2. The analyzer will perform the necessary steps to rinse and prevent failure to the pneumatic system.  3. When everything is ready, the instrument will give a tone and a message indicating that it is safe to  turn it off.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 69 ...
  • Page 80 3. When  you  are  finished,  click  OK.  The  instrument  will  drain  all  remaining  reagents  to  the  waste  container.  4. Next, the instruments asks you to connect the cleaning tube. Attach the 3 short tubes to the 3 reagent  inlet connectors at the rear panel of the instrument and submerge the free end in a bottle containing  at least 100 mL of distilled water.      5. When  you  are  finished,  click OK.  The instrument  will  aspirate  the  distilled  water  to  rinse  away and  eliminate any residual salt to the waste container.  6. Next, the analyzer asks you to remove the cleaning tube from the 3 reagent inlet connectors on the  rear plate of the analyzer. Leave the waste tube and container attached.   CYANHemato user manual  Rev. (7.0), 2021­11  Page 70 ...
  • Page 81 This  menu  enables  all  actions  related  to  user  management. Only the Admin (your distributor) has full access all menus. As laboratory user, you only  have access to the “edit/view user” button. To add new user accounts or change the login settings, please  contact your distributor.    Edit/View  To view or edit the user’s profile. When logged in as Admin (or Service), you can view  user  and edit all programmed user profiles. When logged in as a laboratory user, you can  only edit your own profile.  Click on the field and select the user profile you want to view or edit from the list that  will appear.    Press  “Accept”  to  open  the  selected  user  profile.  Press  “Cancel”  to  return  to  the  previous menu.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 71 ...
  • Page 82 The  advanced  user  type  has  full  access  to  all  menus  (except  the  user  management)  Note:  This field  cannot  be  changed  by  a  laboratory user. Only  the  admin  can  change this field. If change is necessary, please contact your distributor.  Password: Enter a password. It must consist of 4 digits (between 0000 – 9999).  The user can always change his own password after begin logged in.  iii. Re­enter password: Enter the password a second time. If the password is not the  same as in the above field, an error will be shown.    Press “Accept” to confirm and create a user profile with the programmed settings and  to return to the previous menu. Press “Cancel” to return to the previous menu without  saving changes.  Home  Press “Home” to return to the main menu.  Back  Press “Back” to return to the previous menu.     CYANHemato user manual  Rev. (7.0), 2021­11  Page 72 ...
  • Page 83: Daily Routine

    DAILY ROUTINE    REPARATIVE  5.1.1 Preparation of the analyzer  Switch ON the CYANHemato. After a short system initialization, the login screen or the main menu will be  shown.   Note:  If  the  analyzer  was on  for 24h, it is  required  to  perform a  cleaning.  Go  to  Maintenance   Cleaning    Cleaning (3x).  5.1.1.1   HECK THE REAGENTS 1. Check the date of opening (it should be written on the reagent bottle). If the reagent has been open  for >120 days, please discard the bottle and attach a new reagent bottle.  Please see 4.5.5.1 for more details.  2. Check that there is sufficient reagent left to analyze all the samples of the day and to clean the  instrument.  There are 2 ways to check the liquid level of the reagent containers:  o Visually by checking the amount of liquid in the bottle.  o By using the software:  Go to “Maintenance”  “Reagent status”  Check the level of reagents in mL.  Notes: ...
  • Page 84 2. If the samples cannot be analyzed within a few hours after collection, samples should be stored at a  temperature of 2­8°C immediately after sample collection.  The anti­coagulant requires some time (15­30 minutes) to stabilize its effect and completely stop the  coagulation  process  from  starting.  Blood  samples  should  be  run  on  CYANHemato  only  after  this  reaction time has elapsed.  4. The collected samples can be kept at room temperature (15 – 30°C) for 8 hours or can be stored in the  refrigerator (2 – 8°C) for 24 hours after collection. These time periods can only be obtained when the  blood samples are stored on a roller mixer  5. Before analysis, the samples need to be homogenized.   a. The  ideal  way  to  homogenize  samples  taken  out  is  putting  them  on  a  roller­mixer  for  20­30 ...
  • Page 85 If  all  values  are  displayed  in  black,  the  QC  is  succeeded  and  you  can  proceed  to  sample  measurements.  b) If some (or all) QC values are out of range (displayed in red) and/or warning flags are shown,  please check:  ­ That the instrument and reagents are clean by performing a blank measurement (see 4.3.4).   ­ If the control blood and reagents are at room temperature (18 – 30°C).  ­ If the target and range values have been inserted correctly; corresponding to the low, normal  or high control blood used, and with the correct units! These values are lot dependent!   ­ The control blood:  o Stability and storage (see insert): Expiration date? Date of opening? Temperature?  o Make sure there is enough blood left to perform correct sampling  o Use another vial of control blood to perform the QC  6. If  the  QC  measurements  remains out of  range,  please  perform  a new  calibration  (see  4.5.2).  After  recalibration, perform another QC and verify if the values are now within range.  Notes:  CYANHemato user manual  Rev. (7.0), 2021­11  Page 75 ...
  • Page 86 (result  by  result)  or  a  table  format  (only  when  using  a  USB/external  printer). Press “Abort” to cancel the printing request.  4. Press “Filter” to give in search criteria to restrict the number of records or find a specific test result.   5. Press “Trends” to monitor variation of the different parameters over multiple measurements.   6. Press “Manage” to deselect, delete, or back up the selected/checked records   –   HUT DOWN    ND OF THE DAY 1. In the Main menu, select “Exit” and then press “Shutdown”.   2. The analyzer will perform the necessary steps to rinse and prevent failure to the pneumatic system.  3. When everything is ready, the instrument will give a tone and a message indicating that it is safe to  turn it off.  4. Now you can turn off the power using the rear power switch. The «OFF» position is marked by «0»  symbol.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 76 ...
  • Page 87 Notes:   a. NEVER turn OFF the analyzer by simply flipping the power switch on the rear panel (without following  the  above  procedure).  Doing  so  may  damage  the  instrument  and  result  in  erroneous  operations  during later use.  b. When the instrument has to be moved or shipped or when it will be left unused for a long time  (>1 week), a “prepare for shipment” procedure needs to be performed (See 4.7.3).    EEKLY At the end of the week, perform the weekly maintenance:  1. Check the bottom of the washing head for salt­built up and if necessary wipe it off with a damp cloth  2. Check the tubing system by opening the side door and look for any liquid leakage or white salt built­ up on the bottom of the CYANHemato. If so, contact your local distributor.  3. Clean the outside of the instrument using a damp cloth with a soft detergent. Make sure to prevent  liquids from entering the units.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 77 ...
  • Page 88: Quality Control

    PREPARATION OF THE ANALYZER  1. CHECK REAGENTS (LEVEL & DATE)  2. CHECK WASTE LEVEL  PREPARE QC/ SAMPLES   CLEANING (3x)   CLEANING   EMERGENCY CLEANING  BLANK MEASUREMENT (3x)   CHECK REAGENTS DATE   REPLACE REAGENTS   CHECK CONTROL BLOOD  NO  OK?  DIRT  YES  INCLUDE  (CALIBRATION)  QUALITY CONTROL  NO  OK?  YES  SAMPLE/PATIENT ENTRY  SAMPLE MEASUREMENT  RESULTS: ANALYSIS, PRINT & MANAGE  SHUTDOWN        END OF WEEK      CLEAN NEEDLE WASHING HEAD    CHECK HYDRAULIC SYSTEM  CLEAN OUTSIDE OF INSTRUMENT  CYANHemato user manual  Rev. (7.0), 2021­11  Page 78 ...
  • Page 89: Maintenance

    MAINTENANCE  In vitro Reliable results are crucial for   Diagnostics and hematology. However, reliability and accuracy of  the  CYANHemato  can  only  be  guaranteed  if  maintenance  instructions  are  strictly  followed.  The  procedures,  listed  and  described  below,  should  be  followed  carefully  in  order  to  guarantee  the  manufacturers quality specifications and the perfect working conditions of the instrument over time.    Frequency  What  Who  Daily  Blank measurements (& cleaning)  USER  Weekly ...
  • Page 90 Hypoclean  (CY006­R04)  and/or  Clenz  reagent  (CY006­R05).  Also when contamination of the old reagent is suspected, please perform a full disinfection procedure  before replacing the reagents  6.3.1 Disinfection / Emergency cleaning  : Strictly respect the times mentioned for the different steps! Hypoclean is a very strong cleaner  that can affect the tubes when it remains too long inside the instrument!  1. Start the « Prepare for shipment » procedure (Exit  Preparing for shipment).  2. Instead of removing the tubes at the rear reagent inputs at the back of the instrument (as asked by  the instrument, see the picture below), leave them attached to the inlets, unscrew the caps from the  reagent bottles, take the tubes out of the reagents and leave them open to the air. Leave the waste  connected.  Wipe the outside of the tubes and the caps with clean paper dampened with disinfectant solution  (CYDIS Surface, 6% ESOFENOL, 10% hypochlorite (bleach)) to disinfect them. Then wipe the caps with  clean paper dampened with distilled water to ‘rinse’ them.        3. Press OK. The CYANHemato will now aspirate air to remove the liquid that remained in the tubes.  4. Next, instead of connecting distilled water using the cleaning tube kit (as asked by the instrument,  see the picture below), put the 3 reagent tubes (all together) in the Hypoclean reagent (CY006­R04).    Do not press OK, just turn off the CYANHemato by switching of the power switch at the rear of the  instrument.  Turn the instrument back on.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 80 ...
  • Page 91 Perform  a  prime  for  all  3  reagents  separately  (Maintenance  >  Reagent  Status  >  Prime),  so  the  Hypoclean reagent is aspirated in all 3 tubes.  Run several (3­5) blanks, disregard the results (Measure > Blank).  Leave the instrument 15 minutes untouched. (NOT longer!)  10. Start again the ‘preparing for shipment’ procedure (Exit > Preparing for shipment).  11. Instead of removing the tubes at the rear reagent inputs (as asked by the instrument), leave them  attached to the inlets and just take the tubes out of the Hypoclean reagent. Wipe the outside of the  tubes with some clean paper to dry them. Leave the waste connected.   12. Press OK. The CYANHemato will now aspirate air to remove the Hypoclean that remained in the tubes.  13. Next, insert the 3 tubes in a bottle with minimum 100 mL distilled water.    14. Press OK. The CYANHemato will now aspirate distilled water to rinse the tubing.  15. Next, take the 3 tubes out of the water bottle and press OK. The CYANHemato will now aspirate air.    16. When finished, the instrument asks you to turn off the system by switching off the power switch at  the rear of the instrument.   17. If necessary, replace the tubes (inside the reagent container and from the reagent container to the ...
  • Page 92 Dirt  or  clogging  of  the  needle  can  also  influence  the  sampling  and/or  cause  variation between replicate measurements. To wash the sampling needle and the  related tubing using Hypoclean CC reagent (CY006­R06):   Procedure:  1. Fill  a  sample  tube  with  2  mL  Hypoclean  CC  reagent  and  position  it  in  the  correct tube adaptor.  2. Push “Hard cleaning”. The instrument will ask you to confirm that you have  prepared the Hypoclean CC solution. Press “OK” to continue.    3. Hypoclean CC will be aspirated and used to clean the sampling needle and the related tubing.  4. When the procedure is finished, remove the sample tube.    CYANHemato user manual  Rev. (7.0), 2021­11  Page 82 ...
  • Page 93: Troubleshooting

    TROUBLESHOOTING    PERATIONAL Note: When there is a problem with the CYANHemato (independent of the nature of the problem), please  start the diagnosis with a selftest (full) first before proceeding with further diagnosis.    TROUBLE  DIAGNOSING AND SOLUTION  Overall result of selftest: “Failed”   Please contact your service engineer.  The blank measurement is out of  ­ See 4.3.4 for possible solutions for blank measurement out of range  range (+,*, ­, E­flag) for one of the  Check if:  following parameters (WBC, RBC, HGB  ­ The door on the right side of the instrument is closed during  and PLT)  measurements   ­ The surface of the instrument is clean (no dust or dirt)   Clean the surface of the instrument (see 6.2.3)  ­ The instrument is placed away from appliances that generate  electrical noise or magnetic fields (e.g. radiological instruments, X­ ray, radio, cell phones,…)   ­ The hydraulic system (tubings, measuring chamber, dilutor block,  puffer reservoir) is clean with no dust, dirt and/or strong coloration   Perform a cleaning of the instrument (see 6.1)  ­ The needle for dirt and/or blockage   Perform a hard cleaning of the needle (see 6.3.2)  ­ The reagents (diluent, lyse, cleaner) are contaminated, expiration  date, date of opening, dirt,… ...
  • Page 94 Check if:  ­ The reagents (diluent, lyse, cleaner) are contaminated, expiration  date, date of opening, dirt,…   If necessary, perform a “disinfection” procedure  (see 6.3.1) and  connect the new bottle of reagents and restart the test  ­ The control blood and reagents are at room temperature (18 –  30°C).  ­ The calibration has been performed with normal control blood.  ­ The  target  values  have  been  inserted  correctly,  with  the  correct  units!  These  values  are  lot  dependent  and  are  included  in  the  calibration kit.   ­ There is no problem with the normal control blood:  CYANHemato user manual  Rev. (7.0), 2021­11  Page 84 ...
  • Page 95 Hold the vial horizontally between the palms of your hands  and roll the vial back and forth for 30 seconds  b. Mix by rapid version to ensure the cells are suspended (Do  not shake!)  Gently  invert  the  vial  8  to  10  times  immediately  before  sampling  Make sure to always invert the vial at least 8 times immediately  before every sampling.  Make sure there is enough blood left (at least 8 mm) to perform  correct sampling  The cover of the vial is wiped before closing the vial containing  the blood to avoid dried blood from falling in   Use another vial of control blood to perform the QC  ­ The needle is dirty and/or blocked   Perform a hard cleaning of the needle (see 6.3.2)  ­ The probe voltages (PrVW/PrVR) are within range (260 < PrVW/R <  420)   See 4.3.2.1.2 and 4.3.4  ­ Restart the measurement and include a new calibration (see  4.5.2.2)!  Make sure to perform a calibration with normal control blood  CYANHemato user manual  Rev. (7.0), 2021­11  Page 85 ...
  • Page 96  Use the reagents at RT (18 – 30°C) (especially the Diluent)  ­ Lyse is concentrated by evaporation   Use another bottle of lyse reagent    ­ There is enough reagent left in the bottles  If after theses verifications the situation still persists, please proceed  with the next step.  ­ The patient sample is too sensitive to lyse. Decrease the lyse  volume little by little (­0.1/­0.2 mL) and rerun the sample  Note: Absence of 3­part differential may also occur in pathological  lymphocytosis.  If after theses verifications the situation persists, please contact your  service engineer.  The  WBC  histogram  is  shifted  to  the  Check if:  right and or RBC peak is found during  ­ The reagents (diluent, lyse, cleaner) for contamination, expiration  the WBC of the sample measurement  date, date of opening, dirt,…  ­ That the reagents are used at a decreased temperature   Use the reagents at RT (18 – 30°C) (especially the diluent)  ­ There is enough reagents in the bottle  CYANHemato user manual  Rev. (7.0), 2021­11  Page 86 ...
  • Page 97 If after theses verifications the situation persists, please contact your  service engineer.     (­­­)  E­flag  after  running  a  The obtained value is beyond the programmed linearity range (too  measurement  high or too low) (see 4.3.2.1.4). The instrument cannot measure a result.   Too low (­­E error + nothing visible in the histogram):  This may be due to a sampling problem (see technical  troubleshooting)  Too high:  Perform the analysis in pre­dilution mode (see 4.3.2). When  performing measurements in pre­dilution mode, a calibration  in pre­dilution mode also needs to be performed (see 4.5.2.1).  If the situation persists after the verification above, please contact your  service engineer.  Warning  signs  (small  and/or  capital  See 4.3.2.1.5 for the description and the recommended actions for the  letters  e.g.  “Cpb”)  are  obtained  after  obtained warning signs  measurement   If after all these verification the situation persists, contact you service  engineer.  CYANHemato user manual  Rev. (7.0), 2021­11  Page 87 ...
  • Page 98 There is enough sample in the vial (at least 8 mm)  ­ During sampling the needle comes in contact with the  sample  ­ There is sampling:    Sample present in tubes   Sample present in measuring chamber  If  after  this  verification  the  situation  persists  or  if  there  is  no  sampling seen, please contact your service engineer.  Printing problem on the built­in printer  Please check if:   ­ There is thermal paper in the printer.  ­ The paper is oriented correctly in the built­in printer (prints  only on one side) (see 3.3.4)  ­ The result print is enabled I n the printer settings (see 4.6.1  and 4.6.3.4) + setting device (see 4.6.1)  If after theses verifications the situation persists, please contact  your service engineer.  Printing problem on the external printer  Please check if:  CYANHemato user manual  Rev. (7.0), 2021­11  Page 88 ...
  • Page 99 ­ The printer is compatible with the analyzer and the software  of the analyzer (see 3.3.3.3)  ­ The printer is correctly connected to the analyzer.  ­ The  result  print  is enabled  in the  printer  settings  (see  4.6.1  and 4.6.3.4)  If after theses verifications the situation persists, please contact  your service engineer.  Screen problem  Please contact your service engineer    CYANHemato user manual  Rev. (7.0), 2021­11  Page 89 ...
  • Page 100: Hydraulic Diagram

    HYDRAULIC DIAGRAM  CYANHemato user manual  Rev. (7.0), 2021­11  Page 90  Cypress Diagnostics: Nijverheidsstraat 8 • 2235 Hulshout • Belgium • www.diagnostics.be • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
  • Page 101 Furthermore, this reagent is only validated for - Leave the reagent at room temperature for at least 12 use on the CYANHemato analyser. Please refer to the hours. instrument’s user manual for further information. REAGENT REPLACEMENT...
  • Page 102: Reagent Preparation

    Furthermore, this reagent is only validated preparation is necessary. for use on the CYANHemato analyser. Please refer to - Leave the reagent at room temperature for at least the instrument’s user manual for further information.
  • Page 103 - This reagent is ready for use and can be applied reagents. Furthermore, this reagent is only validated for straight from the container; no special reagent use on the CYANHemato analyser. Please refer to the preparation is necessary. instrument’s user manual for further information.
  • Page 104 Furthermore, this reagent is only validated for preparation is necessary. use on the CYANHemato analyser. Please refer to the - Leave the reagent at room temperature for at least 12 instrument’s user manual for further information.
  • Page 105 Furthermore, this reagent is only validated for preparation is necessary. use on the CYANHemato analyser. Please refer to the - Leave the reagent at room temperature for at least 12 instrument’s user manual for further information.
  • Page 106 - Please refer to the MSDS associated with the reagent. - Use Good Laboratory Practices (GLP) when handling the reagents. Version 20160711_(5.1) Cypress Diagnostics: Nijverheidsstraat 8 • 2235 Hulshout • Belgium www.diagnostics.be • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
  • Page 107 Tube adaptor 3, control vial CY006-S33 Cog-wheel machine grease for dented parts CY006-S34 Silicon grease for macro piston Sampling & Measuring Assembly Cypress Diagnostics: Nijverheidsstraat 8 • 2235 Hulshout • Belgium www.diagnostics.be • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
  • Page 108 Big T connector (3,2 mm) Replace every 3 years CY006-S25 Small T connector (2,3 mm) Replace every 3 years Cypress Diagnostics: Nijverheidsstraat 8 • 2235 Hulshout • Belgium www.diagnostics.be • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
  • Page 109 Transfer or replace when replacing the CY006-S59 Tube on needle head (1 cm) needle or internal hydraulic sampling tube Cypress Diagnostics: Nijverheidsstraat 8 • 2235 Hulshout • Belgium www.diagnostics.be • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
  • Page 111 CY006 To all Healthcare Professionals, Thank you for your interest. We appreciate it! CYANHemato Cypress Diagnostics provides the tools and solutions that let clinical laboratories worldwide deliver clear and precise diagnostic results. We manufacture the equipment needed for handling the...
  • Page 112 CY006-C02A Control vial low/normal/high 3 x 2,5 mL URL: www.diagnostics.be CYANHemato EN 2021-09 ISO 13485-2016 ISO 13485-2016 www.diagnostics.be • Belgium • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be www.diagnostics.be • Belgium • Tel: ++ 32 15 67 67 68 • e-mail: cypress@diagnostics.be...
