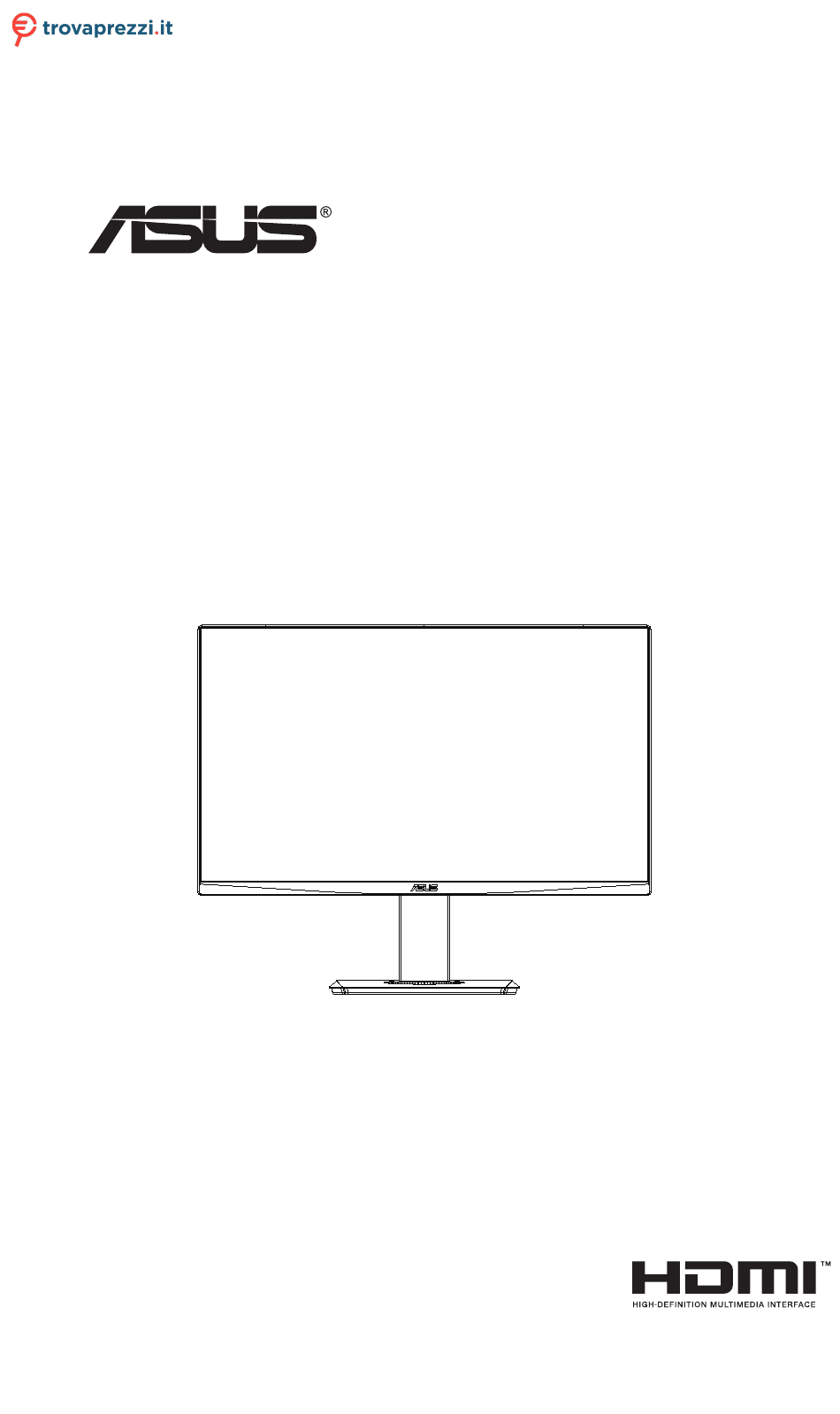

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus VG32VQR cerca il tuo prodotto tra le migliori offerte di Monitor VG32V Series LCD Monitor User Guide...
-
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 5 • Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum). • If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter.
- Page 6 Restriction on Hazardous Substances statement (India) This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of Lead, Mercury, Hexavalent Chromium, polybrominated biphenyls(PBBs) and polybrominated diphenyl ethers(PBDEs) in concentration exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except of exemptions listed in Schedule 2 of the Rule.
- Page 7 Prevent Tipping When using the display, fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. M4 or M6 Screw Cord Cord or chain •...
- Page 8 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures. ASUS LCD Monitor VG32V Series...
-
Page 9: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. •... - Page 10 IMPORTANT: Information that you MUST follow to complete a task. NOTE: Tips and additional information to aid in completing a task. ASUS LCD Monitor VG32V Series...
- Page 11 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 12: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 13: Assembling The Monitor
EPS (Expanded Polystyrene) packaging. Align the screw hole on the arm with the bundled screw on the base. Then insert the base into the arm. Fix the base to the arm by fastening the bundled screw. ASUS LCD Monitor VG32V Series... -
Page 14: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor HDMI-2 HDMI-1 DCIN DC-IN Port DisplayPort HDMI-1 Port HDMI-2 Port Earphone - out Port Kensington Lock Chapter 2: Setup... -
Page 15: Monitor Introduction
Particularly, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. To active GamePlus: Press GamePlus Button to enter the GamePlus main menu. • ASUS LCD Monitor VG32V Series... - Page 16 GamePlus main menu GamePlus-Crosshair GamePlus-Timer GamePlus-Sniper Close Button: • Exit the OSD menu. (5-way) Button: • Turns on the OSD menu. Enacts the selected OSD menu item. • Increases/Decreases values or moves your selection up/down/left/right ASUS LCD Monitor VG32V Series...
-
Page 17: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. -
Page 18: Detaching The Arm/Stand (For Vesa Wall Mount)
Detach the stand (arm and base) from the monitor. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 28.8 kg (Screw size: M4 x 10 mm). ASUS LCD Monitor VG32V Series... -
Page 19: Outline Dimension
Outline dimension Unit: mm [inch] Chapter 3: General Instruction... -
Page 20: Osd (On-Screen Display) Menu
Press the Center key to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes. Press the ◄/► to move left / right menu. ASUS LCD Monitor VG32V Series... -
Page 21: Osd Function Introduction
This function contains seven sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS TUF Gaming ASUS VG32V HDR OFF GameVisual Racing Mode DisplayPort 2560x1440@120Hz Scenery Mode... - Page 22 (2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). ASUS LCD Monitor VG32V Series...
- Page 23 Color Select the image color you like from this function. ASUS TUF Gaming ASUS VG32V HDR OFF Color Racing Mode DisplayPort 2560x1440@120Hz Brightness Contrast Saturation Color Temp. Skin Tone • Brightness: The adjusting range is from 0 to 100. •...
- Page 24 Image Racing Mode DisplayPort 2560x1440@120Hz Back ASCR Trace Free • HDR:High Dynamic Range. Contains two HDR modes (ASUS Cinema HDR and ASUS Gaming HDR). • Sharpness: Adjusts the picture sharpness. The adjusting range is from 0 to 100. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment.
- Page 25 4:3 is only available when input source is in 4:3 format。OverScan is only available for the HDMI input source. Input Select Select the input source from HDMI-1, HDMI-2 or DisplayPort input signal. ASUS TUF Gaming ASUS VG32V HDR OFF Input Select Racing Mode DisplayPort 2560x1440@120Hz HDMI-1 HDMI-2 DisplayPort System Setup Adjusts the system configuration.
- Page 26 Back: Return the previous page of System Setting. • Power Indicator: Turn the power LED indicator on/off. • Power Key Lock: To disable / enable power key. • All Reset: Selects “Yes” to revert all settings to the factory default mode. ASUS LCD Monitor VG32V Series 3-11...
- Page 27 MyFavorite Load/Save all settings on the monitor. ASUS TUF Gaming ASUS VG32V HDR OFF MyFavorite Racing Mode DisplayPort 2560x1440@120Hz Setting 1 Setting 2 Setting 3 Setting 4 3-12 Chapter 3: General Instruction...
-
Page 28: Specifications
-5° ~ +20° Phys. Dimension (WxHxD) 713.4 x 580.8 x 233.4 mm Box Dimension (WxHxD) 815 x 679 x 253 mm Net Weight (Esti.) 9.1 kg Gross Weight (Esti.) 13.4 kg Voltage Rating AC 100~240V(Built-in) ASUS LCD Monitor VG32V Series 3-13... -
Page 29: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. •... -
Page 30: Supported Timing List
1280x1024@ 75Hz 1440x480 @ 60Hz 1440x900 @ 60Hz 1680x1050 @ 60Hz 1920x1080 @ 60Hz 1920x1080 @ 120Hz 2560x1440 @ 60Hz 2560x1440 @ 100Hz 2560x1440 @ 120Hz 2560x1440 @ 144Hz 2560x1440 @ 165Hz 3840x2160 @ 60Hz ASUS LCD Monitor VG32V Series 3-15...
