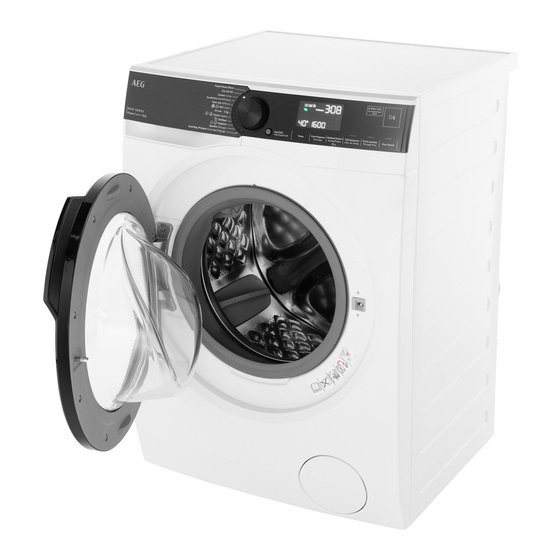

AEG PowerCare LR86CB86 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LR86CB86
USER
MANUAL
EN
User Manual
Washing Machine

Advertisement

Table of Contents
loading

Related Manuals for AEG PowerCare LR86CB86

Summary of Contents for AEG PowerCare LR86CB86

  • Page 1 LR86CB86 User Manual Washing Machine USER MANUAL...

  • Page 2: Table Of Contents

    17. ENVIRONMENTAL CONCERNS..............44 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 1.2 General Safety This appliance is for washing domestic-type, machine- • washable laundry only. This appliance is designed for single household • domestic use in an indoor environment. This appliance may be used in, offices, hotel guest • rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

  • Page 5: Safety Instructions

    ENGLISH approved by AEG (see more details in chapter "Accessories - Stacking kit"). 2. SAFETY INSTRUCTIONS 2.1 Installation 2.2 Electrical connection The installation must comply WARNING! with relevant national Risk of fire and electric regulations. shock. • Remove all the packaging and the •...
  • Page 6 • Do not use an extension hose if the has been discontinued: motor and inlet hose is too short. Contact the motor brushes, transmission between Authorised Service Centre for the motor and drum, pumps, shock replacement of the inlet hose.

  • Page 7: Product Description

    • The AEG Steam Fragrance, thanks before they are distributed in the to the steam programmes offers the laundry. So every fibre is reached and perfect solution for refreshing even cared for.

  • Page 8: Technical Data

    Transit bolts Hose support The rating plate reports: A. model name B. product number Mod. xxxxxxxxx 910000000 00 Prod.No. C. electrical ratings 000V ~ 00Hz 0000 W D. serial number 00000000 4. TECHNICAL DATA Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /66.0 cm...
  • Page 9 ENGLISH 7. Remove the polystyrene protection from the bottom. 3. Remove the internal film. 8. Pull up the appliance in vertical position. 4. Open the door and remove the polystyrene piece from the door seal and all the items from the drum. 9.
  • Page 10 If you install the appliance on a plinth or equivalent materials that is not an accessory supplied by below the appliance feet to AEG, secure the appliance with the fixing adjust the level. plates. This spare part is available in web shop or from authorised dealer.
  • Page 11 ENGLISH 5.4 The inlet hose 5.5 Water-stop device 1. Connect the water inlet hose to the The inlet hose has a water stop device. back of the appliance. This device prevents water leaks in the 2. Position it toward left or right hose because of its natural ageing.
  • Page 12 5. Without the plastic hose guide, to a sink spigot - Put the drain hose in the spigot and tighten it with a clamp. Refer to the illustration. Make sure that the drain hose end is not immersed in the water.

  • Page 13: Control Panel

    ENGLISH The power supply cable must be easily The manufacturer does not accept any accessible after installing the appliance. responsibility for damage or injury through failure to comply with the above For any electrical work required to install safety precaution. this appliance, contact our Authorised Service Centre.
  • Page 14 6.2 Display Door locked indicator. Washing phase indicator. It flashes during pre-wash and wash phase. Rinsing phase indicator. It flashes during rinse phase. Spinning and draining phase indicator. It flashes during spin and drain phase. Steam phase indicator. Anti-crease phase indicator.

  • Page 15: Dial And Buttons

    ENGLISH The digital indicator can show: • Programme duration (e. g. The time shown when the programme is set could not correspond to effective duration and change af‐ ter ProSense phase. • Maximum load. • Finish in time (e. g. •...
  • Page 16 7.3 Introduction 7.6 Plus Steam This option adds a steam phase followed The options/functions are by a short anti-crease phase at the end not selectable with all of the washing programme. washing programmes. Check the compatibility The steam phase reduces fabric between options/functions creasing and facilitates the fabric ironing.
  • Page 17 ENGLISH 7.8 Time Save 7.10 Spin With this option you can decrease the When you set a programme, the programme duration. appliance automatically selects the default spin speed. • If your laundry is normally or lightly soiled, it may be advisable to shorten Touch this button repeatedly to: the washing programme.

  • Page 18: Settings

    Touch this button repeatedly until the The appliance empties the desired temperature value appears on water out automatically after the display. approximately 18 hours. When the display shows the indicators 7.11 Temperature , the appliance does not heat the water.

  • Page 19: Before First Use

    ENGLISH 8.5 Factory Defaults 2. Press and hold the Stains/Prewash and Time Save buttons for some This function allows to restore the factory seconds. default options. To activate this option 3. The display will show follow steps below: about 5 seconds. 1.
  • Page 20 Programme Programme description Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol Wool Cotton and synthetic items lightly soiled or worn only once. 20min 3kg Cotton, synthetic and mixed items. Special steam cycle without...
  • Page 21 ENGLISH Programme Programme description White cotton items. This high-performance wash programme combined with steam vapour, removes more than 99,99% of Hygiene bacteria and viruses keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues.
  • Page 22 3) Washing programme and waterproofing phase. • Items that are not suitable for tumble 10.2 Steam programme drying. with AEG Steam Fragrance • Items with label "Dry clean only". Available in www.aeg.com/shop . After the steam treatment the laundry can be humid.
  • Page 23 ENGLISH • Tumble dry the garments treated with The fragrance dose bottles fragrance. Its benefit would are available on AEG web evaporate. shop or by authorised • Use the fragrance with different dealer. purposes than those here described. • Use the fragrance on new garments.

  • Page 24: Daily Use

    ■ ■ ■ ■ Time Save Extra Rinse ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Plus Steam Finish In ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 1) If you set the No Spin option, the appliance performs draining only.
  • Page 25 ENGLISH 11.1 Activating the appliance 11.3 Filling the detergent and additives 1. Connect the mains plug to the mains socket. 2. Open the water tap. 3. Press the On/Off button for a few seconds to activate the appliance. A short tune sounds. The appliance automatically proposes a default programme.
  • Page 26 With the flap in the position DOWN: • Do not use gelatinous or thick liquid detergents. • Do not put more liquid detergent than the limit shown on the flap. • Do not set the prewash phase. • Do not set the delay start function.
  • Page 27 ENGLISH display and the given information After setting a washing programme, the changes accordingly. icon lights up on the display if the programme supports it. In case a selection is not possible, no indicator After touching the Start / Pause comes on and an acoustic button, the ProSense starts the laundry signal sounds.
  • Page 28 11.10 Interrupting a About 20 minutes after the programme and changing the programme start, the options programme duration could be adjusted again depending When the programme is running, you on the capacity of water can change only some options: absorption of the fabrics.
  • Page 29 ENGLISH 11.14 Draining water out after You can easily open the door for adding or removing some items when the icon end of cycle is lighted on. If you have chosen a programme or an option that does not empty out the water 1.

  • Page 30: Hints And Tips

    • After 5 minutes from the end of the If you set a programme or an washing programme option that ends with water Press the On/Off button to activate in the drum, the Stand-by the appliance again. function doesn't deactivate...
  • Page 31 ENGLISH Insufficient detergent may cause: • unsatisfactory washing results, • the wash load to turn grey, • greasy clothes, • mould in the appliance. Excessive detergent may cause: • sudsing, • reduced washing effect, • inadequate rinsing, • a greater impact for the environment. 12.3 Detergent type and quantity 12.4 Ecological hints...

  • Page 32: Care And Cleaning

    13. CARE AND CLEANING the drain pump" and "Cleaning the inlet WARNING! hose and the valve filter" paragraphs. If Refer to Safety chapters. necessary, please contact the Authorised Service Centre. 13.1 Periodic cleaning 13.3 External cleaning schedule Clean the appliance with mild soap and Periodic cleaning helps to extend the warm water only.
  • Page 33 ENGLISH run a maintenance wash at least once a Always follow the month: instructions that you find on 1. Remove all laundry from the drum. the packaging of the 2. Run a cotton programme with the product. highest temperature with a small Do not clean the drum with quantity of powder detergent or, if acidic descaling products,...
  • Page 34 2. Remove the top part of the additive 13.9 Cleaning the drain pump compartment to aid cleaning. Make sure that all detergent residue is WARNING! removed from the upper and lower Disconnect the mains plug part of the recess. Use a small brush from the mains socket.
  • Page 35 ENGLISH 7. Turn the filter anti-clockwise to remove it. 2. Place a suitable bowl below the drain pump access to collect the water that flows out. 8. If it is necessary, remove fluff and 3. Open the chute downwards. Always objects from the filter recess.
  • Page 36 2. Remove the inlet hose from the appliance by loosening the ring nut. 12. Close the pump cover. 3. Clean the valve filter on the back of the appliance with a toothbrush. When you drain the water with the...

  • Page 37: Troubleshooting

    ENGLISH 1. Put 2 litres of water in the main wash 3. Put the two ends of the inlet hose in compartment of the detergent a container and let the water flow out dispenser. of the hose. 2. Start the programme to drain the 4.
  • Page 38 • Make sure that the water tap is open. • Make sure that the pressure of the water supply is not too low. The appliance does For this information, contact your local water authority. not fill with water prop‐...
  • Page 39 ENGLISH Problem Possible solution • Make sure that the mains plug is connected to the mains socket. • Make sure that the appliance door is closed. • Make sure that there is no damaged fuse in the fuse box. The programme does •...
  • Page 40 Problem Possible solution • Increase the detergent quantity or use a different detergent. • Use special products to remove the stubborn stains before The washing results you wash the laundry. are not satisfactory. • Make sure that you set the correct temperature.

  • Page 41: Consumption Values

    ENGLISH 5. Take out the laundry and then close 6. Close the filter flap. the appliance door. 15. CONSUMPTION VALUES 15.1 Introduction See the web link www.theenergylabel.eu for detailed information about Energy Label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.
  • Page 42 Eco 40-60 pro‐ Litres hh:mm °C gramme Half load 0.345 42.0 02:45 44.00 24.0 1600 Quarter load 0.265 29.0 02:10 45.00 22.0 1600 1) Maximum spin speed. Power consumption in different modes Off (W) Stand-by (W) Delay start (W) 0.50...

  • Page 43: Quick Guide

    ENGLISH 16. QUICK GUIDE 16.1 Daily use • Connect the mains plug to the mains • Pour the detergent and other socket. treatment in the proper compartment • Open the water tap. of the detergent dispenser. • Push the On/Off button to turn the •...

  • Page 44: Environmental Concerns

    Programmes Load Product description Low energy cycle for cottons. Decreases tem‐ 8.0 kg perature and extends time to reach good Eco 40-60 washing results. White and coloured cotton fabrics. Ideal for 8.0 kg normal and heavy soil. Cottons 3.0 kg Synthetic items or mixed fabric items.
  • Page 48 www.aeg.com/shop...
