Linksys WMCE54AG Quick Installation

®
A Division of Cisco Systems, Inc.
Package Contents
• Dual-Band Wireless A/G Media Center Extender
• Setup Wizard CD-ROM
• Remote Control
• Quick Installation (this document)
• RCA Audio/Video Cables
• S-Video Cable
• Ethernet Cable
• AA Batteries
• Registration Card
Dual-Band
Dual-Band
Wireless A/G
5
GHz 2.4 GHz
802.11a 802.11g
Media Center Extender
Wireless Quick Installation
Model No.
WMCE54AG
Model No.
Before You Begin
For the Extender to work properly, you will need the following:
• A PC running Windows XP Media Center Edition 2005
• A wired network
OR
a Wireless-A (802.11a), Wireless-G (802.11g), or Wireless A+G
(802.11a + 802.11g) network
NOTE: A Wireless-B (802.11b) network will not work with the Media
Center Extender.
If you want to use the Media Center Extender with a wired network,
NOTE:
refer to the User Guide for instructions.
1

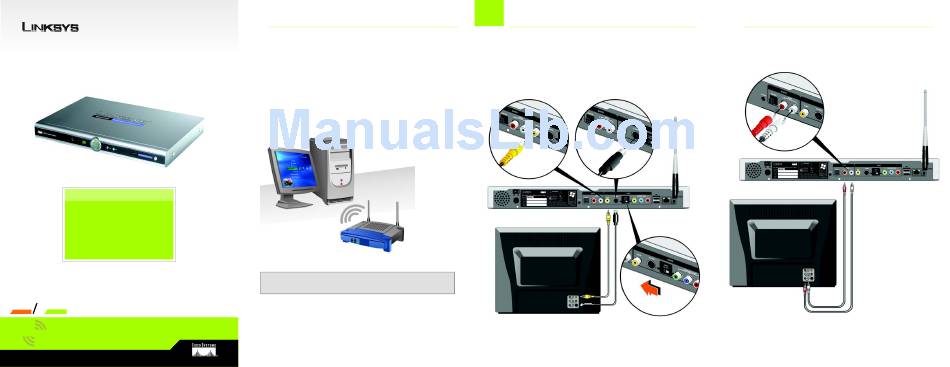

Connect the Media Center Extender
A
Connect the video cable from the Extender's VIDEO output to your
TV's VIDEO input.
Make sure the VIDEO SELECT switch is set to the left, towards the
VIDEO and S-VIDEO outputs.
OR
B
Connect the audio cable from the Extender's AUDIO inputs to your
TV's AUDIO inputs.
