Linksys WSB24 Quick Installation

Minimum Requirements
Instant Wireless ®
• One of the following Linksys products:
Wireless Access Point, WAP11
Wireless Signal
Wireless Router, BEFW11S4
Booster
Package Contents
• One Linksys Wireless Signal Booster
• Two Signal Booster Cables
• One Power Adapter
WSB24
• One Quick Installation guide
Note: The images in this document show the Wireless Signal Booster being con-
nected to an Access Point; the same directions can be followed when connecting the
Wireless Signal Booster to a wireless Router.

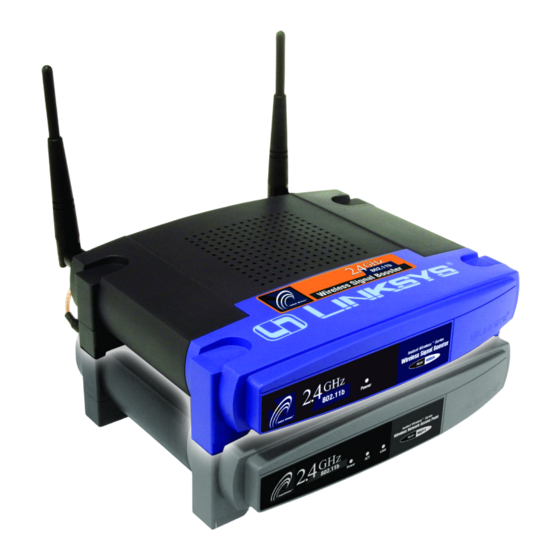

The Wireless Signal Booster with Access Point
Connecting the Wireless Signal Booster to
Your Linksys Access Point/Router

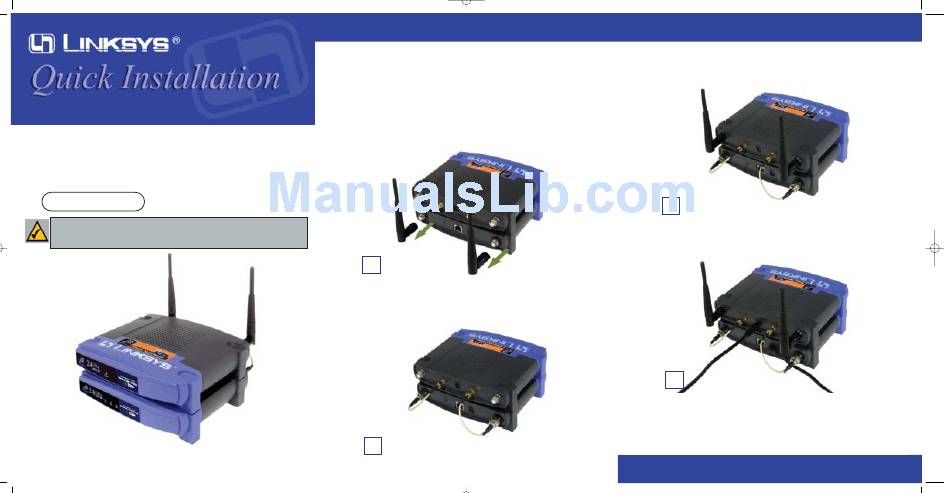

A. With your Access Point/Router powered off, place the Wireless Signal
Booster on top of the Access Point/Router.
B. Disconnect the Access Point's/Router's antennas.
B
C. Connect the Signal Booster Cables from the Access Point's/Router's anten-
na ports to the Wireless Signal Booster's cable ports.
C
D. Connect the antennas to the Wireless Signal Booster's antenna ports.
D
E. Connect the appropriate power adapters to both the Access Point/Router
and Wireless Signal Booster.
E
F. Now you are ready to use the Wireless Signal Booster in your wireless
network.
W W W . L I N K S Y S . C O M
QI-WSB24-10/25/02NC BW
