Page 3: Important Safety Precautions And Explanation Of Symbols
Please read this manual thoroughly before attempting to install, configure, or operate the Emotiva Airmotiv Subwoofer. After successful installation and configuration of the Airmotiv Subwoofer, be sure to retain this manual in a safe place for future reference. - Page 4 DO NOT defeat the safety purpose of a grounding or polarized plug by removing ground pins or using unsafe adapters. A polarized plug has two blades - one wider than the other. A grounding plug has a third ground prong in addition to the two main conductors. The wide blade or third groundling prong is provided for your safety.
-
Page 5: Table Of Contents
Airmotiv S15 ........................11 Airmotiv S12 ........................12 Airmotiv S10 ........................13 Subwoofer Placement and Configuration ............14 Connections ........................17 Care and Maintenance ....................18 Emotiva Audio Corporation Five-Year Limited Warranty ....... 19 Accessories ........................22 Notes ..........................22 Page 1... - Page 6 AIRMOTIV SUBWOOFERS Page 2...
-
Page 7: Introduction

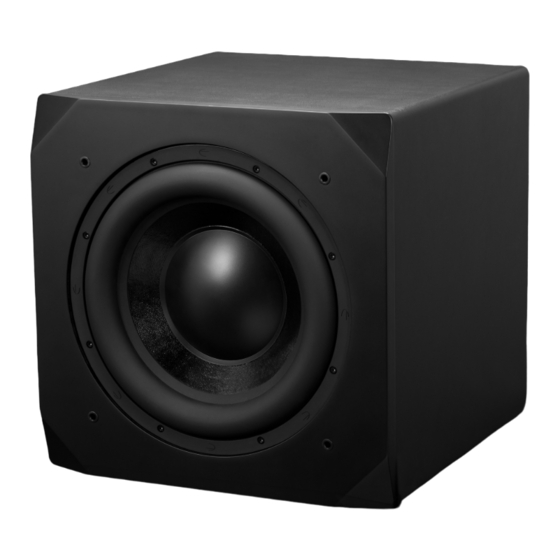

Introduction Thank you for purchasing a new Emotiva Airmotiv™ Subwoofer. Emotiva Airmotiv™ Subwoofers were designed to reproduce the lowest frequencies in the audio spectrum accurately and with exceptionally low distortion - even at the high listening levels in modern movies. This means that our Airmotiv Subwoofers can deliver all the dynamics and raw power you need to make a modern movie sound track rattle the walls, but still offer the precision and superb musicality you need to get the most from well recorded music. -
Page 8: About This Manual
AIRMOTIV SUBWOOFERS About This Manual This manual will provide you with all the information you need to achieve great performance, accurate sound, and many years of reliable service from your Airmotiv Subwoofer. We suggest that you read through the entire manual; we kept things as short and direct as possible. -
Page 9: Features
Airmotiv sub will stay exactly where you want it. • Full five year warranty - ensures that you’ll enjoy your Airmotiv subs for years to come. You can find more information about the Emotiva Airmotiv Subwoofers on our website at www.emotiva.com. Page 5... -
Page 10: Unpacking
Unpacking Your Airmotiv subwoofer was carefully packed and should reach you in perfect condition. If you notice any shipping damage or other issues when you unpack it, please contact Emotiva immediately. Gently remove your Airmotiv subwoofer from the packing carton and remove all wrappings and shipping material. -
Page 11: Quick Start
Setting The AC Line Voltage on Your Subwoofer If you ordered your Airmotiv subwoofer directly from Emotiva, it should already be set for the correct line voltage for your area. However, we always recommend confirming the correct setting before plugging in your Airmotiv sub. -
Page 12: Airmotiv Subwoofer Controls
AIRMOTIV SUBWOOFERS Airmotiv Subwoofer Controls All of the controls and input connections on the Airmtoiv S10, S12, and S15 are on the rear panel. All three models offer the same input and control options (the Airmotiv S12 is shown). 1. RCA Inputs (unbalanced) The Airmotiv subwoofer has two unbalanced line level audio inputs, which are summed together internally. - Page 13 AIRMOTIV SUBWOOFERS 3. Power Mode Switch Note: Your Airmotiv sub will only operate if the AC POWER Switch is turned ON. If the AC POWER Switch is OFF, your Airmotiv sub will NOT operate. When the Power Mode Switch is set to On, the Airmotiv sub will remain On continuously. When the Power Mode Switch is set to Auto, the Airmotiv sub will turn On automatically when incoming audio is detected.
- Page 14 Note: If the fuse in your Airmotiv subwoofer blows repeatedly without apparent reason, then you might have an electrical fault in your Airmotiv subwoofer, and you should call Emotiva Technical Support for assistance.
-
Page 15: Airmotiv S15
AIRMOTIV SUBWOOFERS Airmotiv S15 The Airmotiv S15 is the ideal way to extend the bass response of your audio system to cover the last few critical octaves of bass with authority and finesse. The Airmotiv S15 can deliver the raw power you need to add that final touch of realism to a movie, while still offering the low distortion and precise control you need for accurate, superb sounding music reproduction. -
Page 16: Airmotiv S12
AIRMOTIV SUBWOOFERS Airmotiv S12 The Airmotiv S12 is the ideal way to extend the bass response of your audio system to cover the last few critical octaves of bass with authority and finesse. The Airmotiv S12 can deliver the raw power you need to add that final touch of realism to a movie, while still offering the low distortion and precise control you need for accurate, superb sounding music reproduction. -
Page 17: Airmotiv S10
AIRMOTIV SUBWOOFERS Airmotiv S10 The Airmotiv S10 is the ideal way to extend the bass response of your audio system to cover the last few critical octaves of bass with authority and finesse. The Airmotiv S10 can deliver the raw power you need to add that final touch of realism to a movie, while still offering the low distortion and precise control you need for accurate, superb sounding music reproduction. -
Page 18: Subwoofer Placement And Configuration
AIRMOTIV SUBWOOFERS Subwoofer Placement and Configuration The best location for your subwoofer will depend on a lot of things - including the acoustics of your room, the characteristics of your main speakers, and practical considerations like where you have room for it. (Whole books have been written about the subject - and even experts often disagree.) The important thing is to find a location that delivers the sound you want, and fits with your room decor. - Page 19 AIRMOTIV SUBWOOFERS - Adjust the Phase Control to the setting where you hear the MOST bass in the frequency range where the sub overlaps with your main speakers. - Use the adjustments on your receiver or pre/pro to dial your settings in perfectly, or run the automatic room correction and let it do all the work for you.
- Page 20 AIRMOTIV SUBWOOFERS - Turn the Volume Control up until the amount of bass sounds more or less correct. - Use the Phase Control to adjust for the MOST bass in the frequency range where your sub and main speakers overlap. - Fine tune the setting on the Volume Control so that the amount of low bass and middle frequencies seem about right in proportion to each other.
-
Page 21: Connections
Always use high-quality interconnects between your subwoofer and your source equipment. • Keep interconnects as short as possible, and avoid running interconnects next to power cables whenever possible. • Emotiva offers high quality interconnect cables at reasonable prices (you will find them on our website at www.emotiva.com) Page 17... -
Page 22: Care And Maintenance
AIRMOTIV SUBWOOFERS Care and Maintenance Periodic Maintenance Your Airmotiv subwoofer requires no periodic maintenance or calibration. Cleaning the Cabinet and Baffle • The cabinet of your Airmotiv subwoofer should normally be cleaned with a rag dampened with plain water. DO NOT spray water directly onto or into the speaker and DO NOT use abrasive or chemical cleaners. -
Page 23: Emotiva Audio Corporation Five-Year Limited Warranty
The original owner must make a claim within the Term of the Warranty. A claim shall not be valid (and Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not made in strict compliance with the requirements of the “How do you get service?”... - Page 24 If your Product was not adequately packaged, we will refuse receipt and the damaged package will be returned to you at your cost. If you do not have the original Emotiva Audio packaging, please check with our sales department to purchase replacement-shipping cartons.
- Page 25 If you purchased your Emotiva Product outside of the USA and wish to have it serviced at the factory, all freight charges are your responsibility. If you do not have an authorized distributor or repair center in your country, your Product must come back to the Emotiva USA factory for warranty service.
-
Page 26: Accessories
Accessories Using high-quality audio interconnects will ensure that you get the best sound quality and maximum reliability from your Emotiva Airmotiv Subwoofer. Emotiva Audio offers high-quality speaker cables and audio interconnects that feature solid engineering, premium build quality, excellent performance, and reasonable cost. - Page 28 https://acctech.ru/cat/aktivnye_sabvufery/...
