Summary of Contents for Emotiva Airmotiv RS13
-
Page 3: Important Safety Precautions And Explanation Of Symbols
Please read this manual thoroughly before attempting to install, configure, or operate the Emotiva Airmotiv Reference Subwoofer. After successful installation and configuration of the Reference Subwoofer, be sure to retain this manual in a safe place for future reference. - Page 4 DO NOT defeat the safety purpose of a grounding or polarized plug by removing ground pins or using unsafe adapters. A polarized plug has two blades - one wider than the other. A grounding plug has a third ground prong in addition to the two main conductors. The wide blade or third groundling prong is provided for your safety.
-
Page 5: Fcc Interference Statement
Connect the equipment to an outlet on a circuit different from that of the receiver. Consult the manufacturer or an experienced radio/TV technician for help. For questions regarding service, please contact: Emotiva Audio Corporation Attn: Repair Department 139 Southeast Parkway Court... -
Page 7: Table Of Contents
Airmotiv RS11 Reference Subwoofer ..............10 Rear Panel Connections & Controls ............... 12 Control Panel ......................... 14 Subwoofer Placement and Configuration ............16 Care and Maintenance ....................17 Emotiva Audio Corporation Five-Year Limited Warranty ....... 18 Notes ..........................21 Page 1... - Page 8 AIRMOTIV R efeRence ubwOOfeRS Page 2...
-
Page 9: Introduction
The Airmotiv Reference Subwoofers were designed from the ground up to deliver the lowest octaves in the audio spectrum with the ultimate in precision, accuracy, and authority. The Airmotiv RS13 is flat within +/- 3 dB all the way down to an astonishing 16 Hz, and the Airmotiv RS11 is flat within +/- 3 dB down to 20 Hz, so you will be able to actually feel the sound effects in your favorite movie, or the lowest tones in a well recorded pipe organ recital. -
Page 10: About This Manual
AIRMOTIV R efeRence ubwOOfeRS About This Manual This manual will provide you with all the information you need to achieve great performance, accurate sound, and many years of reliable service from your Airmotiv Reference Subwoofer. We suggest that you read through the entire manual; we kept things as short and direct as possible. -
Page 11: Features
Full five year warranty - A full five year warranty ensures that you’ll enjoy your Airmotiv Reference Subwoofer for many years to come. You can find more information about the Airmotiv RS13 and RS11 Reference Subwoofers at: www.emotiva.com. Page 5... -
Page 12: Unpacking
Your Airmotiv Reference Subwoofer was carefully packed and should reach you in perfect condition. If you notice any shipping damage or other issues when you unpack it, please contact Emotiva immediately. Gently remove your Reference Subwoofer from the packing carton and remove all wrappings and shipping material. -
Page 13: Quick Start
AIRMOTIV R efeRence ubwOOfeRS Quick Start To get the most from your Airmotiv Reference Subwoofer, we urge you to read the entire manual. If you just can’t wait to hear how great your Reference Subwoofer sounds, this section will cover the basics you need to get started. -

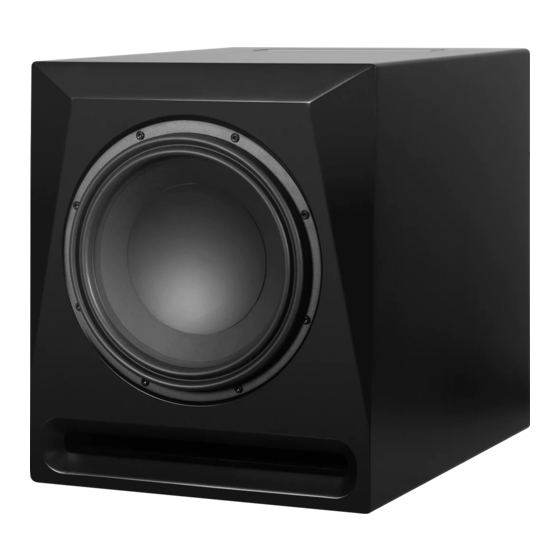

Page 14: Airmotiv Rs13 Reference Subwoofer
Airmotiv RS13 Reference Subwoofer The Airmotiv RS13 Reference Subwoofer delivers the ultimate in technical performance, precision, musicality, and just plain awesome bass output. Unlike lesser subs, the RS13 can actually deliver huge amounts of clean deep low bass, all the way... - Page 15 • Balanced Loop Output (pass through). Electronics All of the operating controls and status indicators on the Airmotiv RS13 are located on the top panel under a removable, magnetically attached, smoked plastic cover. • Powerful dual-core 48 bit DSP audio processor for optimum precision and flexibility.
-
Page 16: Airmotiv Rs11 Reference Subwoofer
AIRMOTIV R efeRence ubwOOfeRS Airmotiv RS11 Reference Subwoofer The Airmotiv RS11 Reference Subwoofer delivers the ultimate in technical performance, precision, musicality, and just plain awesome bass output. Unlike lesser subs, the RS11 can actually deliver huge amounts of clean deep low bass, all the way down to 20 Hz, giving both music and movies the all important foundation they need to sound their best, with no compromise in sound quality. - Page 17 AIRMOTIV R efeRence ubwOOfeRS Inputs and Outputs: To reduce unwanted noise, when the RS11 is powered on, it will detect which audio input is being used, and temporarily disable the other input. The Airmotiv RS11 Reference Subwoofer has: • Stereo Left and Right unbalanced RCA inputs. (The Left Unbalanced input is also the Unbalanced LFE input.) •...
-
Page 18: Rear Panel Connections & Controls
All audio inputs and AC power connections for the Airmotiv Reference Subwoofers are located on the rear panel. The RS13 and RS11 have identical controls, audio inputs, and AC power connections. (Airmotiv RS13 Reference Subwoofer shown.) 1. Service Port The service port is used by the factory to configure the DSP firmware in the Reference Subwoofer. - Page 19 AIRMOTIV R efeRence ubwOOfeRS Note: The Airmotiv Reference Subwoofers have a sophisticated built-in DSP-based crossover system, which offers flexible configuration options for connecting to a source that provides a stereo or monaural full range output, or can be bypassed for use with sources that have internal bass management and offer a subwoofer or LFE output.
-
Page 20: Control Panel
-20 dB +15 dB The configuration controls on the Airmotiv RS13 and RS11 Reference Subwoofers are located under a tinted plastic cover located near the rear of the top panel. The cover is attached magnetically - simply lift to remove it and access the controls. - Page 21 AIRMOTIV R efeRence ubwOOfeRS 3. Level This control allows you to adjust the output level on your Reference Subwoofer. 4. Status LED The Status LED on the Airmotiv Reference Subwoofer provides information about the status of the Reference Subwoofer. • An UNLIT Status LED indicates that the main AC Power switch is Off or there is no AC power.
-
Page 22: Subwoofer Placement And Configuration
The visceral low bass delivered by a subwoofer should simply fill the listening area. Please feel free to call us at Emotiva Technical Support if you have any questions about how to connect or configure your Airmotiv Reference Subwoofer Reference Subwoofer. -
Page 23: Care And Maintenance
• Replace the IEC power cable. Note: If the fuse in your Reference Subwoofer blows repeatedly without apparent reason, then you might have an electrical fault in your sub, and you should call Emotiva Technical Support for assistance. Page 17... -
Page 24: Emotiva Audio Corporation Five-Year Limited Warranty
The original owner must make a claim within the Term of the Warranty. A claim shall not be valid (and Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not made in strict compliance with the requirements of the “How do you get service?”... - Page 25 (v) to consumable parts, such as batteries or failure of or damage to the Product caused by batteries; (vi) if any Emotiva serial number has been removed or defaced on the product; (vii) glass or plastic panels, cabinetry, trim or other appearance items; (viii) cosmetic wear or damage to remote controls by user.
- Page 26 What if my product is damaged on the way to you? Emotiva is not liable for damages that may incur while an item is in transport to us. Please purchase insurance when you ship your item. If your Product was not adequately packaged, we will refuse receipt and the damaged package will be returned to you at your cost.
-
Page 27: Notes
AIRMOTIV R efeRence ubwOOfeRS Notes All information contained in this manual is accurate to the best of our knowledge at the time of publication. In keeping with our policy of ongoing product improvement, we reserve the right to make changes to the design and features of our products without prior notice. Airmotiv Reference Subwoofer Family User Manual Revision 2.1 October 2020 Page 21...
