Summary of Contents for Lenovo ThinkStation C20x 4269

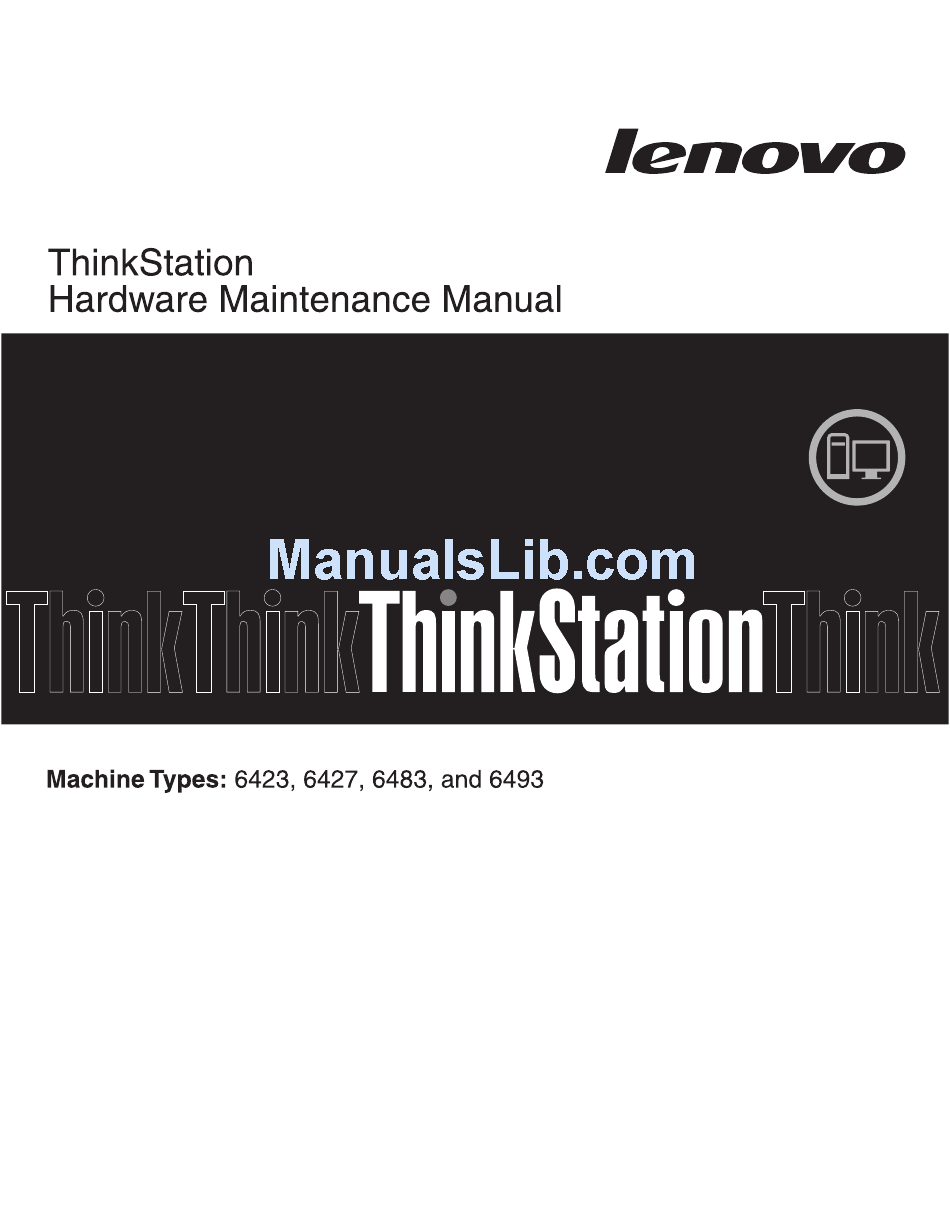

  • Page 3 ThinkStation Hardware Maintenance Manual...
  • Page 4 Fourteenth Edition (August 2009) © Copyright Lenovo 2006, 2008. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

  • Page 5: Table Of Contents

    RAID ....53 Attaching SATA hard disk drives . © Copyright Lenovo 2006, 2008 Configuring the system BIOS to enable embedded SATA RAID functionality . Creating RAID volumes .
  • Page 6 Chapter 10. Replacing FRUs (types 6427 and 6493)... 125 Locations . Controls and connectors on the front of the computer . Connectors on the rear of the computer Internal components . System board connectors and components .

  • Page 7: Chapter 1. About This Manual

    It is intended only for trained servicers who are familiar with Lenovo Before servicing a Lenovo product, be sure to read the Safety Information. See Chapter 2, “Safety information,” on page 3. The Symptom-to-FRU Index and Additional Service Information chapters are not specific to any machine type and are applicable to all ThinkStation computers.

  • Page 8: Important Information About Replacing Rohs Compliant Frus

    FRU part numbers. Lenovo plans to transition to RoHS compliance well before the implementation date and expects its suppliers to be ready to support Lenovo’s requirements and schedule in the EU. Products sold in 2005, will contain some RoHS compliant FRUs.

  • Page 9: Chapter 2. Safety Information

    After service, reinstall all safety shields, guards, labels, and ground wires. Replace any safety device that is worn or defective. v Reinstall all covers correctly before returning the machine to the customer. Electrical safety © Copyright Lenovo 2006, 2008...
  • Page 10 CAUTION: Electrical current from power, telephone, and communication cables can be hazardous. To avoid personal injury or equipment damage, disconnect the attached power cords, telecommunication systems, networks, and modems before you open the server/workstation covers, unless instructed otherwise in the installation and configuration procedures.

  • Page 11: Voltage-Selection Switch

    v Always look carefully for possible hazards in your work area. Examples of these hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds. v Do not touch live electrical circuits with the reflective surface of a plastic dental mirror.

  • Page 12: Handling Electrostatic Discharge-Sensitive Devices

    If any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem. Consider these conditions and the safety hazards they present: v Electrical hazards, especially primary power (primary voltage on the frame can cause serious or fatal electrical shock).

  • Page 13: Grounding Requirements

    v Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap. v Use the black side of a grounded work mat to provide a static-free work surface. The mat is especially useful when handling ESD-sensitive devices.
  • Page 14 v Connect to properly wired outlets any equipment that will be attached to this product. v When possible, use one hand only to connect or disconnect signal cables. v Never turn on any equipment when there is evidence of fire, water, or structural damage.
  • Page 15 CAUTION: When replacing the lithium battery, use only Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.
  • Page 16 CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
  • Page 17 Chapter 2. Safety information...
  • Page 18 Hardware Maintenance Manual...
  • Page 19 ≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs) Chapter 2. Safety information...
  • Page 20 PERIGO A corrente elétrica proveniente de cabos de alimentação, de telefone e de comunicações é perigosa. Para evitar risco de choque elétrico: v Não conecte nem desconecte nenhum cabo ou execute instalação, manutenção ou reconfiguração deste produto durante uma tempestade com raios. v Conecte todos os cabos de alimentação a tomadas elétricas corretamente instaladas e aterradas.
  • Page 21 CUIDADO: Ao substituir a bateria de lítio, utilize apenas uma bateria com Número de Peça 33F8354 ou um tipo de bateria equivalente recomendado pelo Se o seu sistema possui um módulo com uma bateria de lítio, substitua-o apenas por um módulo do mesmo tipo e do mesmo fabricante.
  • Page 22 CUIDADO: O botão de controle de alimentação do dispositivo e o botão para ligar/desligar da fonte de alimentação não desligam a corrente elétrica fornecida ao dispositivo. O dispositivo também pode ter mais de um cabo de alimentação. Para remover toda a corrente elétrica do dispositivo, assegure que todos os cabos de alimentação estejam desconectados da fonte de alimentação.
  • Page 23 Chapter 2. Safety information...
  • Page 24 Hardware Maintenance Manual...
  • Page 25 Chapter 2. Safety information...
  • Page 26 Hardware Maintenance Manual...
  • Page 27 DANGER Le courant électrique provenant de l’alimentation, du téléphone et des câbles de transmission peut présenter un danger. Pour éviter tout risque de choc électrique : v Ne manipulez aucun câble et n’effectuez aucune opération d’installation, d’entretien ou de reconfiguration de ce produit au cours d’un orage. v Branchez tous les cordons d’alimentation sur un socle de prise de courant correctement câblé...
  • Page 28 ATTENTION: Remplacer la pile au lithium usagée par une pile de référence identique exclusivement, (référence 33F8354), ou suivre les instructions du fabricant qui en définit les équivalences. Si votre système est doté d’un module contenant une pile au lithium, vous devez le remplacer uniquement par un module identique, produit par le même fabricant.
  • Page 29 ≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs) ATTENTION: Soulevez la machine avec précaution. ATTENTION: L’interrupteur de contrôle d’alimentation de l’unité et l’interrupteur dubloc d’alimentation ne coupent pas le courant électrique alimentantl’unité. En outre, le système peut être équipé de plusieurs cordonsd’alimentation. Pour mettre l’unité...
  • Page 30 VORSICHT An Netz-, Telefon- und Datenleitungen können gefährliche Spannungen anliegen. Aus Sicherheitsgründen: v Bei Gewitter an diesem Gerät keine Kabel anschließen oder lösen. Ferner keine Installations-, Wartungs- oder Rekonfigurationsarbeiten durchführen. v Gerät nur an eine Schutzkontaktsteckdose mit ordnungsgemäß geerdetem Schutzkontakt anschließen. v Alle angeschlossenen Geräte ebenfalls an Schutzkontaktsteckdosen mit ordnungsgemäß...
  • Page 31 CAUTION: Eine verbrauchte Lithiumbatterie nur durch eine Batterie mit der Teilenummer 33F8354 oder eine gleichwertige, vom Hersteller empfohlene Batterie ersetzen. Enthält das System ein Modul mit einer Lithiumbatterie, dieses nur durch ein Modul desselben Typs und von demselben Hersteller ersetzen. Die Batterie enthält Lithium und kann bei unsachgemäßer Verwendung, Handhabung oder Entsorgung explodieren.
  • Page 32 ≥18 kg ≥32 kg ≥55 kg ACHTUNG: Arbeitsschutzrichtlinien beim Anheben der Maschine beachten. ACHTUNG: Mit dem Netzschalter an der Einheit und am Netzteil wird die Stromversorgung für die Einheit nicht unterbrochen. Die Einheit kann auch mit mehreren Netzkabeln ausgestattet sein. Um die Stromversorgung für die Einheit vollständig zu unterbrechen, müssen alle zum Gerät führenden Netzkabel vom Netz getrennt werden.
  • Page 33 Chapter 2. Safety information...
  • Page 34 Hardware Maintenance Manual...
  • Page 35 Chapter 2. Safety information...
  • Page 36 PERICOLO La corrente elettrica proveniente dai cavi di alimentazione, del telefono e di comunicazione può essere pericolosa. Per evitare il rischio di scosse elettriche: v Non collegare o scollegare qualsiasi cavo oppure effettuare l’installazione, la manutenzione o la riconfigurazione del prodotto durante un temporale. v Collegare tutti i fili elettrici a una presa di alimentazione correttamente cablata e dotata di messa a terra.
  • Page 37 ATTENZIONE: Quando si sostituisce la batteria al litio, utilizzare solo il Numero parte 33F8354 o un tipo di batteria equivalente consigliato dal produttore. Se sul sistema è presente un modulo che contiene una batteria al litio, sostituirlo solo con un tipo di modulo dello stesso tipo della stessa casa di produzione.
  • Page 38 ≥18 kg ≥32 kg ≥55 kg ATTENZIONE: Prestare attenzione nel sollevare l’apparecchiatura. ATTENZIONE: Il pulsante di controllo dell’alimentazione presente sull’unità e l’interruttore dell’alimentatore non disattivano l’alimentazione corrente fornita all’unità. E’ possibile che l’unità disponga di più cavi di alimentazione. Per disattivare l’alimentazione dall’unità, accertarsi che tutti i cavi di alimentazione siano scollegati dalla fonte di alimentazione.
  • Page 39 Chapter 2. Safety information...
  • Page 40 Hardware Maintenance Manual...
  • Page 41 PELIGRO La corriente eléctrica procedente de cables de alimentación, teléfonos y cables de comunicación puede ser peligrosa. Para evitar el riesgo de descarga eléctrica: v No conecte ni desconecte los cables ni realice ninguna tarea de instalación, mantenimiento o reconfiguración de este producto durante una tormenta eléctrica.
  • Page 42 PRECAUCIÓN: Cuando sustituya una batería de litio, utilice solamente una batería número de pieza 33F8354 u otra de tipo equivalente recomendada por el fabricante. Si su sistema dispone de un módulo que contiene una batería de litio, reemplácelo sólo con el mismo tipo de módulo, del mismo fabricante. La batería contiene litio y puede explotar si no se utiliza, manipula o desecha correctamente.
  • Page 43 ≥18 kg ≥32 kg ≥55 kg PRECAUCIÓN: Adopte procedimientos seguros al levantar el equipo. PRECAUCIÓN: El botón de control de alimentación del dispositivo y el interruptor de alimentación de la fuente de alimentación no desconectan la corriente eléctrica suministrada al dispositivo. Además, el dispositivo podría tener más de un cable de alimentación.
  • Page 44 Hardware Maintenance Manual...

  • Page 45: Chapter 3. General Information

    Client Security Solutions v Factory Recovery v System Updates v Service and support Note: ThinkVantage Technologies are only available on select Lenovo computers. To access the ThinkVantage Productivity Center program, open the Start menu from the Microsoft and click Productivity Center.

  • Page 46: Specifications

    Specifications This section lists the physical specifications for your computer. Types (6423, 6427, 6483, and 6493) This section lists the physical specifications. Dimensions machine types 6423 and 6483: Width: 175 mm (6.9 in.) Height: 478 mm (18.8 in.) floor to top of handle Depth: 460 mm (18.1 in.) Weight machine types 6423 and 6483: Maximum configuration: 16.33 kg (36 lbs)

  • Page 47: Chapter 4. General Checkout

    If you receive an error, replace the part that the diagnostic program calls out or go to “Diagnostic error codes” on page 61. v If the test stops and you cannot continue, replace the last device tested. © Copyright Lenovo 2006, 2008...

  • Page 48: Problem Determination Tips

    Problem determination tips Due to the variety of hardware and software combinations that can be encountered, use the following information to assist you in problem determination. If possible, have this information available when requesting assistance from Service Support and Engineering functions. v Machine type and model v Processor or hard disk upgrades v Failure symptom...

  • Page 49: Chapter 5. Diagnostics

    PC-Doctor for Windows PE The PC-Doctor for Windows PE diagnostic program is part of the Rescue and Recovery workspace on each Lenovo computer. Use PC-Doctor for Windows PE, if you are unable to start the Windows operating system or if PC-Doctor for Windows has not been successful in isolating a possible problem.

  • Page 50: Pc-Doctor For Dos

    To create a diagnostic CD image, download a self-starting bootable CD image (known as an .iso image) of the diagnostic program from http:// www.lenovo.com/support/. After you download the image, you can create the CD using any CD burning software. If the computer does not have a CD burner or you do not have Internet access, see “Creating diagnostic diskettes.”...

  • Page 51: Running Diagnostics From The Cd Or Diskettes

    7. When prompted, insert a blank, formatted diskette into the diskette drive and continue to follow the instructions on the screen. 8. When the operation is complete, remove the diskette and click Quit. 9. Insert another blank, formatted diskette into the diskette drive and continue to follow the instructions on the screen.
  • Page 52 Test results (N/A, PASSED, FAILED, ABORTED) are displayed in the field beside the test description and in the test log. See “Viewing the test log” on page 47. To select one or more tests, use the following procedure. 1. Open the corresponding test category. 2.

  • Page 53: Viewing The Test Log

    The Full Erase Hard Drive provides a DOS utility that performs the following: v Performs all the steps in Quick Erase. v Provides a DOS utility that writes random data to all sectors of the hard drive. v Provides an estimate of time to completion along with a visual representation of completion status.
  • Page 54 Hardware Maintenance Manual...

  • Page 55: Chapter 6. Using The Setup Utility

    A password can be any combination of up to twelve characters (a-z and 0-9) and symbols. For security reasons, it is a good idea to use a strong password that cannot be easily compromised. Passwords should adhere to the following rules: v Have at least eight characters in length © Copyright Lenovo 2006, 2008...

  • Page 56: User Password

    v Contain at least one alphabetic character, one numeric character, and one symbol v Contain at least one of the following symbols: , . / ` ; ’ [] v You can also use the space bar v Setup Utility program and hard disk drive passwords are not case sensitive v Not be your name or your user name v Not be a common word or a common name v Be significantly different from your previous password...

  • Page 57: Selecting Or Changing The Startup Device Sequence

    Note: If you are using a USB keyboard and the Startup Device Menu does not 3. Select the desired startup device from the Startup Device Menu and press Enter to begin. Note: Selecting a startup device from the Startup Device menu does not permanently change the startup sequence.
  • Page 58 Hardware Maintenance Manual...

  • Page 59: Chapter 7. Installing And Configuring Raid

    9. To create additional RAID volumes, return to step 3 or select Exit and press Enter. 10. Press Y when prompted to confirm the exit. © Copyright Lenovo 2006, 2008 ® “Deleting RAID volumes” on page 54. Matrix Storage Manager option ROM...

  • Page 60: Deleting Raid Volumes

    This section provides information that is applicable only for a Windows environment. For information about configuring RAID in a Linux contact your Linux software provider. The following RAID configurations are supported on the Lenovo ThinkStation: v RAID Level 0 – Striped disk array – Two drives minimum.

  • Page 61: Raid 0 Functionality

    4. Use the up and down arrow to select Enabled, and press F10 to save the new settings. Configuring the system BIOS to enable SAS RAID 0 functionality To configure the system BIOS to enable SAS RAID 0 functionality, use the LSI Logic Config Utility as the SAS Configuration Utility.

  • Page 62: Enhanced Array (Ime) Three To Five Disks, With An Optional Hot Spare Disk

    9. Press Delete to confirm erasing data from the disk. Configuring mirrored volume disks for Integrated Mirrored Array (IM) two disk, with an optional hot spare disk or Integrated Mirrored Enhanced Array (IME) three to five disks, with an optional hot spare disk: To configure mirrored volume disks, with an optional hot spare disk: 1.
  • Page 63 7. When the Keep Data/Erase Disk message is displayed, press F3 to keep the data currently on this disk. The value in the Array Disk column changes to Primary. 8. Use the arrow keys to select the secondary (mirrored) disk for the IM volume. Select Yes as the value for the Array Disk column.
  • Page 64 Hardware Maintenance Manual...

  • Page 65: Chapter 8. Symptom-To-Fru Index

    System Board Power Supply connectors v Microprocessor(s) connection Check the power cord for continuity. Check the power-on switch for continuity. © Copyright Lenovo 2006, 2008 FRU/Action Check the configuration and ensure the start-up drive is in the boot sequence.
  • Page 66 1. Turn off the computer and disconnect all external devices. 2. Power-on the computer. 3. There are three LEDs to help you determine if the power supply and system board are working correctly. The power button LED is located on the front of the computer and the two diagnostic LEDs are located on the power supply at the rear of the computer.

  • Page 67: Diagnostic Error Codes

    Diagnostic error codes Refer to the following diagnostic error codes when using the diagnostic tests. See “Running tests” on page 45 for the specific type for information about the Diagnostic programs. In the following index, X can represent any number. Diagnostic Error Code 000-000-XXX BIOS Test Passed...
  • Page 68 Diagnostic Error Code 000-196-XXX BIOS test halt, error threshold exceeded 000-197-XXX BIOS test warning 000-198-XXX BIOS test aborted 000-199-XXX BIOS test failed, cause unknown 000-250-XXX BIOS APM failure 000-270-XXX BIOS ACPI failure 001-000-XXX System Test Passed 001-00X-XXX System Error 001-01X-XXX System Error 001-024-XXX System Addressing test failure...
  • Page 69 Diagnostic Error Code 001-032-XXX System Device Controller failure 001-034-XXX System Device Buffer Allocation failure 001-035-XXX System Device Reset condition detected 001-036-XXX System Register error 001-038-XXX System Extension failure 001-039-XXX System DMI data structure error 001-040-XXX System IRQ failure 001-041-XXX System DMA failure 001-195-XXX System Test aborted by user 001-196-XXX...
  • Page 70 Diagnostic Error Code 001-254-XXX 001-255-XXX 001-256-XXX 001-257-XXX System DMA error 001-260-XXX 001-264-XXX System IRQ error 001-268-XXX System IRQ1 failure 001-269-XXX System IRQ2 failure 001-270-XXX System IRQ3 failure 001-271-XXX System IRQ4 failure 001-272-XXX System IRQ5 failure 001-273-XXX System IRQ6 (diskette drive) failure 001-274-XXX System IRQ7 failure 001-275-XXX...
  • Page 71 Diagnostic Error Code 001-286-XXX 001-287-XXX 001-288-XXX System Timer failure 001-292-XXX System CMOS RAM error 001-293-XXX System CMOS Battery 001-298-XXX System RTC date/time update failure 001-299-XXX System RTC periodic interrupt failure 001-300-XXX System RTC Alarm failure 001-301-XXX System RTC Century byte error 005-000-XXX Video Test Passed 005-00X-XXX...
  • Page 72 Diagnostic Error Code 005-036-XXX Video Register error 005-038-XXX System BIOS extension failure 005-040-XXX Video IRQ failure 005-195-XXX Video Test aborted by user 005-196-XXX Video test halt, error threshold exceeded 005-197-XXX Video test warning 005-198-XXX Video test aborted 005-199-XXX Video test failed, cause unknown 005-2XX-XXX 005-3XX-XXX Video subsystem error...
  • Page 73 Diagnostic Error Code 006-197-XXX Diskette interface test warning 006-198-XXX Diskette interface test aborted 006-199-XXX Diskette interface test failed, cause unknown 006-25X-XXX Diskette interface Error 011-000-XXX Serial port Interface Test Passed 011-001-XXX Serial port Presence 011-002-XXX 011-003-XXX Serial port Timeout/Parity error 011-013-XXX 011-014-XXX Serial port Control Signal/Loopback test...
  • Page 74 Diagnostic Error Code 011-197-XXX Serial port test warning 011-198-XXX Serial port test aborted 011-199-XXX Serial port test failed, cause unknown 011-2XX-XXX Serial port signal failure 014-000-XXX Parallel port Interface Test Passed 014-001-XXX Parallel port Presence 014-002-XXX 014-003-XXX Parallel port Timeout/Parity error 014-013-XXX 014-014-XXX Parallel port Control Signal/Loopback test...
  • Page 75 Diagnostic Error Code 014-196-XXX Parallel port test halt, error threshold exceeded 014-197-XXX Parallel port test warning 014-198-XXX Parallel port test aborted 014-199-XXX Parallel port test failed, cause unknown 014-2XX-XXX 014-3XX-XXX Parallel port failure 015-000-XXX USB port Interface Test Passed 015-001-XXX USB port Presence 015-002-XXX USB port Timeout...
  • Page 76 Diagnostic Error Code 015-036-XXX USB port Register error 015-040-XXX USB port IRQ failure 015-195-XXX USB port Test aborted by user 015-196-XXX USB port test halt, error threshold exceeded 015-197-XXX USB port test warning 015-198-XXX USB port test aborted 015-199-XXX USB port test failed, cause unknown 018-000-XXX PCI Card Test Passed 018-0XX-XXX...
  • Page 77 Diagnostic Error Code 018-197-XXX PCI Card test warning 018-198-XXX PCI Card test aborted 018-199-XXX PCI Card test failed, cause unknown 018-250-XXX PCI Card Services error 020-000-XXX PCI Interface Test Passed 020-0XX-XXX PCI Interface error 020-195-XXX PCI Test aborted by user 020-196-XXX PCI test halt, error threshold exceeded 020-197-XXX...
  • Page 78 Diagnostic Error Code 020-198-XXX PCI test aborted 020-199-XXX PCI test failed, cause unknown 020-262-XXX PCI system error 025-000-XXX IDE interface Test Passed 025-00X-XXX 025-01X-XXX IDE interface failure 025-027-XXX IDE interface Configuration/Setup error 025-02X-XXX 025-03X-XXX 025-04X-XXX IDE Interface failure 025-195-XXX IDE interface Test aborted by user 025-196-XXX IDE interface test halt, error threshold exceeded...
  • Page 79 Diagnostic Error Code 025-198-XXX IDE interface test aborted 025-199-XXX IDE interface test failed, cause unknown 030-000-XXX SCSI interface Test Passed 030-00X-XXX 030-01X-XXX SCSI interface failure 030-027-XXX SCSI interface Configuration/Setup error 030-03X-XXX 030-04X-XXX SCSI interface error 030-195-XXX SCSI interface Test aborted by user 030-196-XXX SCSI interface test halt, error threshold exceeded...
  • Page 80 Diagnostic Error Code 030-198-XXX SCSI interface test aborted 030-199-XXX SCSI interface test failed, cause unknown 035-000-XXX RAID interface Test Passed 035-0XX-XXX RAID interface Failure 035-195-XXX RAID interface Test aborted by user 035-196-XXX RAID interface test halt, error threshold exceeded 035-197-XXX RAID interface test warning 035-198-XXX RAID interface test aborted...
  • Page 81 Diagnostic Error Code 071-00X-XXX 071-01X-XXX 071-02X-XXX Audio port error 071-03X-XXX Audio port failure 071-04X-XXX Audio port failure 071-195-XXX Audio port Test aborted by user 071-196-XXX Audio port test halt, error threshold exceeded 071-197-XXX Audio port test warning 071-198-XXX Audio port test aborted 071-199-XXX Audio port test failed, cause unknown 071-25X-XXX...
  • Page 82 Diagnostic Error Code 080-196-XXX Game Port interface test halt, error threshold exceeded 080-197-XXX Game Port interface test warning 080-198-XXX Game Port interface test aborted 080-199-XXX Game Port interface test failed, cause unknown 086-000-XXX Mouse Port interface Test Passed 086-001-XXX Mouse Port interface Presence 086-032-XXX Mouse Port interface Device controller failure...
  • Page 83 Diagnostic Error Code 086-197-XXX Mouse Port interface test warning 086-198-XXX Mouse Port interface test aborted 086-199-XXX Mouse Port interface test failed, cause unknown 089-000-XXX Microprocessor Test Passed 089-XXX-XXX Microprocessor failure 089-195-XXX Microprocessor Test aborted by user 089-196-XXX Microprocessor test halt, error threshold exceeded 089-197-XXX Microprocessor test warning...
  • Page 84 Diagnostic Error Code 170-0XX-XXX Voltage Sensor(s) failure 170-195-XXX Voltage Sensor(s) Test aborted by user 170-196-XXX Voltage Sensor(s) test halt, error threshold exceeded 170-197-XXX Voltage Sensor(s) test warning 170-198-XXX Voltage Sensor(s) test aborted 170-199-XXX Voltage Sensor(s) test failed, cause unknown 170-250-XXX 170-251-XXX Voltage Sensor(s) Voltage limit error 170-254-XXX...
  • Page 85 Diagnostic Error Code 175-197-XXX Thermal Sensor(s) test warning 175-198-XXX Thermal Sensor(s) test aborted 175-199-XXX Thermal Sensor(s) test failed, cause unknown 175-250-XXX 175-251-XXX Thermal Sensor(s) limit error 185-000-XXX Asset Security Test Passed 185-XXX-XXX Asset Security failure 185-278-XXX Asset Security Chassis Intrusion 201-000-XXX System Memory Test Passed 201-XXX-XXX...
  • Page 86 Diagnostic Error Code 215-000-XXX CD-ROM Drive Test Passed 215-XXX-XXX CD-ROM Drive error 217-000-XXX Hard Disk Drive Test Passed 217-25X-XXX 217-26X-XXX Hard Disk Drive (IDE) error 217-28X-XXX 217-29X-XXX Hard Disk Drive (SCSI) error 220-000-XXX Hi-Capacity Cartridge Drive Test Passed 220-XXX-XXX Hi-Capacity Cartridge Drive error 301-XXX-XXX Keyboard error 301-000-XXX...
  • Page 87 Diagnostic Error Code 415-000-XXX Modem Test Passed 415-XXX-XXX Modem error FRU/Action No action Remove the Modem and re-test the system Chapter 8. Symptom-to-FRU Index...

  • Page 88: Beep Symptoms

    Beep symptoms Beep symptoms are tones or a series of tones separated by pauses (intervals without sound) during POST. The following tables describes beep symptoms. Beep Symptom 2 short beeps CMOS setting error 1 long and 2 short beeps Monitor or video adapter card error 1 long and 3 short beeps Keyboard error 1 long and 9 short beeps BIOS ROM error...

  • Page 89: Post Error Codes

    POST error codes Each time you power-on the system, it performs a series of tests that check the operation of the system and some options. This series of tests is called the Power-On Self-Test, or POST. POST does the following operations. v Checks some basic system-board operations v Checks the memory operation v Starts the video operation...
  • Page 90 POST Error Message Press TAB to show POST screen Error: Non-System disk or disk error Replace and press any key when ready Hardware Maintenance Manual Description/Action Pressing the TAB key permits the user to toggle between the default POST display screen and a custom POST display screen.

  • Page 91: Miscellaneous Error Messages

    Miscellaneous error messages Message/Symptom Changing display colors Computer will not power-off. See “Power Supply Errors” on page 59. Computer will not RPL from server Computer will not perform a Wake on LAN (if applicable) Dead computer. See “Power Supply Errors” on page 59.

  • Page 92: Undetermined Problems

    Message/Symptom Non-system disk or disk error-type message with a known-good diagnostic diskette. Other display symptoms not listed above (including blank or illegible display) Power-on indicator or hard disk drive in-use light not on, but computer works correctly Printer problems Program loads from the hard disk with a known-good diagnostics diskette in the first 3.5-inch diskette drive RPL computer cannot access programs from...
  • Page 93 e. External Cache f. External Cache RAM g. Hard disk drive h. Diskette drive 3. Power-on the computer to re-test the system. 4. Repeat steps 1 through 3 until you find the failing device or adapter. If all devices and adapters have been removed, and the problem continues, replace the system board.
  • Page 94 Hardware Maintenance Manual...

  • Page 95: Chapter 9. Replacing Frus (Types 6423 And 6483)

    These precautions and guidelines will help you work safely. FRU replacements are to be done by trained service technicians only. This chapter does not contain a remove and replace procedure for all FRUs. Only the major FRUs are documented. © Copyright Lenovo 2006, 2008...

  • Page 96: Locations

    Locations This section contains illustrations to help locate the various connectors, controls, and components of the computer. Controls and connectors on the front of the computer Note: Not all computer models will have the following controls and connections. Optical drive (some models) 3.5 Diskette drive or card reader (some models) USB connectors (2)

  • Page 97: Connectors On The Rear Of The Computer

    Connectors on the rear of the computer Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer. Power cord connector Ethernet connector Serial connector (some models) Audio-line-out sub/center connector Audio-line-in connector Audio-line-out front speakers...

  • Page 98: Internal Components

    Internal components To open the computer cover, see “Opening the cover” on page 94. System board Microprocessor Memory modules Optical disk drives Diskette drive Front panel USB and Audio connectors Power switch and LED assembly Hardware Maintenance Manual Internal speaker Front fan assembly Hard disk drive Hard disk drive fan...

  • Page 99: System Board Connectors And Components

    System board connectors and components COM2 Battery 12 volt power connector, graphics Rear fan connector Microprocessor heat sink fan connector Microprocessor 12 V power connector Microprocessor and heat sink Memory slots (4) Front hard disk drive fan connector 24- pin system power connector Diskette drive connector SATA connectors (2) Auxiliary USB connector...

  • Page 100: Opening The Cover

    Opening the cover To open the computer cover: 1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your operating system. Turn off all attached devices. Turn off the computer. CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover.

  • Page 101: Removing The Front Bezel

    Removing the front bezel To remove the front bezel: 1. Open the cover. See “Opening the cover” on page 94. 2. Disengage the bezel latches 1 , one at a time while rotating the bezel away from the computer just enough to keep the latches disengaged. 3.

  • Page 102: Accessing System Board Components And Drives

    Accessing system board components and drives To access system board components: 1. Open the computer cover. See “Opening the cover” on page 94. 2. Unlatch and open the adapter card retainer 1 . 3. Remove the hard disk drive fan and bracket if necessary (some models). See “Replacing a fan assembly”...
  • Page 103 Chapter 9. Replacing FRUs (types 6423 and 6483)

  • Page 104: Replacing The Battery

    Replacing the battery Your computer has a special type of memory that maintains the date, time, and settings for built-in features, such as serial-port assignments (configuration). A battery keeps this information active when you turn off the computer. The battery normally requires no charging or maintenance throughout its life; however, no battery lasts forever.

  • Page 105: Replacing The Power Supply Assembly

    Replacing the power supply assembly To replace the power-supply assembly: 1. Open the computer cover. See “Opening the cover” on page 94. 2. Locate the power-supply assembly. See “Internal components” on page 92. 3. Disconnect the power-supply cables 1 , 2 , and 3 from the system-board connectors, all adapter cards (some models) and from all drives.
  • Page 106 Hardware Maintenance Manual...
  • Page 107 7. Install the new power-supply assembly into the chassis so that the screw holes in the power-supply assembly align with those in the chassis. Note: Use only the screws provided by Lenovo. 8. Install and tighten the four screws at the rear of the chassis to secure the power-supply assembly.
  • Page 108 9. Ensure that the power supply is the correct replacement. Some power supplies auto sense the voltage, some power supplies are voltage specific, and some power supplies have a voltage selection switch. If there is a selection switch use a ballpoint pen to slide the switch, if necessary. Note: For models that have a switch: v If the voltage supply range is 100–127 V ac, set the switch to 115 V.

  • Page 109: Replacing An Adapter Card

    Replacing an adapter card 1. Turn off the computer and allow the computer to cool for 3-5 minutes. 2. Open the computer cover. See “Opening the cover” on page 94. 3. Unlatch and open the card retainer 1 . 4. Take note of the location of all cable connections on the adapter card. It will be necessary to reconnect them properly when installing a new card.
  • Page 110 7. Release the card support retaining latches. Grasp the adapter card and pull the card out of the slot. Note: The card is a tight fit, so it might be necessary to remove each side a 8. Reverse this procedure to install the card, and then proceed to step 9. 9.

  • Page 111: Replacing The Heat Sink

    Replacing the heat sink CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover. This section provides instructions on how to replace and install the heat sink. To replace the heat sink: 1.
  • Page 112 heat sink and fan assembly. Do not put the heat sink and fan assembly anywhere except on the microprocessor after the plastic cover has been removed and the grease exposed. b. Some heat sink part numbers will have orientation labels showing "Front of System."...

  • Page 113: Replacing The Microprocessor

    Replacing the microprocessor CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover. This section provides instructions on how to replace the microprocessor. To replace the microprocessor: 1.
  • Page 114 Notes: a. Note the orientation of the notches 1 on the microprocessor. This is important when reinstalling the microprocessor on the new system board. b. Do not drop anything onto the microprocessor socket while it is exposed. The socket pins must be kept as clean as possible. 6.
  • Page 115 7. Lower the microprocessor straight down into the microprocessor socket of the system board. 8. Close the microprocessor retainer and clamp it with the small handle. 9. Place the heat sink into position and replace the 4 screws to secure the heat sink to the system board.

  • Page 116: Replacing The System Board

    Replacing the system board CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover. This section provides instructions on how to remove and install the system board. To replace the system board: 1.
  • Page 117 10. Remove the microprocessor socket cover from the new system board. 11. Remove the microprocessor from the failing system board and install it on the new system board. See “Replacing the microprocessor” on page 107. 12. The failing system board must be returned with a microprocessor socket cover to protect the pins during shipping and handling.

  • Page 118: Replacing A Hard Disk Drive

    Replacing a hard disk drive This section provides instructions on how to replace a hard disk drive. Attention When replacing a hard disk drive in a RAID configured array, depending on which type of array is used, rebuilding the RAID array might be required. If the array is redundant, make sure to connect the new drive to the same port from which the replaced drive was removed.
  • Page 119 5. Install the new drive into the bracket, flex the bracket, and align the pins 1 through 4 on the bracket with the holes in the hard disk drive. Do not touch the circuit board 5 on the bottom of the hard disk drive. 6.

  • Page 120: Replacing An Optical Drive

    Replacing an optical drive This section provides instructions on how to replace the optical drive. 1. Open the computer cover. See “Opening the cover” on page 94. 2. Remove the front bezel. See “Removing the front bezel” on page 95. 3.

  • Page 121: Replacing The Diskette Drive Or Optional Card Reader

    Replacing the diskette drive or optional card reader This section provides instructions on how to replace the diskette drive or card reader. 1. Open the computer cover. See “Opening the cover” on page 94. 2. Locate the drive cable connectors. See “System board connectors and components”...
  • Page 122 7. Connect the flat cable to the new diskette drive. 8. If the front bezel was removed, install the bezel. 9. Go to “Completing the FRU replacement” on page 123. Hardware Maintenance Manual...

  • Page 123: Replacing A Memory Module

    Replacing a memory module This section provides instructions on how to replace a memory module. 1. Open the computer cover. See “Opening the cover” on page 94. 2. Locate the memory-module connectors 1 and 2 . 3. Remove the memory module being replaced by opening the retaining clips. Chapter 9.
  • Page 124 4. Position the replacement memory module over the memory slot. Make sure the notch 1 on the memory module aligns correctly with the connector key 2 on the system board. Push the memory module straight down into the connector until the retaining clips close. 5.

  • Page 125: Replacing A Fan Assembly

    Replacing a fan assembly This section provides instructions on how to replace a fan assembly. Some models will have three fans. See “Internal components” on page 92. 1. Open the computer cover. See “Opening the cover” on page 94. 2. If necessary, remove the adapter cards to access the failing fan. See “Accessing system board components and drives”...

  • Page 126: Replacing The Internal Speaker

    Replacing the internal speaker This section provides instructions on how to replace the internal speaker. 1. Open the computer cover. See “Opening the cover” on page 94. 2. Remove the front bezel. See “Removing the front bezel” on page 95. 3.

  • Page 127: Replacing The Front Panel Connector Assembly

    Replacing the front panel connector assembly This section provides instructions on how to replace the front panel connector assembly. 1. Open the computer cover. See “Opening the cover” on page 94. 2. Remove the front bezel. See “Removing the front bezel” on page 95. 3.
  • Page 128 17. Connect the front panel connector assembly cables to the system board. See “System board connectors and components” on page 93. 18. Replace the plastic adapter retainer in the front of the computer. 19. Replace any adapters that were removed. See “Replacing an adapter card” on page 103.

  • Page 129: Completing The Fru Replacement

    Completing the FRU replacement After replacing FRUs, you need to install any removed parts, replace the cover, and reconnect any cables, including telephone lines and power cords. Also, depending on the FRU that is replaced, you might need to confirm the updated information in the Setup Utility program.
  • Page 130 Hardware Maintenance Manual...

  • Page 131: Chapter 10. Replacing Frus (Types 6427 And 6493)

    These precautions and guidelines will help you work safely. FRU replacements are to be done by trained service technicians only. This chapter does not contain a remove and replace procedure for all FRUs. Only the major FRUs are documented. © Copyright Lenovo 2006, 2008...

  • Page 132: Locations

    Locations This section contains illustrations to help locate the various connectors, controls, and components of the computer. Controls and connectors on the front of the computer Note: Not all computer models will have the following controls and connections. Optical drive (some models) Hard drive activity light 3.5 Diskette drive or card reader (some models)

  • Page 133: Connectors On The Rear Of The Computer

    Connectors on the rear of the computer Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer. Power cord connector Ethernet connector Serial connector (some models) Audio-line-out sub/center connector Audio-line-in connector Audio-line-out front speakers...

  • Page 134: Internal Components

    Internal components To open the computer cover, see “Opening the cover” on page 94. Power-supply assembly Memory modules Microprocessor heat sinks (2) Optical drives (such as a CD or DVD drive) 3 bays Internal speaker 3.5 inch diskette drive or card reader Front USB and audio connectors Hardware Maintenance Manual Power switch and LED assembly...

  • Page 135: System Board Connectors And Components

    System board connectors and components Memory slots (8) 24 Pin power connector 10 Pin power connector Rear exhaust fan connector Microprocessor and heat sink Microprocessor fan 1 connector 8 Pin power connector Microprocessor fan 2 connector Front USB connector HDD fan connector Auxiliary LED connectors Diskette drive connector Auxiliary USB connector 2...

  • Page 136: Opening The Cover

    Opening the cover To open the computer cover: 1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your operating system. Turn off all attached devices. Turn off the computer. CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover.
  • Page 137 To replace the cover: 1. Align the cover with the chassis. 2. Close the cover. 3. Engage the cover latch. 4. Check to be sure the cover is latched. 5. Secure the cover using your locking device. Chapter 10. Replacing FRUs (types 6427 and 6493)

  • Page 138: Removing The Front Bezel

    Removing the front bezel To remove the front bezel: 1. Open the cover. See “Opening the cover” on page 130. 2. Disengage the bezel latches 1 , one at a time while rotating the bezel away from the computer just enough to keep the latches disengaged. 3.

  • Page 139: Accessing System Board Components And Drives

    Accessing system board components and drives To access system board components: 1. Open the computer cover. See “Opening the cover” on page 130. 2. Unlatch and open the adapter card retainer. 3. Take note of the location of all cable connections on the adapter cards. It will be necessary to reconnect them properly when replacing the cards.
  • Page 140 Hardware Maintenance Manual...

  • Page 141: Replacing The Battery

    Replacing the battery Your computer has a special type of memory that maintains the date, time, and settings for built-in features, such as serial-port assignments (configuration). A battery keeps this information active when you turn off the computer. The battery normally requires no charging or maintenance throughout its life; however, no battery lasts forever.

  • Page 142: Replacing The Power Supply Assembly

    Replacing the power supply assembly To replace the power-supply assembly: 1. Open the computer cover. See “Opening the cover” on page 130. 2. Locate the power-supply assembly. See “Internal components” on page 128. 3. Disconnect the power-supply cables 1 , 2 , and 3 from the system-board connectors, all adapter cards (some models) and from all drives.
  • Page 143 7. Remove the power supply retaining screws located inside the computer chassis. 8. Slide the power-supply assembly toward the front of the computer, remove it from the chassis. Chapter 10. Replacing FRUs (types 6427 and 6493)
  • Page 144 9. Install the new power-supply assembly into the chassis so that the screw holes in the power-supply assembly align with those in the chassis. Note: Use only the screws provided by Lenovo. 10. Install and tighten the four screws at the rear of the chassis to secure the power-supply assembly.

  • Page 145: Replacing An Adapter Card

    Replacing an adapter card 1. Turn off the computer and allow the computer to cool for 3-5 minutes. 2. Open the computer cover. See “Opening the cover” on page 130. 3. Unlatch and open the card retainer. 4. Take note of the location of all cable connections on the adapter card. It will be necessary to reconnect them properly when installing a new card.
  • Page 146 8. Reverse this procedure to install the card, and then proceed to the next step. 9. Go to “Completing the FRU replacement” on page 158. Hardware Maintenance Manual...

  • Page 147: Replacing The Heat Sink

    Replacing the heat sink CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover. This section provides instructions on how to replace the heat sink. To replace the heat sink: 1.
  • Page 148 4. Carefully lift the heat sink off of the system board. 5. Remove the plastic cover from the bottom of the new heat sink to expose the heat sink grease (this cover protects the heat sink grease from contamination). Notes: a.

  • Page 149: Replacing The Microprocessor

    Replacing the microprocessor CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover. This section provides instructions on how to replace the microprocessor. To replace the microprocessor: 1.
  • Page 150 Notes: a. Note the orientation of the notches 1 on the microprocessor. This is important when reinstalling the microprocessor on the new system board. b. Do not drop anything onto the microprocessor socket while it is exposed. The socket pins must be kept as clean as possible. 6.

  • Page 151: Replacing The System Board

    Replacing the system board This section provides instructions on how to replace the system board. CAUTION: The heat sink and microprocessor might be very hot. Turn off the computer and wait three to five minutes to let the computer cool before opening the computer cover.
  • Page 152 9. Remove the heat sink from the failing system board. See “Replacing the heat sink” on page 141. 10. Remove the microprocessor from the failing system board. See “Replacing the microprocessor” on page 107. 11. Remove the microprocessor socket cover from the new system board. 12.
  • Page 153 19. Connect all cables to the system board. See the system board illustration for your machine type at “System board connectors and components” on page 129. 20. Go to “Completing the FRU replacement” on page 158. Chapter 10. Replacing FRUs (types 6427 and 6493)

  • Page 154: Replacing A Hard Disk Drive

    Replacing a hard disk drive This section provides instructions on how to replace the hard disk drive. Note: When replacing a hard disk drive in a raid configured array, depending on which type of array is used, rebuilding the raid array might be required. If the array is redundant, make sure to connect the new drive to the same port from which the replaced drive was removed.
  • Page 155 6. Install the hard disk drive and bracket into the drive bay. 7. Connect the signal and power cables to the rear of the new hard disk drive. 8. Go to “Completing the FRU replacement” on page 158. Chapter 10. Replacing FRUs (types 6427 and 6493)

  • Page 156: Replacing An Optical Drive

    Replacing an optical drive This section provides instructions on how to replace the optical drive. 1. Open the computer cover. See “Opening the cover” on page 130. 2. Remove the front bezel. See “Removing the front bezel” on page 132. 3.

  • Page 157: Replacing The Diskette Drive Or Optional Card Reader

    Replacing the diskette drive or optional card reader This section provides instructions on how to replace the diskette drive or card reader. 1. Open the computer cover. See “Opening the cover” on page 130. 2. Locate the drive or card reader cable connectors. See “System board connectors and components”...
  • Page 158 8. Go to “Completing the FRU replacement” on page 158. Hardware Maintenance Manual...

  • Page 159: Replacing A Memory Module

    Replacing a memory module This section provides instructions on how to replace a memory module. Your computer has eight slots for installing or replacing DDR2 DIMMs (double data rate 2 dual inline memory modules). When installing or replacing memory modules, use the following guidelines: v Install the DIMMs in identical pairs, which means the DIMMs of a pair should be the same size, speed, and organization.
  • Page 160 v It is valid to install only one DIMM in DIMM slot 1 . To replace a memory module, do the following: 1. Open the computer cover. See “Opening the cover” on page 130. 2. Locate the memory module slots. See “System board connectors and components”...
  • Page 161 6. Go to “Completing the FRU replacement” on page 158. Chapter 10. Replacing FRUs (types 6427 and 6493)

  • Page 162: Replacing A Fan Assembly

    Replacing a fan assembly This section provides instructions on how to replace the fan assembly. These removal instructions apply to the both the front fan and the rear fan. 1. Open the computer cover. See “Opening the cover” on page 130. 2.

  • Page 163: Replacing The Internal Speaker

    Replacing the internal speaker This section provides instructions on how to replace the internal speaker. 1. Open the computer cover. See “Opening the cover” on page 130. 2. Remove the front bezel. See “Removing the front bezel” on page 132. 3.

  • Page 164: Completing The Fru Replacement

    Completing the FRU replacement After replacing FRUs, you need to install any removed parts, replace the cover, and reconnect any cables, including telephone lines and power cords. Also, depending on the FRU that is replaced, you might need to confirm the updated information in the Setup Utility program.

  • Page 165: Chapter 11. Fru Lists

    Microprocessor, Intel Core 2 Duo E6750 - 2.66GHz, 2MBx2 L2, 1333MHz FSB, G0 (models 26M 26A 26Q 26T 26K 26R 26E 26J 26U 26F 26G 43M 43A 43Q 43T 43K 43R 49U 49F) © Copyright Lenovo 2006, 2008 6423 FRUs FRU#...
  • Page 166 Item # Microprocessor, Intel Core 2 Duo E6850 - 3.00GHz, 2MBx2 L2, 1333MHz FSB, G0 (models 27M 27A 27Q 27T 27K 27R 27E 27J 28M 28A 28Q 28T 28K 28R 28E 28J 29M 29A 29Q 29T 29K 29R 29E 29J 27U 27F 27G 28U 28G 28F 29U 29F 29G 33U 33F 33E 33J 34U 34F 34E 34J 35U 35F 35E 35J 37U 37F 37E 37J 51U 51F 52U 52F 53U 53F) Microprocessor, Intel Core 2 Quad Q6600 - 2.40GHz, 4MBx2 L2, 1066MHz FSB, G0...
  • Page 167 Item # Optical drive, DVD Burner/CD-RW Rambo 8 (SATA) (models 26M 26A 26Q 26T 26K 26R 26E 26J 27M 27A 27Q 27T 27K 27R 27E 27J 28M 28A 28Q 28T 28K 28R 28E 28J 29M 29A 29Q 29T 29K 29R 29E 29J 31M 31A 31Q 31T31K 31R 31E 31J 32M 32A 32Q 32T 32K 32R 32E 32J 26U 26F 26G 27U 27F 27G 28U 28G 28F 29U 29F 29G 31U 31F 31G 32U 32F 32G 33U 33F 33E 33J 34U 34F 34E 34J 35U 35F 35E 35J 36U 36F 36E 36J 41M 41A 41Q 41T 41K 41R 43M 43A 43Q 43T 43K 43R 44M 44K...
  • Page 168 Item # Hard disk drive, 1000GB (1TB) SATA - 7200 rpm, 3 Gb/s (models) Hard disk drive, 146GB SAS - 15000 rpm, 3 Gb/s, 32MB cache (models 22M 22A 22Q 22K 22R 22E 22J 28M 28A 28Q 28T 28K 28R 28E 28J 28U 28G 28F 52U 52F 61U 61F 61M 61E 61J 64M 64E 64J) Hard disk drive, 300GB SAS - 15000 rpm, 3 Gb/s, 32MB cache (models CTO) Hard disk drive fan and bracket Asm, 70x25 (all models)
  • Page 169 6423 Keyboards (PS2 Preferred Pro) Arabic/French (models) Belgian/French (models) Belgian/UK (models) Bulgarian (models) Hong Kong/Taiwan (models) Czech (models) Danish (models) Dutch (models) French (models) French Canadian 445 (models) French Canadian 58 (models) German (models) Greek (models) Hebrew (models) Hungarian (models) Iceland (models) Italian (models) Japanese (models)
  • Page 170 6423 Keyboards (Lenovo Productivity -USB) US English (models 26M 26A 26Q 26R 26E 27M 27A 27Q 27R 27E 28M 28A 28Q 28R 28E 29M 29A 29Q 29R 29E 31M 31A 31Q 31R 31E 32M 32A 32Q 32R 32E 26U 26G 27U 27G...
  • Page 171 6423 Keyboards (Lenovo Productivity -USB) Romanian 096 (models 26G 27G 28G 29G 31G 32G 45G 46G 47G 48G 65G 66G 67G 68G 69G 71G ) Romanian 446 (models 26G 27G 28G 29G 31G 32G 45G 46G 47G 48G 65G 66G 67G 68G...
  • Page 172 6423 Keyboards (Preferred Pro Fingerprint Reader USB) Hebrew (models ) Hungarian (models ) Iceland (models ) Italian 141 (models) Japanese (models ) Korean (models ) LA/Spanish (models ) Norwegian (models ) Polish (models ) Portuguese (models ) Romanian 096 (models ) Romanian 446 (models ) Russian/Cyrillic (models ) Serbian/Cyrillic (models )
  • Page 173 Speakers (2-piece) Lenovo Logo (models ) Speakers (2-piece) Lenovo Logo (models ) Lenovo 3 pieces Speakers (China Only) (models) Lenovo 2 pieces Speakers (China Only) (models) Speaker Power brick - US, Canada, LA low voltage, ASEAN (models 26A 27A 28A 29A...
  • Page 174 SAS Controller Card (models 28M 28A 28Q 28T 28K 28R 28E 28J 61U 61F 61M 61E 61J 64M 64E 64J) Lenovo Branded 3-Piece Speakers (models ) Lenovo Branded Headset (models ) Dongle Cable - DMS59 to dual DVI (included in Quasar L1) (models )
  • Page 175 6423 Power Cords - C13 Line Cord - China - C13 (models) Line Cord - Japan - C13 (models 26E 26J 27E 27J 28E 28J 29E 29J 31E 31J 32E 32J 33E 34E 35E 36E 37E 38E 33J 34J 35J 36J 37J 38J) Line Cord - Japan - C13 (models 26E 26J 27E 27J 28E 28J 29E 29J 31E 31J 32E 32J 33E 34E 35E 36E 37E 38E 33J 34J 35J 36J 37J 38J) Line Cord - Brazil - C13 (models)
  • Page 176 6423 Windows XP Home Recovery DVDs IT (models ) BR (models ) SP/LA (models ) DK (models ) NL (models ) AE (models ) SV (models ) HE (models ) FI (models ) NO (models ) PL (models ) PO (models ) RU (models ) RE (models ) HU (models )
  • Page 177 6423 Windows XP Pro Recovery DVDs Russian (models 45G 46G) Turkish (models 45G 46G) Hungarian (models 45G 46G) Greek (models 45G 46G) Simplified Chinese (models) Taiwan (models) HongKong (models) Korea (models) Slovenian (models 45G 46G) Arabic (models 45G 46G) Russian English (models 45G 46G) Portuguese (models 45G 46G) Multilingual 1 XP-P -- EN, NL, FR, GR, IT (models 45G 46G) Multilingual 2 XP-P -- EN, DK, FI, NO, SV (models 45G 46G)
  • Page 178 6423 Vista Home Basic 32 Recovery DVDs HK (models ) KR (models ) SL (models ) RE (models ) 6423 Vista Business 32 Recovery DVDs English (models) Russian English (models) French (models) German (models) Spanish (models) Brazilian (models) Italian (models) Japanese (models) Norwegian (models) Swedish (models)
  • Page 179 6423 Vista Home Pre 32 Recovery DVDs German (models ) Spanish/LA (models ) Brazil (models ) Italy (models ) Japanese (models ) Norway (models ) Swedish (models ) Denmark (models ) Dutch (models ) Czech (models ) Finnish (models ) Polish (models ) Russian (models ) Turkish (models )
  • Page 180 6423 Vista Business 64 Recovery DVDs Norwegian (models 26G 27G 28G 29G 31G 32G 47G 48G 65G 66G 67G 68G 69G 71G) Swedish (models 26G 27G 28G 29G 31G 32G 47G 48G 65G 66G 67G 68G 69G 71G) Danish (models 26G 27G 28G 29G 31G 32G 47G 48G 65G 66G 67G 68G 69G 71G) Dutch (models 26G 27G 28G 29G 31G 32G 47G 48G 65G 66G 67G 68G 69G 71G) Czech (models 26G 27G 28G 29G 31G 32G 47G 48G 65G 66G 67G 68G 69G 71G) Finnish (models 26G 27G 28G 29G 31G 32G 47G 48G 65G 66G 67G 68G 69G 71G)

  • Page 181: Machine Type 6427

    Machine Type 6427 Item # Power supply, 1000 Watt (models 27M 27A 27Q 27T 27K 27R 27E 27J 28M 28A 28Q 28T 28K 28R 28E 28J 34M 34A 34Q 34T 34K 34R 34E 34J 29M 29A 29Q 29T 29K 29R 29E 29J 31M 31A 31Q 31T 31K 31R 31E 31J 32M 32A 32Q 32T 32K 32R 32E 32J 33M 33A 33Q 33T 33K 33R 33E 33J 27U 27F 27G 28U 28F 28G 29U 29G 29F 31U 31F 31G 32U 32F 32G 33U 33F 33G 34U 34F 34G 73U 73F 73E 73J 35U 35F 35E 35J 36U 36F 36E 36J 37U 37F 37E 37J 38M 38A 38Q 38T 38K 38R 39M 39A 39Q 39T...
  • Page 182 Item # Memory module, 4GB DDR2 ECC FBDIMM PC2-5300 (667MHz) (models CTO) Memory module, 8GB 667MHz DDR2 FBDIMMs (models) Heat sink, Low Acoustics (all models) Optical drive, DVD Burner/CD-RW Rambo 8 (SATA) (models 27M 27A 27Q 27T 27K 27R 27E 27J 28M 28A 28Q 28T 28K 28R 28E 28J 34M 34A 34Q 34T 34K 34R 34E 34J 29M 29A 29Q 29T 29K 29R 29E 29J 31M 31A 31Q 31T 31K 31R 31E 31J 32M 32A 32Q 32T 32K 32R 32E 32J 33M 33A 33Q 33T 33K 33R 33E 33J 27U 27F 27G 28U 28F 28G 29U 29G 29F 31U 31F 31G 32U 32F 32G 33U 33F 33G 34U 34F...
  • Page 183 Item # Fan Asm,Front 120 mm with grommets and fingerguard (all models) ® Microprocessor, Intel Xeon 2RU 24G) Microprocessor, Intel Xeon 5130 - 2.00GHz, 4MB L2, 1333MHz FSB, G0 (models 2M 12A 12Q 12K 12R 12E 12J 13M 13A 13Q 13K 13R 13E 13J 8M 18A 18Q 18K 18R 18E 18J 25U 25G ) Microprocessor, Intel Xeon 5150 - 2.66GHz, 4MB L2, 1333MHz FSB, G0 (models 11M 11A 11Q 11K 11R 11E 11J )
  • Page 184 Item # System Board, Skye - 2P Intel Socket LGA771, Seaburg, ESB2 (models 27M 27A 27Q 27T 27K 27R 27E 27J 28M 28A 28Q 28T 28K 28R 28E 28J 34M 34A 34Q 34T 34K 34R 34E 34J 29M 29A 29Q 29T 29K 29R 29E 29J 31M 31A 31Q 31T 31K 31R 31E 31J 32M 32A 32Q 32T 32K 32R 32E 32J 33M 33A 33Q 33T 33K 33R 33E 33J 27U 27F 27G 28U 28F 28G 29U 29G 29F 31U 31F 31G 32U 32F 32G 33U 33F 33G 34U 34F 34G 73U 73F 73E 73J 35U 35F 35E 35J 36U 36F 36E 36J 37U 37F 37E 37J 38M...
  • Page 185 Slovenian (models) Brazil/Portuguese (models) 6427 Keyboards (Lenovo Productivity -USB) US English (models 27M 27A 27Q 27R 27E 28M 28A 28Q 28R 28E 34M 34A 34Q 34R 34E 29M 29A 29Q 29R 29E 31M 31A 31Q 31R 31E 32M 32A 32Q 32R 32E 33M 33A 33Q 33R...
  • Page 186 6427 Keyboards (Lenovo Productivity -USB) Arabic/French (models 27G 28G 29G 31G 32G 33G 34G 43G 44G 45G 46G 47G 48G 83G 84G 85G 86G 87G 88G) Belgian/French (models 27G 28G 29G 31G 32G 33G 34G 43G 44G 45G 46G 47G 48G 83G...
  • Page 187 6427 Keyboards (Lenovo Productivity -USB) Russian/Cyrillic (models 27G 28G 29G 31G 32G 33G 34G 43G 44G 45G 46G 47G 48G 83G 84G 85G 86G 87G 88G) Serbian/Cyrillic (models 27G 28G 29G 31G 32G 33G 34G 43G 44G 45G 46G 47G 48G 83G...
  • Page 188 6427 Keyboards (Preferred Pro Fingerprint Reader USB) Japanese (models) Korean (models) LA/Spanish (models) Norwegian (models) Polish (models) Portuguese (models) Romanian 096 (models) Romanian 446 (models) Russian/Cyrillic (models) Serbian/Cyrillic (models) Slovak (models) Spanish (models) Swedish/Finn (models) Swiss (models) Thailand (models) Turkish 440 (models) Turkish 179 (models) UK English (models) US Euro (models)
  • Page 189 38K 38R 39M 39A 39Q 39T 39K 39R 41M 41A 41Q 41T 41K 41R 42M 42K 42R 43G 44G 45G 46G 47G 48G 76M 76E 76J 77M 77E 77J 78M 78E 78J) Speakers (2-piece) Lenovo Logo (models) Speakers (2-piece) Lenovo Logo (models)
  • Page 190 6427 Adapters and miscellaneous FRUs Lenovo 3 pieces Speakers (China Only) (models) Lenovo 2 pieces Speakers (China Only) (models) Speaker Power brick - US, Canada, LA low voltage, ASEAN (models 27A 28A 34A 29A 31A 32A 33A 27U 28U 29U 31U 32U 33U 34U 73U 35U 36U 37U 38A 39A 41A 74U 88U...
  • Page 191 Line Cord - US (models 27A 28A 29A 31A 32A 33A 27T 28T 29T 31T 32T 33T 27U 28U 29U 31U 32U 33U 34U 27F 28F 29F 31F 32F 33F 34F 73U 35U 36U 37U 38A 39A 41A 73F 35F 36F 37F 38T 39T 41T) Line Cord - US (models 27A 28A 29A 31A 32A 33A 27T 28T 29T 31T 32T 33T 27U 28U 29U 31U 32U 33U 34U 27F 28F 29F 31F 32F 33F 34F 73U 35U 36U 37U 38A 39A 41A 73F 35F...
  • Page 192 Line Cord - Korea - C13 (models) Line Cord - Korea - C13 (models) Line Cord - Hong Kong , UK, Ireland, Singapore, Malaysia, Brunei (models 27A 28A 29A 31A 32A 33A 27G 28G 29G 31G 32G 33G 34G 38A 39A 41A 43G 44G 45G 46G 47G 48G) Line Cord - Hong Kong, UK, Ireland, Singapore, Malaysia, Brunei - C13 (models) Line Cord - Hong Kong, UK, Ireland, Singapore, Malaysia, Brunei - C13 (models) Line Cord - Italy (models 27G 28G 29G 31G 32G 33G 34G 43G 44G 45G 46G 47G 48G)
  • Page 193 6427 Windows XP Home Recovery DVDs RE (models) HU (models) CZ (models) TR (models) GK (models) Japanese (models) Simplified Chinese (models) Taiwan-TC (models) Hong Kong-TC (models) Korea (models) 6427 Windows XP Pro Recovery DVDs English (models 73U 35U 36U 37U 38A 39A 41A 38M 39M 41M 42M 38Q 39Q 41Q 38R 39R 41R 42R 73E 35E 36E 37E 43G 44G 45G) French (models 73F 35F 36F 37F) German (models 43G 44G 45G)
  • Page 194 6427 Windows XP Pro Recovery DVDs Multilingual 2 XP-P -- EN, DK, FI, NO, SV (models 43G 44G 45G) English (models 83G 84G 85G 86G 87G 88U 88G 89U 89E 91U 91G) Japanese (models 89J) 6427 Vista Home Basic 32 Recovery DVDs US/UK/AP/TH (models) FR/CF (models) GR (models)
  • Page 195 6427 Vista Business 32 Recovery DVDs Italian (models) Japanese (models) Norwegian (models) Swedish (models) Danish (models) Dutch (models) Czech (models) Finnish (models) Polish (models) Russian (models) Turkish (models) Hungarian (models) Greek (models) Simplified Chinese (models) Traditional Chinese-TC (models) Traditional Chinese-HK (models) Korean (models) Slovenian (models) Romanian (models)
  • Page 196 6427 Vista Home Pre 32 Recovery DVDs Russian (models) Turkish (models) Hungarian (models) Greek (models) Simplified Chinese (models) Traditional Chinese (models) Traditional Chinese (models) Korean (models) Slovenian (models) Hebrew (models) Romanian (models) Bulgarian (models) Croatian (models) Portuguese (models) Serbian-Latin (models) Ukrainian (models) Slovakian (models) 6427 Vista Business 64 Recovery DVDs...
  • Page 197 6427 Vista Business 64 Recovery DVDs Russian (models 27G 28G 29G 31G 32G 33G 34G 46G 47G 48G 83G 84G 85G 86G 87G 88G) Turkish (models 27G 28G 29G 31G 32G 33G 34G 46G 47G 48G 83G 84G 85G 86G 87G 88G) Hungarian (models 27G 28G 29G 31G 32G 33G 34G 46G 47G 48G 83G 84G 85G 86G 87G 88G) Greek (models 27G 28G 29G 31G 32G 33G 34G 46G 47G 48G 83G 84G 85G 86G 87G 88G)

  • Page 198: Machine Type 6483

    Machine Type 6483 Item # System Board, Islay - Barcelona 1.1 Intel Socket-T, X38, ICH9R (SDV-Level) (models 19U 19G 19M 19A 19Q 19C 19B 19H 19V 19K 19E 19R 19J 21U 21G 21M 21A 21Q 21C 21B 21H 21V 21K 21R 21E 21J 22M 22A 22Q 22T 22K 22R 22E 22J 23M 23A 23Q 23T 23K 23R 23E 23J 24M 24A 24Q 24T 24K 24R 24E 24J 33M 33A 33Q 33T 33K 33R 33E 33J 25M 25A 25Q 25T 25K 25R 25E 25J 26M 26A 26Q 26T 26K 26R 26E 26J 27M 27A 27Q 27T 27K 27R 27E 27J 29M 29A 29Q 29T 29K 29R...
  • Page 199 Item # Microprocessor, Intel Core 2 Duo E6750 - 2.66GHz, 2MBx2 L2, 1333MHz FSB, G0 (models CTO 52M 52A 52Q 52T 52K 52R) Microprocessor, Intel Core 2 Duo E6850 - 3.00GHz, 2MBx2 L2, 1333MHz FSB, G0 (models 19U 19G 19M 19A 19Q 19C 19B 19H 19V 19K 19E 19R 19J 23M 23A 23Q 23T 23K 23R 23E 23J 26M 26A 26Q 26T 26K 26R 26E 26J 31M 31A 31Q 31T 31K 31R 31E 31J 32M 32A 32Q 32T 32K 32R 32E 32J 23U 23F 23C 23B 23H 23V 26U 26F 26C 26B 26H 26V 31U 31F 31C 31B 31H 31V 32U 32F 32C 32B 32H 32V 19T 34U...
  • Page 200 Item # Memory module, 1GB DDR3 ECC UDIMM PC3-8500 (1067MHz) (models 19U 19G 19M 19A 19Q 19C 19B 19H 19V 19K 19E 19R 19J 21U 21G 21M 21A 21Q 21C 21B 21H 21V 21K 21R 21E 21J 22M 22A 22Q 22T 22K 22R 22E 22J 23M 23A 23Q 23T 23K 23R 23E 23J 24M 24A 24Q 24T 24K 24R 24E 24J 33M 33A 33Q 33T 33K 33R 33E 33J 25M 25A 25Q 25T 25K 25R 25E 25J 26M 26A 26Q 26T 26K 26R 26E 26J 27M 27A 27Q 27T 27K 27R 27E 27J 29M 29A 29Q 29T 29K 29R 29E 29J 31M 31A...
  • Page 201 Item # Optical drive, DVD Burner/CD-RW Rambo 8 (SATA) (models 19U 19G 19M 19A 19Q 19C 19B 19H 19V 19K 19E 19R 19J 21U 21G 21M 21A 21Q 21C 21B 21H 21V 21K 21R 21E 21J 22M 22A 22Q 22T 22K 22R 22E 22J 23M 23A 23Q 23T 23K 23R 23E 23J 24M 24A 24Q 24T 24K 24R 24E 24J 33M 33A 33Q 33T 33K 33R 33E 33J 25M 25A 25Q 25T 25K 25R 25E 25J 26M 26A 26Q 26T 26K 26R 26E 26J 27M 27A 27Q 27T 27K 27R 27E 27J 29M 29A 29Q 29T 29K 29R 29E 29J 31M 31A 31Q 31T...
  • Page 202 Item # Diskette drive, 3.5″ 1.44MB 2-Mode (models) Front Panel Cable Asm (USB, Audio, 1394) (all models) Power switch/LED Cable assembly (all models) Internal speaker and cable Asm (all models) Fan Asm, 92 mm Front PCI (all models) Hard disk drive, 160GB 7200rpm SATA (models CTO S4M S4A S4Q S4T S4K S4R S4E S4J B8U B8F B8A B8Q B8T B8K B8R B8E B8J B9U B9F B9A B9Q B9T B9K B9R B9E B9J F3G) Hard disk drive, 250GB 7200rpm SATA (models 11B 11H 11V 12C 12B 12H 12V...
  • Page 203 Item # Power supply, 650 Watt (models 19U 19G 19M 19A 19Q 19C 19B 19H 19V 19K 19E 19R 19J 21U 21G 21M 21A 21Q 21C 21B 21H 21V 21K 21R 21E 21J 22M 22A 22Q 22T 22K 22R 22E 22J 23M 23A 23Q 23T 23K 23R 23E 23J 24M 24A 24Q 24T 24K 24R 24E 24J 33M 33A 33Q 33T 33K 33R 33E 33J 25M 25A 25Q 25T 25K 25R 25E 25J 26M 26A 26Q 26T 26K 26R 26E 26J 27M 27A 27Q 27T 27K 27R 27E 27J 29M 29A 29Q 29T 29K 29R 29E 29J 31M 31A 31Q 31T 31K 31R 31E 31J 32M 32A 32Q 32T...
  • Page 204 6483 Keyboards (PS2 Preferred Pro) US English (models) Arabic (models) Arabic/French (models) Belgian/French (models) Belgian/UK (models) Bulgarian (models) Hong Kong/Taiwan (models) Czech (models) Danish (models) Dutch (models) French (models) French Canadian 445 (models) French Canadian 58 (models) German (models) Greek (models) Hebrew (models) Hungarian (models) Iceland (models)
  • Page 205 6483 Keyboards (Lenovo Productivity -USB) US English (models 19U 19G 19M 19A 19Q 19H 19R 19E 22M 22A 22Q 22R 22E 23M 23A 23Q 23R 23E 24M 24A 24Q 24R 24E 33M 33A 33Q 33R 33E 25M 25A 25Q 25R 25E 26M...
  • Page 206 6483 Keyboards (Lenovo Productivity -USB) French Canadian 445 (models 22F 23F 24F 33F 25F 26F 27F 29F 31F 32F 34F 35F 36F 37F 38F 39F 41F 42F 43F 44F 45F 46F 47F A1F A2F B2F B3F B4F B5F B8F B8F B9F C1F C2F...
  • Page 207 6483 Keyboards (Lenovo Productivity -USB) Romanian 096 (models 19G 22G 23G 24G 33G 25G 26G 27G 29G 32G 32G 68G 69G 71G 72G 73G 74G 75G 76G 77G 78G 79G 81G 82G 83G 84G 85G 86G 87G 88G 89G 91G C3G...
  • Page 208 6483 Keyboards (Preferred Pro Fingerprint Reader USB) US English (models 21U 21G 21M 21A 21Q 21H 21R 21E A6M A6E A7M A7E) Arabic (models) Arabic/French (models 21G) Belgian/French (models 21G) Belgian/UK (models 21G) Brazil/Portuguese (models 21G) Bulgarian (models 21G) Chinese/US (models 21C) Czech (models 21G) Danish (models 21G) Dutch (models 21G)
  • Page 209 6483 Keyboards (Wireless) US English (models) Belgium French (models) Belgium English (models) Chinese/US (models) Czech (ABB) (models) Danish (models) Dutch (models) French (models) French Canadian (models) French Canadian (models) German (models) Greek (models) Greek/US (models) Hungarian (models) Iceland (models) Italy (models) Japanese (models) Norwegian (models) Polish (models)
  • Page 210 B8R B8E B8J B9U B9F B9A B9Q B9T B9K B9R B9E B9J) Speakers (2-piece) Lenovo Logo (models) Speakers (2-piece) Lenovo Logo (models) Lenovo 3 pieces Speakers (China Only) (models) Lenovo 2 pieces Speakers (China Only) (models) Speaker Power brick - US, Canada, LA low voltage, ASEAN (models 19U 21U 22U 23U...
  • Page 211 B4U B4F B4M B4E B4J B6M B6E B6J B7M B7E B7J E3G E4G E5G E6G E7G E8G E9G F1G F2G F6M F6A F6Q F6T F6K F6R) Lenovo Branded 3-Piece Speakers (models) Lenovo Branded Headset (models) Dongle Cable - DMS59 to dual DVI (included in Quasar L1) (models)
  • Page 212 6483 Power Cords - C13 Line Cord - US - C13 (models 19U 19A 20U 21A 22A 23A 24A 33A 25A 26A 27A 29A 31A 32A 22U 22F 23U 23F 24U 24F 25U 25F 26U 26F 27U 27F 29U 29F 31U 31F 32U 32F 33U 33F 19T 21T 34U 34F 35U 35F 36U 36F 37U 37F 38U 38F 39U 39F 41U 41F 42U 42F 43U 43F 44U 44F 45U 45F 46U 46F 47U 47F 92U 92F 93U 93F 94U 94F 95U 95F 96U 96F 49A 51A 52A 53A 54A 55A 56A 57A 58A S1A S2A S3A S4A S5A S6A 9T 51T 52T 53T 54T 55T...
  • Page 213 6483 Power Cords - C13 Line Cord - Hong Kong,UK, Ireland, Singapore, Malaysia, Brunei, Hong Kong - C13 (models 19B 19H 21B 21H 22B 22H 223B 23H 24B 24H 25B 25H 26B 26H 27B 27H 29B 29H 31B 31H 32B 32H 33B 33H 19G 19A 21G 21A 22A 23A 24A 33A 25A 26A 27A 29A 31A 32A 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 59B 59H 61B 61H 62B 62H 67G 68G 69G 71G 72G 73G 74G 75G 76G 77G 78G 79G 81G 82G 83G 84G 85G 86G 87G 88G 89G 91G)
  • Page 214 6483 Power Cords - C13 Line Cord - Israel - C13 (models 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 65G 66G 67G 68G 69G 71G 72G 73G 74G 75G 76G 77G 78G 79G 81G 82G 83G 84G 85G 86G 87G 88G 89G 91G C3G C4G C5G C6G C7G C8G C9G D1G D2G D3G D4G D5G D6G D7G D8G D9G E1G E2G E3G E4G E5G E6G E7G E8G E9G F1G F2GF3G ) Line Cord - South Africa - C13 (models 19G 21G 19M 21M 19A 21A 22M 23M 24M 33M...
  • Page 215 6483 Windows XP Home Recovery CDs Japanese (models) Simplified Chinese (models) Taiwan-TC (models) Hong Kong-TC (models) Korea (models) 6483 Windows XP Pro Recovery CDs English (models 34U 35U 36U 37U 38U 39U 41U 42U 43U 44U 45U 46U 47U 34E 35E 36E 37E 38E 39E 41E 42E 43E 44E 45E 46E 47E 54M 54A 54Q 54R 56M 56A 56Q 56R 57M 57A 57Q 57R 58M 58A 58Q 58R 59H 61H 65G 66G 67G 68G 69G 71G 72G 73G 74G 75G 76G 77G 67M 67A 67Q 67E S4M S4A S4Q S4R S4E S)
  • Page 216 English (models A1U A1E A2U A2E A3U A3E A4U A4E B2U B2M B2E B3U B3E B3M B4U B4M B4E B5U B5M B5E B8U B8E B8A B8Q B9U B9E B9A B9Q C1U C1E C2U C2E C3G C4G C5G C6G C7G C8G C9G D1G D2G D3G D4G D5G D6G D7G D8G D9G E1U E1G E2U E2G E3G E4G E5G E6G E7G E8G E9G F1G F2G F2H F3G) Japanese (models A1J A2J A3J A4J B2J B3J B4J B5J B8J B9J C1J C2J)
  • Page 217 6483 Vista Business 32 Recovery DVDs Brazilian (models) Italian (models) Japanese (models) Norwegian (models) Swedish (models) Danish (models) Dutch (models) Czech (models) Finnish (models) Polish (models) Russian (models) Turkish (models) Hungarian (models) Greek (models) Simplified Chinese (models) Traditional Chinese-TC (models) Traditional Chinese-HK (models) Korean (models) Slovenian (models)
  • Page 218 6483 Vista Home Pre 32 Recovery DVDs Polish (models) Russian (models) Turkish (models) Hungarian (models) Greek (models) Simplified Chinese (models) Traditional Chinese (models) Traditional Chinese (models) Korean (models) Slovenian (models) Hebrew (models) Romanian (models) Bulgarian (models) Croatian (models) Portuguese (models) Serbian-Latin (models) Ukrainian (models) Slovakian (model)
  • Page 219 6483 Vista Business 64 Recovery DVDs Italian (models 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 78G 79G 81G 82G 83G 84G 85G 86G 87G 88G 89G 91G C3G C4G C5G C6G C7G C8G C9G D1G D2G D3G D4G D5G D6G D7G D8G D9G E1G E2G E3G E4G E5G E6G E7G E8G E9G F1G F2G F3G) Japanese (models 19J 21J 22J 23J 24J 33J 25J 26J 27J 29J 31J 32J A1J A2J A3J A4J A5J A6J A7J...
  • Page 220 6483 Vista Business 64 Recovery DVDs Trad Chinese-HK (models 19B 21B 22B 23B 24B 25B 26B 27B 29B 31B 32B 33B C6B D4B F2B) Korean (models 22K 23K 24K 33K 25K 26K 27K 29K 31K 32K B8K B9K) Slovenian (models 19G 21G 22G 23G 24G 25G 26G 27G 28G 29G 31G 32G 33G 78G 79G 81G 82G 83G 84G 85G 86G 87G 88G 89G 91G C3G C4G C5G C6G C7G C8G C9G D1G D2G D3G D4G D5G D6G D7G D8G D9G E1G E2G E3G E4G E5G E6G E7G E8G E9G F1G F2G F3G)

  • Page 221: Machine Type 6493

    Machine Type 6493 Item # Power supply, 1000 Watt (models 11C 11B 11H 11V 12C 12B 12H 12V 13C 13B 13H 13V 17U 17G 17M 17A 17Q 17C 17B 17H 17V 17K 17R 17E 17J 18U 18G 18M 18A 18Q 18C 18B 18H 18V 18K 18R 18E 18J 19M 19A 19Q 19T 19K 19R 19E 19J 21M 21A 21Q 21T 21K 21R 21E 21J 22M 22A 22Q 22T 22K 22R 22E 22J 23M 23A 23Q 23T 23K 23R 23E 23J 25M 25A 25Q 25T 25K 25R 25E 25J 26M 26A 26Q 26T 26K 26R 26E 26J 33M 33A 33Q 33T 33K 33R 33E 33J 27M 27A 27Q 27T 27K 27R 27E 27J...
  • Page 222 Item # Memory module, 1GB DDR2 ECC FBDIMM PC2-5300 (667MHz) (models 11C 11B 11H 11V 12C 12B 12H 12V 13C 13B 13H 13V 17U 17G 17M 17A 17Q 17C 17B 17H 17V 17K 17R 17E 17J 19M 19A 19Q 19T 19K 19R 19E 19J 23M 23A 23Q 23T 23K 23R 23E 23J 25M 25A 25Q 25T 25K 25R 25E 25J 27M 27A 27Q 27T 27K 27R 27E 27J 19U 19F 19G 19C 19B 19H 19V 23U 23F 23C 23B 23H 23V 25U 25F 25C 25B 25H 25V 27U 27F 27C 27B 27H 27V 17T 34U 34F 34E 34J 35U 35F 35E 35J 36U 36F 36E...
  • Page 223 Item # Hard disk drive, 160GB 7200rpm SATA (models CTO 48M 48A 48Q 48T 48K 48R 88A 88Q 88T 88K 88R 88E 88J 89A 89Q 89T 89K 89R 89E 89J A1G) Hard disk drive, 250GB 7200rpm SATA (models 19M 19A 19Q 19T 19K 19R 19E 19J 23M 23A 23Q 23T 23K 23R 23E 23J 25M 25A 25Q 25T 25K 25R 25E 25J 27M 27A 27Q 27T 27K 27R 27E 27J 19U 19F 19G 19C 19B 19H 19V 23U 23F 23C 23B 23H 23V 25U 25F 25C 25B 25H 25V 27U 27F 27C 27B 27H 27V 34U 34F 34E 34J...
  • Page 224 Item # Microprocessor, Intel Xeon E5405 - 2.00GHz, 12MB L2, 1333MHz FSB, 80W (models 17U 17G 17M 17A 17Q 17C 17B 17H 17V 17K 17R 17E 17J 17T A6K) Microprocessor, Intel Xeon E5410 - 2.33GHz, 12MB L2, 1333MHz FSB, 80W (models) Microprocessor, Intel Xeon E5420 - 2.50GHz, 12MB L2, 1333MHz FSB, 80W (models 11C 11B 11H 11V 25M 25A 25Q 25T 25K 25R 25E 25J 62G 63G 64G 65G...
  • Page 225 The FRUs listed in the following tables are not illustrated. Diskette drive cable Asm (all models) Bezel Kit (all models) Handle with screws (all models) Cable Asm, SATA (all models) Cable Asm, SATA, optical disk drive (all models) Cover Asm (access panel) (all models) Mechanical Shell Kit (all models) Miscellaneous Parts Kit (all models) Cable Asm, Cover Detect Switch (all models)
  • Page 226 Slovenian (models ) Brazil/Portuguese (models ) 6493 Keyboards (Lenovo Productivity -USB) US English (models 11H 17U 17G 17M 17A 17Q 17H 17R 17E 17J 19M 19A 19Q 19R 19E 21M 21A 21Q 21R 21E 22M 22A 22Q 22R 22E 23M 23A 23Q 23R 23E 25M 25A 25Q 25R...
  • Page 227 6493 Keyboards (Lenovo Productivity -USB) Hong Kong/Taiwan (models 11B 11V 12B 12V 13B 13V 17B 17V 19B 19V 21B 21V 22B 22V 23B 23V 25B 25V 26B 26V 33B 33V 27B 27V 31B 31V 32B 32V ) Czech (models 17G 19G 21G 22G 23G 25G 26G 33G 27G 31G 32G 62G 63G 64G 65G 66G...
  • Page 228 6493 Keyboards (Lenovo Productivity -USB) Slovak (models 17G 19G 21G 22G 23G 25G 26G 33G 27G 31G 32G 62G 63G 64G 65G 66G 67G 68G 69G 71G 72G 93G 94G 95G 96G 97G 98G 99G A1G) Spanish (models 17G 19G 21G 22G 23G 25G 26G 33G 27G 31G 32G 62G 63G 64G 65G 66G...
  • Page 229 6493 Keyboards (Preferred Pro Fingerprint Reader USB) LA/Spanish (models ) Norwegian (models 18G) Polish (models 18G) Portuguese (models 18G) Romanian 096 (models 18G) Romanian 446 (models 18G) Russian/Cyrillic (models 18G) Serbian/Cyrillic (models 18G) Slovak (models 18G) Spanish (models 18G) Swedish/Finn (models 18G) Swiss (models 18G) Thailand (models 18T) Turkish 440 (models 18G)
  • Page 230 6493 Keyboards (Wireless) Spanish (models) Swedish/Finnish (models) Swiss French/German (models) UK English (models) US Euro (models) Slovenian (models) Optical Wheel Mouse (400 DPI), USB - Red Wheel (Primary) (models 11C 11B 11H 11V 12C 12B 12H 12V 13C 13B 13H 13V 17U 17G 17M 17A 17Q 17C 17B 17H 17V 17K 17R 17E 17J 18U 18G 18M 18A 18Q 18C 18B 18H 18V 18K 18R 18E 18J 19M 19A 19Q 19T 19K 19R 19E 19J 21M 21A 21Q 21T 21K 21R 21E 21J 22M 22A 22Q 22T 22K 22R 22E 22J 23M 23A 23Q 23T 23K 23R 23E 23J 25M 25A 25Q 25T 25K 25R 25E 25J 26M 26A 26Q 26T 26K 26R...
  • Page 231 68G 69G 71G 72G) Speakers (2-piece) Lenovo Logo (models) Speakers (2-piece) Lenovo Logo (models) Lenovo 3 pieces Speakers (China Only) (models) Lenovo 2 pieces Speakers (China Only) (models) Speaker Power brick - US, Canada, LA low voltage, ASEAN (models 17U 18U 19U 21U...
  • Page 232 32Q 32T 32K 32R 32E 32J 23U 23F 23C 23B 23H 23V 31U 31F 31C 31B 31H 31V 32U 32F 32C 32B 32H 32V 18T 56M 56A 56T 56K 56R) SAS Controller Card (models ) Lenovo Branded 3-Piece Speakers (models ) Lenovo Branded Headset (models ) Dongle Cable - DMS59 to dual DVI (included in Quasar L1) (models )
  • Page 233 Line Cord - US - C13 (models) Line Cord - US - C13 (models) Line Cord - China (models 11C 12C 13C 17C 18C 19C 21C 22C 23C 25C 26C 27C 29C 31C 32C 33C 59C 61C) Line Cord - China (models 11C 12C 13C 17C 18C 19C 21C 22C 23C 25C 26C 27C 29C 31C 32C 33C 59C 61C) Line Cord - China - C13 (models) Line Cord - China - C13 (models)
  • Page 234 Line Cord - LA High Volt (APU) (models) Line Cord - LA High Volt (APU) - C13 (models) Line Cord - LA High Volt (APU) - C13 (models) Line Cord - Korea (models 17K 17R 18K 18R 19K 21K 22K 23K 25K 26K 27K 31K 32K 19R 21R 22R 23R 25R 26R 27R 31R 32R 48K 49K 51K 52K 53K 54K 55K 56K 48R 49R 51R 52R 53R 54R 55R 56R A3K A3R A4K A4R A5K A5R A6K A7K) Line Cord - Korea - C13 (models)
  • Page 235 6493 Windows XP Home Recovery CDs SP/LA (models ) DK (models ) NL (models ) AE (models ) SV (models ) HE (models ) FI (models ) NO (models ) PL (models ) PO (models ) RU (models ) RE (models ) HU (models ) CZ (models ) TR (models )
  • Page 236 6493 Windows XP Pro Recovery CDs Turkish (models 62G 63G 64G 65G 66G 67G 68G 69G 71G 72G) Hungarian (models 62G 63G 64G 65G 66G 67G 68G 69G 71G 72G) Greek (models 62G 63G 64G 65G 66G 67G 68G 69G 71G 72G) Simplified Chinese (models 59C 61C) Taiwan (models 57V 58V) HongKong (models 57B 58B)
  • Page 237 6493 Vista Home Basic 32 Recovery DVDs SC (models ) TW (models ) HK (models ) KR (models ) SL (models ) RE (models ) 6493 Vista Business 32 Recovery DVDs English (models) Russian English (models) French (models) German (models) Spanish (models) Brazilian (models) Italian (models)
  • Page 238 6493 Vista Home Pre 32 Recovery DVDs Russian English (models ) French/Canadian French (models ) German (models ) Spanish/LA (models ) Brazil (models ) Italy (models ) Japanese (models ) Norway (models ) Swedish (models ) Denmark (models ) Dutch (models ) Czech (models ) Finnish (models ) Polish (models )
  • Page 239 6493 Vista Business 64 Recovery DVDs French (models 17G 18G 19G 21G 22G 23G 25G 26G 33G 27G 31G 32G 93G 94G 95G 96G 97G 98G 99G A1G A2F) German (models 17G 18G 19G 21G 22G 23G 25G 26G 33G 27G 31G 32G 93G 94G 95G 96G 97G 98G 99G A1G ) Spanish (models 17G 18G 19G 21G 22G 23G 25G 26G 33G 27G 31G 32G 93G 94G 95G 96G 97G 98G 99G A1G)
  • Page 240 6493 Vista Business 64 Recovery DVDs FRU# Hebrew (models 17G 18G 19G 21G 22G 23G 25G 26G 33G 27G 31G 32G 93G 94G 95G 96G 64Y6807 97G 98G 99G A1G) Hardware Maintenance Manual...

  • Page 241: Chapter 12. Additional Service Information

    To determine the current Level of BIOS: – Start the Setup Utility. – Select Standard CMOS Features. v Sources for obtaining the latest level BIOS available 1. Lenovo support web site: http://www.lenovo.com/support/ 2. Lenovo Customer Support Center 3. Levels 1 and 2 Support To update (flash) the BIOS, see “Flash update procedures.”...

  • Page 242: Updating (Flashing) Bios From A Diskette Or Cd-Rom

    Note: Due to the constant improvements made to the Web site, Web page content (including the links referenced in the following procedure) is subject to change. 1. From your browser, type http://www.lenovo.com/support in the address field and press Enter. 2. Locate the Downloadable files for your machine type as follows: a.
  • Page 243 2. Unplug all power cords from electrical outlets, and unplug any external options from the computer, including the USB mouse and the USB keyboard, if they are connected. Open the computer cover. See “Opening the cover” on page 94. 3. Access the system board. See “Accessing system board components and drives”...

  • Page 244: Power Management

    Power management Power management reduces the power consumption of certain components of the computer such as the system power supply, processor, hard disk drives, and some monitors. Automatic configuration and power interface (ACPI) BIOS Being an ACPI BIOS system, the operating system is allowed to control the power management features of the computer and the setting for Advanced Power Management (APM) BIOS mode is ignored.

  • Page 245: Appendix. Notices

    Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

  • Page 246: Television Output Notice

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo ThinkStation Rescue and Recovery...
  • Page 248 Part Number: 43C9807 Printed in USA (1P) P/N: 43C9807...

This manual is also suitable for:

Thinkstation c20 4262Thinkstation c20x 42666423h2u648326uThinkstation d10Thinkstation 6423 ... Show all

Table of Contents
