Related Manuals for Lenovo ThinkCentre M58 9960
Summary of Contents for Lenovo ThinkCentre M58 9960

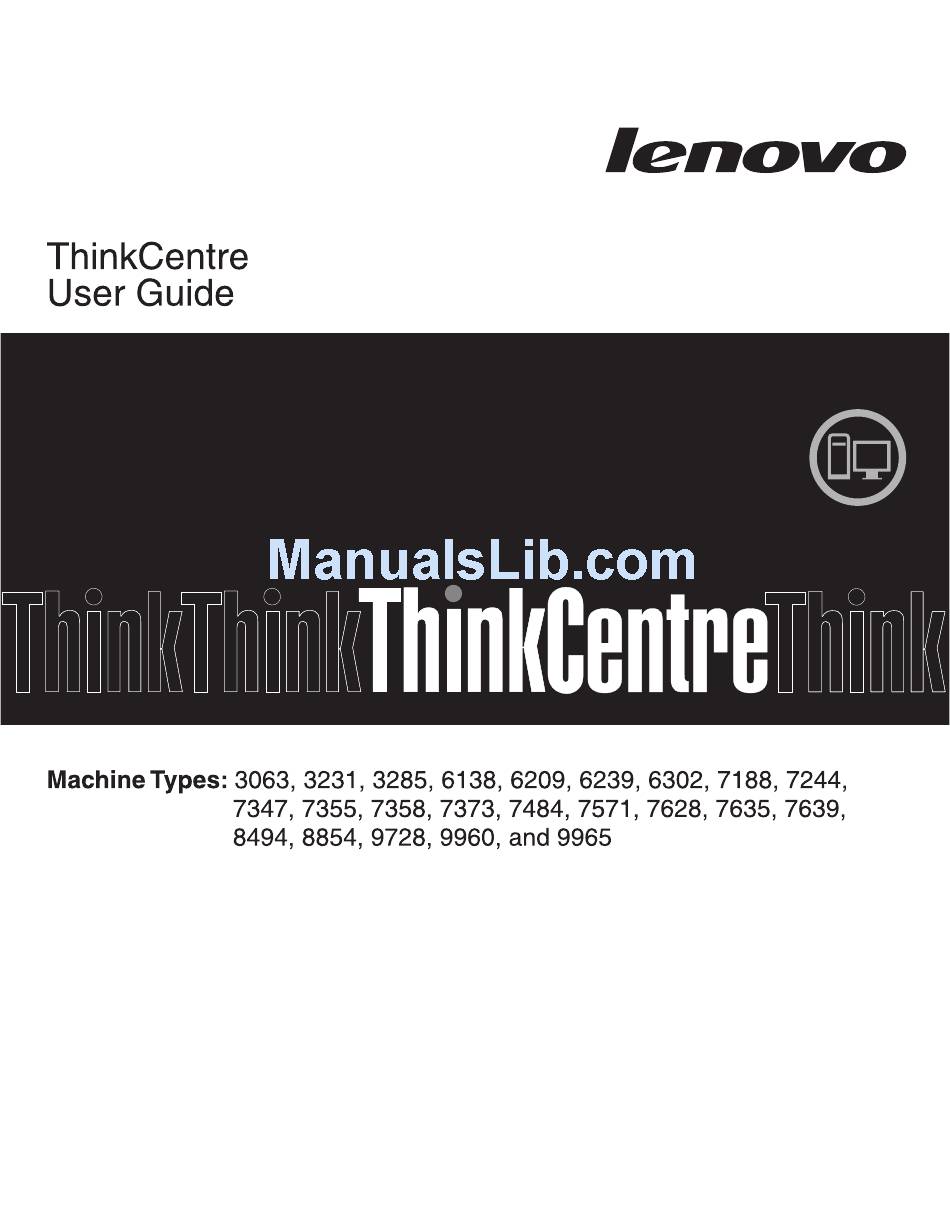

- Page 3 ThinkCentre User Guide...
- Page 4 Third Edition (October 2009) © Copyright Lenovo 2009. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.
-
Page 5: Table Of Contents
Using the Rescue and Recovery workspace . Creating and using rescue media . Creating rescue media . Using rescue media. © Copyright Lenovo 2009 Creating and using a recovery repair diskette . Creating a recovery repair diskette Using a recovery repair diskette Installing or reinstalling device drivers . - Page 6 Calling for service . Using other services Purchasing additional services . Appendix. Notices ..77 User Guide . 73 Television output notice . . 74 European conformance CE mark . . 75 Trademarks .
-
Page 7: Important Safety Information
If you no longer have a copy of the ThinkCentre Safety and Warranty Guide, you can obtain a Portable Document Format (PDF) version from the Lenovo site at: http://www.lenovo.com/support ©... - Page 8 User Guide...
-
Page 9: Chapter 1. Product Overview
Integrated graphics card for a VGA (Video Graphics Array) connector and DisplayPort connector v PCI (Peripheral Component Interconnect) Express x16 graphics card slot on the system board for discrete graphics card © Copyright Lenovo 2009 ® processor ™ 2 Duo processor ®... - Page 10 Audio subsystem v High Definition (HD) with ADI 1882 Audio Codec v Audio line-in connector, audio line-out connector, and microphone connector on the rear panel v Microphone connector and headphone connector on the front panel v Internal speaker (some models) Connectivity v 10/100/1000 Mbps integrated Ethernet controller v PCI V.90 Data/Fax modem (some models)
- Page 11 1. The operating systems listed here are being certified or tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by Lenovo as compatible with your computer following the publication of this booklet. Corrections and additions to this list are subject to change. To determine if an operating system has been certified or tested for compatibility, check the Web site of the operating system vendor.
-
Page 12: Specifications
Specifications This section lists the physical specifications for your computer. Dimensions Width: 175 mm (6.89 inches) Height: 402 mm (15.83 inches) Depth: 440 mm (17.32 inches) Weight Maximum configuration as shipped: 11 kg (24.25 lbs) Environment Air temperature: Operating: 10° to 35°C (50° to 95°F) Non-operating: -40°... -
Page 13: Software Overview
This section describes the Windows applications included with your computer. Software provided by Lenovo The following software programs are provided by Lenovo to help you improve productivity and reduce the cost associated with maintaining your computer. Software programs provided with your computer might vary depending on your model type and preinstalled operating system. - Page 14 Lenovo, such as the Rescue and Recovery program and the Productivity Center program. ThinkVantage Power Manager: The ThinkVantage Power Manager program provides convenient, flexible, and complete power management for your ThinkCentre can adjust your power settings to achieve the best balance between system performance and power saving.
-
Page 15: Locations
Locations Locating connectors on the front of your computer Figure 1 shows the locations of the connectors on the front of your computer. Note: Not all computer models have the following connectors. Figure 1. Front connector locations 1 USB connector 2 Headphone connector 3 Microphone connector 4 USB connector... -
Page 16: Locating Connectors On The Rear Of Your Computer
Locating connectors on the rear of your computer Figure 2 shows the locations of the connectors on the rear of your computer. Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer. Figure 2. - Page 17 Connector Description Audio line-in connector Used to receive audio signals from an external audio device, such as a stereo system. When you attach an external audio device, a cable is connected between the audio line-out connector of the device and the audio line-in connector of the computer. Audio line-out connector Used to send audio signals from the computer to external devices, such as powered stereo speakers (speakers with built-in...
-
Page 18: Locating Components
Locating components Figure 3 shows the locations of the various components in your computer. To remove the computer cover, see “Removing the computer cover” on page 14. Figure 3. Component locations 1 Microprocessor, heat sink, and heat sink fan assembly 2 Memory slots (4) 3 PCI Express x1 card slot 4 PCI card... -
Page 19: Locating Parts On The System Board
Locating parts on the system board Figure 4 shows the locations of the parts on the system board. Figure 4. System board parts locations 1 Microprocessor 2 Microprocessor fan connector 3 Memory slot 1 4 Memory slot 2 5 Memory slot 3 6 Memory slot 4 7 24-pin power connector 8 Thermal sensor connector... - Page 20 User Guide...
-
Page 21: Chapter 2. Installing Options And Replacing Hardware
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support Note: Use only computer parts provided by Lenovo. © Copyright Lenovo 2009 understand the "Important safety information" in the ThinkCentre Safety and Warranty Guide. -
Page 22: Installing External Options
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to remove the computer cover. -
Page 23: Removing And Installing The Front Bezel
6. Press the cover-release button on the side of the computer cover and slide the computer cover to the rear to remove. Figure 5. Removing the computer cover Removing and installing the front bezel This section provides instructions on how to remove and install the front bezel. To remove and install the front bezel: 1. -
Page 24: Installing Or Replacing A Pci Card
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to install or replace a PCI card. Your computer has two standard PCI card slots, one PCI Express x1 card slot, and one PCI Express x16 graphics card slot. - Page 25 To install or replace a PCI card: 1. Remove the computer cover. See “Removing the computer cover” on page 14. 2. At the rear of the computer, press the release button 1 to open the card latch 2 . Remove the appropriate slot cover. If you are replacing an old PCI card, remove the old card that is currently installed.
- Page 26 b. If the card is held in place by a retaining latch, press the card retaining latch 1 as shown to disengage the latch. Grasp the card and gently pull it out of the slot. 3. Remove the new PCI card from its static-protective package. 4.
-
Page 27: Installing Or Replacing A Memory Module
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support Your computer has four slots for installing or replacing DDR3 DIMMs (double data rate 3 dual inline memory modules) that provide up to a maximum of 8 GB system memory. -
Page 28: Installing Internal Drives
clips close. Figure 11. Installing the memory module What to do next: v To work with another option, go to the appropriate section. v To complete the installation, go to “Completing the parts replacement” on page 44. Installing internal drives This section provides instructions on how to install the internal drives. - Page 29 Figure 12 shows the locations of the drive bays. Figure 12. Drive bay locations The following list describes the type and size of the drive that you can install in each bay: 1 Bay 1 - Maximum height: 43.0 mm (1.7 inches) 2 Bay 2 - Maximum height: 43.0 mm (1.7 inches) 3 Bay 3 - Maximum height: 25.8 mm (1.0 inch) 4 Bay 4 - Maximum height: 25.8 mm (1.0 inch)
- Page 30 “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to install a drive in bay 1 or bay 2.
-
Page 31: Connecting A Sata Drive
6. Install the drive into the bay. Figure 14. Installing the drive 7. To reinstall the front bezel, align the plastic tabs on the right side of the front bezel with the corresponding holes in the chassis, then pivot the front bezel inward until it snaps into position on the left side. - Page 32 4. Locate one of the extra five-wire power connectors and connect it to the drive. Figure 15. Connecting a SATA drive What to do next v To work with another option, go to the appropriate section. v To complete the installation, go to “Completing the parts replacement” on page 44.
-
Page 33: Replacing The Battery
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support Your computer has a special type of memory that maintains the date, time, and settings for built-in features, such as parallel-port assignments (configuration). -
Page 34: Replacing The Power Supply Assembly
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the power supply assembly. -
Page 35: Replacing The Heat Sink And Fan Assembly
7. Install the four screws to secure the power supply assembly. Note: Use only screws provided by Lenovo. 8. Reconnect the power supply assembly connectors to the system board. - Page 36 5. Carefully remove the four screws 1 that secure the heat sink and fan assembly to the system board. Note: Carefully remove the four screws from the system board to avoid any Figure 19. Removing the heat sink and fan assembly 6.
-
Page 37: Replacing The Primary Hard Disk Drive
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the primary hard disk drive if your computer has one. - Page 38 5. Remove the hard disk drive cage from the chassis by simply sliding it outward. 6. Pull on the blue handle 3 to release and remove the hard disk drive from the drive cage. 7. Remove the hard disk drive from the blue bracket by flexing the sides of the bracket enough to slide it free from the hard disk drive.
-
Page 39: Replacing The Secondary Hard Disk Drive
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support Note: Depending on your model type, your computer might come with a secondary hard disk drive bay for installing or replacing a secondary hard disk drive. - Page 40 This section provides instructions on how to replace the secondary hard disk drive. Important When you receive a new hard disk drive, you also receive a set of Product Recovery discs. The set of Product Recovery discs enables you to restore the contents of the hard disk drive to the factory default settings.
- Page 41 8. To install a new hard disk drive into the blue bracket, flex the bracket and align pin 1 , pin 2 , pin 3 , and pin 4 on the bracket with the holes in the hard disk drive. Do not touch the circuit board 5 on the bottom of the hard disk drive.
-
Page 42: Replacing The Optical Drive
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the optical drive. - Page 43 4. Press the blue release button and remove the optical drive out of the front of the computer. Figure 26. Removing the optical drive 5. Remove the retainer from the optical drive being replaced and install it on the new optical drive. Figure 27.
-
Page 44: Replacing The Diskette Drive
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the diskette drive. - Page 45 5. Remove the retainer from the failing diskette drive and install it on the new diskette drive. Figure 29. Retainer for diskette drive 6. Slide the new diskette drive into the drive bay until it snaps into position. 7. Connect the signal cable and the power cable to the new diskette drive. 8.
-
Page 46: Replacing The Front Fan Assembly
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the front fan assembly. -
Page 47: Replacing The Rear Fan Assembly
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the rear fan assembly. - Page 48 4. The rear fan assembly is attached to the chassis by four rubber mounts. Remove the rear fan assembly by breaking or cutting the rubber mounts and gently pulling the rear fan assembly out of the chassis. Figure 32. Removing the rear fan assembly 5.
-
Page 49: Replacing The Internal Speaker
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the internal speaker. - Page 50 4. Push the metal tab on the top of the internal speaker outward and slide the internal speaker upward to completely remove it from the chassis. Figure 34. Removing the old internal speaker 5. Position the new internal speaker into the metal clips and push downward on the internal speaker until it snaps into position.
-
Page 51: Replacing The Keyboard
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the keyboard. To replace the keyboard: 1. -
Page 52: Replacing The Mouse
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the mouse. To replace the mouse: 1. -
Page 53: Installing Security Features
6. To update your configuration, refer to Chapter 4, “Using the Setup Utility,” on page 57. Note: In most areas of the world, Lenovo requires the return of the defective Customer Replaceable Unit (CRU). Information about this will come with the CRU or will come a few days after the CRU arrives. -
Page 54: Integrated Cable Lock
The cable lock also locks the buttons used to remove the computer cover. This is the same type of lock used with many notebook computers. You can order a security cable directly from Lenovo by searching on Kensington at: http://www.lenovo.com/support Figure 39. -
Page 55: Padlock
Padlock Your computer is equipped with a padlock loop such that the cover cannot be removed when a padlock is installed. Figure 40. Installing a padlock Password protection To deter unauthorized use of your computer, you can use the Setup Utility program to set a password. - Page 56 4. Replace the computer cover and connect the power cord. See “Completing the parts replacement” on page 44. 5. Restart the computer, leave it on for approximately 10 seconds. Turn off the computer by holding the power switch for approximately five seconds. The computer will turn off.
-
Page 57: Chapter 3. Recovery Information
This section provides instructions on how to create recovery media on different operating systems. v To create recovery media on Windows 7, click Start → All Programs → Lenovo ThinkVantage Tools → Factory Recovery Disks. Then, follow the instructions on the screen. -
Page 58: Using Recovery Media
Using recovery media This section provides instructions on how to use recovery media on different operating systems. v To use recovery media on Windows 7 or Windows Vista, do the following: Attention: When you use recovery media to restore the computer to the factory default settings on Windows 7 or Windows Vista, all the files currently on the system drive or the hard disk drive will be deleted and replaced by the factory default settings. -
Page 59: Performing A Backup Operation
To perform a backup operation using the Rescue and Recovery program on Windows 7, do the following: 1. From the Windows desktop, click Start → All Programs → Lenovo ThinkVantage Tools → Enhanced Backup and Restore. The Rescue and Recovery program opens. -
Page 60: Using The Rescue And Recovery Workspace
Using the Rescue and Recovery workspace The Rescue and Recovery workspace resides in a protected, hidden area of your hard disk drive that operates independently from the Windows operating system. This enables you to perform recovery operations even if the Windows operating system cannot be started. -
Page 61: Creating And Using Rescue Media
This section provides instructions on how to create rescue media on different operating systems. v To create a rescue medium on Windows 7, do the following: 1. From the Windows desktop, click Start → All Programs → Lenovo ThinkVantage Tools → Enhanced Backup and Restore. The Rescue and Recovery program opens. -
Page 62: Creating And Using A Recovery Repair Diskette
1. Turn on the computer, and make sure that your computer has Internet access. 2. Follow the instructions on the Web site at: http://www.lenovo.com/think/support/site.wss/document.do?lndocid=MIGR-54483 3. After the recovery repair diskette is created, take out the diskette from the diskette drive and label it Recovery Repair Diskette. Then, store it in a safe place for future use. -
Page 63: Installing Or Reinstalling Device Drivers
Device drivers for factory-installed devices are located on the computer hard disk drive (usually drive C:) in the SWTOOLS\DRIVERS folder. The latest device drivers for factory-installed devices are also available at http://www.lenovo.com/ support. Other device drivers are on the software media that come with individual devices. -
Page 64: Setting A Rescue Device In The Startup Sequence
Setting a rescue device in the startup sequence Before you start the Rescue and Recovery program from an internal hard disk drive, a disc, a USB hard disk drive, or other external devices, you must first make sure that your rescue device is set as the first boot device in the startup device sequence in the Setup Utility program. -
Page 65: Copyright Lenovo
You do not have to set any passwords to use your computer. However, using passwords improves computing security. If you decide to set any passwords, read the following sections. © Copyright Lenovo 2009 Setup Utility program menu is not displayed until you type the correct password. For more information, see “Using passwords.”... -
Page 66: Password Considerations
Password considerations A password can be any combination of up to 64 alphabetic and numeric characters. For security reasons, it is recommended to use a strong password that cannot be easily compromised. To set a strong password, use the following guidelines: v Have at least eight characters in length v Contain at least one alphabetic character and one numeric character v Setup Utility program and hard disk drive passwords are not case sensitive... -
Page 67: Enabling Or Disabling A Device
Enabling or disabling a device This section provides information on how to enable or disable user access to the following devices: Serial ATA External SATA Port Legacy Diskette A (some models) To enable or disable a device, do the following: 1. -
Page 68: Selecting Or Changing The Startup Device Sequence
Selecting or changing the startup device sequence To view or permanently change the configured startup device sequence, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 57. 2. Select Startup → Startup Sequence. See the information displayed on the right side of the screen. -
Page 69: Chapter 5. Updating System Programs
Lenovo might make changes and enhancements to the POST and BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com. Instructions for using the POST/BIOS updates are available in a TXT file that is included with the update files. For most models, you can download either an update program to create a system-program-update (flash) disc or an update program that can be run from the operating system. -
Page 70: Updating (Flashing) Bios From Your Operating System
6. Follow the instructions on the screen to complete the update. Updating (flashing) BIOS from your operating system Note: Because Lenovo makes constant improvements to the Web site, the Web page contents are subject to change without notice, including the contents referenced in the following procedure. - Page 71 11. Repeat steps 2 through 5. 12. Move the Clear CMOS/Recovery jumper back to the standard position (pin 1 and pin 2). 13. Reconnect any cables that were disconnected and reinstall the PCI card if removed. 14. Close the computer cover and reconnect any cables that were disconnected. 15.
- Page 72 User Guide...
-
Page 73: Chapter 6. Troubleshooting And Diagnostics
If you cannot correct the problem, have the computer serviced. Refer to the safety and warranty information that is provided with your computer for a list of service and support telephone numbers. © Copyright Lenovo 2009 electrical outlet. make sure that it is switched on. - Page 74 Symptom Action The keyboard does not work. Verify that: The computer does not respond v The computer is turned on. to the keyboard. v The monitor is turned on and the brightness and contrast controls are set v The keyboard is securely connected to the keyboard connector on the v No keys are stuck.
-
Page 75: Diagnostic Programs
Lenovo troubleshooting center, update system drivers, and review system information. To run the Lenovo System Toolbox, click Start → All Programs → Lenovo Services → Lenovo System Toolbox. Follow the instructions on the screen. For additional information about running the diagnostic program, refer to the Lenovo System Toolbox help system. -
Page 76: Pc-Doctor For Rescue And Recovery
PC-Doctor for Rescue and Recovery The PC-Doctor for Rescue and Recovery diagnostic program is part of the Rescue and Recovery workspace on each Lenovo computer. Use the PC-Doctor for Rescue and Recovery if you are unable to start the Windows operating system. -
Page 77: Cleaning The Mouse
2. Make sure the computer is turned on and then insert the disc into the optical drive. The diagnostic program opens. Note: You can insert the disc into the optical drive when you are setting the 3. Follow the instructions on the screen to select the diagnostic test you want to run. - Page 78 To clean a non-optical mouse: Note: The following illustration might be slightly different from your mouse. 1 Retainer ring 2 Ball 3 Plastic rollers 4 Ball cage 1. Turn off your computer. 2. Disconnect the mouse cable from the computer. 3.
-
Page 79: Chapter 7. Getting Information, Help, And Service
If the Adobe Reader has not been installed on your computer, a message will appear when you attempt to view the PDF file and you will be guided through the Adobe Reader installation. 2. The publications are available in other languages on the Lenovo Support Web site at: http://www.lenovo.com/support 3. -
Page 80: Thinkvantage Productivity Center
Lenovo Welcome The Lenovo Welcome program introduces you to some innovative built-in features of Lenovo and guides you through a few important setup tasks to help you make the most of your computer. Note: The Lenovo Welcome program is only available on computers that have an internal hard disk drive, a preinstalled Windows 7 or Windows Vista operating system, and preinstalled software programs from Lenovo. -
Page 81: Safety And Warranty
Lenovo Web site (http://www.lenovo.com) The Lenovo Web site provides up-to-date information and services to help you buy, upgrade, and maintain your computer. You can also do the following: v Shop for desktop and notebook computers, monitors, projectors, upgrades and accessories for your computer, and special offers. - Page 82 You must retain your proof of purchase to obtain warranty service. For a list of the Lenovo Support phone numbers for your country or region, go to http://www.lenovo.com/support and click Support phone list or refer to the ThinkCentre Safety and Warranty Guide that is provided with your computer.
- Page 83 Service availability and service name might vary by country or region. For more information about these services, go to the Lenovo Web site at: http://www.lenovo.com Chapter 7. Getting information, help, and service...
- Page 84 User Guide...
-
Page 85: Appendix. Notices
Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. -
Page 86: Television Output Notice
Macrovision Corporation. Reverse engineering or disassembly is prohibited. European conformance CE mark Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo Rescue and Recovery The Lenovo logo... -
Page 87: Index
65 diskette drive, replacing 36 diskette, creating and using a recovery repair 54 DisplayPort connector 9 documentation, using 73 drivers, device 45 © Copyright Lenovo 2009 drives bays 20 internal 20 specifications 20 environment, operating 4 Ethernet 2... - Page 88 (continued) security features 45 internal drives 1 internal speaker, replacing 41 keyboard connector 9 keyboard, replacing 43 Lenovo System Toolbox 67 Lenovo ThinkVantage Toolbox 67 Lenovo ThinkVantage Tools 71 Lenovo Web site 73 Lenovo Welcome 72 locating components 10...
- Page 89 54 rescue media, creating and 53 Setup Utility 57 VGA monitor connector 9 video subsystem 1 viewing and changing settings 57 warranty information 73 Web site, Lenovo 73 workspace, backup and recovery 52 Index...
- Page 90 User Guide...
- Page 92 Part Number: 53Y9906 Printed in USA (1P) P/N: 53Y9906...
