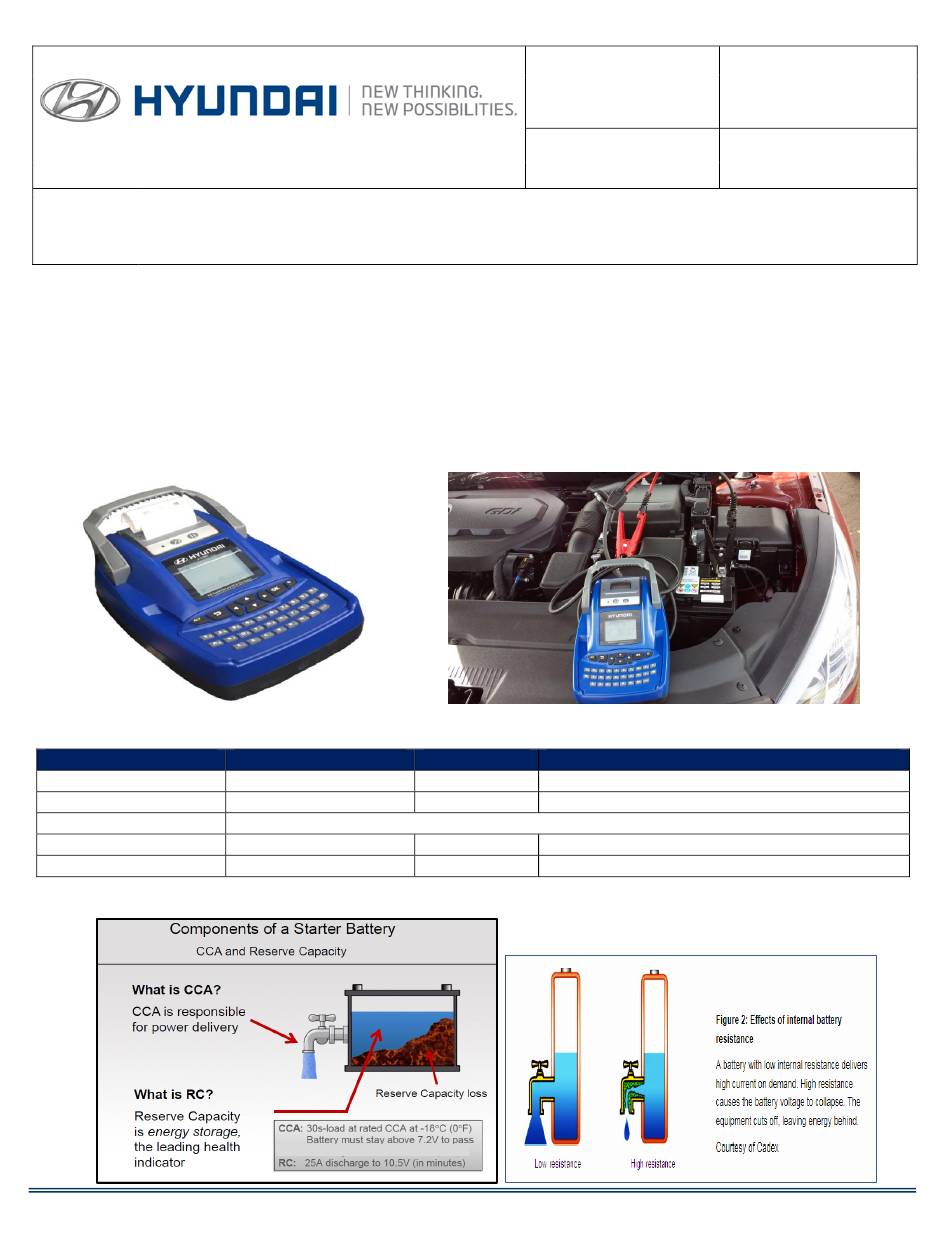

Technical Service Bulletin
SUBJECT:
(This bulletin has been revised at pages 8-10 of the warranty procedure including need to enter
2 Tester printout warranty codes for "Charge only" or "Charge + Replace" claims.)
: This bulletin describes operation of the "Rapid RC Battery Tester" for preventive
Description
maintenance battery check, and for repair work on 12-volt batteries. The tester can conduct a
complete battery health check of all service drive vehicles to confirm "Good Battery", or a "Replace
Battery" result. It can help improve customer satisfaction to avoid potential negative experience of
jump start or no start. The tester has a rapid test time of 15 seconds. A complete test including input
entry, save, and printout takes about 1.2 minutes.
The Rapid RC Tester uses a cutting edge patented 24-frequency "Electrochemical Impedance
Spectroscopy" (EIS) scan to completely check battery health including all of the following conditions:
Battery Condition
RC
CCA (SAE)
Resistance High
SOC
OCV
Battery CCA, RC and "Resistance High" explained:
Circulate To: General Manager, Service Manager, Parts Manager, Warranty Manager, Service
Advisors, Technicians, Fleet Repair
CADEX 12-VOLT "RAPID RC BATTERY TESTER"
TOOL AND BATTERY WARRANTY POLICY
Definition
Reserve Capacity
Cold Cranking Amps
Battery internal plate/connection/weld deterioration restricting battery current supply
State of Charge
Open Circuit Voltage
GROUP
ENGINE
ELECTRICAL
DATE
MAY 2016
Unit
Comment
Measured RC is indicated as Good/Poor
Rated mins.
Amps
Be sure to enter CCA (SAE) rating, not (EN)
%
0-100% full charged.
Volts
NUMBER
16-EE-001-1
MODEL(S)
ALL MODELS
Advertisement
Related Manuals for Hyundai CADEX RAPID RC BATTERY TESTER
Summary of Contents for Hyundai CADEX RAPID RC BATTERY TESTER
- Page 1 GROUP NUMBER ENGINE 16-EE-001-1 ELECTRICAL Technical Service Bulletin DATE MODEL(S) MAY 2016 ALL MODELS CADEX 12-VOLT “RAPID RC BATTERY TESTER” SUBJECT: TOOL AND BATTERY WARRANTY POLICY (This bulletin has been revised at pages 8-10 of the warranty procedure including need to enter 2 Tester printout warranty codes for “Charge only”...
- Page 2 CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Service Area Integration The Rapid RC Battery Tester was launched as an additional tool to the current GR8 diagnostic charger. Both the Rapid RC Battery Tester and GR8 can be used to submit warranty claims. The printout must be attached to the repair order including the warranty code.
-
Page 3: Tester Features
CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Tester Features Top View: Rear View: Top View Diagram The Power button. Press and hold to turn the tester on or off. Press to start tests, confirm settings, and select menu items. ▲... -
Page 4: Service Procedure
CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Service Procedure Testing a Battery: Connect the Battery Tester clamps to the vehicle’s battery, making sure that the black clamp is connected to the battery negative “-” terminal and the red cable’s clamp is connected to the battery positive “+”... - Page 5 CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Turn the Rapid RC Tester power on and follow these screen by screen instructions. This example shown is for a Customer Used Vehicle with a Replace Battery result indicated. Using ▲▼...
- Page 6 (SAE); not the (EN) value. can’t be read from the battery enter the value from the Hyundai battery CCA (SAE) application chart by model/engine (see the label, enter the value from the Hyundai last page of this TSB).
-
Page 7: Replace Battery
CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: 8) The Result screen will appear like the 9) The battery test result data is saved in below 2 examples. Press OK to save it the tester memory. in the tester memory. - Page 8 CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Follow this vehicle battery repair procedure and warranty policy guideline: TSB #: 16-EE-001-1 Page 8 of 12...
- Page 9 2. Rapid RC Battery Tester result BATTERY after charge attempt = after charge attempt = GOOD BATTERY REPLACE BATTERY ABC Hyundai ABC Hyundai 1 Hyundai Drive ABC Hyundai ABC Hyundai ABC Hyundai 1 Hyundai Drive Los Angeles, CA 1 Hyundai Drive 1 Hyundai Drive...
- Page 10 CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Warranty Claim Information: CADEX RAPID RC TESTER RESULTS (see last and after page of Charge Attempt = this TSB BATTERY” “GOOD service battery part number) and after Charge Attempt = BATTERY”...
- Page 11 CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Dealer Setup of the Rapid RC Battery Tester: The tester’s printout must have a correct dealer and date/time for warranty submission. Follow these instructions if any are incorrect and needs setup. Dealer Address setting: 1.
- Page 12 CADEX 12V “RAPID RC BATTERY TESTER” TOOL AND BATTERY WARRANTY POLICY SUBJECT: Hyundai Battery Replacement Application Chart: Below example is as of March 2016. Check for the latest battery application guide found at: http://www.hyundaiflashdrive.com/storage/reference-material/pn-reference- charts/battery_app_guide.pdf TSB #: 16-EE-001-1 Page 12 of 12...
