- Page 1 Personal Computer User Guide for DE6140 series...
- Page 2 De genbruge produktet. For yderligere information vedrørende indsamling og genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores website www.aopen.com og læse nærmere under "Green Products".
- Page 3 Verwijder dit product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com onder "Green Products".
- Page 4 Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products". Instruksjoner for Resirkulering og Oppsamling (Norweigian) For ĺ...
- Page 5 återvinnas. För vidare information om insamling och återvinning av uttjänta elektriska och elektroniska produkter (Waste Electrical and Electronic Equipment, WEEE), besök avsnittet "Green Products" på vår hemsida, www.aopen.com.
- Page 6 Copyright Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.
- Page 7 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning. 4.
- Page 8 Risk of overheating! Do not install DE6100 in a closed space. Be sure the ventilation holes in the Digital Engine side for at least 2 inches or 5 cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE6140.
- Page 9 FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 10 Notice: Peripheral devices Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.
-
Page 11: Table Of Contents
Index 1. Outlook …………..……………………………………………2 2. Product Specification….…………………………...………...4 3. Internal Connectors ………..…………………………………5 4. Packing List……………………………………………………6 5. Chassis and Holder Dimension ……………………………..7... -
Page 12: Outlook

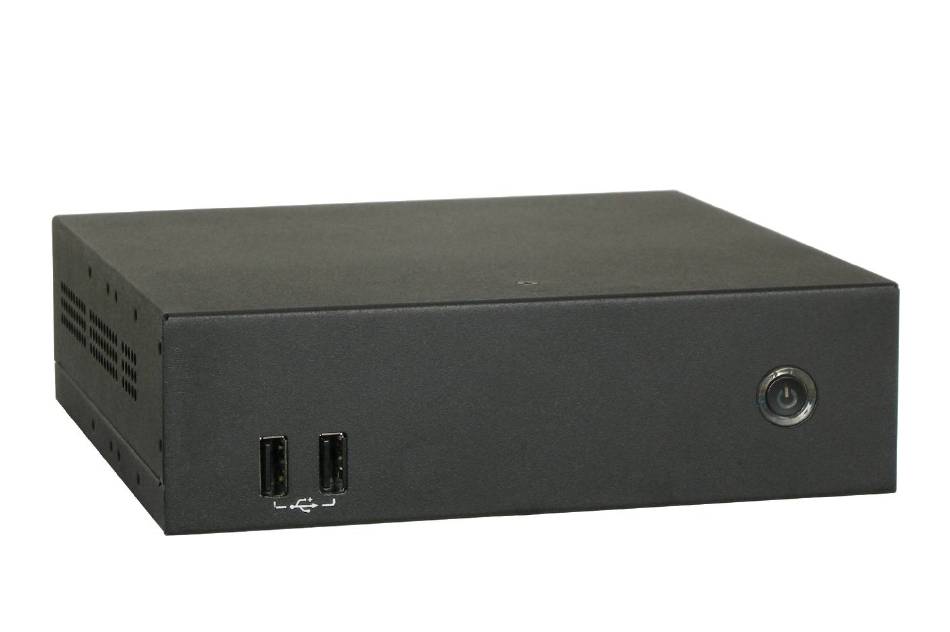

1. Outlook Front IO USB2.0 x 2 USB2.0 x 2 Power LED (Blue) Power LED (Blue) HDD LED (Blue) HDD LED (Blue) - Page 13 Rear IO...
-
Page 14: Product Specification
2. Product Specification CPU support AMD Embedded R-Series APU, TDP=35W, socket type: FS1r2 Chipset FCH A70M Memory SO-DIMM DDR III x 2, 1333/1600 MHz Max memory size : 8GB Graphics AMD Radeon™ HD 7xxx series Full Size mini Card x 1 Expansion Slot Audio Realtek HD Audio CODEC on-Board... -
Page 15: Internal Connectors
3. Internal Connectors... -
Page 16: Packing List
4. Packing List 1 x DE6140 system 1 x User Guide 1 x Driver CD 1 x 90W Adapter and Power Cord 1 x L type Holder with 4 pcs of M3 screw 4 x M3 – L4 screws 1 x power holder... -
Page 17: Chassis And Holder Dimension
5. Chassis and Holder Dimension A. Dimension of DE6100 (unit: mm[inch]) - Page 18 B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (unit: mm[inch])
- Page 19 6. Power Holder Power holder can fix DC plug to prevent DC plug drop off by abnormal force Step1: Step1: Step2: Step2: Step3: Step3: Install the DC plug Install the DC plug Install the Power holder Install the Power holder Lock with M3 screw Lock with M3 screw...
- Page 20 P/N：49.DE861.0110 S/N：134-044-111...
