- Page 1 Design Guide Dual Fuel Ranges ICB REVISED 7/2022...

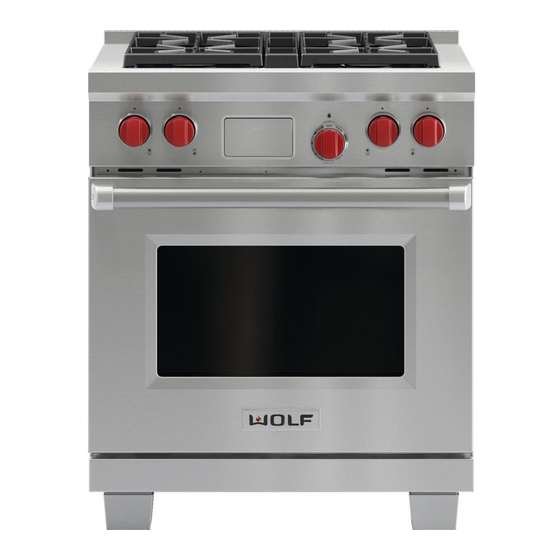

- Page 2 Dual Fuel Ranges Dual Fuel Ranges Discover a new world of cooking—the best of two worlds, CONFIGURATIONS actually—with a Wolf Dual Fuel Range. Topside, gas cook- 76 cm RANGE 122 cm RANGE 152 cm RANGE ing in all its glory, with the fine control of dual-stacked, sealed burners and options including charbroiler and griddle.
-
Page 3: Overall Dimensions
Dual Fuel Ranges Overall Dimensions 749 mm 749 mm 683 mm 683 mm 76 cm RANGE 91 cm RANGE 122 cm RANGE 610 mm 610 mm 660 mm 660 mm 759 mm 911 mm 1216 mm 1200 mm 1200 mm *902 mm 965 mm *902 mm... -
Page 4: Planning Information
When installing against a combustible surface, a minimum ELECTRICAL REQUIREMENTS 254 mm riser is required for a 91 cm Wolf Dual Fuel Range Installation must comply with all applicable electrical with charbroiler or griddle and all 122 cm and 152 cm codes and be properly grounded (earthed). -
Page 5: Installation
Dual Fuel Ranges Dual Fuel Range INSTALLATION NOTE - refer below for minimum clearance for models with chargrill 1200 mm 762 mm TO BOTTOM OF VENTILATION HOOD OPENING WIDTH 937 mm TO COOKING SURFACE ELECTRICAL AND GAS IN ‘A’ LOCATION ONLY SIDE VIEW FRONT VIEW... -
Page 6: Warranty
(whether implied or otherwise) are hereby excluded to the maximum extent permitted by law. To the fullest extent permitted by law, Wolf excludes all liability for damage or injury to any person, damage to any property and any indirect consequential or other loss or damage. - Page 7 subzero-wolf.com.au...
