DO
GUIDE

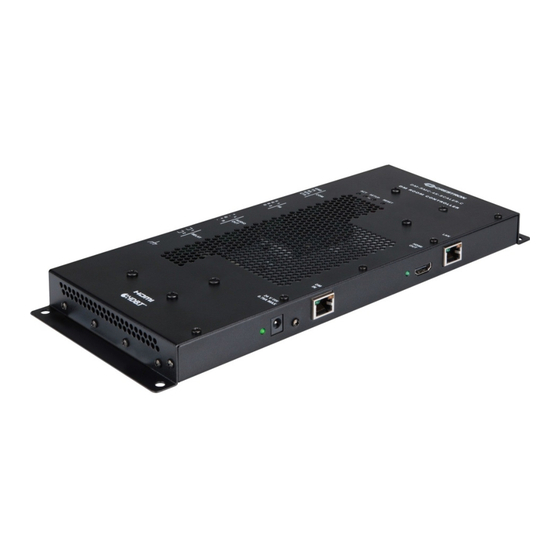

DM-RMC-4K-SCALER-C/DM-RMC-4K-SCALER-C-DSP
4K DigitalMedia 8G+
Receiver and Room Controller with Scaler
®
The Crestron
DM-RMC-4K-SCALER-C and DM-RMC-4K-SCALER-C-DSP are generally
®
identical. For simplicity within this guide, the term "DM-RMC-4K-SCALER-C" is used except
where noted.
DO

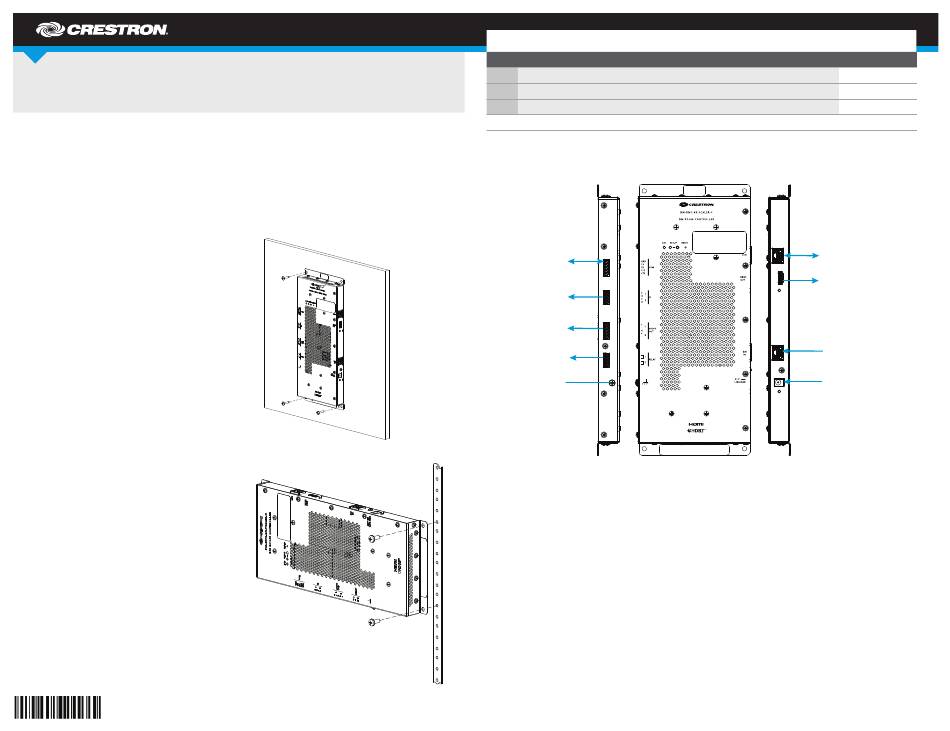

Install the Device
The DM-RMC-4K-SCALER-C can be mounted onto a flat surface or onto a rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included),
mount the device onto a flat surface such as
a wall or a ceiling.
Mounting onto a Rack Rail
The DM-RMC-4K-SCALER-C mounts onto
the front or rear rail of a rack. Position
either the left or right mounting flange of the
device so that the holes align with the holes
in the rack. Then, secure the device to the
rack using two rack mounting screws (not
included).
DO
Check the Box
QTY PRODUCT
1
Power Pack, 24 Vdc 1.25 A, 100-240 Vac
2
Interface Connector, Plug, 4-Pin
2
Interface Connector, Plug, 5-Pin
Not Included: Cables, Mounting Screws
DO
Make Connections to the Device
Make connections to the DM-RMC-4K-SCALER-C as required for the application.
To/From
RS-232 Device
To IR Controllable
Devices
Balanced Stereo Line
Level Audio Output
To Relay Controllable
Devices
Ground
The DM IN port is a PoDM+ (Power over DM) PD (Powered Device) port. To receive PoDM+, the
DM-RMC-4K-SCALER-C requires a connection to a DigitalMedia™ switcher or other equipment
that has a PoDM+ PSE (Power Sourcing Equipment) port. Any wiring that is connected to a
PoDM+ PSE port is for intra-building use only and should not be connected to a line that runs
outside of the building in which the PSE is located.
NOTE:
Connection of the CEN-SWPOE-16 to the POE IN ports of DMC-4K-CO-HD output
cards in a DigitalMedia switcher can provide PoDM+ power to up to eight
DM-RMC-4K-SCALER-C devices.
NOTE:
Connection of the DM-RMC-4K-SCALER-C to the included power pack is not required
when PoDM+ is used to power the device.
PART NUM.
2043102
2003576
2003577
10BASE-T/100BASE-TX
Ethernet to Local Network
Device
HDMI
Digital Video and
®
Audio Output
From DM
Switcher,
®
Transmitter, or Other
DM Device or to
HDBaseT
®
Device
From Power Pack
(Included)
