CY-15R
V-Cymbal Ride

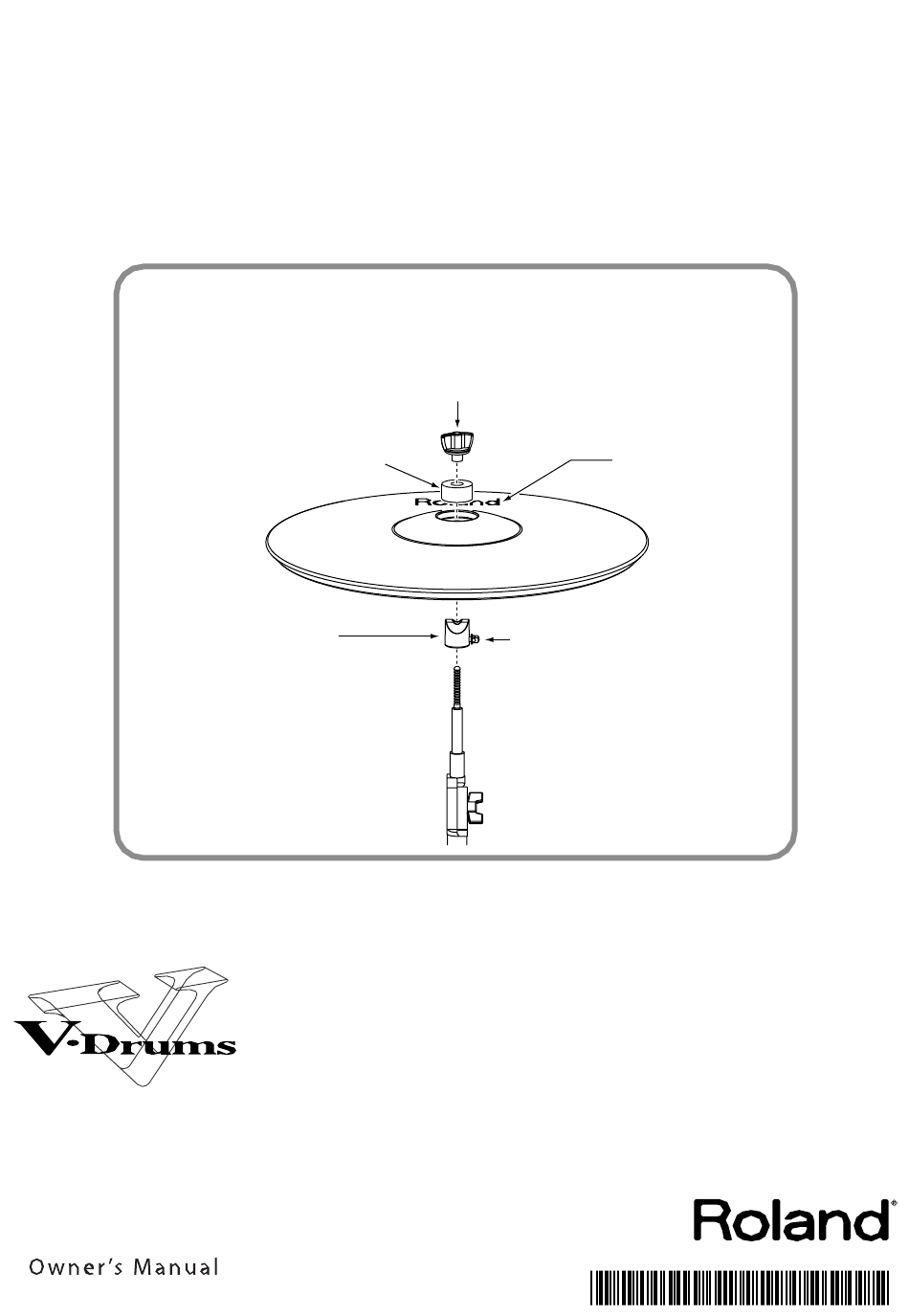

How to mount the CY-15R (Ride)/CY-14C (Crash)
(Tighten it to obtain the desired movement)
Felt Washer
Stopper
(Be sure to orient
it correctly)
CY-14C
V-Cymbal Crash
Wing Nut
Tighten the nut with a commercially
available drum key
* For more details, refer to p. 5.
Position the Roland
logo on the opposite
side of the playing area
*
0
2
4
5
7
1
0
1
-
0
9
*
Advertisement
Related Manuals for Roland CY-15R
Summary of Contents for Roland CY-15R
- Page 1 How to mount the CY-15R (Ride)/CY-14C (Crash) Wing Nut (Tighten it to obtain the desired movement) Felt Washer Position the Roland logo on the opposite side of the playing area Stopper Tighten the nut with a commercially (Be sure to orient...
- Page 2 • When using the unit with a rack or stand recom- mended by Roland, the rack or stand must be carefully placed so it is level and sure to remain stable. If not using a rack or stand, you still need to make sure that...
-
Page 3: Maintenance
The manual should be saved and kept on hand as a convenient reference. Copyright © 2000 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. -
Page 4: Getting Started
• They’re quiet! fig.02.e.eps • Support for separate strikes on bow, bell, and edge (three- BOW/BELL way triggering) (CY-15R only) OUTPUT Jack • Support for striking location detection Only when connected to a specific input of a sound module that... - Page 5 The CY-14C has no BOW/BELL output. Make the connection to the BOW/EDGE output. fig.08.eps Set Up Example : Connecting to the TD-20 2. Position the Roland logo on the farther side, as Ride Crash CY-15R CY-14C viewed from the performer.
-
Page 6: Playing Methods
Edge sensor * On the CY-15R, edge shots are possible when the connection is made to the BOW/EDGE output. If you use the TD-20/12 as your sound module, you’ll be able to produce tonal change by varying the striking point on the bow Bell Shot (CY-15R Only) portion. - Page 7 * In order to use three-way triggering with the CY-15R, you must make settings on your drum sound module to use its three-way triggering functionality. For details on the procedure, refer to the owner’s manual for your drum sound module.
- Page 8 Information When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below. PHILIPPINES CURACAO URUGUAY NORWAY JORDAN AFRICA G.A. Yupangco & Co. Inc. Zeelandia Music Center Inc. Todo Musica S.A.
- Page 9 For EU Countries...
