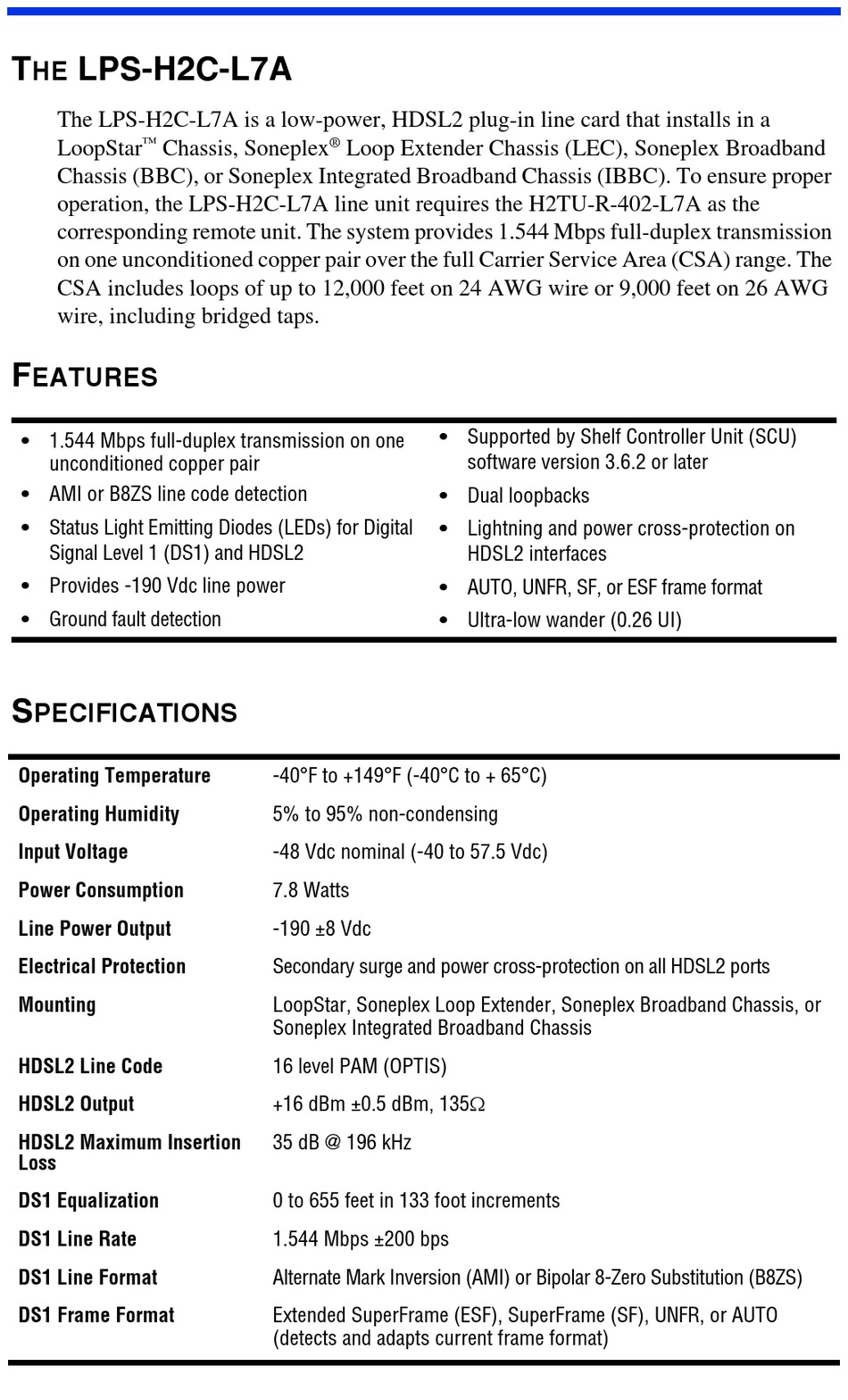

T
LPS-H2C-L7A
HE
The LPS-H2C-L7A is a low-power, HDSL2 plug-in line card that installs in a
™
LoopStar
Chassis, Soneplex
Chassis (BBC), or Soneplex Integrated Broadband Chassis (IBBC). To ensure proper
operation, the LPS-H2C-L7A line unit requires the H2TU-R-402-L7A as the
corresponding remote unit. The system provides 1.544 Mbps full-duplex transmission
on one unconditioned copper pair over the full Carrier Service Area (CSA) range. The
CSA includes loops of up to 12,000 feet on 24 AWG wire or 9,000 feet on 26 AWG
wire, including bridged taps.
F
EATURES
• 1.544 Mbps full-duplex transmission on one
unconditioned copper pair
• AMI or B8ZS line code detection
• Status Light Emitting Diodes (LEDs) for Digital
Signal Level 1 (DS1) and HDSL2
• Provides -190 Vdc line power
• Ground fault detection
S
PECIFICATIONS
Operating Temperature
Operating Humidity
Input Voltage
Power Consumption
Line Power Output
Electrical Protection
Mounting
HDSL2 Line Code
HDSL2 Output
HDSL2 Maximum Insertion
Loss
DS1 Equalization
DS1 Line Rate
DS1 Line Format
DS1 Frame Format
®
Loop Extender Chassis (LEC), Soneplex Broadband
-40°F to +149°F (-40°C to + 65°C)
5% to 95% non-condensing
-48 Vdc nominal (-40 to 57.5 Vdc)
7.8 Watts
-190 ±8 Vdc
Secondary surge and power cross-protection on all HDSL2 ports
LoopStar, Soneplex Loop Extender, Soneplex Broadband Chassis, or
Soneplex Integrated Broadband Chassis
16 level PAM (OPTIS)
+16 dBm ±0.5 dBm, 135Ω
35 dB @ 196 kHz
0 to 655 feet in 133 foot increments
1.544 Mbps ±200 bps
Alternate Mark Inversion (AMI) or Bipolar 8-Zero Substitution (B8ZS)
Extended SuperFrame (ESF), SuperFrame (SF), UNFR, or AUTO
(detects and adapts current frame format)
• Supported by Shelf Controller Unit (SCU)
software version 3.6.2 or later
• Dual loopbacks
• Lightning and power cross-protection on
HDSL2 interfaces
• AUTO, UNFR, SF, or ESF frame format
• Ultra-low wander (0.26 UI)
