Quick Configuration Guide (QCG)
TA 900/900e E&M Wink Trunk Quick Start Guide
Overview
This Configuration Guide explains how to configure a T1 port on the Total Access
900/900e for a Robbed Bit Signaling T1 to be connected to a PBX or other CPE
device that requires an E&M WInk connection.
Requirements & Limitations
In the TA 900 series, only T1 port 0/2 can be used for an E&M Wink connection.
In the TA 900e series, T1 ports 0/3 and 0/4 can be used for E&M Wink
connections.
Web Interface Configuration
Configuring the Local Dialing Type

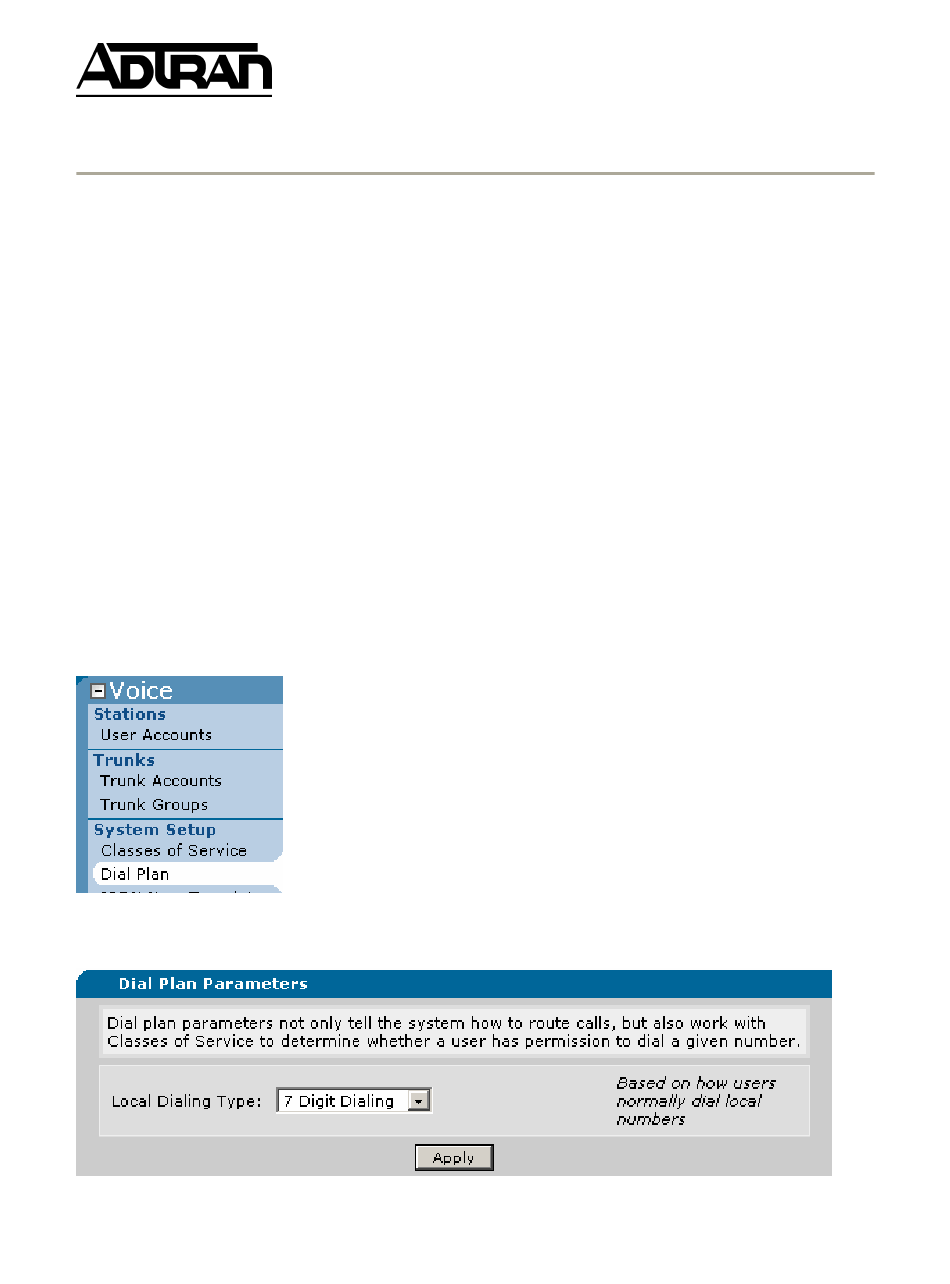

First, we must set the Local Dialing Type to 7 or 10 digits. To do this, begin by
clicking on 'Dial Plan' under 'Voice'.
Then, select the appropriate 7 or 10 Digit Dialing for local calls and click on
'Apply'.
Configuring the T1 Interface

Advertisement

loading

Related Manuals for ADTRAN TA 900

Summary of Contents for ADTRAN TA 900

  • Page 1 E&M WInk connection. Requirements & Limitations In the TA 900 series, only T1 port 0/2 can be used for an E&M Wink connection. In the TA 900e series, T1 ports 0/3 and 0/4 can be used for E&M Wink connections.
  • Page 2 To begin configuring the T1 interface, click on ‘Physical Interfaces’ under ‘System’. Next, click on ‘t1 0/2’ under the ‘Physical Interfaces’ list. This will take you to the ‘T1 0/2’ Interface Configuration page. In the Description box, you have the option of entering a label for the interface. Next, you will want to check the ‘Enable’...
  • Page 3 Command Line Interface. Go to the section titled ‘Configuring the T1 Interface’ under the ‘Command Line Interface Configuration’ for more information. Configuring the RBS Trunk First, we will configure a Codec List to be used by the RBS trunk. To do this, click on ‘Codec Lists’...
  • Page 4 Next, we need to create the RBS trunk. To do this, start by clicking on ‘Trunk Accounts’ under the ‘Voice’ tab. Give the Trunk a name if you’d like. Make sure that ‘Type’ is set to T1-RBS. As of the current revision, the ‘Supervision’ can only be set to ‘E&M Wink’ and the ‘Role’...
  • Page 5 If DTMF digits are needing to be sent to the CPE when an inbound call is made, Direct Inward Dialing will need to be configured by checking the DID box. If Direct Inward Dialing is enabled, you need to specify the number of digits to be sent to the CPE on an inbound call.
  • Page 6 The last step is to create a trunk group for the RBS trunk. To start this process, click on ‘Trunk Groups’ under the ‘Voice’ tab. Give the Trunk Group an appropriate name using the ‘Group Name’ field and then click ‘Add’. You can give the Trunk Group a description to help keep track of the configuration.
  • Page 7 To configure calls to certain numbers to route out of the RBS trunk, click on the ‘Configure Advanced Templates’ button under the Call Templates section. A good rule of thumb is to be specific with trunks going to CPE devices and be general when creating call routing rules with trunks going to the PSTN/SIP network.

  • Page 8: Command Line Interface Configuration

    Click on the ‘Apply’ button to apply the configuration changes. Always remember to save your changes by clicking on ‘Save’ at the top of the Web GUI. Command Line Interface Configuration An RBS trunk is configured over a T1 interface. To begin, we must setup the T1 interface correctly and then connect it to the RBS trunk.
  • Page 9 (config-t1 0/2)#tdm-group 1 timeslots 1-24 speed 64 (config-t1 0/2)#no shutdown (config-t1 0/2)#exit Configuring the RBS Trunk Step 1: First, it is a good idea to create an appropriate Codec List to be used by the PRI trunk. In a Codec List, you can specify which codec should be prioritized by the trunk when negotiating the call setup.

  • Page 10: Example Configuration

    0/2 tdm-group 1 voice grouped-trunk "RBS T1 TO PBX" no description trunk T02 accept 256-555-1000 cost 0 If you experience any problems using your ADTRAN product, please contact ADTRAN Technical Support. DISCLAIMER ADTRAN provides the foregoing application description solely for the reader's consideration...
  • Page 11 ADTRAN SPECIFICALLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ADTRAN BE LIABLE FOR ANY LOSS OR DAMAGE, AND FOR PERSONAL INJURY, INCLUDING BUT NOT LIMITED TO,...
