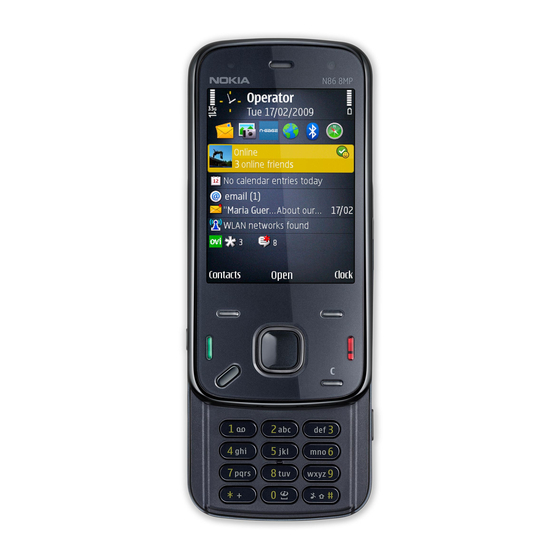

Nokia N86 User Manual

8mp

Hide thumbs Also See for N86:

User manual (376 pages)

Service manual (20 pages)

User manual (54 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

Nokia N86 8MP User Guide

9222002

Issue

1.0

Table of Contents

Summary of Contents for Nokia N86

Page 1 Nokia N86 8MP User Guide 9222002 Issue...
Page 2 Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.
Page 3 IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
Page 4: Table Of Contents
Contents Safety............6 Your device..........21 About your device............7 Transfer content............21 Network services............. Lock the keypad............22 Shared memory...............8 Offline profile..............22 Magnets and magnetic fields.........9 Camera............24 Get started..........10 About the camera............24 Keys and parts (front and top)........10 Activate the camera............24 Keys and parts (back and sides)........11 Image capture...............24 Short slide keys.............11 Video recording.............28...
Page 5 Product and safety information....55 About GPS...............41 Index............81 Assisted GPS (A-GPS).............41 Hold your device correctly..........42 Tips on creating a GPS connection......42 Nokia Maps..........44 Maps overview...............44 View your location and the map.........45 Find a location...............45 Drive to your destination..........46 Walk to your destination..........46 Plan a route..............47...
Page 6: Safety
Do not connect incompatible products. performance. WATER-RESISTANCE SWITCH OFF IN RESTRICTED AREAS Your device is not water-resistant. Keep it Follow any restrictions. Switch the device off dry. in aircraft, near medical equipment, fuel, chemicals, or blasting areas. © 2010 Nokia. All rights reserved.
Page 7: About Your Device
Third-party sites Copyright protection may prevent some images, music, are not affiliated with Nokia, and Nokia does not and other content from being copied, modified, or endorse or assume liability for them. If you choose to transferred.
Page 8: Network Services
In most cases, this condition is normal. If you of this device requiring network support such as suspect the device is not working properly, take it to the nearest authorised service facility. © 2010 Nokia. All rights reserved.
Page 10: Get Started
— Microphone — Scroll and selection key — Clear key C — End key — Earpiece — Secondary camera — Power key — Nokia AV Connector (3.5 mm) — Micro USB connector — Light sensor © 2010 Nokia. All rights reserved.
Page 11: Keys And Parts (Back And Sides)
— Capture key Kickstand — Stereo speaker — Flash and video light You can use the kickstand, for example, when you — Lens cover view images or video clips. — Main camera — Key lock switch © 2010 Nokia. All rights reserved.
Page 12: Insert Sim Card And Battery
Use only compatible microSD cards device. approved by Nokia for use with this device. Nokia uses approved industry standards for memory cards, but some brands may © 2010 Nokia. All rights reserved.
Page 13: Switch The Device On And Off
To switch on the device: the cover is Press and hold the power key. properly closed. Remove the memory card Important: Do not remove the memory card during an operation when the card is being © 2010 Nokia. All rights reserved.
Page 14: Charge The Battery
Tip: Disconnect the charger from the wall outlet when the charger is not in use. A charger that is connected to the outlet consumes power even when it is not connected to the device. © 2010 Nokia. All rights reserved.
Page 15: Headset
You can use USB charging when a wall outlet is not use the headphones with a remote control unit, available. With USB charging, you can also transfer connect the unit to the Nokia AV Connector in the data while charging the device. device, then connect the headphones to the unit.
Page 16: Antenna Locations
Contact with antennas affects the communication quality and may cause a higher power level during operation and may reduce the battery life. — Bluetooth and wireless LAN (WLAN), and GPS antennas — Cellular antenna © 2010 Nokia. All rights reserved.
Page 17: Find Help
Your documents and files will following indicators: Link to a related help topic. be deleted in the reset, so back up your data first. Link to the application being discussed. © 2010 Nokia. All rights reserved.
Page 18: Extended User Guide
An extended version of this user guide is available calls, until the installation is completed and the on the product support pages of the Nokia website. device is restarted. Be sure to back up data before Some applications or functions are explained only accepting installation of an update.
Page 19 After updating your device software or applications to the PC. using Software update, the instructions related to To get more information and to download the Nokia the updated applications in the user guide or the Software Updater application, go to helps may no longer be up to date.
Page 21: Your Device
You can use the Switch application to copy content such as phone numbers, addresses, calendar items, If you select Bluetooth connectivity as the and images from your previous Nokia device to your connection type, connect the two devices. To device.
Page 22: Lock The Keypad
Remember to comply with any applicable safety requirements when establishing and using a The offline profile lets you use the device without wireless LAN or Bluetooth connections. connecting to the wireless cellular network. When © 2010 Nokia. All rights reserved.
Page 23 To switch to another profile, press the power key briefly, and select another profile. The device re- enables wireless transmissions (providing there is sufficient signal strength). © 2010 Nokia. All rights reserved.
Page 24: Camera
About the camera To activate the main camera, open the lens cover. Your Nokia N86 8MP has two cameras. The main, To activate the main camera when the lens cover is high-resolution camera, is on the back of the device.
Page 25 The active toolbar provides you with shortcuts to Activate the self-timer (images only). different items and settings before and after Activate sequence mode (images only). capturing an image or recording a video clip. To © 2010 Nokia. All rights reserved.
Page 26 The camera goes into the battery saving mode if ● return to the camera, press and hold the capture there are no keypresses for a moment. To key. continue capturing images, press the capture key. To capture an image, do the following: © 2010 Nokia. All rights reserved.
Page 28: Video Recording
— The location to which the video clip is saved. Video recording — GPS signal indicator Video capture indicators The video viewfinder displays the following: © 2010 Nokia. All rights reserved.
Page 29 30 seconds with sharing quality and 90 minutes with other quality settings. To activate the front camera, select Options > secondary camera. To start recording a video, press the scroll key. To zoom in or out, scroll up or down. © 2010 Nokia. All rights reserved.
Page 30: Photos
To view images captured and videos recorded with captured, select Options Show on map. > the camera of your device, select Captured. To print your images on a compatible printer, select Options > Print. © 2010 Nokia. All rights reserved.
Page 31: Active Toolbar
Upload the image or video clip to a compatible online album (only available if you have set up an account for a compatible online album). Add the item to an album. Manage tags and other properties of the item. © 2010 Nokia. All rights reserved.
Page 32: Connectivity
Connectivity At Nokia, we understand how important it is that Your device offers several options to connect to the your mobile phone or device operates reliably and internet or to another compatible device or PC. that your personal content is saved safely.
Page 33: Bluetooth
You can only be connected to one WLAN access point device at a About Bluetooth time, but several applications can use the same internet access point. Bluetooth technology in your device enables wireless connections between electronic devices © 2010 Nokia. All rights reserved.
Page 34 10 metres (33 feet). A Bluetooth Nokia approved accessories for this model. Check connection can be used to send images, videos, text, with the manufacturers of other devices to business cards, calendar notes, or to connect determine their compatibility with this device.
Page 35 Only Select the device with which you want to Nokia Ovi Suite and some accessories such as connect. If the other device requires pairing headsets may maintain a connection even if not before data can be transmitted, you are asked to actively used.
Page 36: Browser
Web page options > Reload. requires network service. > To save the current web page as a bookmark, select Browse the web Options Web page options Save as > > bookmark. Select Menu > Web. © 2010 Nokia. All rights reserved.
Page 37: Browser Toolbar
To select a feature, press the scroll key. From the toolbar, select from the following: Recently visited pages — View a list of the ● web addresses you visit frequently. © 2010 Nokia. All rights reserved.
Page 38: Music
Digital rights management (DRM) protected content For more information on music player, FM radio, comes with an associated licence that defines your internet radio, and Nokia Podcasting, see the rights to use the content. extended user guide on the product support pages If your device has OMA DRM-protected content, to of the Nokia website.
Page 39: Music Player
To add all available items ● mode while listening to the FM radio in the to the library, in the Music player main view, select background. Options Refresh library. > © 2010 Nokia. All rights reserved.
Page 40 To skip to the previous item, press again within 2 seconds after a song or podcast has started. To switch random play ( ) on or off, select Options Shuffle play. > © 2010 Nokia. All rights reserved.
Page 42: Hold Your Device Correctly
GPS Establishing a position faster. GPS connection Your device is preconfigured to use the Nokia A-GPS may take from a service, if no service provider-specific A-GPS settings couple of are available. The assistance data is retrieved from seconds to tens the Nokia A-GPS service server only when needed.
Page 43 Initially, your device must receive signals from at least four satellites to be able to calculate the coordinates of your location. When the initial calculation has been made, it may be possible to continue calculating the coordinates of your © 2010 Nokia. All rights reserved.
Page 44: Nokia Maps
Check weather forecasts and other local ● generated by third parties independent of Nokia. information, if available. The content may be inaccurate and incomplete to some extent and is subject to availability. Never rely...
Page 45: View Your Location And The Map
Map coverage varies by country and region. To avoid data transfer costs, you can also get search results without an active internet connection, if you © 2010 Nokia. All rights reserved.
Page 46: Drive To Your Destination
Map. Your location is displayed on the centre Change views during navigation — Press the of the map as you move. scroll key, and select view, view, Arrow view, or Route overview. © 2010 Nokia. All rights reserved.
Page 47: Plan A Route
Show Settings tab, and select Drive Route > route Options Start driving Start > > selection > Optimised. The optimised driving walking. route combines the advantages of both the shorter and the faster routes. © 2010 Nokia. All rights reserved.
Page 48: Maps Shortcuts
To adjust the volume of the pedestrian navigation guidance, press 6. To view the list of route points, press 7. To adjust the map for night-time usage, press 8. To view the dashboard, press 9. © 2010 Nokia. All rights reserved.
Page 49: Write And Send Messages
Enter the recipient’s phone number or mail multimedia messages. address manually — Select the To field. The appearance of a message may vary depending on the receiving Add a semicolon (;) that separates the device. recipients — Press *. © 2010 Nokia. All rights reserved.
Page 50 Your service provider may charge accordingly. Characters with accents, other marks, or some language options take more space, and limit the number of characters that can be sent in a single message. © 2010 Nokia. All rights reserved.
Page 51: Make Calls
You are not receiving video (the recipient is not To make a call from Contacts, select Menu > sending video or the network is not transmitting it). Contacts. Scroll to the desired name, or enter the © 2010 Nokia. All rights reserved.
Page 52 To start a video call, enter the phone number in the standby mode, or select Contacts and a contact. Select Options Call Video call. > > To end the video call, press the end key. © 2010 Nokia. All rights reserved.
Page 53: Personalise Your Device
To change the clock shown in the standby mode, select Menu Applications Clock If you want the caller’s name to be spoken when > > Options Settings Clock type. your device rings, select Options Personalise > > > > © 2010 Nokia. All rights reserved.
Page 54: Modify The Main Menu
To rearrange the main menu, in the main menu, select Options > Move, Move to folder, or folder. You can move applications used less frequently into folders and place applications that you use more often into the main menu. © 2010 Nokia. All rights reserved.
Page 55: Green Tips
Green tips Recycle Here are tips on how you can contribute to protecting the environment. Most of the materials in a Nokia phone are recyclable. Check how to recycle your Nokia products at www.nokia.com/werecycle, or with a Save energy mobile device, www.nokia.mobi/werecycle.
Page 56: Product And Safety Information
Warning: Use only batteries, chargers, and Installation of any complex car accessories must ● accessories approved by Nokia for use with this be made by qualified personnel only. particular model. The use of any other types may Battery invalidate any approval or warranty, and may be dangerous.
Page 57 The battery intended for use with this device is battery. BL-5K. Nokia may make additional battery models Proper charging. Unplug the charger from the available for this device. This device is intended for electrical plug and the device when not in use. Do...
Page 58 Always use original Nokia batteries for your safety. Damage. Do not modify, remanufacture, attempt to To check that you are getting an original Nokia insert foreign objects into the battery, or immerse battery, purchase it from a Nokia authorised service or expose it to water or other liquids.
Page 59 When the device reason to believe that your Nokia battery with the hologram on the label is not an authentic Nokia warms to its normal temperature from a cold...
Page 60 This way you help prevent Follow the separation distance instructions until uncontrolled waste disposal and promote the the transmission is completed. recycling of materials. Check product © 2010 Nokia. All rights reserved.
Page 62 They include areas where you would be following: advised to turn off your vehicle engine, below deck on boats, chemical transfer or storage facilities and Insert a SIM card if your device uses one. ● © 2010 Nokia. All rights reserved.
Page 63 It is designed not to exceed the limits for provided under product information at exposure to radio waves recommended by www.nokia.com. international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins © 2010 Nokia. All rights reserved.
Page 64 Limited Warranty valid in Nokia’s intended country (or area) of sale of the Product. Nokia Corporation, represented by its Mobile During the limited warranty period, Nokia or its Phones Division ("Nokia") warrants that this Nokia authorised service network will repair or cellular product and/or genuine Nokia accessory replace, at Nokia’s option, any defective Product...
Page 65 The Product was used with or connected to unauthorised modifications, unauthorised accessory not supplied by Nokia, not fit for connections, unauthorised repair including use with Nokia cellular phones or used in but not limited to use of unauthorised spare other than its intended use.
Page 66 If the Product is returned to Nokia after the expiration of the warranty period, Nokia’s All warranty information, product features and normal service policies shall apply and the specifications are subject to change without Consumer will be charged accordingly.
Page 67 First use of your device You may disable automatic checking for updates To access the wide range of Nokia’s Ovi services a through settings in your device. You may also install Nokia Account will be automatically created for you software through available software update when you first use your device.
Page 68 Service. After termination, applicable to certain parts of the Service. You are you will no longer have access to the Service. Nokia not allowed to use the Service if you do not agree may terminate your registration or restrict your to the Terms.
Page 69 After the Material is removed from the Service by Monitor or moderate any of the Material; and ● either you or Nokia, some traces of the Material may Remove any Material from the Service and ● remain and copies of the Material may still reside restrict access to any part of the Service at any within the Service.
Page 70 Service may not be available during maintenance non-transferable, revocable license (revocable at breaks and other times. the sole discretion of Nokia at any time) to access and use the Service strictly in accordance with the © 2010 Nokia. All rights reserved.
Page 71 Nokia may also decide to discontinue the Service or of the Service is at your sole risk and that you may any part thereof in its sole discretion. In such case be exposed to content from various sources. you will be provided a prior notification.
Page 72 Wireless 13.3 Changes in Terms Arbitration Rules of the American Arbitration Nokia reserves the right to modify the Terms at any Association (“AAA”), Each party must submit any time without prior notice. If the Terms are changed...
Page 73 Nokia. Subject to the Terms, Nokia retains all right, and warranty services or promotions and title and interest in the Service and in all Nokia’s campaigns. products, software and other properties provided to you or used by you through the Service.
Page 74 We recommend that links you use, the adbanners and other content you read the privacy policies of such services. Nokia you viewed, information about your devices and is not responsible for the privacy practices or other such technical information your browser contents of any such services.
Page 75 Personal Data personal data from list-rental companies and Nokia processes your personal data for the other such publicly available sources. Some of purposes described in this Policy and/ or any our services may allow you to submit additional service specific privacy information.
Page 76 Nokia user for a different purpose. We may create aggregate communities.
Page 77 (EEA) that do not have laws providing specific Collecting the Data of Minors protection for personal data or that have Nokia does not seek to collect any information from different legal rules on data protection, for or engage in any transactions with persons under example, the United States of America.
Page 78 Use of Cookies and Web Beacons us with correct details as well as to update the From time to time when you visit a Nokia website, personal data you have provided us with in case of information may be placed on your computer to any changes.
Page 79 If you do not wish to receive cookies, or want to be notified before they are placed, you may set your Please note that Nokia may need to identify you and web browser to do so, if your browser so permits.
Page 80 Nokia websites. In matters pertaining to Nokia’s privacy practices you may also contact us at: Nokia Corporation c/o Privacy Keilalahdentie 4 02150 Espoo Finland Changes to This Privacy Policy Nokia may from time to time change this Privacy Policy or change, modify or withdraw access to this site at any time with or without notice.
Page 81: Index
36 help application 17 walking 46 cache memory 37 media toolbar 37 music player 39 images 30 memory internet connection 36 cache memory 37 web cache 37 browser See also calls 51 © 2010 Nokia. All rights reserved.
Page 82 25 pin code 13 transferring content 21 positioning information 41 profiles offline restrictions 22 unlocking keypad 22 updates 19 USB charging 14 radio 39 useful information 17 recording video clips 29 ringing tones 53 © 2010 Nokia. All rights reserved.
