1

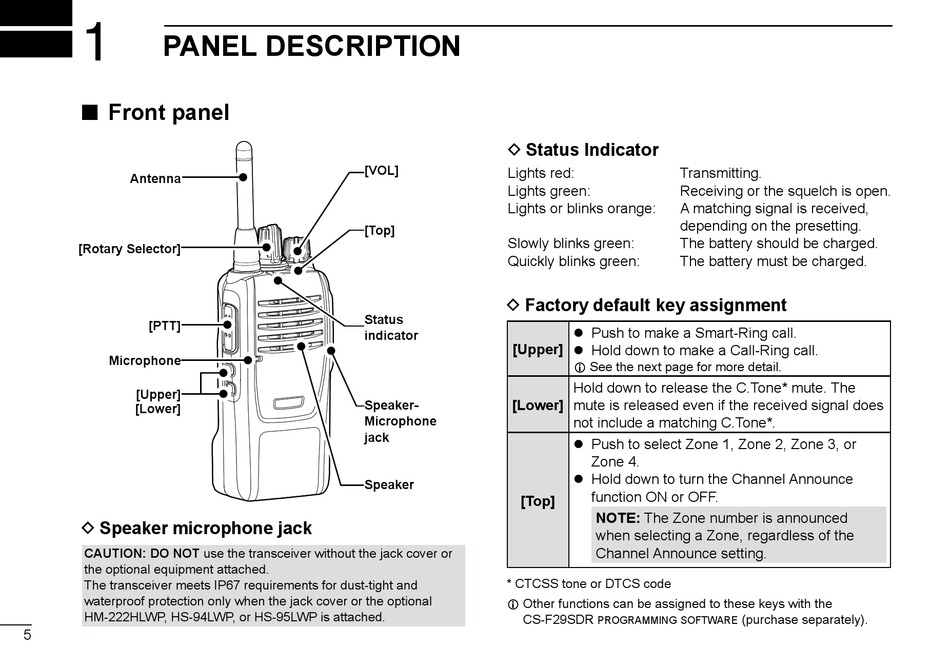

PANEL DESCRIPTION

■ Front panel

Antenna
[Rotary Selector]
[PTT]
Microphone
[Upper]
[Lower]
D Speaker microphone jack
CAUTION: DO NOT use the transceiver without the jack cover or
the optional equipment attached.
The transceiver meets IP67 requirements for dust-tight and
waterproof protection only when the jack cover or the optional
HM-222HLWP, HS-94LWP, or HS-95LWP is attached.
5
D Status Indicator
[VOL]
Lights red:
Lights green:
Lights or blinks orange:
[Top]
Slowly blinks green:
Quickly blinks green:
D Factory default key assignment
Status
indicator
[Upper]
[Lower]
Speaker-
Microphone
jack
Speaker
[Top]
* CTCSS tone or DTCS code
L Other functions can be assigned to these keys with the
CS-F29SDR
Transmitting.
Receiving or the squelch is open.
A matching signal is received,
depending on the presetting.
The battery should be charged.
The battery must be charged.
z Push to make a Smart-Ring call.
z Hold down to make a Call-Ring call.
L See the next page for more detail.
Hold down to release the C.Tone* mute. The
mute is released even if the received signal does
not include a matching C.Tone*.
z Push to select Zone 1, Zone 2, Zone 3, or
Zone 4.
z Hold down to turn the Channel Announce
function ON or OFF.
NOTE: The Zone number is announced
when selecting a Zone, regardless of the
Channel Announce setting.
(purchase separately).
programming software
