SERVICE MANUAL
Ver. 1.0 2005. 12
• The tuner and CD sections have no adjustments.
AUDIO POWER SPECIFICATIONS (US Model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD player section
Signal-to-noise ratio:
Frequency response:
Wow and flutter:
Tuner section
FM
Tuning range:
FM tuning interval (CDX-GT550 only):
Antenna terminal:
Intermediate frequency: 10.7 MHz/450 kHz
Usable sensitivity:
Selectivity:
Signal-to-noise ratio:
Harmonic distortion at 1 kHz:
Separation:
Frequency response:
9-887-003-01
2005L04-1
© 2005. 12
Great user manuals database on

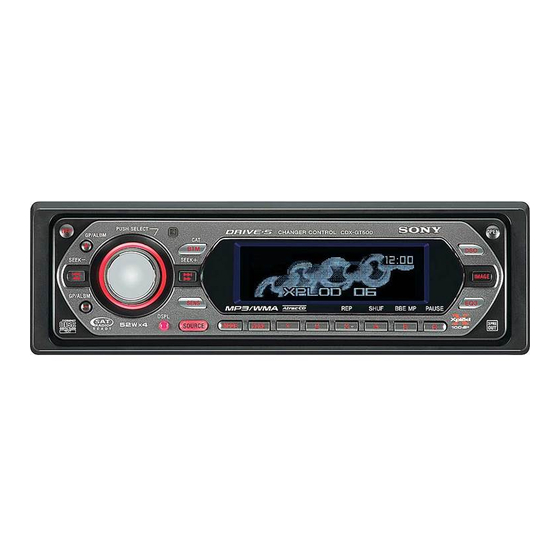

Photo: CDX-GT500
120 dB
10 – 20,000 Hz
Below measurable limit
CDX-GT50W/GT500: US Canadian model
87.5 – 107.9 MHz
CDX-GT500: AEP, UK model
87.5 – 108.0 MHz
CDX-GT500EE:
FM1/FM2: 87.5 – 108.0 MHz (at 50 kHz step)
FM3: 65 – 74 MHz (at 30 kHz step)
CDX-GT550:
87.5 – 108.0 MHz (at 50 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
50 kHz/200 kHz switchable
External antenna connector
9 dBf
75 dB at 400 kHz
67 dB (stereo), 69 dB (mono)
0.5 % (stereo), 0.3 % (mono)
35 dB at 1 kHz
30 – 15,000 Hz
Sony Corporation
eVehicle Division
Published by Sony Engineering Corporation
UserManuals.info
CDX-GT50W/GT500/
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
AM (CDX-GT50W/GT500: US, Canadian model/GT500EE/GT550)
Tuning range:
AM tuning interval (CDX-GT550 only):
Antenna terminal:
Intermediate frequency: 10.7 MHz/450 kHz
Sensitivity:
MW/LW (CDX-GT500: AEP, UK model)
Tuning range:
Aerial terminal:
Intermediate frequency: 10.7 MHz/450 kHz
Sensitivity:
FM/AM COMPACT DISC PLAYER
CDX-GT50W/GT500: US, Canadian MODEL/GT500EE/GT550
FM/MW/LW COMPACT DISC PLAYER
GT500EE/GT550
US Model
CDX-GT50W/GT500
Canadian Model
AEP Model
UK Model
East European Model
Chinese Model
CDX-A250/A250EE
MG-611WA-186//Q
KSS1000E
CDX-GT50W/GT500: US, Canadian model:
530 – 1,710 kHz
CDX-GT500EE:
531 – 1,602 kHz
CDX-GT550:
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
9 kHz/10 kHz switchable
External antenna connector
30 µV
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
External aerial connector
MW: 30 µV, LW: 40 µV
– Continued on next page –
CDX-GT500: AEP, UK MODEL
CDX-GT500
E Model
CDX-GT550
CDX-GT500EE
CDX-GT550
1
