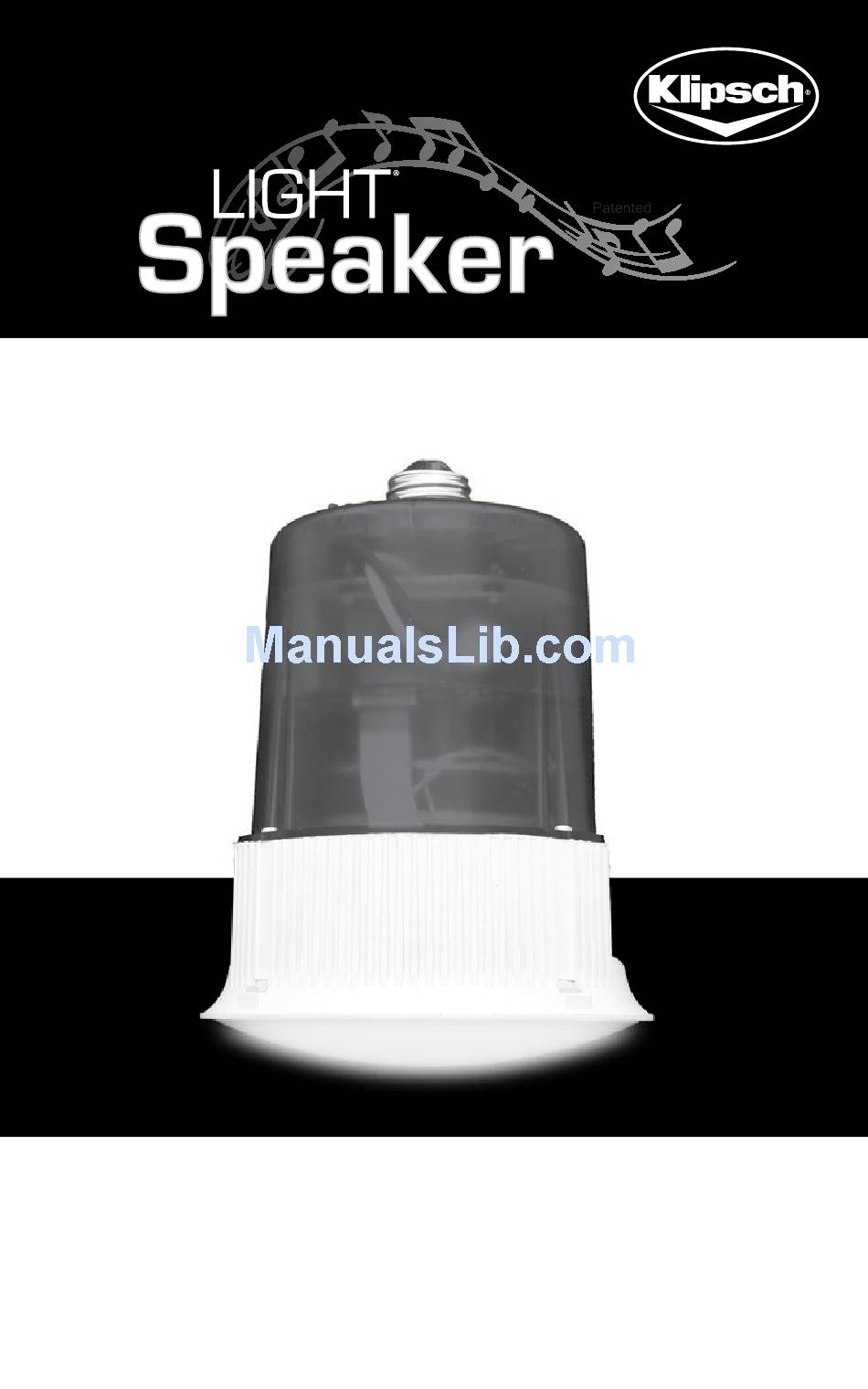

Tech Support: 1-800-KLIPSCH
State-of-the-art LIGHT & SOUND
One LightSpeaker
5 installs in 15 minutes or less!
®
OWNER'S MANUAL
Note: The LightSpeaker ® is an add on unit to an existing LightSpeaker ® System. You
need a LightSpeaker ® Transmitter to supply audio and control the lights on this unit.
The Transmitter and Remote discussed in the manual are sold separately.
1
Advertisement
Table of Contents
Related Manuals for Klipsch LightSpeaker 5.2.0
Summary of Contents for Klipsch LightSpeaker 5.2.0
- Page 1 Tech Support: 1-800-KLIPSCH State-of-the-art LIGHT & SOUND One LightSpeaker 5 installs in 15 minutes or less! ® OWNER’S MANUAL Note: The LightSpeaker ® is an add on unit to an existing LightSpeaker ® System. You need a LightSpeaker ® Transmitter to supply audio and control the lights on this unit.
- Page 2 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité. Tech Support: 1-800-KLIPSCH...
- Page 3 Tech Support: 1-800-KLIPSCH IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. Keep these instructions. Heed all Warnings. Follow all instructions. 2. Do not use this apparatus near water. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
- Page 4 ® You have chosen one of the most unique, patented, audio systems in the world. With proper installation and operation, you will enjoy years of trouble-free use. Klipsch ® sells numerous loudspeakers for use inside or outside your home. For the complete Klipsch product line, visit the ®...
-
Page 5: Table Of Contents
Tech Support: 1-800-KLIPSCH Table of Contents LightSpeaker 5 Overview...6 ® What is in this box...8 Step 1 - Where will you install...9 Step 2 - Check your connector type...9 Step 3 - Test fit your LightSpeaker Step 4 - Installing the trim ring...10 Step 5 - Adjusting the SimpleTabs Step 6 - Setting the zone and stereo switches...12... -
Page 6: Lightspeaker ® 5 Overview
Tech Support: 1-800-KLIPSCH LightSpeaker 5 Overview ® This wireless LightSpeaker ® is intended to install into any home easily and without any expensive and complicated wiring. You can install a unit in your home in a few minutes and not have to worry about repairing walls or ceilings. - Page 7 ® To expand your system, additional LightSpeakers ® wireless RockSpeakers are available at www.klipsch.com. This incredible patented system provides even greater flexibility to you as the owner; since you can take this system with you if you move; and when you do, it leaves no trace (holes that need to be covered) that the system was ever installed and used.
-
Page 8: What Is In This Box
Note: The LightSpeaker existing LightSpeaker Transmitter to supply audio and control the lights on this unit. The Transmitter and Remote discussed in the manual are sold separately. Tech Support: 1-800-KLIPSCH 5 from Klipsch ® LightSpeaker ® 5 is an add on unit to an ®... -
Page 9: Step 1 - Where Will You Install
Tech Support: 1-800-KLIPSCH Instruction Manual Step 1: Decide which light will be replaced with LightSpeaker ® Your Klipsch LightSpeaker ® designed to cover large areas, however if the location of your fixtures allow you to do so, you should think about how you use your room and where you are likely to spend most of your time. -
Page 10: Step 3 - Test Fit Your Lightspeaker ® 5
Step 6. If your LightSpeaker trim ring/reflector opening is too small or the lighting fixture is not set deep enough, please go to www.klipsch. com or refer to your Complete System Manual. Step 4: Installing the trim ring. -
Page 11: Step 5: Adjusting The Simpletabs
Step 5: Adjusting the SimpleTabs™. Your LightSpeaker ® mounting system. The three SimpleTabs™, on the back of the speaker can be rotated outward and when the LightSpeaker 5 is pressed into the housing, hold it ® centered and securely in place. -
Page 12: Step 6 - Setting The Zone And Stereo Switches
Step 6: Setting the Zone and L/R Stereo Switches. A) Set the zone switch on the back of the LightSpeaker two zone system. For more on zones see Complete System Manual or go to www.Klipsch.com. Tech Support: 1-800-KLIPSCH 5 unit. ®... -
Page 13: Step 7 - Installing Your Lightspeaker ® 5
4 pair of (or 8 total ) speakers. If you are installing more than one pair of LightSpeakers will probably want to divide your home into zones. See Complete System Manual or go to www.Klipsch.com. Step 7: Installing your LightSpeaker light fixture:... -
Page 14: Step 8 - Pairing Your Lightspeaker ® 5
Gently pull down on the light bridge. See “Removing the lens” below. Step 8: Pairing The Transmitter to the speakers: See Complete System Manual or go to www.Klipsch.com. Tech Support: 1-800-KLIPSCH 5 by the light bridge (see ®... -
Page 15: Step 9 - Enjoy Your Lightspeaker
LightSpeaker CAUTION: Do not touch the LED or Speaker Baffle with the lens off when the unit is hot, allow the unit to cool down before touching the baffle. - Page 16 LED, then push gently until the locking tabs snap into place. CAUTION: Do not touch the LED or Speaker Baffle with the lens off when the unit is hot, allow the unit to cool down before touching the baffle.
-
Page 17: Selecting Lightspeaker
Tech Support: 1-800-KLIPSCH Selecting LightSpeaker Survey your home to determine the location of 5” and 6” recessed lighting fixtures. As long as these are wired to the home’s electricity through a common light switch, they should work perfectly. If you have multiple locations within one room, try to space the speakers as far as part as possible, this will provide the best stereo image and the best sound. - Page 18 Wireless Transmitter Receives a 2.4 GHz wireless stereo signal broadcast from the Transmitter and depending on the zone assigned to the speaker and the left or right audio channel selected, the receiver sends the correct signal to each LightSpeakers Digital Amplifier & Switch Mode Power Supply •...
-
Page 19: Specifications
Tech Support: 1-800-KLIPSCH Loud Speaker • 2.5” high performance custom engineered woofer with Micro Cellulose Polymer treated cone material provides even coverage and smooth natural sounding audio reproduction • Integrated high frequency disperser. Accessories • Optional flange allows LightSpeaker 5” (R30) or 6” (R40) recessed lighting fixtures. -
Page 20: Possible Causes Of Interference
Tech Support: 1-800-KLIPSCH Possible causes of interference with your LightSpeaker ® A) Metal studs, in fact any metal wall material, can cause the signal to be diminished or lost. This may also be a problem if your wall paper happens to be a foil type or have metal fibers in it. -
Page 21: Warranty
This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than KLIPSCH or a KLIPSCH dealer which is authorized to do KLIPSCH warranty work. Any unauthorized repairs will void this Warranty. - Page 22 Questions? Call us! Have a question about your Klipsch speakers? Talk to the people who know them best! We’re waiting to hear from you! 1-800-KLIPSCH...
-
Page 23: Fcc Declaration
Tech Support: 1-800-KLIPSCH THIS DEVICE COMPLIES WITH FCC RULES PART 15. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) This device must accept any interference received including that may cause undesired operation. - Page 24 Tech Support: 1-800-KLIPSCH Klipsch Worldwide Corporate Headquarters 3502 Woodview Trace, Suite 200 Indianapolis, IN 46268 For more detailed installation instructions go to www.klipsch.com Klipsch Technical Support Toll Free: 1-800-KLIPSCH (1-800-554-7724) Monday - Friday, 8:00 AM - 5:30 PM EST E-mail: technicalsupport@klipsch.com...
