FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
ZZSENSAL0300AA

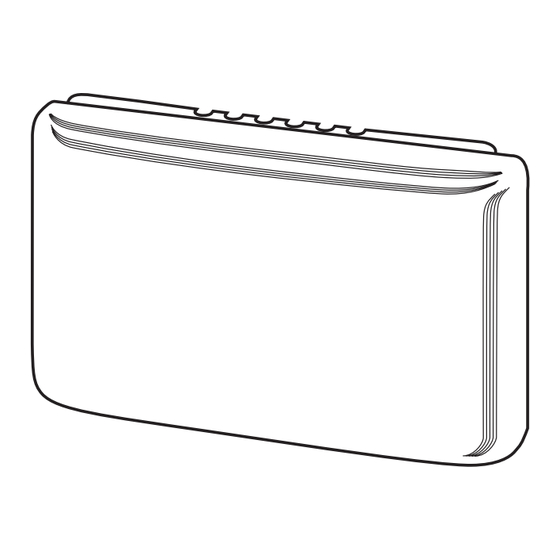

INDOOR REMOTE SENSOR
Operating Range: (based on thermostat range)
ZZSENSAL0300AA Indoor Model: 40 to 99°F
BAYSEN30ATEMPA Outdoor Model: -40 to 140°F
Operating Humidity Range: 0 to 90% RH
(non-condensing)
Maximum Distance from Thermostat: 300 feet
Recommended Wire: 18 or 20 gauge,
3-conductor shielded cable
Color: Classic White
Dimension: 2-1/8" x 3-1/2" x 3/4"
Outdoor Remote includes 12 ft. of outdoor
probe lead
CONTENTS
Specifications ................................................ 1
Installation .................................................... 2
Wiring Diagram ...............................................3
Configuration .................................................3
Troubleshooting ...............................................4
ZZSENSAL0300AA/BAYSEN30ATEMPA
Indoor Remote Sensor/Outdoor Remote Sensor
INSTALLATION INSTRUCTIONS
Interior Mounting Base
For applications where the wire run is short (100 ft. or
less) shielded cable may not be required provided the
wires are not routed parallel to or across other wires
carrying electrical power. To reduce electrical inter-
ference or inductance from other electrical wiring or
devices use shielded cable and keep Remote Sensor
wire runs separate from thermostat wiring. Remote
sensors cannot be used with systems where power
interruptions are part of normal system operation.
To prevent electrical shock and/or equipment
damage, disconnect electric power to system at
main fuse or circuit breaker box until installation
is complete.
Do not use on circuits exceeding specified
voltage. Higher voltage will damage control
and could cause shock or fire hazard.
Do not short out terminals on gas valve or
primary control to test. Short or incorrect
wiring will damage thermostat and could cause
personal injury and/or property damage.
BAYSEN30ATEMPA
OUTDOOR REMOTE SENSOR
SPECIFICATIONS
CAUTION
!
WARNING
!
Pub No. 18-HD86D1-1
Outdoor Probe
Part No. 37-7772001
August 2018
Advertisement
Related Manuals for Trane ZZSENSAL0300AA
Summary of Contents for Trane ZZSENSAL0300AA
- Page 1 For applications where the wire run is short (100 ft. or less) shielded cable may not be required provided the ZZSENSAL0300AA Indoor Model: 40 to 99°F wires are not routed parallel to or across other wires BAYSEN30ATEMPA Outdoor Model: -40 to 140°F carrying electrical power.
- Page 2 INSTALLATION INDOOR SENSOR OUTDOOR SENSOR SELECT SENSOR LOCATION SELECT SENSOR LOCATION Proper location insures that the remote sensor Proper location insures that the remote sensor will will provide a comfortable home or building provide a correct outdoor temperature reading. temperature. Observe the following general rules Observe the following general rules when selecting when selecting a location: a location:...
- Page 3 To S To - To - Figure 1 – Touchscreen Thermostat (ACONT302/303 & TCONT302/303) Indoor/Outdoor Remote Sensor Wiring (ZZSENSAL0300AA/BAYSEN30ATEMPA) CONFIGURATION Touchscreen Models: When installing a remote sensor you must enable the remote sensor option in the Installation Menu. See Installation Instructions.
- Page 4 TROUBLESHOOTING To function correctly and read temperature accurately, the thermostat must have constant 24-volt pow- er. If the thermostat temperature is steadily dropping, reading low, or reads 08° when a remote sensor is installed, it can be traced to one of the three following conditions. Condition Test Comments...
