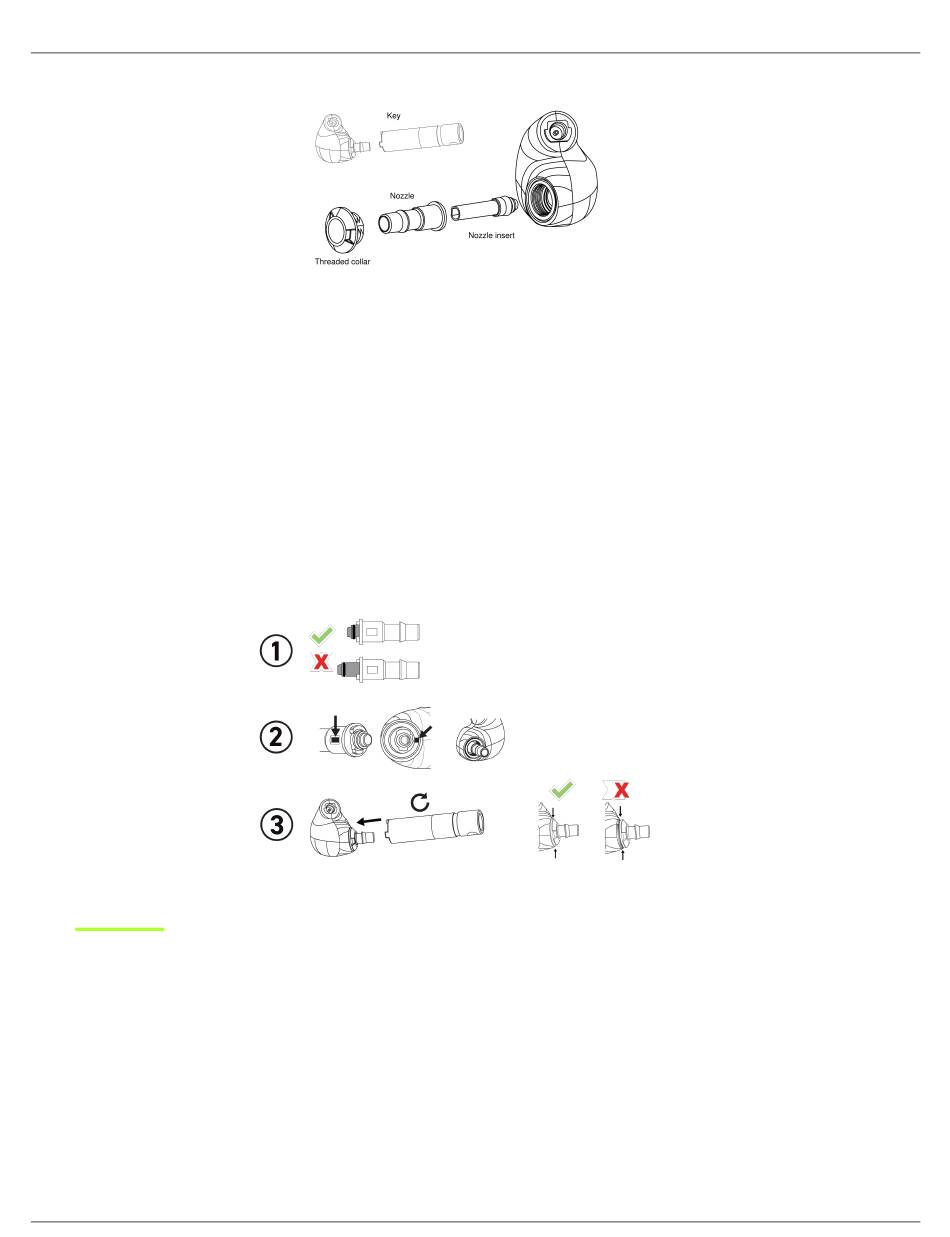

Reassembling the Nozzle

Caution:
• Do not force parts. Reposition as necessary to assure a smooth and easy fit.
• The nozzle insert must be properly seated in the nozzle.
• The nozzle must be aligned to fit the keyed opening in the housing (dots aligned).
• Ensure the threads are properly engaged before using the nozzle key.
• Tighten the threaded collar just enough to ensure it will not loosen during normal earphone usage.
1. Place the nozzle insert into the nozzle before inserting it into the earphone.
2. Align the dots to match the nozzle to the keyed opening.
3. Turn the threaded collar all the way into the earphone housing using the nozzle key.

Specifications

Transducer Type
Quad balanced-armature drivers
Sensitivity
at 1 kHz
114 dB SPL/mW
Impedance
at 1 kHz
