Excessive sound pressure levels from earphones and headphones can cause hearing loss.
This equipment must only be connected to USB 2.0-compatible ports.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Compliance Information Statement: Declaration of Compliance procedure Product Identification: Focusrite Scarlett 2i4 |
For USA
To the User:
1. Do not modify this unit! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Focusrite may void your authority, granted by the FCC, to use this product.
2. Important: This product satisfies FCC regulations when high quality shielded cables are used to connect with other equipment. Failure to use high quality shielded cables or to follow the installation instructions within this manual may cause magnetic interference with appliances such as radios and televisions and void your FCC authorization to use this product in the USA.
3. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For Canada
To the User:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
RoHS Notice
Focusrite Audio Engineering Limited has conformed and [its/this] product[s] conform[s], where applicable, to the European Union's Directive 2002/95/EC on Restrictions of Hazardous Substances (RoHS) as well as the following sections of California law which refer to RoHS, namely sections 25214.10, 25214.10.2, and 58012, Health and Safety Code; Section 42475.2, Public Resources Code.
Thank you for purchasing this Scarlett 2i4, one of the family of Focusrite professional computer audio interfaces incorporating high quality Focusrite analogue pre-amplifiers. You now have a simple and compact solution for routing high quality audio to and from your computer.
This User Guide provides a detailed explanation of the hardware to help you achieve a thorough understanding of the product's operational features. We recommend that both users who are new to computer recording, as well as more experienced users, take the time to read through the User Guide so that you are fully aware of all the possibilities that the Scarlett 2i4 and accompanying software has to offer. If the main User Guide sections do not provide the information you need, be sure to consult http://www.focusrite.com/answerbase, which contains a comprehensive collection of common technical support queries.
The Scarlett 2i4 hardware interface provides the means for connecting microphones, musical instruments or line level audio signals to a computer running Mac OS or Windows. The signals at the physical inputs can be routed to your audio recording software / digital audio workstation (referred to throughout this user guide as the "DAW") at up to 24-bit, 96 kHz resolution; similarly, the DAW's monitor or recorded output will appear at the unit's physical outputs.
Audio sources – mics, instruments, etc. – connected to the physical inputs can be recorded in the DAW and then routed from your DAW to the physical outputs. The 2i4 is equipped with four audio output channels, which can be connected to an amplifier and speakers, powered monitors, headphones, DJ or other type of mixer, or any other analogue audio equipment that you wish to use. Although all inputs and outputs on the Scarlett 2i4 are routed directly to and from your DAW for recording and playback, you can configure the routing within your DAW in order to meet your needs. A Direct Monitoring feature lets you hear what you are playing without the effects of computer latency. The 2i4 also acts as a convenient MIDI interface between your computer and other MIDI equipment.
For DJs, the two pairs of outputs make it simple to interface the stereo output from a laptop running DJ software to two channels of a DJ mixer.
Along with your Scarlett 2i4 you should have:
Mac OS
Apple Macintosh with a USB 2.0 compliant USB port
OS: Mac OS X 10.7 (Lion) or OS X 10.8 (Mountain Lion)
Windows
Windows compatible computer with a USB 2.0 compliant USB port
OS: Windows 7 (32- or 64-bit)
IMPORTANT: PLEASE ENSURE THAT YOU RUN THE INSTALLER BEFORE CONNECTING THE SCARLETT 2i4 TO YOUR COMPUTER.
All software required by the Scarlett 2i4 - and several powerful and useful extras - is available for download from the Focusrite website http://www.focusrite.com/register. The Software Activation card provided with your Scarlett 2i4 contains validation codes which you will need to enter in the downloads area. This procedure ensures that you will have the most up-to-date software versions.
Mac OS X:
Your OS should automatically switch the computer's default audio outputs to the Scarlett 2i4. To verify this, go to System Preferences > Sound, and ensure that the input and output are set to Scarlett 2i4. For more detailed setup options on a Mac, open Applications > Utilities > Audio MIDI Setup.
Windows:
Your OS should automatically switch the computer's default audio outputs to the Scarlett 2i4. To verify this go to: Start > Control Panel > Hardware and Sound > Sound > Manage Audio
Devices and ensure that 'Default Playback' and 'Recording' are set to 'Scarlett 2i4'
IMPORTANT: Before you connect the Scarlett 2i4 to your computer, please complete the software installation according to the previous instructions. This will ensure that the hardware uses the correct drivers, and will prevent unexpected behaviour.
The Scarlett 2i4 has a single USB 2.0 port (on the rear panel). Once the software installation is complete, simply connect the Scarlett 2i4 to your computer using the USB cable provided. (Note that Scarlett 2i4 is a USB 2.0 device, and thus the USB connection requires a USB 2.0+ compliant port on your computer. It will not operate correctly with USB 1.0/1.1 ports)
The Scarlett 2i4 is compatible with any Windows-based DAW that supports ASIO or WDM* and any Mac-based DAW that uses Core Audio. After installing the drivers and connecting the hardware, you can start using the Scarlett 2i4 with the DAW of your choice. To allow you to get started if you do not already have a DAW application installed on your computer, Ableton Live Lite is included in the Xcite+ software pack; this will be available to you once you've downloaded and activated your software online. To install Ableton Lite Live, download and save the Ableton installer file from your registered Focusrite "My Products" page as described above, and then run it, following all on-screen instructions.
Operating instructions for Ableton Live Lite are beyond the scope of this User Guide, but the application includes a full set of Help files.
*only compatible with 16-bit audio under WDM
Please note - your DAW may not automatically select the Scarlett 2i4 as its default I/O device. In this case, you must manually select 'Scarlett 2i4' as the driver on your DAW's Audio Setup* page. Please refer to your DAW's documentation (or Help files) if you are unsure where to select the ASIO or Core Audio driver. The example below shows the correct configuration in the Ableton Live Lite Preferences panel (Mac version shown).
Once the Scarlett 2i4 is set as the preferred Audio Device* in your DAW, Inputs 1 & 2 and Outputs 1 to 4 will appear in your DAW's Audio I/O preferences. Depending on your DAW, you may need to enable certain inputs or outputs before use. The two examples below show Inputs 1 & 2 and Outputs 1 to 4 enabled in the Ableton Lite Audio Preferences.
*Typical name. Terminology may differ slightly between DAWs.
The Scarlett 2i4 is an excellent choice for several different recording and monitoring applications. Some typical configurations are shown below.
This setup illustrates the most typical configuration for recording with DAW software on your Mac or PC. In this case, you might record guitar through Input 1 and vocals through Input 2 into Ableton Live Lite, while monitoring the playback from the DAW via headphones or loudspeakers.
The front panel input sockets are Neutrik Combo® type, which accept either an XLR male connector (you will probably have one on the end of your microphone cable) or a ¼" (6.35 mm) jack plug. Note the Scarlett 2i4 has no "Mic/line" switch – the Focusrite preamplifier stage is automatically configured for a microphone when you plug an XLR into the input, and for a line or instrument when you connect a jack plug. Set the LINE/INST switch next to the socket to INST if you are connecting musical instrument (a guitar in the example) via an ordinary 2-pole guitar jack, or to LINE if you are connecting a line level source such as the balanced output of an external audio mixer via a 3-pole (TRS) jack. Note the Combo connector accepts both types of jack plug.
If you are using a capacitor (condenser) microphone, press the 48V button to supply phantom power to the mic. Don't turn this on if you're using any other type of mic.
Each channel of the Scarlett 2i4 has a PAD button on the front panel; pressing this reduces the input sensitivity by 10 dB. You may find this useful if you are feeding the input from a line level source when the output is particularly "hot".
You will frequently hear the term "latency" used in connection with digital audio systems. In the case of the simple DAW recording application described above, latency will be the time it takes for your input signals to pass through your computer and audio software, and back out again via your audio interface. Latency can be a problem for a performer who wishes to record while monitoring their input signals.
The Scarlett 2i4 is fitted with a "Direct Monitoring" option, which overcomes this problem.
Setting the front panel DIRECT MONITOR control to INPUT will route your input signals directly to the Scarlett 2i4's headphone and main monitor outputs. This enables you to hear yourself with zero latency – i.e., in "real time". Users can vary the amount of computer playback heard by using the DIRECT MONITOR control. The input signals to your computer are not affected in any way by this setting.
DIRECT MONITOR is a "mix" control – it lets you set your own preferred blend of input signals and DAW playback. As you rotate the control clockwise, the level of DAW playback increases and the level of your input signal decreases. At the 12 o'clock position, a 50/50 mix of the two is obtained.
Note that if the DIRECT MONITOR control is set anywhere other than fully clockwise or fully anticlockwise, ensure that your DAW software is not set to route its input (what you are currently recording) to its output. If it is, you will hear yourself "twice", with one signal audibly delayed as an echo.
The Direct Monitoring facility can also be switched for mono operation, which is useful if you are only recording one instrument or voice. With the STEREO/MONO switch set to STEREO, Input 1 is routed to the left input channel and Input 2 to the right, and this will be the correct setting if you are recording a stereo source. In MONO mode, both inputs are routed equally to both channels, and will appear in the centre of the stereo image.
If connecting 1 and 2 and 3 and 4 to the two decks of a DJ Mixer make sure to turn the Monitor Knob all the way up to send a full line signal to 1 and 2, Deck A. Output channels 1 and 2 are provided both in variable-level, electronically balanced form on ¼" (6.35 mm) 3-pole (TRS) jacks and as unbalanced signals on phono (RCA) sockets. Outputs 3 and 4 are provided in fixed-level unbalanced form only, also on phono (RCA) sockets.
If Outputs 1 and 2 are used, Outputs 3 and 4 are free to be used for another purpose, such as connecting to an additional recording device or an additional pair of monitors. However, please note that the balanced versions of channels 1 and 2 – i.e., the signals at the two ¼" (6.35 mm) jack sockets and the unbalanced versions of channels 1 and 2 – are affected in level by the the large front panel MONITOR volume control. The signals at outputs 3 – 4 phono (RCA) sockets are at (full) fixed level, and thus if you use these for monitoring, you will have to control the volume either at source (within the DAW itself), or by adjusting the volume on an external amplifier.
Self-powered monitors (i.e., typical computer speakers) incorporate internal amplifiers with a volume control, and may be connected directly. Larger, passive loudspeakers will require a separate stereo amplifier; in this case, the outputs should be connected to the amplifier's inputs.
Typical consumer (hi-fi) amplifiers and small powered monitors will have unbalanced inputs, either on phono (RCA) sockets, or via a 3.5 mm 3-pole jack plug intended for direct connection to a computer. In either case, use a suitable connecting cable with phono plugs (RCA jacks) at one end. Hi-fi amplifiers and powered monitors will have their own volume controls; use these to adjust the monitoring volume.
Professional power amplifiers will generally have balanced inputs (either on 3-pin XLR or 3-pole (TRS) ¼" (6.35 mm) jack sockets); use a suitable cable to connect them to the ¼" jack outputs of the Scarlett 2i4. If you use the balanced outputs, you can adjust the monitoring volume from the Scarlett 2i4's front panel.
NOTE: You run the risk of creating an audio feedback loop if loudspeakers are active at the same time as a microphone! We recommend that you always turn off (or turn down) monitoring loudspeakers while recording and use headphones when overdubbing.
The Scarlett 2i4 makes an excellent interface between a laptop running DJ software and the channels of a DJ mixer. In this setup, Outputs 1 and 2 can be connected to Line Inputs 1 and 2 of an external DJ mixer, and Outputs 3 and 4 to Line Inputs 3 and 4. Connecting in this way means that all mixer facilities, such as EQs and crossfading, are easily accessible. If connecting 1 and 2 and 3 and 4 to the two decks of a DJ Mixer make sure to turn the Monitor Knob all the way up to send a full line signal to 1 and 2, Deck A.

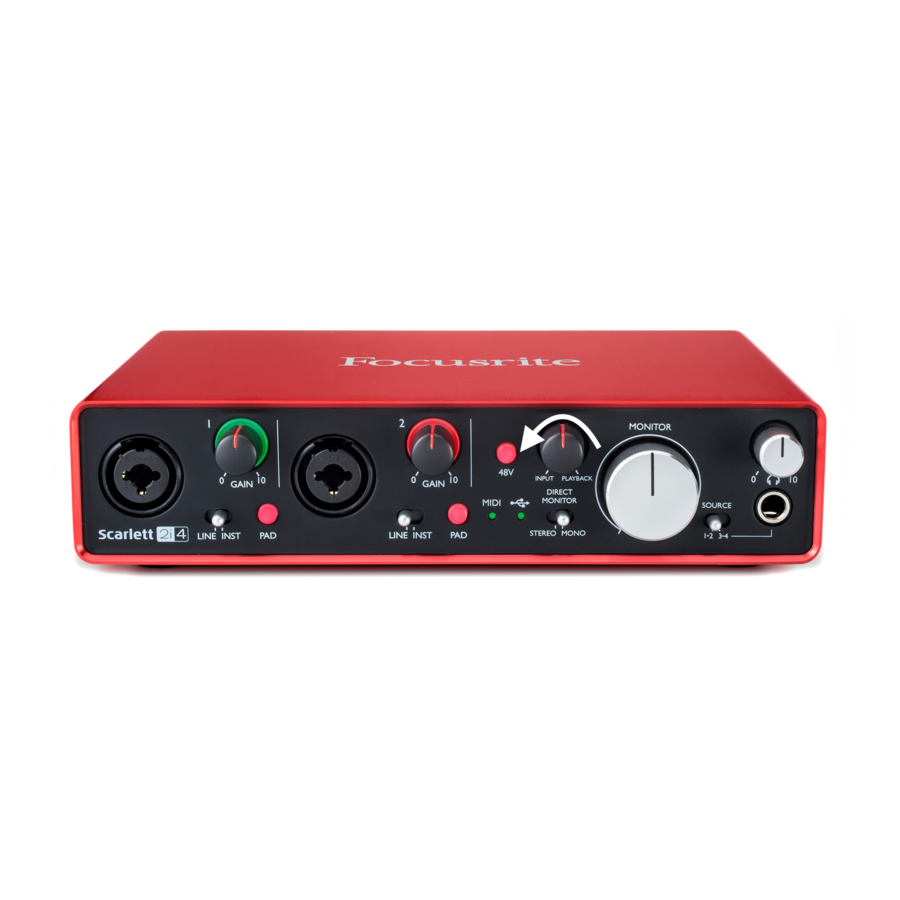

The Front Panel includes the input connectors for Mic, Line and Instrument signals, as well as the input gain and monitoring controls.
Real World ADC Dynamic Range | 105 dB 'A'-weighted |
Real World DAC Dynamic Range | 105 dB (Outputs 1 & 2); 102 dB (Outputs 3 & 4); 'A'-weighted |
Chipset ADC/DAC DNR | 114 dB 'A'-weighted |
Microphone Inputs | |
Dynamic Range | 105 dB, 'A'-weighted |
Signal-to-Noise ratio | 105 dB, 'A'-weighted |
Frequency Response | 20 Hz – 20 kHz ±0.1 dB |
THD+N | 0.002% (at -1 dBFS, 1 kHz, with 20 Hz – 22 kHz filter) |
Noise EIN | <-120 dBu (at 50 dB gain, 150 ohm input termination, 20 Hz – 22 kHz) |
Maximum Input Level | 3.5 dBu (at minimum gain for 0 dBFS, no pad) |
Pad | ~10 dB |
Line Inputs | |
Dynamic Range | 105 dB, 'A'-weighted |
Signal-to-Noise ratio | 105 dB, 'A'-weighted |
Frequency Response | 20 Hz – 20 kHz, ±0.1 dB |
THD+N | <0.01% ('A'-weighted, 16 dB input gain, -1 dBFS output, 20 Hz – 22 kHz filter) |
Noise | -90 dBu (20 Hz – 22 Hz) |
Maximum Input Level | >26 dBu at 1% THD+N |
Gain Range | -10 dB to +35 dB |
Pad | ~10 dB |
Instrument Inputs | |
Dynamic Range | 105 dB, 'A'-weighted |
Signal-to-Noise ratio | 105 dB, 'A'-weighted |
Frequency Response | 20 Hz – 20 kHz, ±0.1 dB |
THD+N | <0.0025% ('A'-weighted, 16 dB input gain, -1 dBFS output, 20 Hz – 22 kHz filter) |
Maximum Input Level for 0 dBFS | +3 dBu (min. gain, pad out) |
Maximum Input Level for 0 dBFS | -50 dBu (max. gain, pad out) |
Maximum Input Level for 0 dBFS | +12 dBu (min. gain, pad in) |
Maximum Input Level for 0 dBFS | -40 dBu (max. gain, pad in) |
Pad | ~10 dB |
Crosstalk | <80 dB |
Line Outputs 1 & 2 (balanced) | |
Maximum Output Level (0 dBFS) | +10 dBu |
THD+N | <0.0015% (-1 dBFS input, 1 kHz, 20 Hz – 22 kHz) |
Line Outputs 1 to 4 (unbalanced) | |
Maximum Output Level (0 dBFS) | +5.5 dBu |
THD+N | <0.03% (0 dBFS input, 1 kHz, 20 Hz – 22 kHz) |
Headphone Outputs | |
Frequency Response | 20 Hz – 20 kHz, ±0.1 dB |
Signal-to-Noise ratio | 103 dB, 'A'-weighted |
Dynamic Range | 103 dB |
Maximum Output Level into 32 ohms | +10 dBu (+8 dBV) |
Power into 32 ohms | 24 mW |
Output Impedance | <12 ohms |
Load Impedance | >24 ohms |
Additional DSP performance | |
Clock jitter | <250 ps |
Supported sample rates | 44.1, 48, 88.2, 96 kHz |
Analogue Inputs 1 & 2 | |
Connectors | Neutrik XLR Combo: Mic/Line/Inst (Inputs 1-2) on front panel |
Mic/Line switching | Automatic |
Line/Instrument switching | 2 x front panel switches |
Pad | 10 dB attenuation |
Phantom power | Shared +48 V phantom power switch for inputs 1 & 2 (XLR connections only) |
Analogue Outputs 1 to 4 | |
Balanced outputs | 2 x ¼" TRS jacks on rear panel |
Unbalanced outputs | 4 x phono sockets on rear panel |
Stereo headphone output | ¼" TRS jack on front panel |
Main output level control | On front panel |
Headphones level control | |
Other I/O | |
USB | 1 x USB 2.0 Type B connector |
Front Panel Indicators | |
USB power | LED |
Gain controls | Colour-coded LED rings |
Weight and Dimensions | |
W x H x D | 210 mm x 140 mm x 48 mm |
Weight | 0.89 kg |
For all troubleshooting queries, please visit the Focusrite Answerbase at www.focusrite.com/answerbase where you will find articles covering numerous troubleshooting examples.
