Installation and Operating Instructions
„ The Jøtul F 35 heater is listed to burn solid wood
only.
Do not burn any other fuels.
„ Read this entire manual before you install and use
this appliance.
„ Save these instructions for future reference and
make them available to anyone using or servicing
the fireplace insert.
„ This wood heater requires periodic inspection and
repair for proper operation. See this manual for
specific maintenance information. It is against
federal regulations to operate this wood heater
in a manner inconsistent with the operating
instructions in this owner's manual.
This heater meets the 2020 U.S.
Environmental Protection Agency's
emission limits for wood heaters
manufactured after May 15, 2020.
Une version française de ce manuel est disponible au

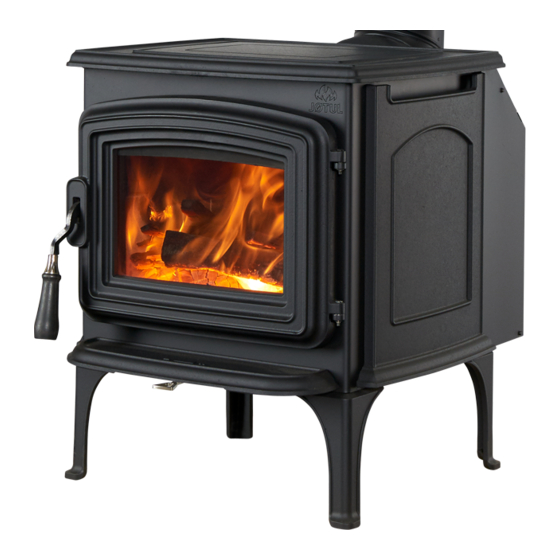

Jøtul F 35
Rockwood
téléchargement sur www.jotul.ca

Advertisement

Table of Contents
loading

Related Manuals for Jøtul Rockwood F 35

Summary of Contents for Jøtul Rockwood F 35

  • Page 1 Jøtul F 35 Rockwood Installation and Operating Instructions „ The Jøtul F 35 heater is listed to burn solid wood only. Do not burn any other fuels. „ Read this entire manual before you install and use this appliance. „ Save these instructions for future reference and make them available to anyone using or servicing the fireplace insert.

  • Page 2: Table Of Contents

    Jøtul F 35 130074_1 6/22 Table of Contents 6.0 Maintenance 6.1 Door Latch ...............22 Accessories ..............2 6.2 Glass Care ................22 6.3 General Care ..............22 Standards / Codes ............3 6.4 Gasket Replacement ............23 6.5 Glass Replacement ............23 6.6 Chimney System ............24 Combustion Specifications ..........

  • Page 3: Standards / Codes

    Jøtul F 35 130074_1 6/22 Standards Combustion Specifications The Jøtul F 35 Rockwood non-catalytic heater has been tested and listed to: Heat Output Range: 13,533 to 59,443 BTU/hr. U.S: ANSI/UL 1482 Heating Capacity: Up to 1,200 sq. ft. Canada: CAN/ULC-S627 Maximum Burn Time: Up to 6 3/4 hours Certified Safety Tests performed by:...

  • Page 4: Safety Notices

    Jøtul F 35 130074_1 6/22 Safety Notices • BURN SOLID, NATURAL WOOD FUEL ONLY. DO NOT BURN ANY OTHER FUEL. • DO NOT USE CHEMICALS OR FLUIDS TO START A Recommended Installation Tools FIRE. DO NOT BURN GARBAGE OR FLAMMABLE •...

  • Page 5: Installation

    Jøtul F 35 130074_1 6/22 1.0 Installation 1.1 Unpack the Stove Inspect the stove for damage. Contact your dealer immediately If this solid fuel room heater is not properly installed, a house if any damage is found. Do not install the stove if any damage is fire may result.

  • Page 6: Rear Exit Flue Collar Orientation

    Jøtul F 35 130074_1 6/22 2.0 Chimney Requirements 1.6 Chimney Connector Use 6” single wall or listed 6” double-wall stovepipe to connect There are two types of approved chimneys: the stove to the chimney. Single wall stovepipe must be black steel or stainless steel and have a minimum thickness of 24 1.

  • Page 7: Masonry Chimneys

    Jøtul F 35 130074_1 6/22 A larger chimney should be relined with an appropriate code approved liner. • Brick or modular block must be a minimum of 4” nominal thickness. Stone construction must be at least 12” thick. • A newly-built chimney must conform to local codes, or, in their absence, must comply with national regulations.

  • Page 8: Chimney Height

    Jøtul F 35 130074_1 6/22 It will be necessary to cut wall studs, install headers, and construct a sill frame to maintain the proper dimensions and to support the Connector pipe must be weight of the brick. flush with the inside of the flue tile The bricks must be solid brick with a minimum of 3 inches thick (nominal 4”).

  • Page 9: Chimney Connection

    Jøtul F 35 130074_1 6/22 3.0 Connecting to the Chimney 3.3 Prefabricated Chimneys 3.1 Masonry Chimney When connecting the Jøtul F 35 to a prefabricated metal chimney A ceramic or steel thimble is commonly used to penetrate the always follow the pipe manufacturer’s instructions and be sure chimney wall into the flue.

  • Page 10: Prefabricated Chimneys

    Jøtul F 35 130074_1 6/22 3.4 Mobile Home Installation The Jøtul F 35 is approved for installation in manufactured mobile homes provided the following requirements are met: 1. All chimney components, including chimney sections, supports, spark arrestor, etc., shall comply with the Standard for Factory- built Chimneys for Residential Type and Building Heating Appliances, UL 103 and/or CAN/ULC-S629 Standard for 650°C Factory-built Chimneys.

  • Page 11: Clearances To Combustibles

    Jøtul F 35 130074_1 6/22 4.0 Clearance to Combustibles 4.2 Clearances to Walls and Ceilings 4.1 Floor Protection The clearances listed and diagramed in this manual have been The Bottom Heat Shield must remain on the stove unless the tested to UL and ULC standards and are the minimum clearances stove is installed on concrete poured on earth.
  • Page 12 Jøtul F 35 130074_1 6/22 2” 2” 2” 43.25” 40.5” DOOR 16” OPENING 16” DOOR OPENING 8” 8” 8” 8” 30” 30” Figure 9a. Floor Protection minimum dimensions, U.S. Top Exit. Figure 9. Floor Protection minimum dimensions, U.S. Rear Exit. 2”...

  • Page 13: Alcove Installation

    Jøtul F 35 130074_1 6/22 4.4 Alcove Installation The Jøtul F 35 can be installed in an alcove as diagrammed in figs. 11.-12. 7” 1. Only double-wall chimney connector may be used. 2. Wall and ceiling protection, if used, must extend over the entire area.

  • Page 14: Clearance Diagrams

    Jøtul F 35 130074_1 6/22 4.6 Jøtul F 35 Clearance Specifications PROTECTED WALLS UNPROTECTED WALLS PER NFPA211 OR CAN/CSA-B365-M93 CORNER TO FRONT FLOOR CORNER TO FRONT FLOOR SIDE REAR CORNER SIDE REAR CORNER FRONT FLOOR PROTECTION FRONT FLOOR PROTECTION PROTECTION** WIDTH** PROTECTION** WIDTH**...
  • Page 15 Jøtul F 35 130074_1 6/22 Table A F 35 with Double Wall Chimney Connector Installation Specifications Front Edge of Hearth Extension From Standard Install without wall protection Rear Wall Brand Backwall with DW Pipe at 6” Centerline from backwall U.S. Canada 10 ½”...

  • Page 16: Double Wall Connector Manufacturers

    Jøtul F 35 130074_1 6/22 4.7 Double Wall Connector Manufacturers 45° Elbow Part Number VE-6UB45 Dura Vent Stove Adaptor Part Number 6DVL-AD-R 45° Elbow Part Number 6DVL-E45 Ventis/Copperfield Stove Adaptor Part Number 3602476 45° Elbow Part Number 3602438...
  • Page 17 Jøtul F 35 130074_1 6/22 Security Starter Collar Part Number GDA JOTUL 45° ElbowPart Number 6DE45 Selkirk Flush Stove Adaptor Part Number DSP6 Model 45° Elbow Part Number 45073 DSP6E4-1...

  • Page 18: Operation

    Jøtul F 35 130074_1 6/22 5.0 Operation advantage of the stove’s low end efficiency strength. A seasoned log will have check marks (cracks) on the ends and be lighter than an unseasoned log which will show little or no check marks. Please read the following section before building the first fire in We recommend using a moisture meter to determine the your new Jøtul F 35 Rockwood.

  • Page 19: F 35 Functionality

    Jøtul F 35 130074_1 6/22 5.4 How Your Jøtul F 35 Works When used with dry wood and a well-drafting chimney system, modern non-catalytic wood stoves burn fuel efficiently by the precise control and delivery of primary and secondary air to the fire.

  • Page 20: Break-In Procedure

    Jøtul F 35 130074_1 6/22 5.7 Break-In Procedure 5.8 Starting and Maintaining a Fire Although your Jøtul F 35 is constructed of welded, 3/16” steel Burn only solid wood directly on the bottom of the stove plate, it also incorporates cast iron components. This material firechamber.

  • Page 21: Adding Fuel

    Jøtul F 35 130074_1 6/22 5.10 Creosote Formation and the Need for Removal When wood is burned slowly, it produces tar and other vapors that combine with moisture to form creosote. Creosote vapors condense in the relatively cool chimney flue, and creosote residue accumulates on the flue lining.

  • Page 22: Maintenance

    Jøtul F 35 130074_1 6/22 6.0 Maintenance 6.2 Glass Care 6.1 Door Latch Adjustment Over time, as the door gasket becomes compressed, it may Cleaning be necessary to adjust the door latch in order to maintain the On occasion it will be necessary to clean the carbon deposits and integrity of the door seal.

  • Page 23: Gasket Replacement

    Jøtul F 35 130074_1 6/22 6.4 Gasket Replacement 6.5 Glass Replacement Tools needed: Tools needed: • needle nose pliers • 4mm hex key • 4mm hex key • wire brush • gasket cement 1. Lift the door gasket over the glass clips enough to expose the clip button head screws.

  • Page 24: Chimney System

    Jøtul F 35 130074_1 6/22 6.6 Chimney System 6.7 Replace Firebricks The Jøtul F 35 is designed to burn cleanly and efficiently when DO NOT OPERATE THE STOVE WITH BROKEN OR used according to the guidelines in this manual. In order to MISSING BRICKS.

  • Page 25: Optional Accessories 7.1 Short Leg Installation

    Jøtul F 35 130074_1 6/22 7.0 Accessory Installation CAUTION: Avoid injury- always wear safety gloves when handling sheet metal 7.1 Short Leg Kit 157636 parts. Read through these instructions to familiarize yourself with the parts before beginning the installation. Approved for use only in existing code-approved masonry fireplace hearth-mount installations.

  • Page 26: Appendix

    Jøtul F 35 130074_1 6/22 8.0 Appendix 8.1 F 35 Start-Up and Refueling Follow these directions to get the best emissions performance from your F 35: Cold Start Use the following technique for the best start from a “cold” stove: Figure 24.
  • Page 27 Jøtul F 35 130074_1 6/22 Adding the High Fire fuel load 1. When the kindling and start-up fuel have burned down by approximately 2/3, rake the remaining coals and fuel pieces forward until they are equally distributed and level. 2. Place the largest fuel piece in the center of the firebox with two smaller pieces on the either side packed tightly together and making sure there is space on both sides of the load for good air flow.

  • Page 28: Illustrated Part List

    Jøtul F 35 130074_1 6/22 9.0 Jøtul F 35 Illustrated Part Only use replacement parts provided through your authorized Jøtul dealer. Figure 35. F 35 Illustrated Parts List...
  • Page 29 Jøtul F 35 130074_1 6/22 No. Description Part Number Description Part Number Screw, Button Head Socket - M6 x 10 Blk 117978 38. Brick, Refractory, 4.50” x 9” x 1.25” 129082 Glass Clip, 5” (three) 225008 39. Brick, Refractory, 8” 2.5” x 1.25” 226871 Gasket, Flat, V125x8mm, Self Adhesive 127215...
  • Page 30 Jøtul F 35 130074_1 6/22 This page is intentionally blank.

  • Page 31: Warranty Statement

    Jøtul F 35 130074_1 6/22 10. F 35 Warranty Statement 4) Damage due to, or repair of, rust. Use of stove-top steamers may cause rust. 5) Damage due to service performed by an installer or service agency, unless otherwise agreed to in writing by JØTUL. Effective January 1, 2013 6) Damage caused by unauthorized modification, use or repair.
  • Page 32 Jøtul F 35 130074_1 6/22 Quality We appreciate your trust in welcoming our product into your home and invite your comment and appraisal of our efforts to provide you with the finest in home hearth products. Jøtul pursues a policy of continuous product development. Products supplied may therefore differ in specification, color and type of accessories from those illustrated and described in this manual.
