Clarion PXW1241 Specifications

Subwoofers – PXW1241 Information
Vented/Bass Reflex
MAXIMUM FLAT
Enclosure Airspace = 1.73ft 3
F b = 49 Hz
F 3 = 34 Hz
Port Size = 4" x 13"
80

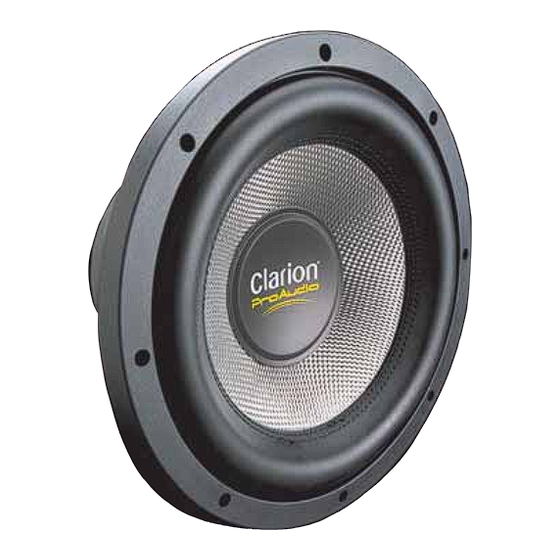

Model: PXW1241
• Black Powder Coat Cast Aluminum Basket
• Hi Performance Glass Fiber Cone
• High Performance Polycotton Spider
• High Heat Resistance 4-Layer Black Aluminum Bobbin EI
Wire Voice Coil
• Single 4-ohm Voice Coil
• Powerful 62oz Magnet
• Stitched Rubberized PVC Gasket
• Chrome Plated Push Type Terminals
• S.E.T. (Spider Exhaust Technology)
• Chrome Plated Bumped Rear Vented Pole Piece
• 700-Watt Maximum Music Power
Maximum Power Handling (Coils in Series)
Continuous Power (Coils in Series)
SPL (Coils in Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86.5dB
Frequency Response . . . . . . . . . . . . . . . . . . . 20 Hz to 1.8 kHz
Woofer Cone Material. . . . . . . . . . . . . . . . . . . . . . . . Glass Fiber
Woofer Magnet. . . . . . . . . . . . . . . . . . . . . . . . . Strontium Ferrite
Woofer Basket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Aluminum
Woofer Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rubber
Thiele Small Parameters
Outside Diameter
Mounting Hole
Mounting Depth
Sensitivity
Max. Peak Music
Continuous Power
Nominal Impedance
Re DC Imp. (±10%)
Le
V.C. Diameter
Sd
Vas
Fs
Qts
Qes
Mms
Mmd
Rms
BI
Speaker Displacement
Xmax
Magnet Weight
. . . . . . . . . 700W
. . . . . . . . . . . . . . . 350 W
12"
270mm
148mm
86.5db
700 W
350 W
4 Ohm
3.5 Ohm
1.16/3.17mH
50.8 mm
0.0495m2
57.9867 litres
30.7061 Hz
0.4525
0.5136
158.3929g
152.1631g
8.0450Om
14.43 Tm
0.0495m2
12mm
62oz
