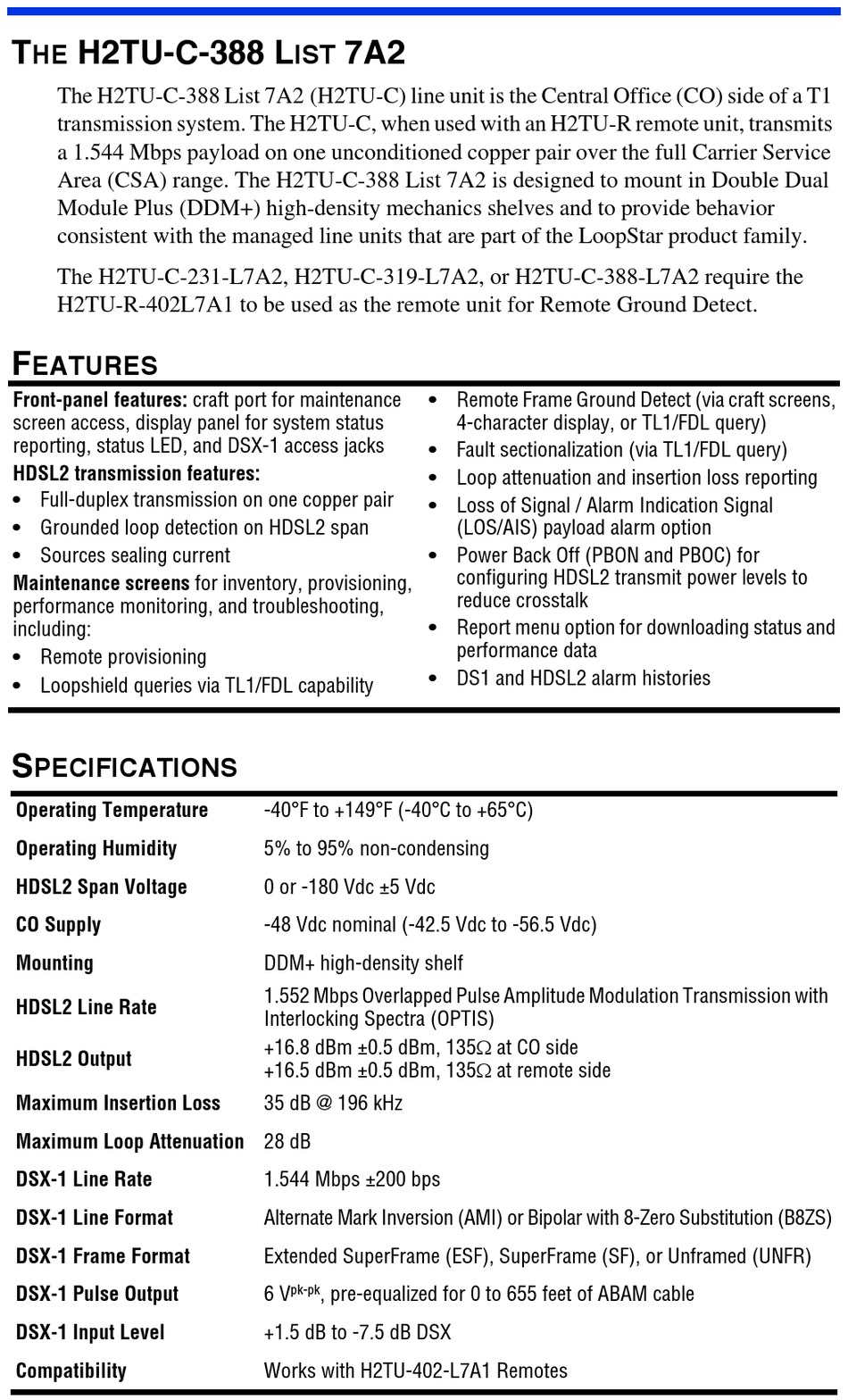

T H2TU-C-388 L
HE
The H2TU-C-388 List 7A2 (H2TU-C) line unit is the Central Office (CO) side of a T1
transmission system. The H2TU-C, when used with an H2TU-R remote unit, transmits
a 1.544 Mbps payload on one unconditioned copper pair over the full Carrier Service
Area (CSA) range. The H2TU-C-388 List 7A2 is designed to mount in Double Dual
Module Plus (DDM+) high-density mechanics shelves and to provide behavior
consistent with the managed line units that are part of the LoopStar product family.
The H2TU-C-231-L7A2, H2TU-C-319-L7A2, or H2TU-C-388-L7A2 require the
H2TU-R-402L7A1 to be used as the remote unit for Remote Ground Detect.
F
EATURES
Front-panel features: craft port for maintenance
screen access, display panel for system status
reporting, status LED, and DSX-1 access jacks
HDSL2 transmission features:
• Full-duplex transmission on one copper pair
• Grounded loop detection on HDSL2 span
• Sources sealing current
Maintenance screens for inventory, provisioning,
performance monitoring, and troubleshooting,
including:
• Remote provisioning
• Loopshield queries via TL1/FDL capability
S
PECIFICATIONS
Operating Temperature
Operating Humidity
HDSL2 Span Voltage
CO Supply
Mounting
HDSL2 Line Rate
HDSL2 Output
Maximum Insertion Loss
Maximum Loop Attenuation 28 dB
DSX-1 Line Rate
DSX-1 Line Format
DSX-1 Frame Format
DSX-1 Pulse Output
DSX-1 Input Level
Compatibility
7A2
IST
-40°F to +149°F (-40°C to +65°C)
5% to 95% non-condensing
0 or -180 Vdc ±5 Vdc
-48 Vdc nominal (-42.5 Vdc to -56.5 Vdc)
DDM+ high-density shelf
1.552 Mbps Overlapped Pulse Amplitude Modulation Transmission with
Interlocking Spectra (OPTIS)
+16.8 dBm ±0.5 dBm, 135Ω at CO side
+16.5 dBm ±0.5 dBm, 135Ω at remote side
35 dB @ 196 kHz
1.544 Mbps ±200 bps
Alternate Mark Inversion (AMI) or Bipolar with 8-Zero Substitution (B8ZS)
Extended SuperFrame (ESF), SuperFrame (SF), or Unframed (UNFR)
pk-pk
6 V , pre-equalized for 0 to 655 feet of ABAM cable
+1.5 dB to -7.5 dB DSX
Works with H2TU-402-L7A1 Remotes
• Remote Frame Ground Detect (via craft screens,
4-character display, or TL1/FDL query)
• Fault sectionalization (via TL1/FDL query)
• Loop attenuation and insertion loss reporting
• Loss of Signal / Alarm Indication Signal
(LOS/AIS) payload alarm option
• Power Back Off (PBON and PBOC) for
configuring HDSL2 transmit power levels to
reduce crosstalk
• Report menu option for downloading status and
performance data
• DS1 and HDSL2 alarm histories
