Sunrise Medical Empulse R90 Assembly

Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to technician and/or end user and may void the
warranty. If you have any questions call Sunrise Medical Technical Support at +1(800) 333-4000.
Tools required
1. 4mm allen wrench
2. 5mm allen wrench
3. Tape measure
5
3
4
8
1
2
Small adapter shown
GRAY = PANTONE Cool Gray 2 OR 20% Black
Medium adapter
Minimum
23mm
DEALER/TECHNICIAN WARNING
Attention dealers and qualified technicians, do not operate or service this device without first reading the owners manual.
If you do not understand the instructions and warnings in the owners manual please contact the Sunrise Medical Technical
Service Department before operating and/or servicing the Empulse device. Failure to do so may result in damage and/or
injury.
Find more information and important warnings in the device owner's manual or at: www.SunriseMedical.com.
™
For Folding Frame wheelchairs
GRAY = 80% Black (E, F, & R) and 70% Black (mpulse & numbers)
Note: Folding axle adapters will be attached to camber tube but will require
adjustment to center on camber tube.
Note: Folding Frame wheelchairs always use the small 32mm clamps without
inserts.
1
A. Attaching small/large folding axle adapters and hardware onto
wheelchairs:
1.
7
6
2.
3.
GRAY = 90% Black (R, F, & Line) and 80% Black (E & numbers)
2
B. Attaching folding axle to wheelchair:
1.
2.
3
3.
4.
4
Sunrise Medical 2842 N. Business Park Ave Fresno, CA 93727 USA
Customer Service: +1(800) 333-4000
or visit www.SunriseMedical.com
R90
™

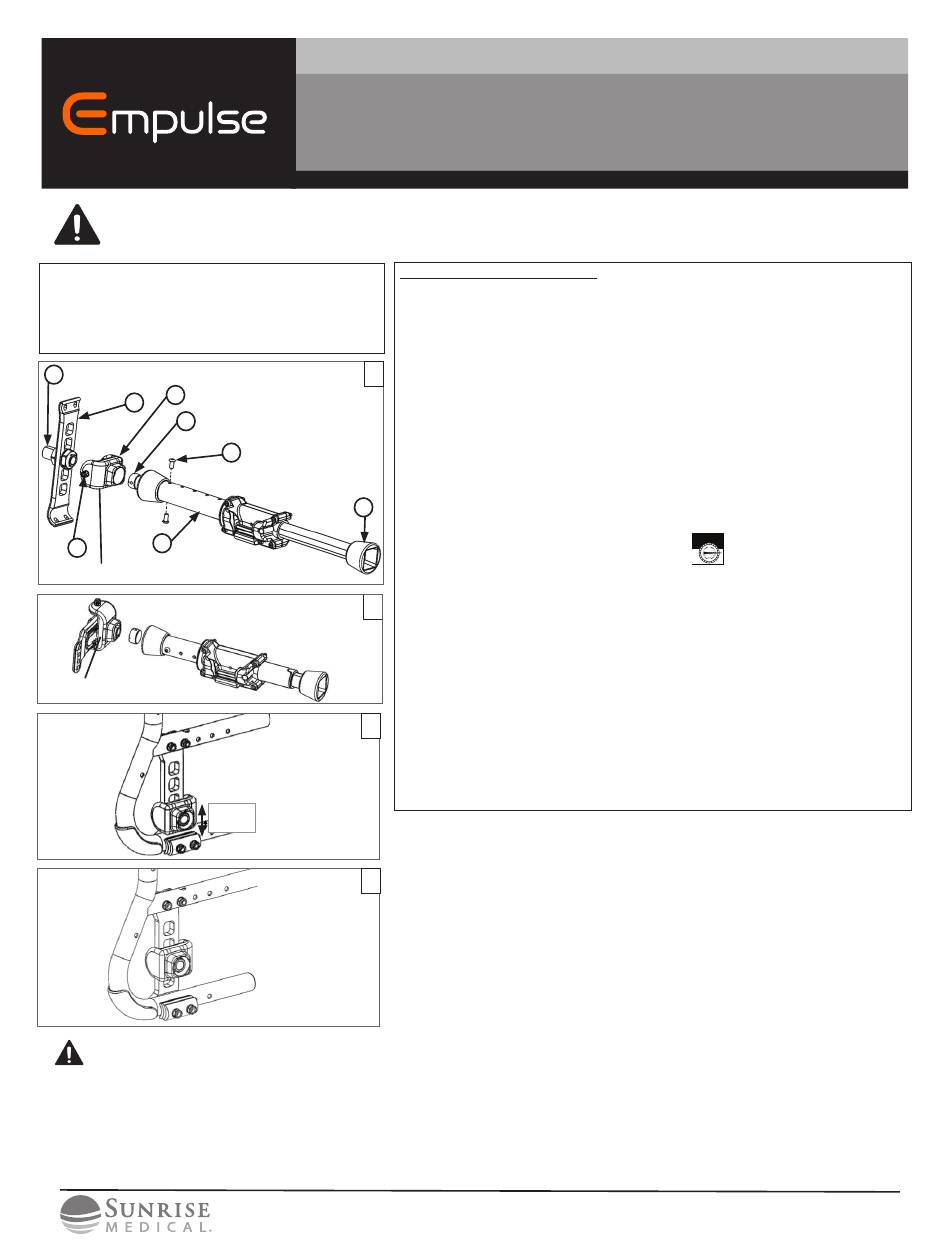

Using 5mm allen wrench, attach Folding Axle Adapters (3) and hardware
(2) onto Axle Plates (4). Folding Axle Adapters must be centered over the
Axle Sleeve (5).
Note: The Folding Axle Adapter (3) requires the Axle Sleeve (5) to
be a minimum distance of approximately 23mm from the frame. If
the Folding Axle Adapter (3) does not fit as shown in Fig 3, the
CG (center of gravity) will need to be adjusted to the next available
CG position as shown in Fig. 4.
Tighten hardware on one side. Leave one side loose. Follow Step 2 to
align Folding Axle Adapter with Folding Axle. Once properly aligned,
tighten loose side.
Tighten hardware (2) to 15 Nm [11 ft-lb].
Note: Folding Axle Adapter (3) can be flipped to more easily
access the set screw. Mount the Folding Axle Adapter (3) in an
orientation so access to set screw is in the desired location.
Grab the folding axle assembly (1) in the middle of the assembly. Grab
the outside of the larger tube to avoid pinching your hand while
attaching the assembly.
Slide the axle adapter receiver (6) over the folding axle adapter (3) on
one side.
Compress the folding axle assembly (1) until you are able to slide the
other axle adapter receiver (6) over the corresponding folding axle
adapter (3).
Check to ensure the folding axle assembly (1) is securely compressed
between the wheelchair's two axle plates (4).
FOLDING AXLE ASSEMBLY
(FOLDING FRAMES)
TORQUE ! TORQUE !
0
© 2022 Sunrise Medical (US) LLC
03/2022 255036 Rev.A Page 1of1
