Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
06/07

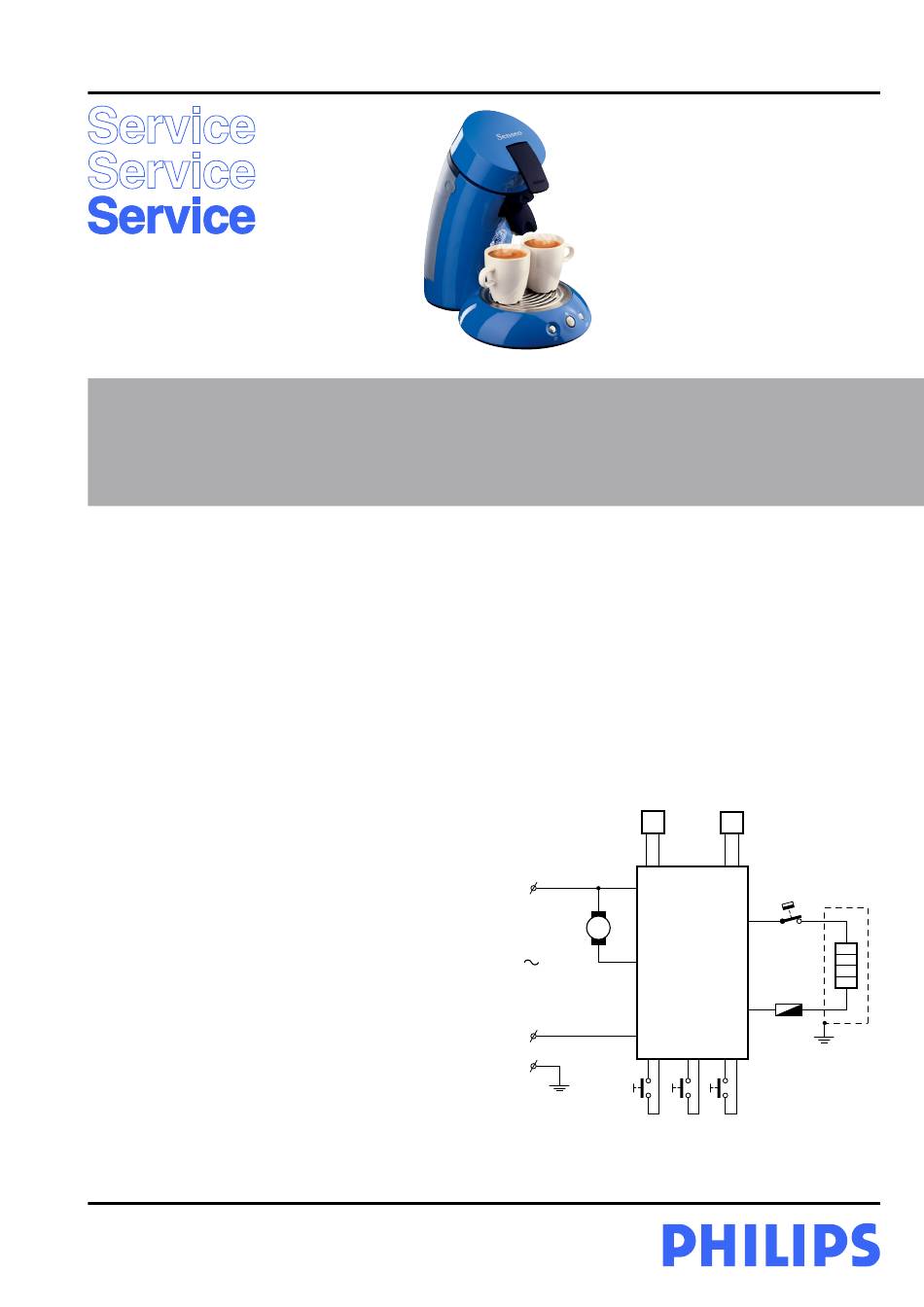

Coffee Maker Senseo
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power consumption : 0.002 kWh
- Contents reservoir
- Colour setting
- SAP coding
L
Pump M
N
Printed in the Netherlands
© Copyright reserved
HD7810/70
: 220 - 230 V
: 50 Hz
: 1450 W
: 755 cc
: Blue / Deep purple
: HD7810/70/B
Waterlevel
Temp.
Sensor
Sensor
Automatic
thermostat
CONTROL
Boiler
PCB
Fuse
Push buttons
Subject to modification
/B
Advertisement
Related Manuals for Philips Senseo HD7810/70/B
Summary of Contents for Philips Senseo HD7810/70/B
- Page 1 : Blue / Deep purple - SAP coding : HD7810/70/B Waterlevel Temp. Sensor Sensor Automatic thermostat Pump M CONTROL Boiler Fuse Push buttons Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification 06/07...
- Page 2 DISASSEMBLY- AND RE-ASSEMBLY ADVISE HD7810/70/B Disassembly information To remove the brew chamber lid cover handle as follows: Removing Brew chamber head handle as follows: - Place the screwdriver on the - Back cover and 3-way valve must be disassembled! positions (see picture 1) and - Place the appliance such a way that you are looking at the lift the cover over the snap boiler.
-
Page 3: Repair Instruction
REPAIR INSTRUCTION HD7810/70/B Descaling Regular descaling will prolong the life of your appliance and When the volume has to increase with 10 cc for example, will guarantee optimal brewing results for a long time. push the 2 cup button 3 times. The new value will be stored when you switch the •... -
Page 4: Parts List & Exploded View
PARTS LIST & EXPLODED VIEW HD7810/70/B Service code Description 4222 259 26550 Brewchamber assy complete Blue 4222 259 34680 Pad holder single Deep purple 4222 259 34730 Pad holder double Deep purple 4222 247 35760 Foam chamber cover Deep purple 4222 247 39540 Foam chamber 4222 240 06670... - Page 5 PARTS LIST & EXPLODED VIEW HD7810/70/B Service code Description Service code Description 4222 259 15890 Valve (3way) 4222 247 36640 Valve outlet Blue 4222 259 34870 Boiler assy compl. 230V 1400W 4222 247 39970 Back cover Blue 4222 259 11160 Temp.
