1 Disassembly

1.1

Process tools

Torque screwdriver, torx no.6 pre-set to 33 Ncm., front opening tool, side-opening tool
1.2

Instructions

#
1
2
3
4
3/000 21-1/FEA 209 544/21 D

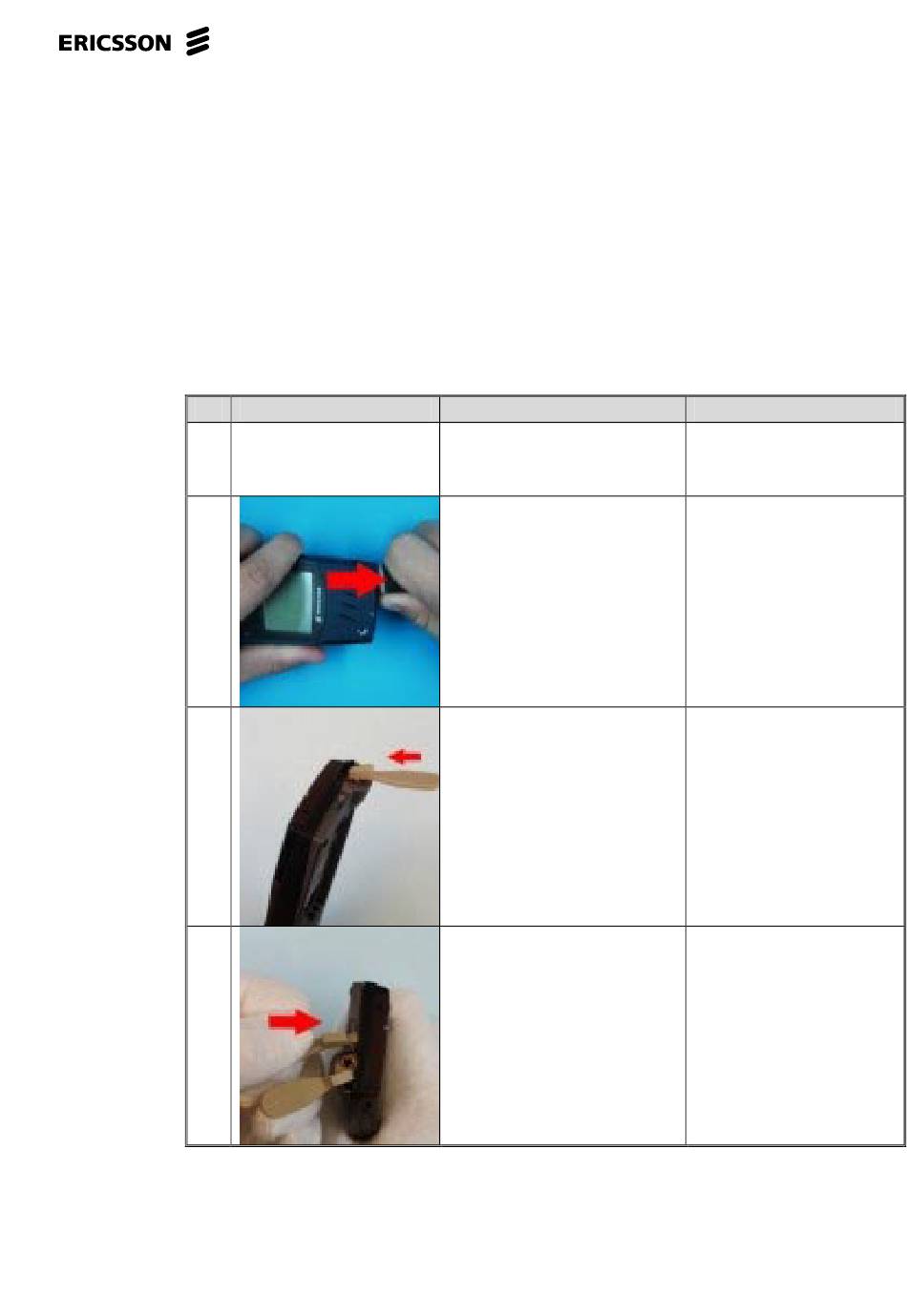

Figure Instruction
Remove the battery.
Remove the antenna by
waging laterally and pulling it
out from the phone
Slide in a top tool under the
front. Make sure that it's
pushed in to the stop on the
tool
Push in the other top tool right
beside of the antenna house.
Push until a snap is heard.
Remove the tool
Mechanical Working Instruction
Note
Keep all contact-
surfaces/display clean of
skin oil. Use gloves!
Do not break, the antenna
holder/connector may be
damaged.
Don't bend with the tool
just push.
