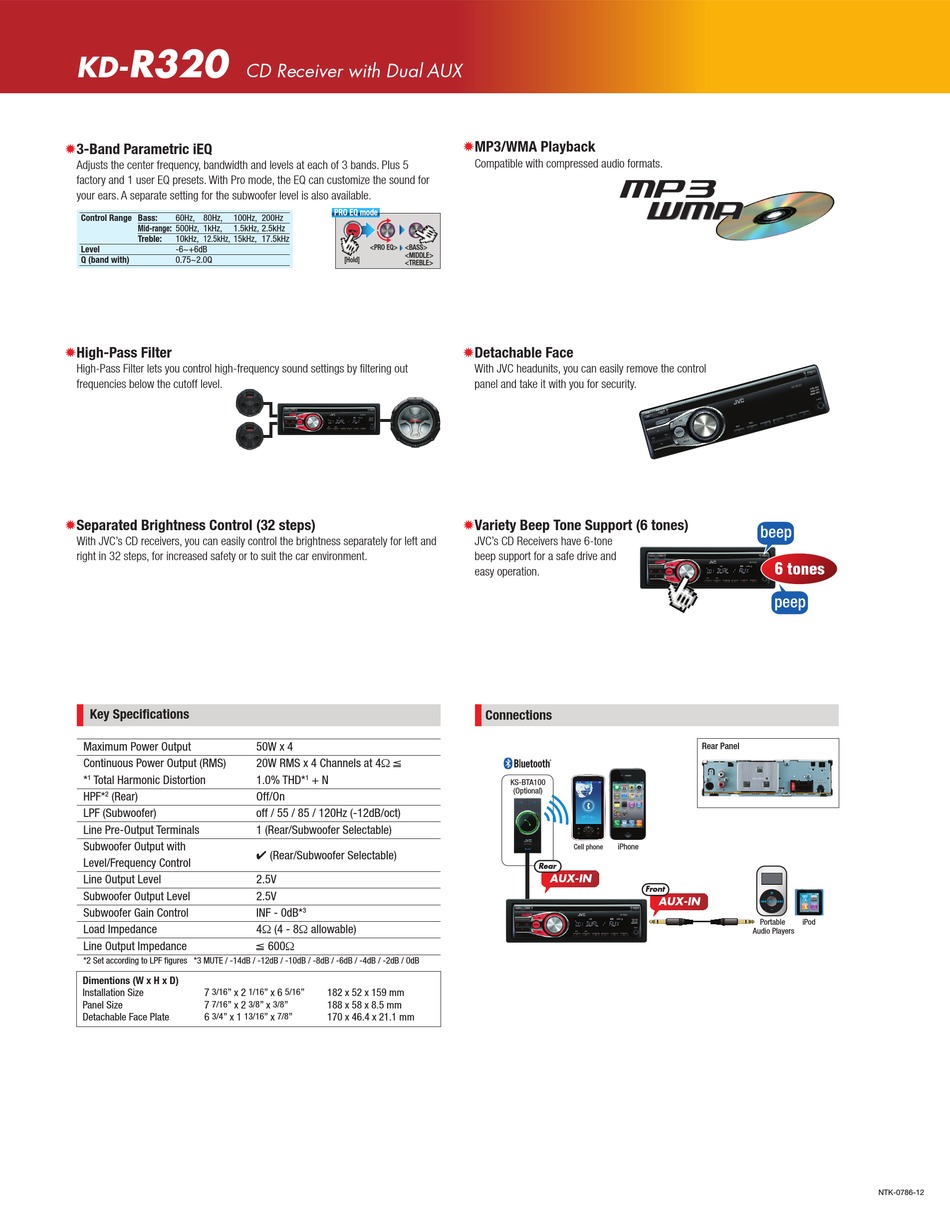

Detachable Face - JVC KD-R320 Specifications

R320
KD-
✹3-Band Parametric iEQ
Adjusts the center frequency, bandwidth and levels at each of 3 bands. Plus 5
factory and 1 user EQ presets. With Pro mode, the EQ can customize the sound for
your ears. A separate setting for the subwoofer level is also available.
Control Range Bass: 60Hz, 80Hz, 100Hz, 200Hz
Mid-range: 500Hz, 1kHz, 1.5kHz, 2.5kHz
Treble:
10kHz, 12.5kHz, 15kHz, 17.5kHz
Level -6~+6dB
Q (band with)
0.75~2.0Q
✹High-Pass Filter
High-Pass Filter lets you control high-frequency sound settings by filtering out
frequencies below the cutoff level.
✹Separated Brightness Control (32 steps)
With JVC's CD receivers, you can easily control the brightness separately for left and
right in 32 steps, for increased safety or to suit the car environment.
Key Specifications
Maximum Power Output
Continuous Power Output (RMS)
* Total Harmonic Distortion
1
HPF* 2 (Rear)
LPF (Subwoofer)
Line Pre-Output Terminals
Subwoofer Output with
Level/Frequency Control
Line Output Level
Subwoofer Output Level
Subwoofer Gain Control
Load Impedance
Line Output Impedance
*2 Set according to LPF figures *3 MUTE / -14dB / -12dB / -10dB / -8dB / -6dB / -4dB / -2dB / 0dB
Dimentions (W x H x D)
Installation Size 7 3/16 " x 2
Panel Size 7 7/16 " x 2
Detachable Face Plate 6 3/4 " x 1
CD Receiver with Dual AUX
PRO EQ mode
<PRO EQ> <BASS>
<MIDDLE>
[Hold]
<TREBLE>
50W x 4
20W RMS x 4 Channels at 4Ω ;
1.0% THD* + N
1
Off/On
off / 55 / 85 / 120Hz (-12dB/oct)
1 (Rear/Subwoofer Selectable)
✔ (Rear/Subwoofer Selectable)
2.5V
2.5V
INF - 0dB* 3
4Ω (4 - 8Ω allowable)
; 600Ω
1/16 " x 6 5/16 " 182 x 52 x 159 mm
3/8 " x 3/8 " 188 x 58 x 8.5 mm
13/16 " x 7/8 " 170 x 46.4 x 21.1 mm
✹MP3/WMA Playback
Compatible with compressed audio formats.

✹Detachable Face

With JVC headunits, you can easily remove the control
panel and take it with you for security.
✹Variety Beep Tone Support (6 tones)
JVC's CD Receivers have 6-tone
beep support for a safe drive and
easy operation.
Connections
KS-BTA100
(Optional)
iPhone
Cell phone
AUX-IN
beep
6 tones
peep
Rear Panel
AUX-IN
Portable iPod
Audio Players
NTK-0786-12
