- Page 1 EGE6172NOK User Manual...
-
Page 2: Table Of Contents
11. ENVIRONMENTAL CONCERNS..............20 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. - Page 3 ENGLISH of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a...
- Page 4 WARNING: The appliance and its accessible parts • become hot during use. Care should be taken to avoid touching heating elements. WARNING: Unattended cooking on a hob with fat or • oil can be dangerous and may result in fire.
-
Page 5: Safety Instructions
ENGLISH Where the appliance is directly connected to the • power supply, an all-pole isolating switch with a contact gap is required. Complete disconnection in compliance with the conditions specified in overvoltage category III must be guaranteed. The earth cable is excluded from this. When you route the mains cable, make sure that the •... - Page 6 2.3 Gas connection • Before carrying out any operation make sure that the appliance is disconnected from the power supply. CAUTION! • Make sure that the parameters on the When using a gas cylinder, rating plate are compatible with the...
- Page 7 ENGLISH • Fats and oil when heated can release CAUTION! flammable vapours. Keep flames or The use of a gas cooking heated objects away from fats and appliance results in the oils when you cook with them. production of heat, moisture •...
-
Page 8: Installation
• Do not let acid liquids, for example not use abrasive products, abrasive vinegar, lemon juice or limescale cleaning pads, solvents or metal remover, touch the hob. This can objects. cause matt patches. • Do not clean the burners in the •... - Page 9 ENGLISH WARNING! When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame! 3.3 Injectors replacement 1. Remove the pan supports. A. End of shaft with nut 2. Remove the caps and crowns of the B.

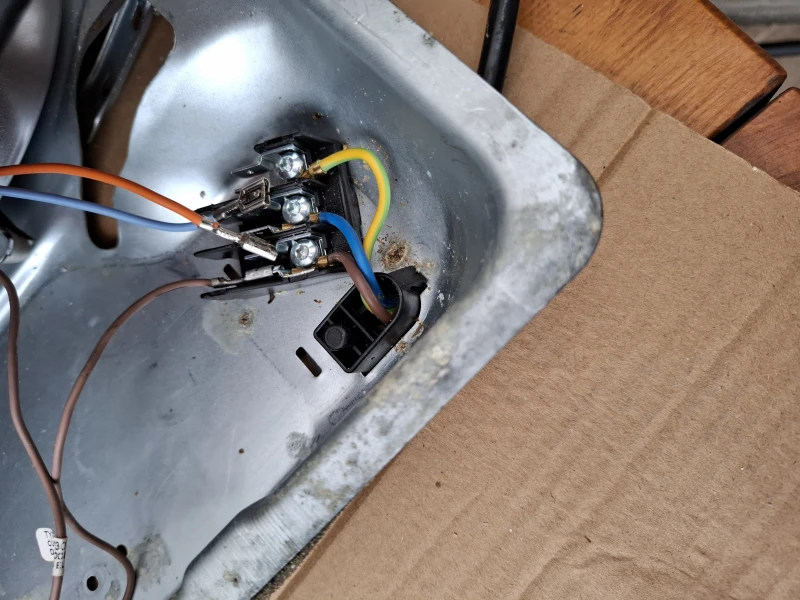

- Page 10 • from liquid gas to natural gas G20 wire must be approximately 2 cm longer 20 mbar, undo the bypass screw than the brown (or black) phase wire. approximately 1/4 of a turn. 3.7 Assembly WARNING! Make sure the flame does...
- Page 11 ENGLISH 3.8 Possibilities for insertion The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary. Kitchen unit with door min 6 mm min 30 mm A. supplied seal B.
-
Page 12: Product Description
4. PRODUCT DESCRIPTION 4.1 Cooking surface layout Residual heat indicator Rapid burner Semi-rapid burner Electric cooking zone Control knobs 4.2 Control knob Symbols Function Symbol Description 1 - 6 Heat settings no gas supply / off posi‐ Use the residual heat to... - Page 13 ENGLISH 5.1 Burner overview WARNING! Do not keep the control knob pushed for more than 15 seconds. If the burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute.
-
Page 14: Hints And Tips
5.4 Before first use 5.5 Examples of cooking applications Put a cookware containing water on each electric cooking zone, set the maximum position and operate the hob for 10 min. Heat Application: This is to burn off the residue in the set‐... -
Page 15: Care And Cleaning
ENGLISH 6.2 Diameters of cookware CAUTION! Make sure that pot handles Use cookware with are not above the front edge diameters applicable to the of the cooktop. size of burners. CAUTION! Burner Diameter of Make sure that the pots are cookware placed centrally on the (mm) -
Page 16: Troubleshooting
7.4 Cleaning the spark plug glass surface at an acute angle and move the blade on the surface. This feature is obtained through a • Remove when the hob is ceramic ignition candle with a metal sufficiently cool: limescale rings, electrode. -
Page 17: Technical Data
ENGLISH Problem Possible cause Remedy The flame extinguishes im‐ Thermocouple is not heat‐ After lightning the flame, mediately after ignition. ed up sufficiently. keep the knob pushed for equal or less than 10 sec‐ onds. The flame ring is uneven. Burner crown is blocked Make sure that the injector with food residues. - Page 18 Depth 510 mm 9.2 Bypass diameters BURNER Ø BYPASS 1/100 mm Rapid Semi-rapid 9.3 Other technical data Gas original: G20 (2H) 20 mbar 4,6 kW Gas replace‐ G30/G31 (3B/P) 30/30 mbar 334 g/h TOTAL POW‐ ment: Electric 3,0 kW zones: Electric sup‐...
-
Page 19: Energy Efficiency
For optimal cooking results use cookware not larger than the diameter of the cooking zone. 10. ENERGY EFFICIENCY 10.1 Product information according to EU 66/2014 Model identification EGE6172NOK Type of hob Built-in hob Number of electric cooking zones Heating technology per electric Radiant Heater cooking zone Diameter of circular electric cook‐... -
Page 20: Environmental Concerns
• Use the residual heat to keep the food • When the liquid starts to boil, turn warm or to melt it. down the flame to barely simmer the • Before you use the burners and pan liquid. support make sure they are •... - Page 24 www.electrolux.com/shop...
