Connecting to the PC Using EMUBOOST

3 Connecting to the PC Using EMUBOOST
3.1

CC31XXEMUBOOST

3.1.1 Overview
The CC31XXEMUBOOST is designed to connect the CC3100 module BoosterPack board to a PC using a
USB connection. This updates the firmware patches, which are stored in the serial flash, on the
BoosterPack; and in software development using SimpleLink Studio.
3.1.2 Hardware Details
14
CC3100MOD SimpleLink™ Wi-Fi® Network Processor Module BoosterPackSWRU396A – December 2014 – Revised September 2015
Hardware

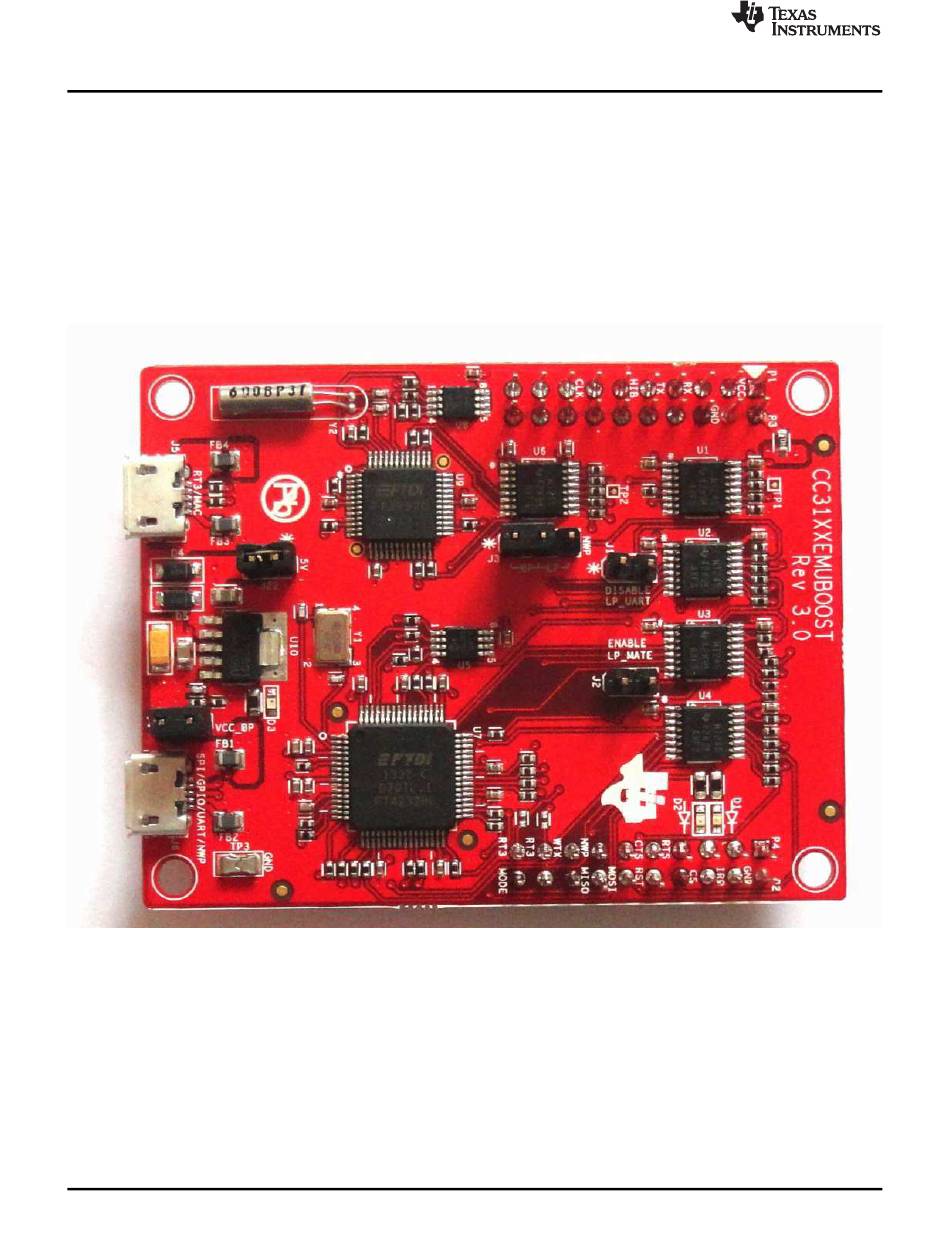

Figure 13. CC31XXEMUBOOST Board
