Applied Machines: PRO958/958/808/758
MFP: 95 ppm/80 ppm/75 ppm
Product Code: A796/A8KN/A795

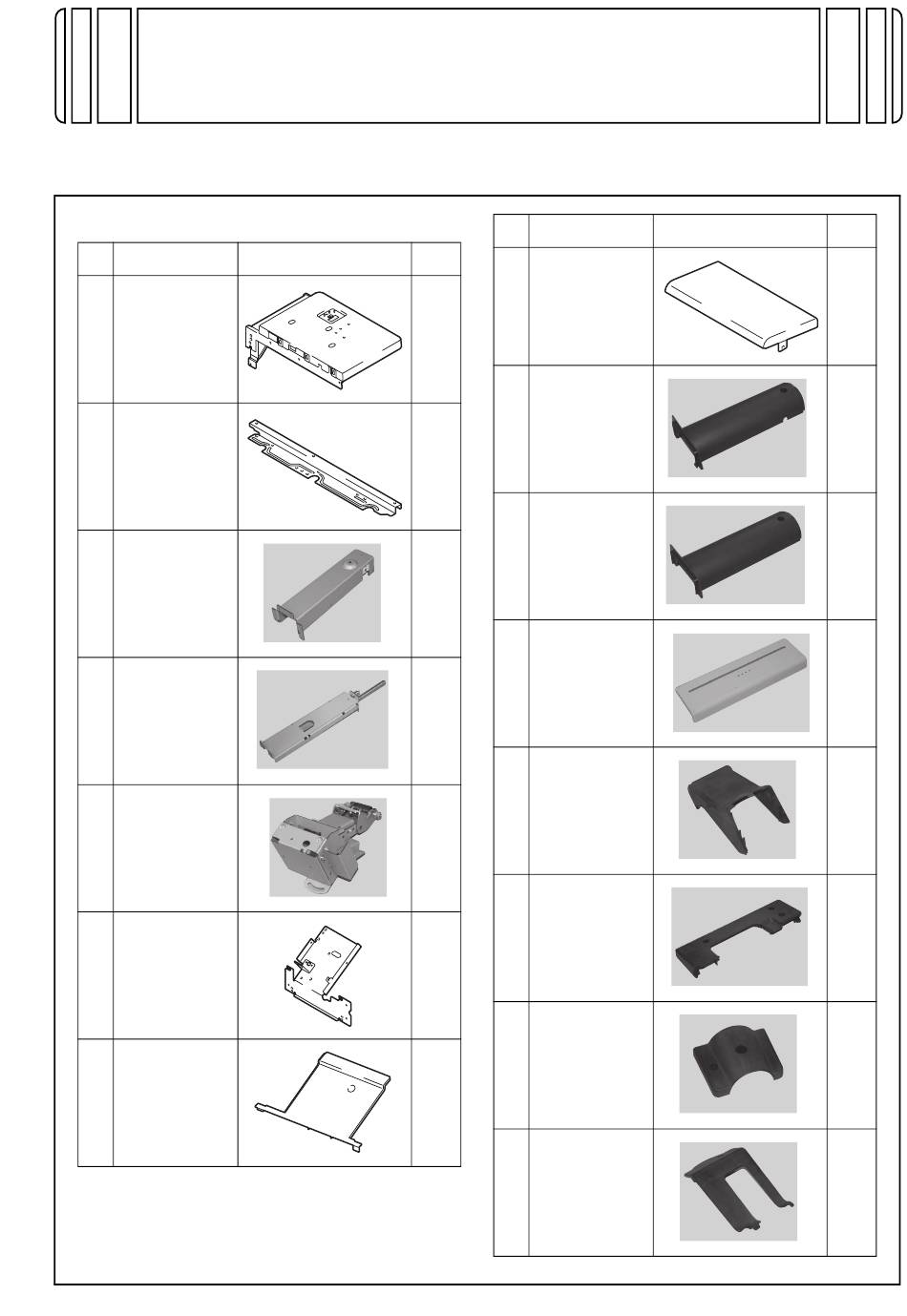

1. Accessory parts
No.
Name
1. Working table
2. Mounting plate
3. Bracket A
4. Bracket B
5. Bracket C
6. Bracket D
7. Cover A
WT-513
INSTALLATION MANUAL
Shape
Q'ty
1
1
1
1
1
1
1
Working Table
No.
Name
8. Cover B
9. Cover C
10. Cover D
11. Cover E
12. Cover F
13. Cover G
14. Cover H
15. Cover I
E-1
Shape
Q'ty
1
1
1
1
1
1
1
1
A8HC-9581-00
Advertisement
Related Manuals for Konica Minolta WT-513
Summary of Contents for Konica Minolta WT-513
- Page 1 WT-513 Working Table INSTALLATION MANUAL Applied Machines: PRO958/958/808/758 MFP: 95 ppm/80 ppm/75 ppm Product Code: A796/A8KN/A795 1. Accessory parts Name Shape Q’ty Name Shape Q’ty 8. Cover B 1. Working table 9. Cover C 2. Mounting plate 10. Cover D 3.
- Page 2 The cable is used when installing the Local Name Shape Q’ty Interface Kit EK-611. 16. Cable The hook-and-loop fasteners are used when installing the keyboard. This part is not used in this installation. 17. Shoulder screw Keep this bag away from babies and children.
-
Page 3: Installation Procedures
2. Installation procedures (6) Remove the connector of the control panel front cover. <Installing the working table> Note: (1) Turn OFF the power switch and unplug the Discard the removed cover. power cord from the power outlet. (2) Remove the working table and all other accesso- ries from the shipping carton and remove the protective tape and protective materials. - Page 4 (9) Remove the panel connector from the control (10) Remove the control panel upper cover. panel. (One screw) a) Unhook the tab and remove the top cover. Note: Discard the removed cover. b) Remove the panel connector. (11) Remove the control panel hinge cover. (One screw) c) Remove the cable tie from the control panel, and remove the cable from the harness guide.
- Page 5 (12) Remove the control panel from the machine. (14) Unhook the tab for the cover of the hinge part, (Six screws) and remove the cover. Note: Place the control panel unit with the touch panel facing downward on a soft cloth with care not to get any scratches.
- Page 6 (17) Remove the scanner front right cover. (21) Remove the upper left rear cover. (Two screws) (Seven screws) (18) Remove the three caps. (22) Remove the upper rear right cover. (Two screws) Note: Discard the removed screws and cover. (19) Remove the scanner rear cover. (Three screws) (23) Remove the scanner right cover.
- Page 7 (24) Remove the control panel cable from the edge (27) Remove the control panel cable from the three cover and the wire saddle. edge covers, then pull out the cable. Edge cover Edge cover Wire saddle (25) Remove the control panel cable from the edge (28) cover and 10 wire saddles.
- Page 8 (29) Install the supplied mounting plate. (32) Reinstall the right front cover removed in the (Four supplied screws C) step (8). (Three screws removed in step (8)) Note: Attach the cover to the same places from which the cover was removed in step (8) referring to the guide lines on the plate of the main body (30) Reinstall the scanner right cover.
- Page 9 (35) Attach the supplied cover B. (38) Remove the cap. (Three places) Note: Insert the tabs on the right side into the holes on the main body, and press the left side. (39) Insert the three shoulder screws attached in the step (30) into the three holes of the working table, then put the working table on.
- Page 10 (40) Fix the working table. (Three supplied screws A (43) and one supplied screw B) <Only when installing the Local Interface Kit EK- 611> Route the cable for the local interface kit as shown in the illustration. Screw A Screw B (41) Connect the control panel cable to the main body.
- Page 11 Note: (48) Attach the supplied cover D. When installing the Local Interface Kit EK-611, (One supplied screw D) pass its cable together with the cable above through the wire saddles and the edge cover. (49) Attach the bracket C to the control panel. (Two supplied screws E) (46) Attach the supplied bracket B.
- Page 12 (51) Attach the one supplied collar to the bracket B (54) Attach the panel connector to the control panel. attached in the step (46) at the position shown a) Connect the panel connector to the control in the illustration. panel. (52) Insert the control panel into the shaft.
- Page 13 d) Attach the supplied screw cap. (56) Attach the supplied cover E to the control panel. (Two supplied screws F) Note: Adjust the gap between the cover E and the con- trol panel using the four screws installed in step (50).
- Page 14 (59) Attach the supplied cover G to the control (62) Attach the supplied cover I. (One supplied panel. (Three supplied screws D) screw D) (60) Attach the control panel hinge cover removed in (63) Attach the cover removed in the step (14). the step (11).
- Page 15 <When installing the keyboard> (3) Route the keyboard connector cable through the hole made in step (1) and connect it to the (1) Remove the cap shown in the illustration from machine. the working table. Note: Route the extra length of the cable into the wire saddles located underside of the working table.
- Page 16 <When installing the biometric authentication <When installing the key counter mount kit> device> (1) Remove the working table. (Four screws) (2) Remove three shoulder screws that hold the (1) Remove the cap shown in the illustration from scanner right cover of the machine. the working table.
- Page 17 (6) Attach the scanner right cover. (Three shoulder (11) Remove the cap from the working table (at one screws, one screw, and one cap) place). Note: Run the harness through the hole made in step (3). (12) Attach the mounting plate that is included in the Key Counter Mount Kit to the working table.
-
Page 18: Configuration Procedures
3. Configuration procedures (14) Insert the harness into the wire saddles (at two places) located on the underside of the working <Software SW setting> table. Run the connector through the hole and remove the connector cover. (1) Plug the power cord into the power outlet and turn ON the power switch.
