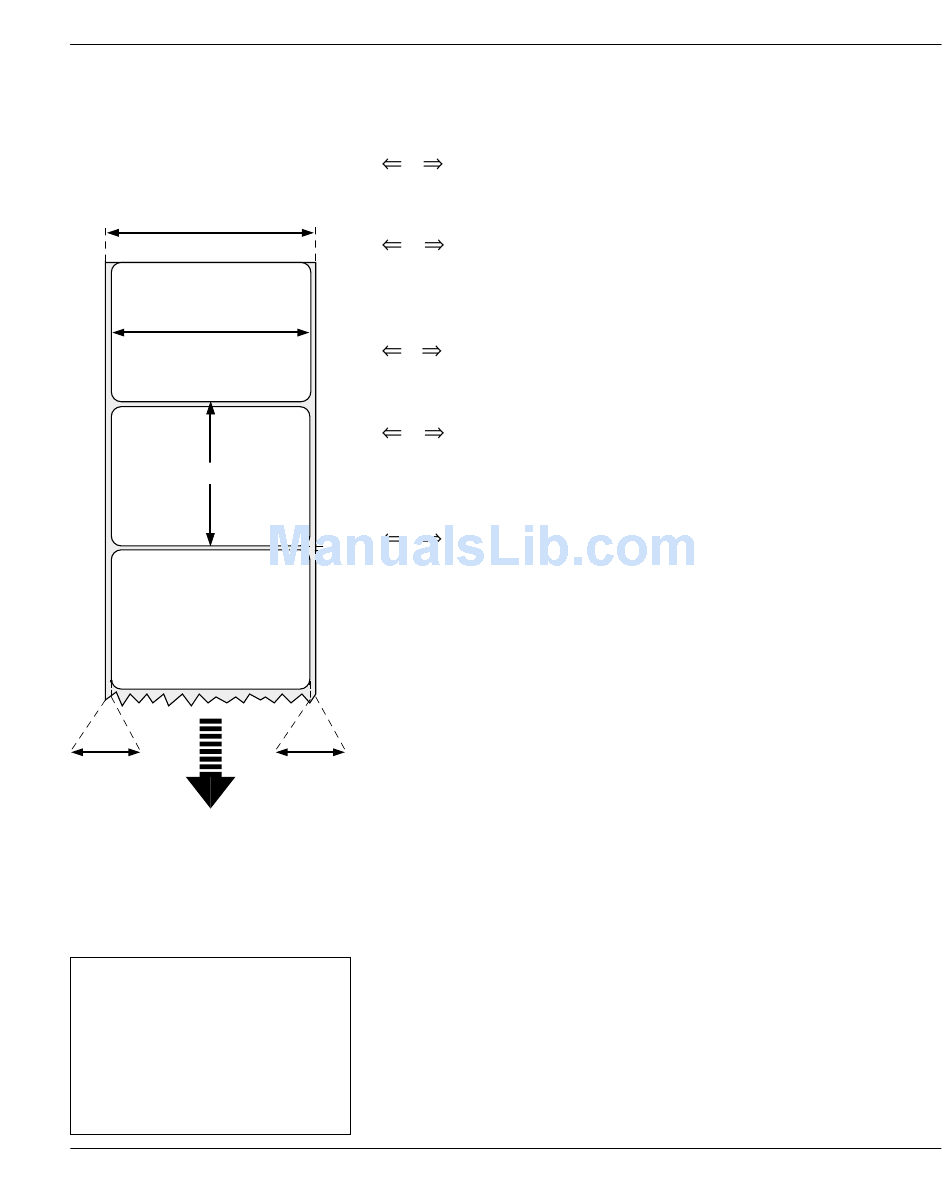

Self-Adhesive Labels

a
c
d
SELF-ADHESIVE
LABELS
b
FEED
DIRECTION
1
/. The last third of a label (or
the equivalent) cannot be used
for printing, that is, the maxi-
mum print length is 1250 mm
(49.2 inches) at 8 dots/mm and
833 mm (32.8 inches) at 11.81
dots/mm.
Intermec EasyCoder 501 S – Installation & Operation Ed. 1
a Media Width (including liner)
Maximum:
Minimum:
b Liner
The liner must not extend more than a total of 1.6 mm (0.06
inches) outside the labels and should protrude equally on both side.
Recommended min. transparency: 40% (DIN 53147).
c Label Width (excluding liner)
Maximum:
Minimum:
d Label Length
Maximum (8 dots/mm)
Maximum (11.81 dots/mm)
Minimum (all):
e Label Gap
e
Maximum:
Recommended:
Minimum:
The adjustable label stop sensor must be able to detect the extreme
front and rear edges of the labels. Therefore, do not use a larger inner
core radii than can be compensated for by adjusting the sensor's
position, that is, approximately 50 mm (1.97 inches).
b
Media Type Setup
• Label (w gaps)
Appendix 2 Media Specifi cations
120.0 mm
25.4 mm
118.4 mm
23.8 mm
1
: 1875 mm
1
: 1250 mm
10 mm
10.0 mm
1.6 mm
1.2 mm
(4.72 inches)
(1.00 inches)
(4.66 inches)
(0.94 inches)
(73.8 inches)
(49.2 inches)
(0.39 inches)
(0.39 inches)
(0.06 inches)
(0.05 inches)
