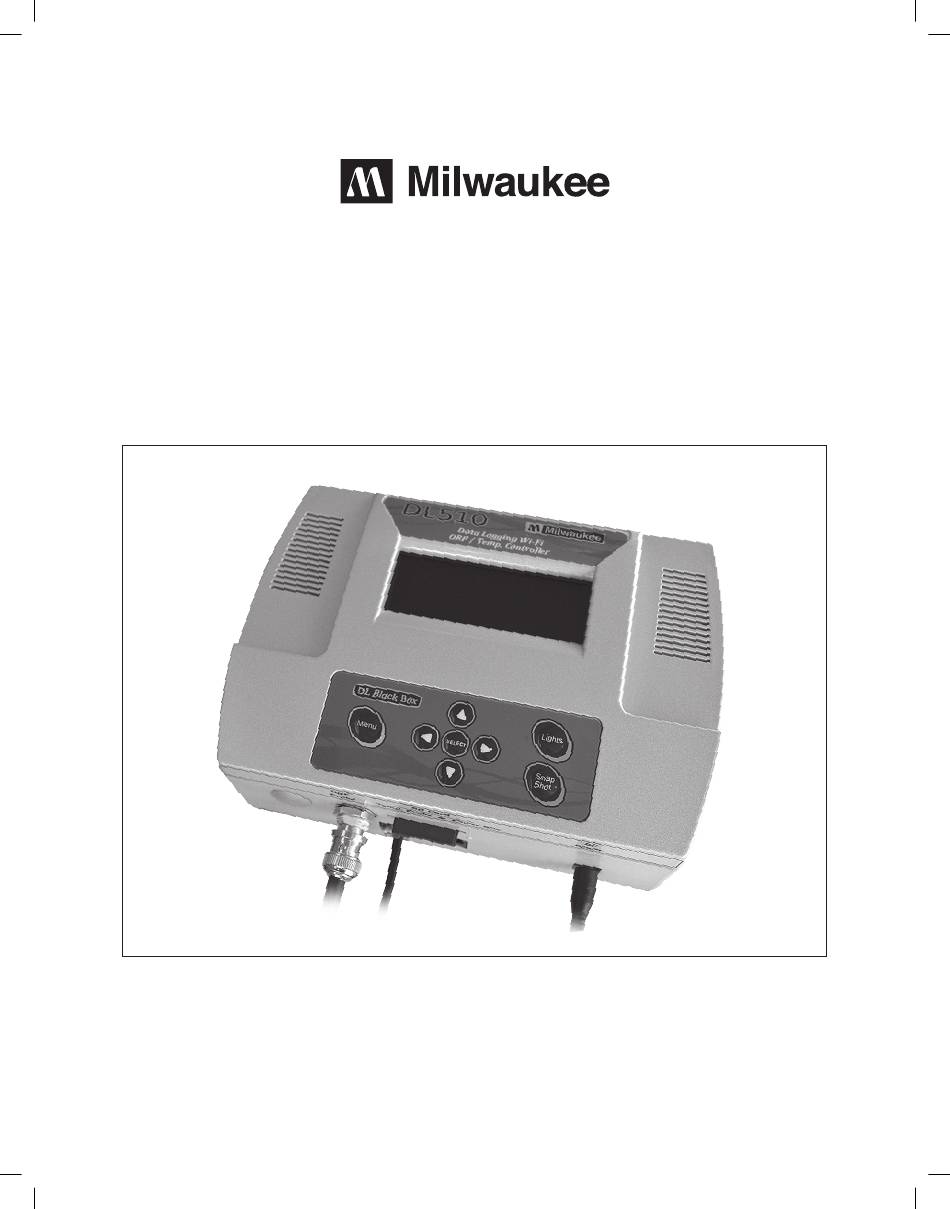

- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com DL510 BLACK BOX DATA LOGGING CONTROLLER ORP/Temperature Set Up / Operation Manual...
- Page 3 SAVED! In just a moment, the unit will revert to the previous screen. Milwaukee Instruments, designer and manufacturer of the DL510, recommends you read this manual from start-to- The Lights button allows you to turn off the screen and status finish, without skipping sections.
- Page 4 Please be sure to read Getting to Know the DL510, previous page, before beginning Basic Setup. Getting Started with Basic Setup Note that this unit displays in military time (24-hour); there is no am/pm option, that is, 9AM is 09:00 and 2:05PM is 14:05. This is a very important step, allowing you to enter the 10:30PM is 22:30.
- Page 5 IMPORTANT: When all ORP settings have been entered and frequently. saved, plug the controller power box into a 120VAC wall For most applications, Milwaukee Instruments recommends a socket or power supply. ORP devices must be plugged 30mV difference between the setpoint and the Caution alert into the bottom socket.
- Page 6 (except for Snap Shots); however, you should enter all Wi-Fi information with the unit in Wi-Fi Milwaukee Instruments recommends a wider interval, Disabled mode. Enable Wi-Fi as the last step, otherwise the unit typically 00:10:00 to 00:15:00. For most applications, this 10- to may begin uploading information before you finish entering it.
- Page 7 IMPORTANT: Do not open the Portal Service screen unless will be turned on. All session times must be the same length. you are instructed to do so by Milwaukee Instruments. If you 1) Press Menu button, scroll down to **IDC Setup**, and press accidentally open this screen, press MENU to back out.
- Page 8 sufficient time for Sessions/Day and Session Time you have programmed, the message on your screen will read: “Please enter valid Start and End Times. ” You will need to add more time between Start and End Times, if possible, or make adjustments in Session Time and/or Sessions/Day.
- Page 12 DL510 BLACK BOX SPECIFICATIONS Range Full ORP scale: -1000 mV to +1000 mV Resolution - Fixed 1 mV Accuracy @ 77°F 5 mV Setpoint Range Full ORP scale: -1000 mV to +1000 mV Activation Parameter User Select above or below activation setpoint Visual Alerts LED backlight blue = normal;...
