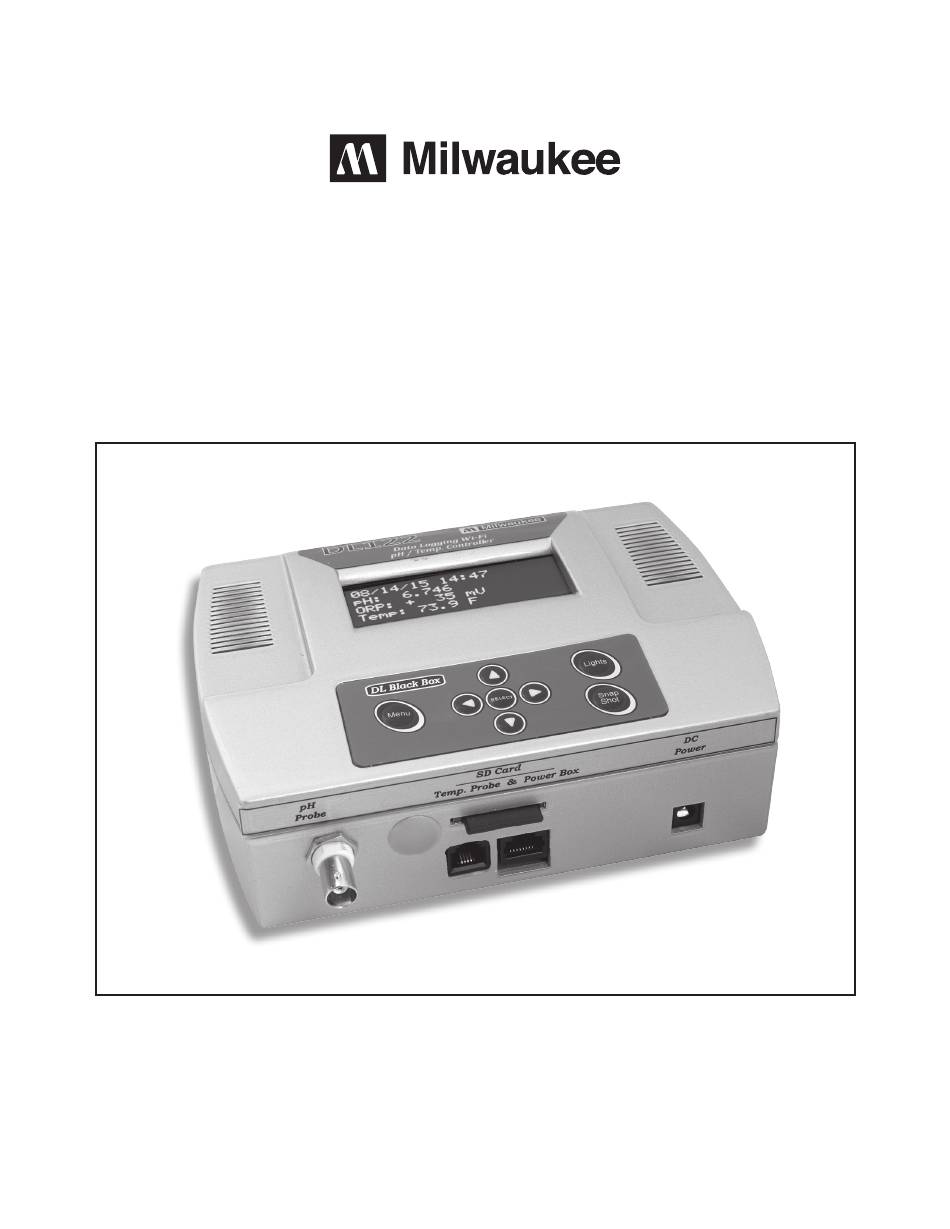

- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com DL122 BLACK BOX DATA LOGGING CONTROLLER pH/Temperature Set Up / Operation Manual...
- Page 3 “Exit” option. The “Exit” option, when selected, takes you back to the previous screen you were viewing. For 4) Connect one end of RJ45 power cable to the DL122 unit; the informational screens, there is no “Exit” option. Press SELECT to other end to the Controller power box.
-
Page 4: Setting Date And Time
Please be sure to read Getting to Know the DL122, previous page, before beginning Basic Setup. Getting Started with Basic Setup Note that this unit displays in military time (24-hour); there is no am/pm option, that is, 9AM is 09:00 and 2:05PM is 14:05. -
Page 5: Setting Calibration Points
SELECT. to stray either up or down, too alkaline or too acidic, but not in both directions. The DL122 may be set to detect readings either As an example, if you select 2 Point Calibration, a new screen ABOVE or BELOW the setpoint. - Page 6 120VAC wall don’t want the DL122 to be sending you alerts too frequently. socket or power supply. Note that pH devices to be controlled For most applications, Milwaukee Instruments recommends by pH value readings must be plugged into the top socket.
- Page 7 (except for Snap Shots); however, you should enter all Wi-Fi information with the unit in Wi-Fi Milwaukee Instruments recommends a wider interval, Disabled mode. Enable Wi-Fi as the last step, otherwise the unit typically 00:10:00 to 00:15:00. For most applications, this 10- to may begin uploading information before you finish entering it.
- Page 8 This screen will show upload interval, that is, how often the will not fit into the time that is available, the message on your DL122 sends new information to the portal. Five minutes is the screen will read: “Please enter a valid number of sessions per minimum upload interval.
- Page 9 Since pump efficiency, solution strength and viscosity, tubing diameter, and many other factors play a role in how long your pump should run, the DL122 is equipped with a flow calibration feature. 1) Press Menu button, scroll down to **IDC Setup**, and press SELECT.
- Page 12 DL122 BLACK BOX SPECIFICATIONS Range .001 pH to 14.000 pH Resolution - User Select Tenths (0.1 pH); Hundredths (0.01 pH); Thousandths (0.001) pH Accuracy @ 77°F 0.02 pH Setpoint Range Full pH scale 0.01 pH to 14.00 pH Activation Parameter...
