Related Manuals for iHome iHRK-500LTMS
Summary of Contents for iHome iHRK-500LTMS

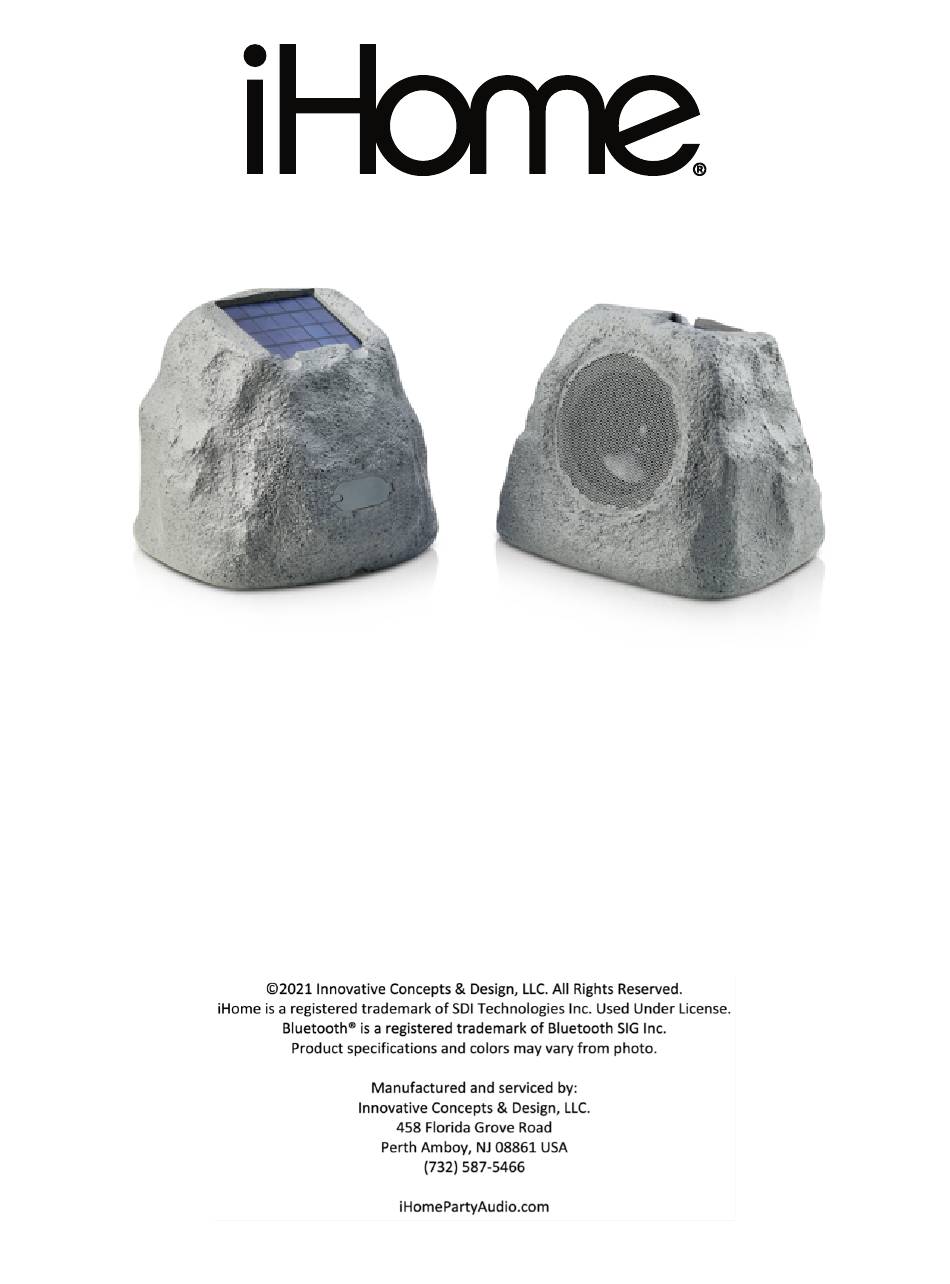

- Page 1 (Single Speaker) iHRK-500LTMS-PR (Boxed Pair) Waterproof Outdoor Bluetooth® LED Multi-Link Solar Rock Speakers...
-
Page 2: What's Included
What’s Included Please ensure that you find these accessories with your IHRK Bluetooth Speakers... - Page 3 PRECAUTIONS PLEASE READ THESE INSTRUCTIONS GIVEN IN THIS MANUAL AND THOSE MARKED ON THE UNIT This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing.
- Page 4 Battery charging 1 -To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture while charging. 2 - The apparatus should not be exposed to dripping or splashing; and objects filled with liquids, such as vases, should not be placed on or near it while being charged.
- Page 5 50 at a time! Place speakers all around your outdoor space and play them all at the same time with ease. The iHRK-500LTMS is the perfect solution for your outdoor wireless audio needs and is sure to impress your friends and neighbors...
- Page 6 VOICE PROMPTS: Broadcast Audio Enabled Broadcast Mode Enabled PAIRING Bluetooth Connected Bluetooth Disconnected About 40 percent battery remain About 60 percent battery remain About 80 percent battery remain 100 percent battery remain Battery Low...
- Page 7 RED - Speaker Battery is charging. and Speaker is playing. Off - Speaker Battery fully charged. 5.Bluetooth /Multi-Link LED 5.1 Bluetooth LED BLUE BLINKING - Attempting to Bluetooth pair. SOLID BLUE- Speaker has successfully paired via Bluetooth. BLUETOOTH PAIRING NAME: iHome iHRK-500LTMS...
-
Page 10: Specifications
SPECIFICATIONS PRODUCT: iHRK-500LTMS Active/Passive Active Amplifier Type (CLASS) Driver Size 5” Total Power (PEAK) Bluetooth BT5.0 – Range >10 Meters with Multi-Link Frequency Response 90Hz-12kHz Lighting Sensitivity & Impedance 86dB, 4Ω Waterproof Grade Rating IPX5 Enclosure Material Resonant-absorbing resin cabinet... - Page 11 Responsible Party Name: Innovative Concepts & Designs LLC Company address: 458 Florida Grove Road Perth Amboy, NJ, 08861 USA FCC Compliance Statement This device complies with Part 15 of the FCC Rules. The operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 12 LEGALITY & SAFETY The device is not intended for use by people (including children) with reduced physical, sensory or mental capacity. People who have not read the manual, unless they have received an explanation by someone responsible for their safety, should not use this unit. Children should be monitored to ensure that they do not play with the device.
-
Page 13: Warranty
WARRANTY A. Innovative Concepts & Designs LLC guarantees its products to be free from defects in materials and workmanship for one (1) year from the original purchase date. Exceptions: Laser assemblies on CD Players, batteries, cartridges, and crossfaders are covered for 90 days. B. -
Page 14: Qué Está Incluido
(altavoz único) iHRK-500LTMS-PR (par en caja) Altavoces de roca solar impermeables para exteriores Bluetooth® LED Multi-Link ¿Qué está incluido? Asegúrese de encontrar estos accesorios con sus altavoces Bluetooth IHRK Si un solo altavoz nos compró: Si se purchased como un par en caja:... - Page 15 Amplificador de clase D específicamente sintonizado para uso en exteriores y diseño de herramientas de gabinete personalizado. BATERÍA RECARGABLE El iHRK-500LTMS está equipado con una batería recargable de iones de litio de 2000 mAh. Cargue a través de un cable microUSB o el panel solar incorporado del altavoz.
- Page 16 LED COLOR FUNCIÓN ESTADO ROJO Carga Carga de la batería APAGADO Carga Totalmente cargado AZUL (Parpadeante) Bluetooth Intentar emparejar AZUL (Sólido) Bluetooth Emparejamiento exitoso AZUL-BLANCO Multienlace Ponente Maestro (Sólido) BLANCO Multienlace Intentar vincular a Master (Parpadeante) BLANCO (Sólido) Multienlace Vinculado a Master...
- Page 17 NOMBRE DE EMPAREJAMIENTO 3.Carga micro-USB 4.LED de carga BLUETOOTH: RED - La batería del altavoz se está iHome iHRK-500LTMS cargando. Apagado - Batería del altavoz completamente cargada. 5.Bluetooth / Multi-Link LED 5.1 LED Bluetooth PARPADEO AZUL - Intentando emparejar Bluetooth.
-
Page 20: Características Técnicas
CARACTERÍSTICAS TÉCNICAS PRODUCTO: iHRK-500LTMS Activo/Pasivo Activo Tipo de amplificador (CLASS) Tamaño del controlador 5" Potencia total (PICO) 30 W Bluetooth BT5.0 – Alcance >10 metros con MULTI-LINK Respuesta de frecuencia 90Hz-12 kHz Iluminación SÍ Sensibilidad e impedancia 86dB, 4Ω Clasificación de grado... -
Page 21: Ce Qui Est Inclus
(haut-parleur unique) iHRK-500LTMS-PR (paire en boîte) Haut-parleurs solaires multi-liens Bluetooth® LED extérieurs étanches Ce qui est inclus Assurez-vous de trouver ces accessoires avec vos haut-parleurs Bluetooth IHRK Si un seul haut-parleur que nous Si vous êtes catalogué comme une avons acheté... - Page 22 HAUT-PARLEUR EXTÉRIEUR PAR TOUS LES TEMPS Avec un indice de protection IPX5, l’iHRK-500LTMS est résistant à l’eau, spécialement conçu pour résister à la plupart des environnements. PAIRE DE HAUT-PARLEURS MULTIBRAUX ACTIFS Facile à...
- Page 23 COULEUR LED FONCTION STATUT ROUGE Charge Charge de la batterie Charge Entièrement chargé BLEU (clignotant) Bluetooth Tentative de jumelage BLEU (Solide) Bluetooth Jumelage réussi BLEU-BLANC (Solide) Multi-liens Haut-parleur principal BLANC (clignotant) Multi-liens Tentative de liaison vers Master BLANC (solide) Multi-liens Lié...
- Page 24 3.Charge micro-USB 4.LED de charge ROUGE - La batterie du haut-parleur est en NOM DU COUPLAGE BLUETOOTH : charge. iHome iHRK-500LTMS Désactivé - Batterie du haut-parleur complètement chargée. 5.Bluetooth / Multi-Link LED 5.1 LED Bluetooth CLIGNOTEMENT BLEU - Tentative de paire Bluetooth.
-
Page 27: Spécifications
SPÉCIFICATIONS PRODUIT: iHRK-500LTMS Actif/Passif Actif Type d’amplificateur (CLASS) Taille du pilote 5" Puissance totale (PEAK) Bluetooth BT5.0 – Portée >10 mètres avec MULTI-LINK Réponse en fréquence 90Hz-12kHz Éclairage Sensibilité et impédance 86 dB, 4Ω Indice de qualité IPX5 imperméable à l’eau Matériau du boîtier... - Page 28 (Einzellautsprecher) iHRK-500LTMS-PR (Boxed Pair) Wasserdichte Outdoor-Bluetooth-LED-Multi-Link-Rock- Lautsprecher Was ist inbegriffen Bitte stellen Sie sicher, dass Sie dieses Zubehör mit Ihren IHRK Bluetooth-Lautsprechern finden Wenn ein einzelner Lautsprecher uns Wenn als Box-Paar gejagt: gekauft hat: 2 x iHRK0500LTMS Lautsprecher 1 x iHRK0500LTMS Lautsprecher...
- Page 29 Der iHRK-500LTMS ist die perfekte Lösung für Ihre drahtlosen Audioanforderungen im Freien und wird Ihre Freunde und Nachbarn beeindrucken ALL WEATHER OUTDOOR LAUTSPRECHER Mit einer Schutzart von IPX5 ist der iHRK-500LTMS wasserdicht und wurde speziell für die meisten Umgebungen entwickelt. AKTIVES MULTI-LINK-LAUTSPRECHERPAAR Einfache Verbindung eines aktiven Master-Lautsprechers und mehrerer Slave-Lautsprecher für eine...
- Page 30 LED-FARBE FUNKTION STATUS Aufladung Aufladen des Akkus Aufladung Voll aufgeladen BLAU (Blinkend) Bluetooth Versuch der Kopplung BLAU (Solide) Bluetooth Kopplung erfolgreich BLAU-WEISS Multi-Link Master-Lautsprecher (durchgehend) WEISS (Blinkend) Multi-Link Versuch, eine Verbindung zum Master herzustellen WEISS (Solide) Multi-Link Verknüpft mit Master...
- Page 31 über Multi-Link gekoppelt wird. und Lautsprecher wird abgespielt. 3.Micro-USB-Aufladung 4.Lade-LED NAME DER BLUETOOTH-KOPPLUNG: ROT - Der Akku des Lautsprechers wird iHome iHRK-500LTMS aufgeladen. Aus - Lautsprecherakku voll aufgeladen. 5.Bluetooth / Multi-Link-LED 5.1 Bluetooth-LED BLAUES BLINZELN - Versuch der Bluetooth-Kopplung.
- Page 34 LEISTUNGSBESCHREIBUNG PRODUKT: iHRK-500LTMS Aktiv/Passiv Aktiv Verstärkertyp (CLASS) Treibergröße 5" Gesamtleistung (PEAK) 30 W Bluetooth BT5.0 – Reichweite >10 Meter mit MULTI-LINK Frequenzgang 90Hz-12kHz Beleuchtung Empfindlichkeit & Impedanz 86 dB, 4 Ω Wasserdichte Sorte IPX5 Gehäusematerial Resonanzabsorbierender Harzschrank Netzteil 5V USB + Solarladung...
- Page 35 (altoparlante singolo) iHRK-500LTMS-PR (coppia in scatola) Altoparlanti impermeabili da esterno Bluetooth® LED Multi-Link Rock Cosa è incluso Assicurati di trovare questi accessori con i tuoi altoparlanti Bluetooth IHRK Se un singolo altoparlante ci ha Se purchased come una coppia in...
- Page 36 Amplificatore di classe D specificamente sintonizzato per uso esterno e progettazione di utensili per armadi personalizzati. BATTERIA RICARICABILE L'iHRK-500LTMS è dotato di una batteria ricaricabile agli ioni di litio da 2000 mAh. Ricarica tramite cavo microUSB o pannello solare integrato nell'altoparlante.
- Page 37 COLORE LED FUNZIONE STATO ROSSO Caricamento Ricarica della batteria SPENTO Caricamento Completamente carico BLU (lampeggiante) Collegamento Tentativo di associazione Bluetooth BLU (Solido) Collegamento Accoppiamento riuscito Bluetooth BLU-BIANCO Multi- Altoparlante principale (Solido) collegamento BIANCO Multi- Tentativo di collegamento al (lampeggiante) collegamento Master BIANCO (Solido) Multi-...
- Page 38 Speaker sta suonando. 10 minuti se non viene riprodotto alcun audio. NOME DI ASSOCIAZIONE BLUETOOTH: 3. Ricarica micro-USB 4. LED di ricarica iHome iHRK-500LTMS ROSSO - La batteria dell'altoparlante è in carica. Spento - Batteria dell'altoparlante completamente carica. 5.Bluetooth / LED multi-link 5.1 LED Bluetooth...
- Page 41 INDICAZIONI PRODOTTO: iHRK-500LTMS Attivo/Passivo Attivo Tipo di amplificatore (CLASS) Dimensione del driver 5" Potenza totale (PEAK) Collegamento Bluetooth BT5.0 – Portata >10 Metri con MULTI-LINK Risposta in frequenza 90Hz-12kHz Illuminazione SÌ Sensibilità e impedenza 86dB, 4Ω Valutazione del grado IPX5 ·...
-
Page 42: Wat Is Inbegrepen
(enkele luidspreker) iHRK-500LTMS-PR (Boxed Paar) Waterdichte Outdoor Bluetooth® LED Multi-Link Rock Speakers Wat is inbegrepen Zorg ervoor dat u deze accessoires vindt met uw IHRK Bluetooth-luidsprekers Als een enkele luidspreker ons heeft Indien purchased als een boxed gekocht: paar:... - Page 43 Bluetooth-apparaat®. Met de Multi-link-functie kunt u meerdere luidsprekers draadloos koppelen, tot 50 tegelijk! Plaats luidsprekers overal in uw buitenruimte en speel ze allemaal tegelijkertijd met gemak af. De iHRK-500LTMS is de perfecte oplossing voor uw draadloze audiobehoeften buitenshuis en zal zeker indruk...
- Page 44 LED KLEUR FUNCTIE STATUS ROOD Opladen Batterij opladen Opladen Volledig opgeladen BLAUW (knippert) Bluetooth- Proberen te koppelen netwerk BLAUW (effen) Bluetooth- Koppelen succesvol netwerk BLAUW-WIT (Effen) Multi-link Hoofdluidspreker WIT (knippert) Multi-link Proberen te linken naar Master WIT (effen) Multi-link Gekoppeld aan Master...
- Page 45 Multi-link audio wordt afgespeeld. nl Speaker speelt. 3.Micro-USB opladen 4.Charging LED BLUETOOTH-KOPPELINGSNAAM: ROOD - De batterij van de luidspreker iHome iHRK-500LTMS wordt opgeladen. Uit - Luidspreker batterij volledig opgeladen. 5.Bluetooth / Multi-Link LED 5.1 Bluetooth-LED BLAUW KNIPPEREN - Probeert Bluetooth te koppelen.
- Page 48 SPECIFICATIES PRODUCT: iHRK-500LTMS Actief/Passief Actief Type versterker (CLASS) Grootte bestuurder 5" Totaal vermogen (PEAK) 30 W Bluetooth-netwerk BT5.0 – Bereik >10 meter met MULTI-LINK Frequentiebereik 90Hz-12kHz Verlichting Gevoeligheid & Impedantie 86dB, 4Ω Waterdichte grade rating Ipx5 Materiaal behuizing Resonantie-absorberende harskast...
