LMK1B Series - Installation and User Guide

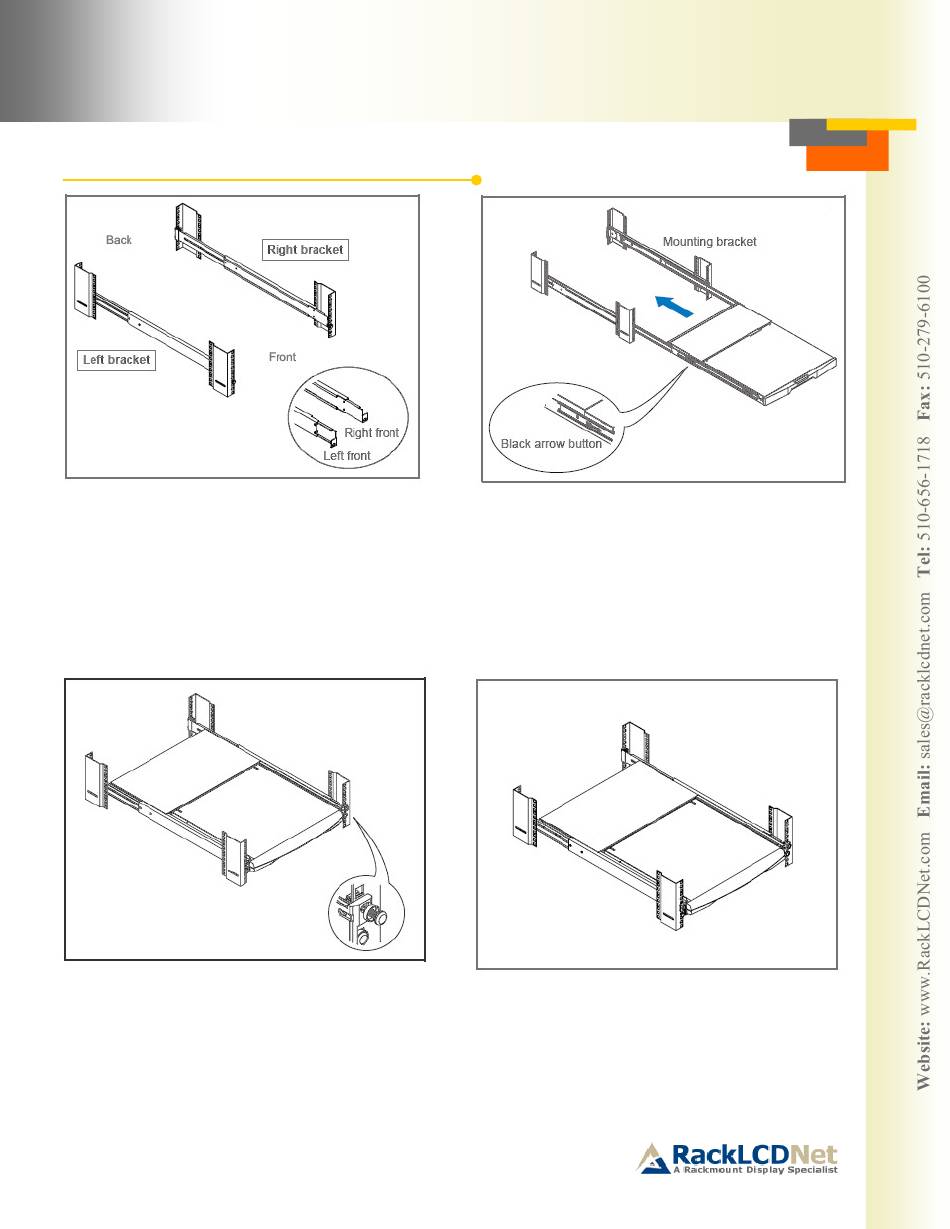

To Install the Mounting Brackets and LCD Keyboard Drawer
To use the screw and cup washer to attach the left and
•
right bracket to mounting rails in a 19" rack
Adjust the rear mounting bracket to fit the rack
•
Remember to leave the screws slightly loose before
•
you complete the last step
Use the screw and cup washer to attach the front left
•
and right mounting ears of the drawer to the vertical
mounting rails
Insert the drawer into the mounting bracket
•
Pull and hold the left and right black arrow buttons on
•
the rails
Return the drawer to the park position
•
Complete the installation by tightening all screws.
•
