LMK1L20 Series - Installation and User Guide

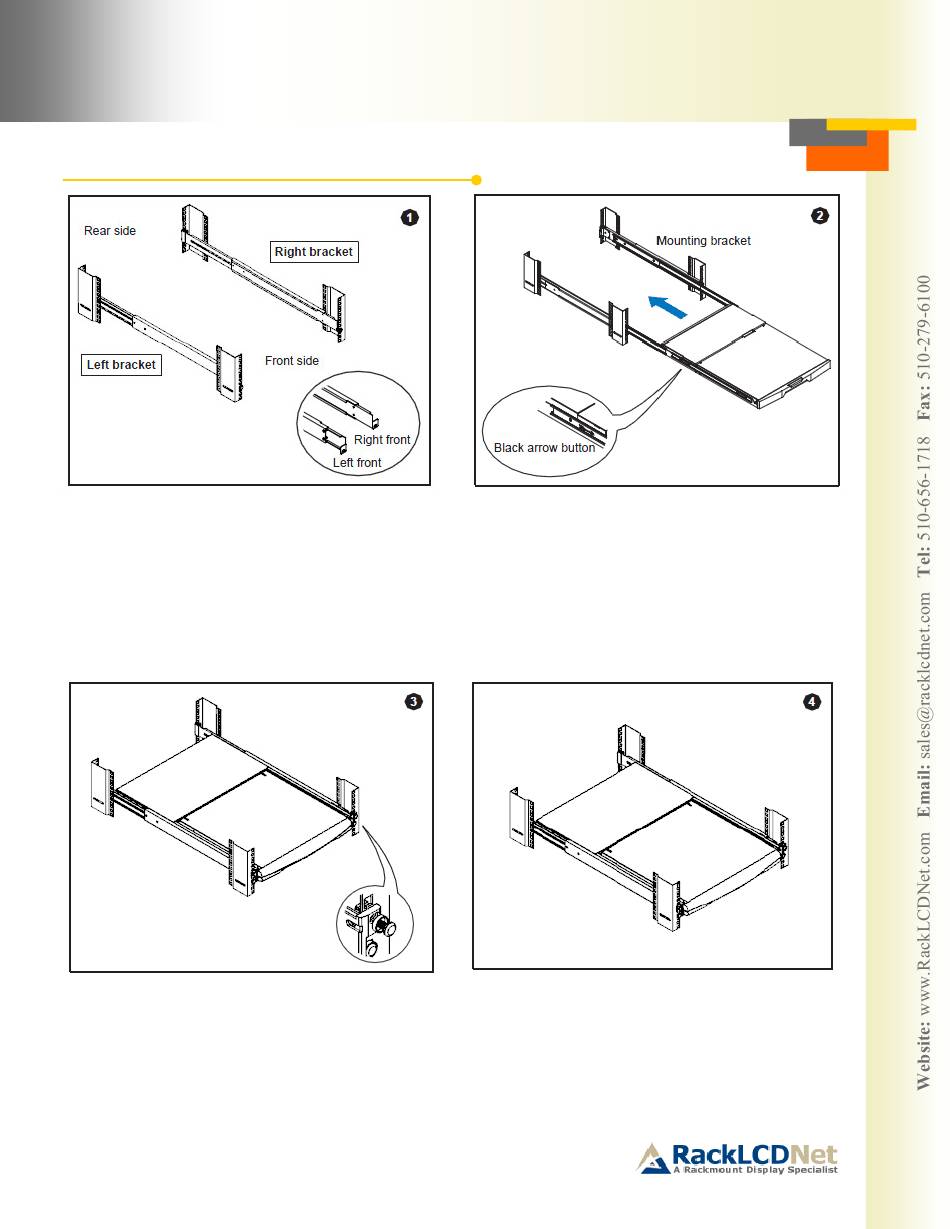

To Install the Mounting Brackets and LCD Keyboard Drawer
Attach the left and right mounting bracket to 19" rack
•
mounting rails
Adjust the rear mounting bracket to fit your rack
•
M6 screw and cup washer x 6pcs included
•
Remember to leave the screws slightly loose until you
•
complete the installations
Attach front left and right mounting ears of the LCD
•
keyboard drawer to vertical mounting rails
M6 screw and cup washer x 2 pcs included
•
Pick up the LCD keyboard drawer
•
Insert the LCD keyboard drawer into the mounting
•
bracket
Pull and hold the left & right black arrow buttons on
•
the rails
Return the LCD keyboard drawer to park position
•
Tighten all 8 pcs of M6 screw to complete the installa-
•
tion
