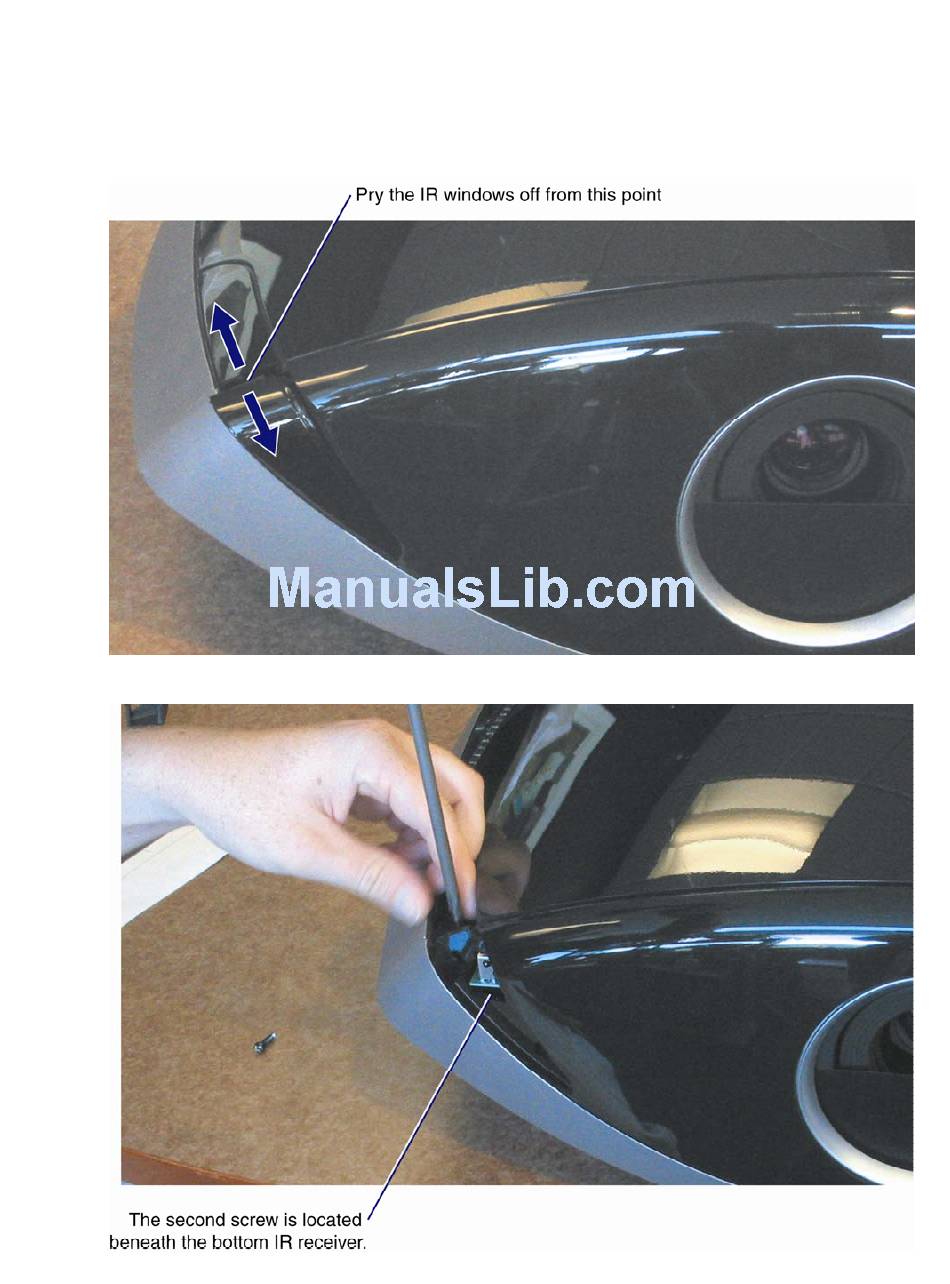

- Page 1 Remove and replace the projector lens Remove the two IR windows on each side of the projector. To remove the covers, gently pry one end up, then lift the window off. Remove the two screws adjacent the IR receivers on each side of the projector.
- Page 2 Note that you need to remove the windows and screws from the other corner too. Pull the front bezel off of the projector.
- Page 3 Remove the screw that fastens the retainer clip to the interior lens ring. Then lift the clip out of its slot. Retainer clip To remove the lens ring, slide it downward so that the bottom retaining clip clears the zoom and focus motor housing.
- Page 4 Use an Allen wrench to remove the three screws that fasten the lens assembly to the optical engine. Then carefully pull the lens out of the projector. Install the new lens, and reassemble the projector.
